VRSF E90 335i, E82 135i, X1 N55 Downpipe | 2011-2015

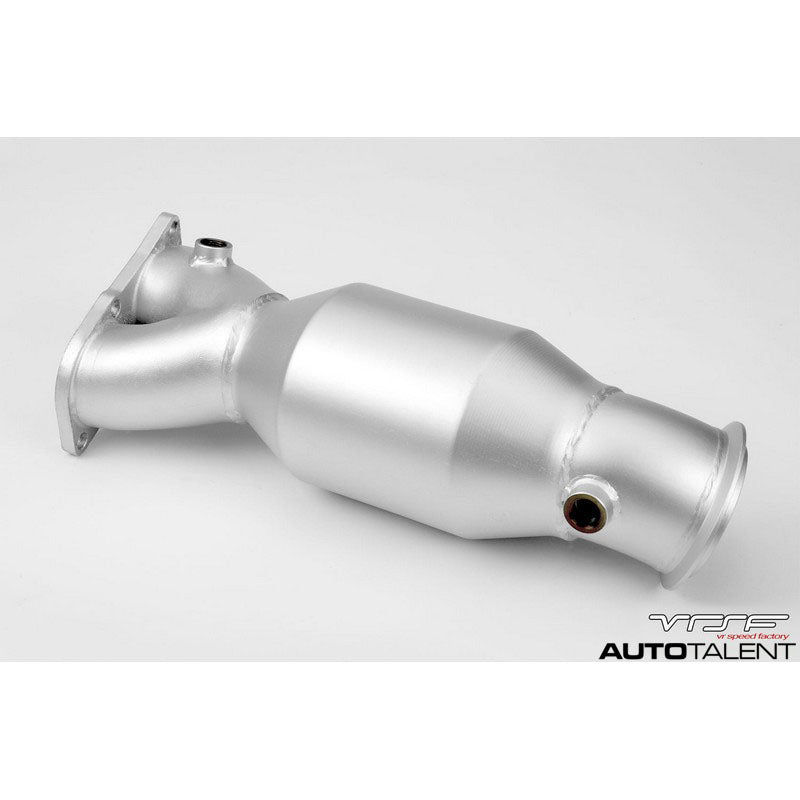

The VRSF 3.5-inch downpipe replaces the factory downpipe on E-chassis BMWs with the single-turbo N55 engine: the 335i sedan, coupe and convertible, the E82 135i and the E84 X1 xDrive35i. The race version now comes with Cerakote ceramic coating at no extra cost, and a high-flow catted version is also offered.

What It Does

The factory N55 downpipe carries a large converter right after the turbo. Removing that restriction lets the turbo spool faster and makes the car pull harder, with VRSF citing 25 to 30 hp with a tune. The catted version uses a 200-cell high-flow converter, and VRSF's dyno testing showed about 20 bhp over stock with it.

Materials and Construction

The pipe is hand crafted and TIG welded from 3.5-inch 304 stainless steel with a flow-modeled cast stainless merge collector and smooth radius bends. The flanges are CNC machined from 304 stainless. The Cerakote thermal barrier keeps heat inside the exhaust and out of the engine bay, which helps lower intake air, coolant and transmission temperatures. Gaskets and mounting hardware are included.

Features

• 3.5in 304 stainless steel, hand TIG-welded
• Cast stainless merge collector
• Cerakote ceramic coating included on the race version
• 200-cell high-flow catted option
• Gaskets and hardware included
• Fits LHD and RHD cars

What Is Included

• VRSF N55 3.5in downpipe (race or catted)
• Gaskets
• Mounting hardware

Required Parts

• An engine tune is needed to run either version without fault codes.
• A new turbo gasket and V-band clamp are recommended if yours have more than about 60,000 miles. Both are add-ons above.

Specs

• Part numbers: 10902015 (race, ceramic coated), 10902016 (high-flow catted)
• Brand: VRSF
• Material: 304 stainless steel, TIG-welded
• Pipe diameter: 3.5 in
• Catalyst: none (race) or 200-cell high flow (catted)
• Shipping dimensions: 16 x 7 x 6 in (41 x 18 x 15 cm) for the race version; 20 x 8 x 7 in (51 x 20 x 18 cm) for the catted version
• Shipping weight: 7 lb (3.2 kg) for the race version; 14 lb (6.4 kg) for the catted version

Fitment Notes

• N55 engines only. N54 cars need the VRSF N54 downpipes.
• Lifetime warranty on the downpipe; 1-year warranty on the ceramic coating and the catted converter.
• Race downpipes remove the catalytic converters and are sold for off-road and competition use only. A tune is needed to run them without fault codes.
