Active Autowerke E46 Methanol Injection Kit

Superchargers and turbos make boost, but they also make heat, and a heat-soaked engine gives back the power you paid for. The Active Autowerke methanol-water injection kit for the E46 323i, 325i, 328i, 330i and M3 cools the intake charge to fight that heat soak, and the mix raises the knock limit as a safeguard against detonation at high boost.

This is a model-specific kit for the E46, not a generic universal system.

What It Does

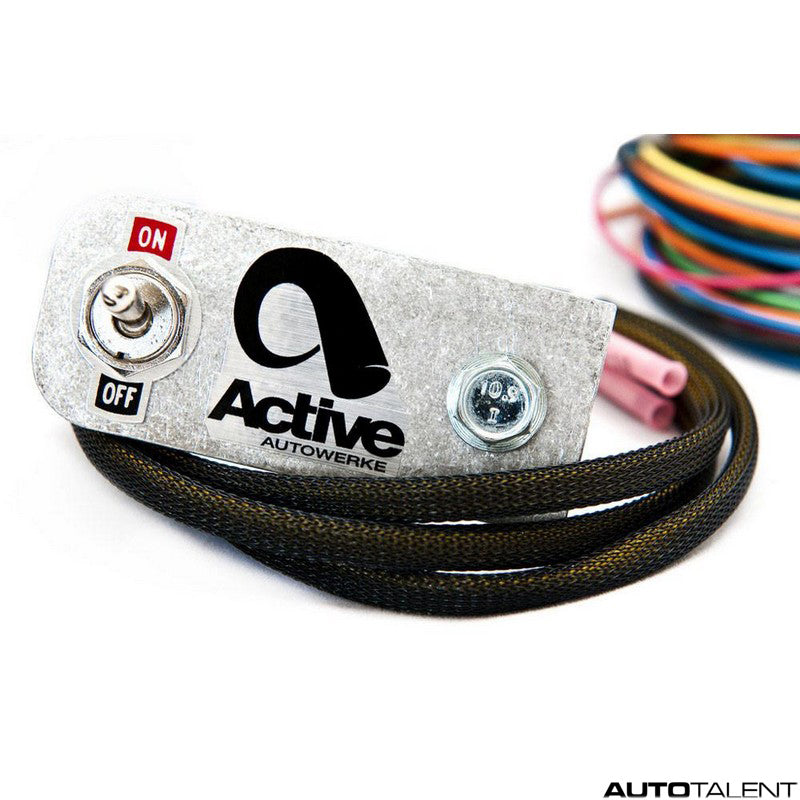

Its own electronic module monitors boost pressure and meters the methanol-water mix to match engine load and demand, and the settings can be adjusted later if your setup changes. The reservoir sits in the trunk, as far from engine and exhaust heat as it can be, so the fluid is not heated before it is used. Active Autowerke tested the system on its own 500+ hp turbo and supercharged cars.

Materials and Construction

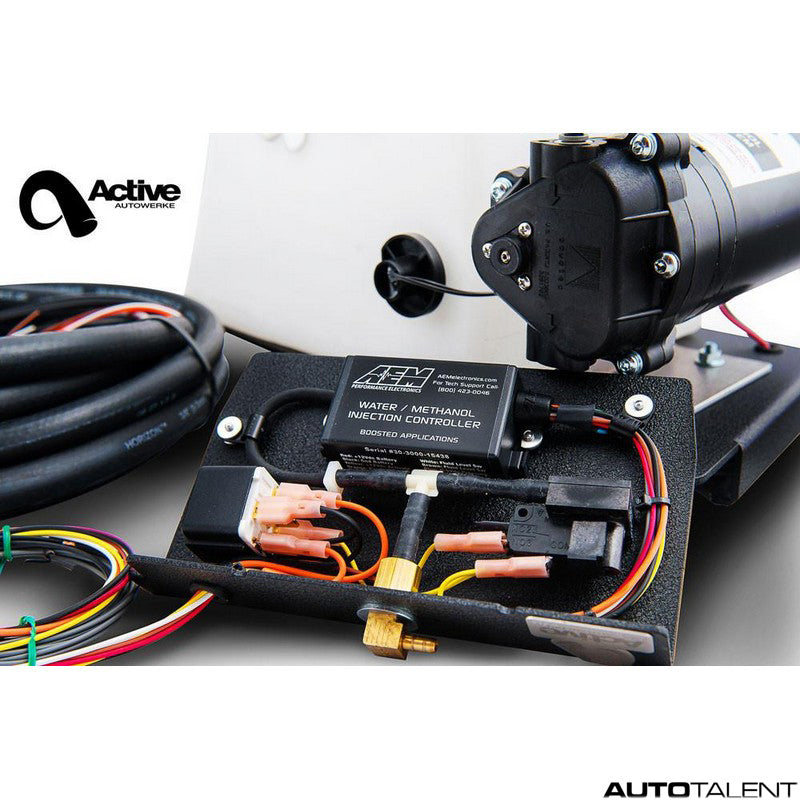

A 1.8+ gallon reservoir with an inline filter and low pickup tube sits on a rigid mount with spring-loaded quick releases, so it can be removed easily. A high-volume pump suited to methanol feeds the nozzle, and the hose and wiring run inside protective sleeving.

Features

• Model-specific kit
• Electronic controller meters flow to boost and load
• Adjustable settings
• Trunk-mounted 1.8+ gal tank with quick releases
• Inline filter and low pickup tube
• High-volume methanol-rated pump
• Sleeved hose and wiring

Specs

• Part number: 14-003
• Brand: Active Autowerke
• Type: methanol-water injection kit
• Reservoir: 1.8+ gallon, trunk mounted
• Shipping weight (Active Autowerke): 16 lb (7.3 kg)

Fitment Notes

• Intended for supercharged or turbocharged cars.
• Methanol and water are not included.
• Active Autowerke fitment applies to US-model cars only.
• Questions before you order? Call or text (310) 231-0292 or email Online@AutoTalent.com.
• See the full Active Autowerke line for more parts for your car.

FAQ

Is fluid included?
No. You supply the methanol-water mix.

Where does the tank go?
In the trunk, away from engine and exhaust heat.

Can the settings be changed?
Yes. The controller can be re-adjusted.
