Active Autowerke E9X M3 Rotrex Supercharger Level 4

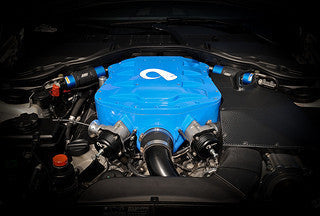

The Active Autowerke Level 4 supercharger system for the E90, E92 and E93 M3 is built around a Rotrex C38-92R supercharger on a custom CNC bracket with its own dedicated drive belt. Its supercharger plenum replaces the factory airbox, has eight high-flow velocity stacks and an OEM-style look, and is fed through large 3 in intercooler piping from a front-mount air-to-air intercooler. Active Autowerke quotes the most power of the range, with water-methanol and an upgraded pulley. The Level 4 system steps up to the C38-92R and adds water-methanol injection, an upgraded pulley and custom software.

The standard plenum finish is matte wrinkle black; custom colors are available at extra cost.

What It Does

The supercharger has its own oil system with an independent cooler, and eight high-capacity Bosch Motorsport injectors supply the extra fuel. Active Autowerke performance software for the MSS60 ECU is calibrated for 91-93 octane, race fuel or other fuel grades, and is designed for consistent everyday driving. A custom intake box around the filter pulls cool air in a factory-style layout. Active Autowerke recommends a high-flow or no-cat mid section and addressing rod bearing condition on the S65 before any modification.

What Is Included

• AA E9X M3 supercharger plenum with eight velocity stacks
• Rotrex C38-92R supercharger
• AA blow-off valves and bypass valve
• Dedicated eight-rib belt drive system
• Eight high-capacity Bosch Motorsport injectors
• AA performance software for the MSS60 ECU
• CNC hard-anodized brackets and hardware
• AA front-mount air-to-air intercooler
• Independent supercharger oil cooler
• Cold air intake box and AA-spec filter
• AA oil breather system and A/N oil lines
• All mounting hardware and step-by-step manual

Specs

• Part number: 12-032
• Brand: Active Autowerke
• Type: intercooled centrifugal supercharger kit, Level 4
• Supercharger: Rotrex C38-92R
• Engine: BMW S65 4.0L V8
• Fuel: 91-93 octane, 98 RON or race fuel calibrations
• Warranty: 1 year on supercharger kit components
• Shipping weight (Active Autowerke): 125 lb (56.7 kg)

Fitment Notes

• Active Autowerke requires installation by an approved Active Autowerke dealer to keep all warranties.
• Kits can take up to 6 weeks to build; call to confirm.
• Address S65 rod bearing condition before installing.
• Active Autowerke fitment applies to US-model cars only.
• Questions before you order? Call or text (310) 231-0292 or email Online@AutoTalent.com.
• See the full Active Autowerke line for supporting exhaust and drivetrain parts.

FAQ

Can the plenum be colored?
Yes. Black is standard; custom colors cost extra.

Who must install it?
An approved Active Autowerke dealer, to keep the warranty.

Which M3 body styles?
E90 sedan, E92 coupe and E93 convertible.
