AMS DL800 transmission titanium hardware kit for the Audi R8 and Lamborghini Huracan

}

AMS DL800 Transmission Titanium Hardware Kit | Audi R8 / Lamborghini Huracan

Ask an expert

Brand: AMS PerformanceSKU / Part #: ALP.37.03.0003-1

Regular price: $535.45
Regular price: ~~$594.95~~
Sale price: $535.45
Unit price: per

Apply at checkout

Subtotal: $535.45

Quantity:

AMS DL800 Transmission Titanium Hardware Kit | Audi R8 / Lamborghini Huracan

Subtotal: $535.45

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AMS Performance R8/Huracan DL800 Transmission Titanium Hardware Kit replaces the stretch-prone OEM aluminum bolts. Over time the factory bolts stretch and loosen, which lets oil leak from the transmission; beyond the mess, a neglected leak can lead to transmission damage.

The kit uses aerospace grade 6Al-4V (Grade 5) titanium and ARP 4130 chromoly steel. It is light with high tensile strength, and unlike the OEM torque-to-yield aluminum bolts that must be replaced once removed, it can be reused. AMS calls it the most complete bolt kit available.

It covers the transmission to engine bolts, oil pan and sump bolts, mechatronic cover bolts, basket mounting bolts, end plate bolts, half shaft mounting bolts, external and internal mid plate bolts, and ARP differential cover bolts. All but two bolts install with the transmission in the car; the two internal mid plate bolts need the case apart, so AMS recommends fitting those during a transmission build or repair.

Features

Grade 5 6Al-4V titanium
ARP 4130 chromoly diff cover bolts
Fixes leaking transmission cases
Reusable, unlike OEM TTY bolts
Most complete kit available
Direct install, fully reversible

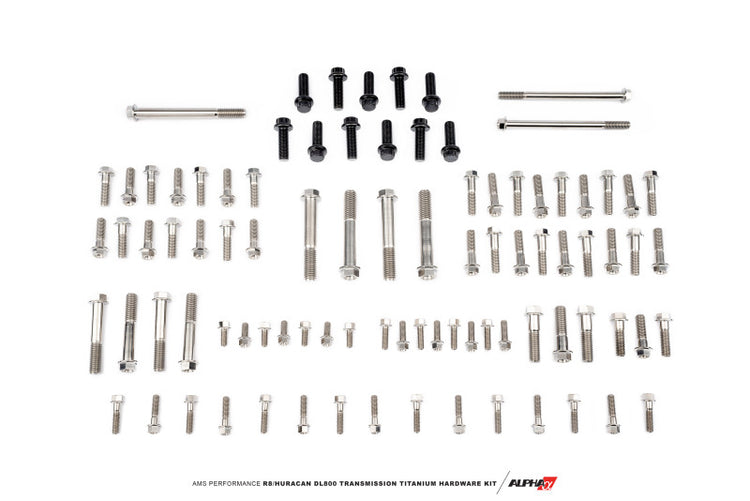

What Is Included

Titanium transmission to engine bolts
Titanium oil pan/sump bolts
Titanium mechatronic cover bolts
Titanium basket, end plate and half shaft bolts
Titanium external and internal mid plate bolts
ARP 4130 differential cover bolts

Required Parts

Transmission case disassembly for the two internal mid plate bolts

Specs

Specification	Detail
Part number	ALP.37.03.0003-1
Brand	AMS Performance
Product	R8/Huracan DL800 Transmission Titanium Hardware Kit
Material	6Al-4V Grade 5 titanium, 4130 chromoly
Transmission	DL800 7-speed dual clutch
Reusable	Yes
Shipping weight	3 lb
Shipping box	7 x 4 x 2 in

FAQ

Can it go in with the transmission installed?
All but two bolts can. The two internal mid plate bolts need case disassembly.

Can I reuse the bolts?
Yes. Unlike the OEM aluminum bolts, these are reusable.

Will it stop my leak?
It replaces the stretch-prone bolts that commonly cause case leaks.

Fitment Notes

Fits 2017-2023 Audi R8 and 2015-2024 Lamborghini Huracan models sold in the US with the DL800 transmission. Professional installation is recommended. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Year	Make	Model	Chassis	Engine
2017-2023	Audi	R8 V10	4S	5.2L V10
2015-2024	Lamborghini	Huracan	LB724	5.2L V10

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.
