AMS front mount intercooler kit with charge pipes for the 2022+ Subaru WRX

}

AMS Front Mount Intercooler Kit with Charge Pipes | 2022+ Subaru WRX

Ask an expert

Brand: AMS PerformanceSKU / Part #: AMS.50.09.0010-1

Regular price: $1,439.95
Regular price: ~~$1,599.95~~
Sale price: $1,439.95
Unit price: per

Apply at checkout

Subtotal: $1,439.95

Quantity:

AMS Front Mount Intercooler Kit with Charge Pipes | 2022+ Subaru WRX

Subtotal: $1,439.95

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AMS Performance 2022+ Subaru WRX Front Mount Intercooler Kit replaces the factory top mount with a 26" x 12" x 4" bar and plate core, a 347% increase in core volume that fills the front bumper opening. AMS measured a 54.4°F lower charge air temperature than the OEM top mount, and a 36.4% drop in intake air temperature on its full bolt-on test car.

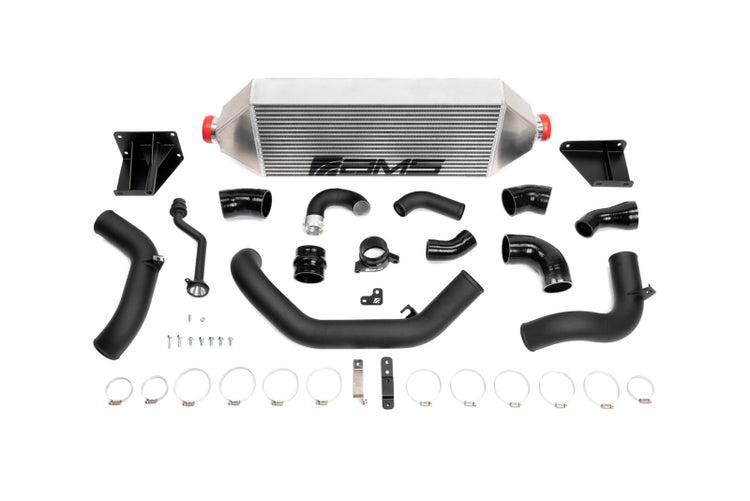

The kit includes 3" mandrel bent aluminum piping, custom silicone couplers with ID matched connections and smooth internal transitions, CNC billet flanges, quality clamps and hardware. The intercooler is TIG welded by hand in the USA with high volume aluminum end tanks and is pressure tested before boxing.

AMS kept OEM functions working: the tow hook mount is built into the intercooler bracket, the ambient air temperature sensor is moved to a better spot, and the washer fluid filler neck is relocated for charge pipe fitment. The bumper does not need trimming, but the plastic engine bay liners need slight trimming and the factory bumper beam is removed. The kit does not work with OEM intake piping or most aftermarket intakes.

Features

347% more core volume than the OEM TMIC
26" x 12" x 4" bar and plate core
54.4°F lower charge air temperature
3" mandrel bent aluminum piping
Integrated tow hook mount
Pressure tested, hand TIG welded in the USA

What Is Included

Front mount intercooler and mounting brackets
3" aluminum charge piping
Silicone couplers, clamps and hardware
Relocation parts for the washer filler neck and ambient sensor

Required Parts

AMS intake piping (OEM and most aftermarket intakes are not compatible)
Slight trimming of plastic engine bay liners
Removal of the factory bumper beam
ECU tune recommended

Specs

Specification	Detail
Part number	AMS.50.09.0010-1
Brand	AMS Performance
Product	2022+ Subaru WRX Front Mount Intercooler Kit
Core	26" x 12" x 4" bar and plate
Volume increase	347% over OEM TMIC
Piping	3" mandrel bent aluminum
Charge temp drop	54.4°F vs OEM (AMS)
Shipping weight	57 lb
Shipping box	44 x 16 x 12 in

FAQ

Do I have to cut the bumper?
No. Some owners trim the opening for looks, but it is not required.

Will it work with my intake?
It is not compatible with OEM intake piping or most aftermarket intakes. AMS intakes fit.

Can I still use the tow hook?
Yes. The tow hook mount is built into the bracket.

Fitment Notes

Fits 2022-2026 Subaru WRX (VB) models sold in the US with the 2.4L FA24F. Professional installation is recommended. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Year	Make	Model	Chassis	Engine
2022-2026	Subaru	WRX	VB	2.4L FA24F turbo H4

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.

Shipping & returns

Shipping: Orders ship via UPS, FedEx or USPS, from our facility near Los Angeles or directly from the manufacturer. Rates for many items are weight-based and shown at checkout. If you need it by a certain date, text us before you order.

Returns: Unused items in brand-new condition and original packaging can be returned within 30 days of the invoice date, with a 25% restocking fee unless otherwise specified. In some cases we can offer a lower fee with the balance as store credit. Shipping charges aren't refundable in either direction unless approved by AutoTalent.

Not returnable: special-order or custom items, and anything that has been installed, modified or altered.

Cancellations: free if the item is out of stock or we miss the ETA you agreed to. Other cancellations carry a 5% processing fee to cover card fees we can't recover. Special-order items can't be cancelled.

Damaged in transit? Report it to the carrier and to us within 48 hours, keep all packaging, and don't send anything back without our written approval.
