AMS Top Mount Intercooler | 2022+ Subaru WRX

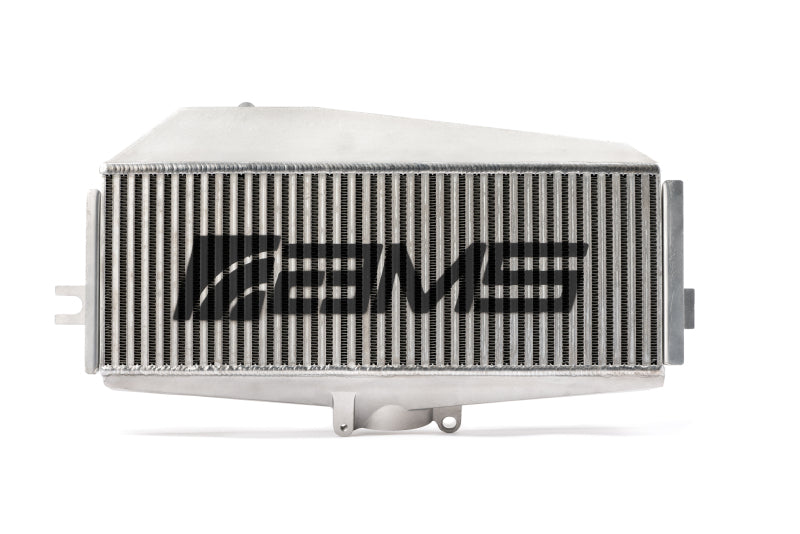

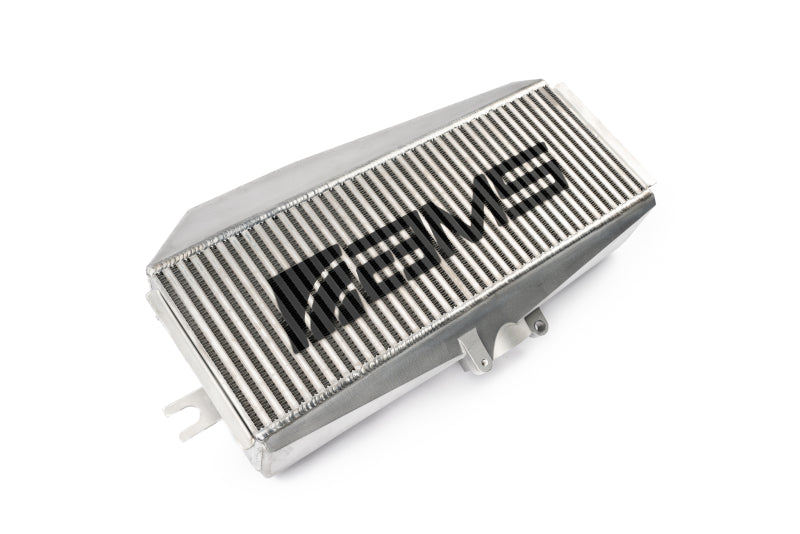

The AMS Performance 2022+ Subaru WRX Top Mount Intercooler uses a 21" x 7.5" x 4" bar and plate core that fills the factory hood scoop and duct. That is a 71% larger core than stock, and AMS measured a 48.6°F lower charge air temperature than the OEM top mount.

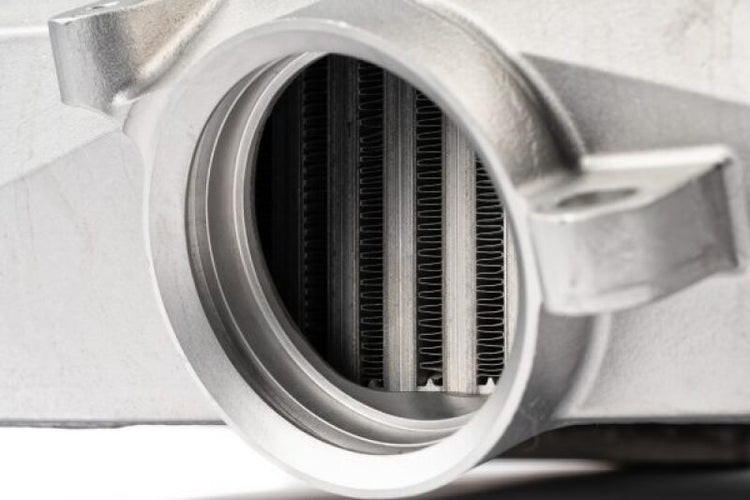

The 37 row core has louvered fins inside and out for more heat transfer surface. AMS also measured 15% more mass airflow and 12% less pressure drop than stock, and the charge pipe flange opening is 13% larger to cut restriction from the turbo to the intercooler.

The intercooler has high volume cast aluminum end tanks, is TIG welded by hand in the USA and is pressure tested before boxing. AMS designed it in SolidWorks and validated it on the flow bench and in real-world testing. It uses the factory mounting locations and hardware for a direct bolt-in fit with no cutting or trimming.

Features

• 71% larger core than stock
• 48.6°F lower charge air temperature
• 21" x 7.5" x 4" bar and plate core
• 12% less pressure drop
• 13% larger charge pipe flange
• Direct bolt-in, no cutting

What Is Included

• AMS top mount intercooler with cast end tanks

Specs

FAQ

Is cutting required?
No. It bolts in with factory mounting points and hardware.

Do I need a tune?
No tune is required to install it.

Top mount or front mount?
The top mount keeps the factory layout; AMS also offers a front mount kit for more cooling.

Fitment Notes

Fits 2022-2026 Subaru WRX (VB) models sold in the US with the 2.4L FA24F. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
