AMS Port Injection Lower Manifold, Black | 2023+ Nissan Z VR30

The AMS Performance Nissan Z Port Injection Lower Manifold is the foundation for a port injection build on the VR30DDTT. It works alongside the factory direct injection system, and adding port injection gives a large increase in fuel capacity beyond what direct injection alone can supply.

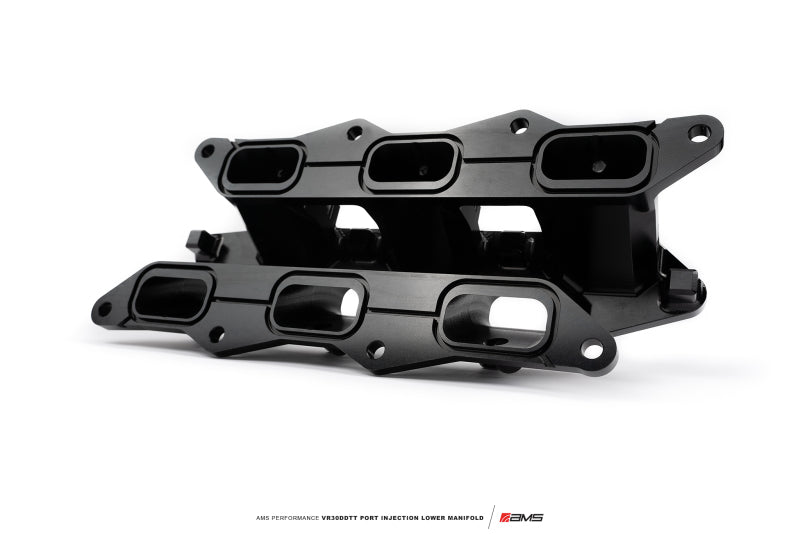

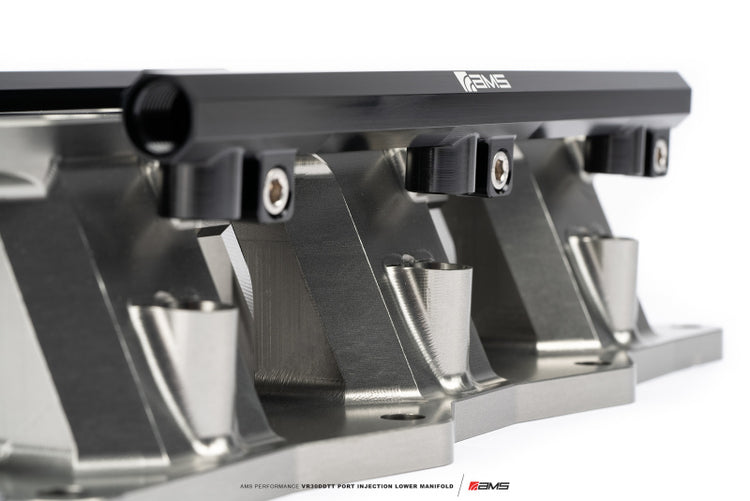

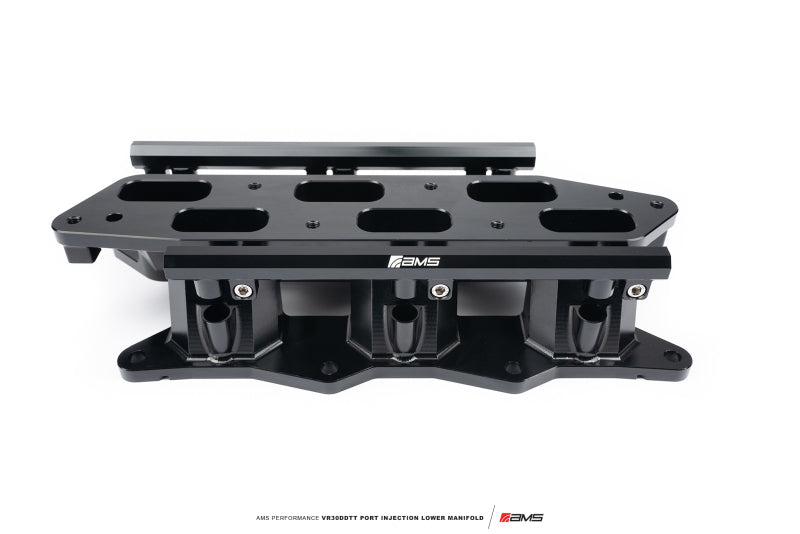

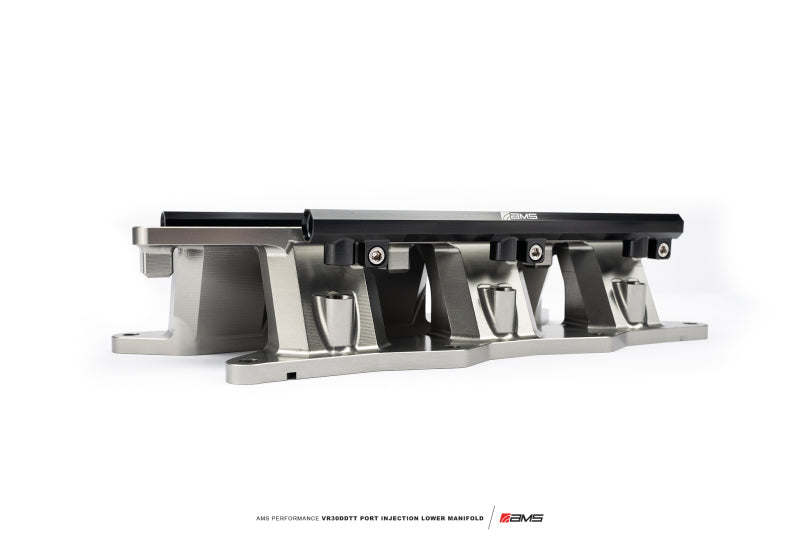

Rather than a thin insert plate that cannot give the right spray angle, AMS built a complete lower manifold that mounts the injectors vertically for the best path into the combustion chamber. The runners and the pair of -6AN fuel rails are CNC machined from 6061-T6 billet aluminum, and the lower manifold reuses the OEM O-ring gaskets at the head. Port injection also helps keep carbon from building up on the intake valves.

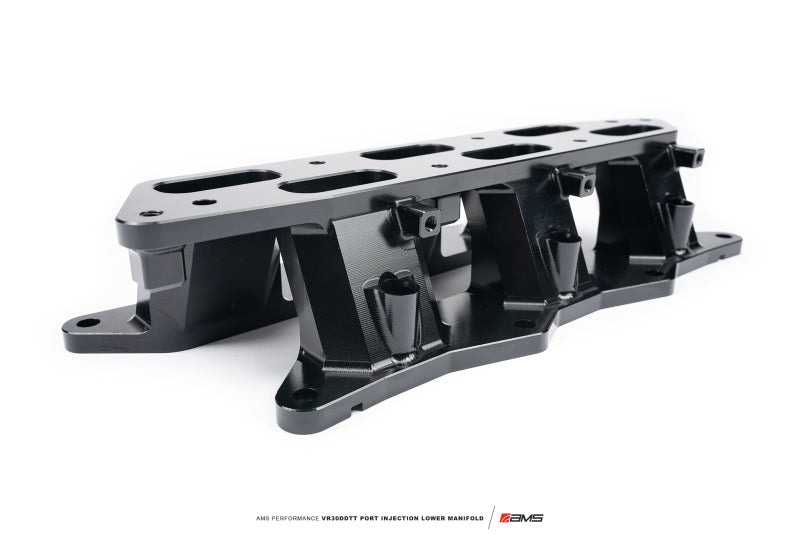

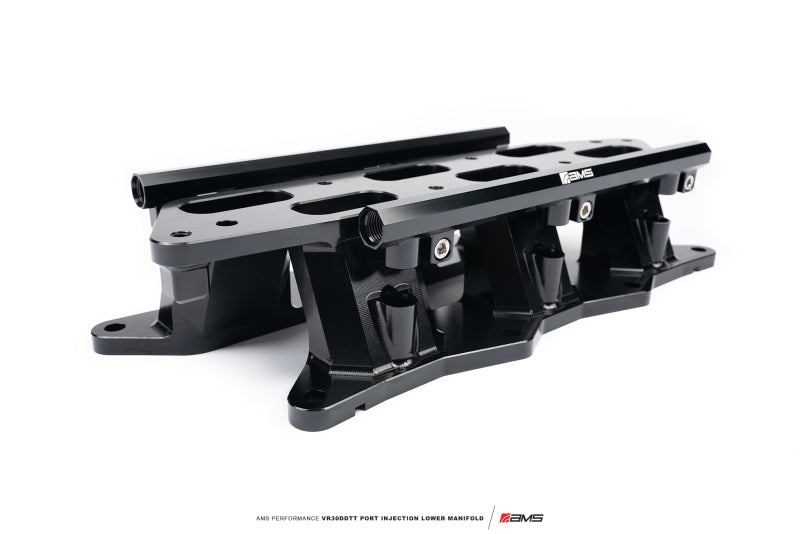

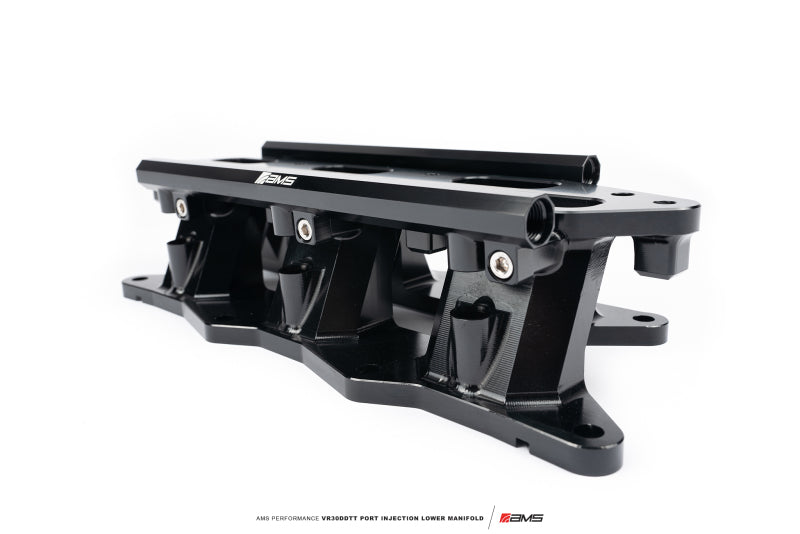

The manifold is designed for Bosch EV14 type injectors and is fully ethanol compatible. This listing is the black anodized version. Injectors, fuel lines and a controller are not included: you supply your preferred injectors, build custom fuel lines and set up a controller, and custom calibration is required. AMS does not give recommendations or instructions for that custom work, and fuel system parts must be installed only by a qualified motorsport technician.

Features

• Adds port injection to the VR30 DI system
• Vertical injector mounting for ideal spray angle
• CNC 6061-T6 billet runners and fuel rails
• For Bosch EV14 type injectors
• -6AN ports on the rail ends
• Fully ethanol compatible

What Is Included

• Billet port injection lower manifold, black anodized
• Pair of billet -6AN fuel rails

Required Parts

• Port injectors (Bosch EV14 type)
• Custom fuel lines and port injection controller
• Custom calibration
• Installation by a qualified motorsport technician

Specs

FAQ

Are injectors included?
No. Injectors, lines and the controller are supplied by you.

Does it replace direct injection?
No. It works together with the factory direct injection system.

Does AMS supply a tune or instructions for the custom work?
No. AMS does not give recommendations or instructions for the custom fuel lines, controller or calibration.

Fitment Notes

Fits 2023-2027 Nissan Z (RZ34) models sold in the US with the VR30DDTT, including all trims. Professional installation and tuning are required. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
