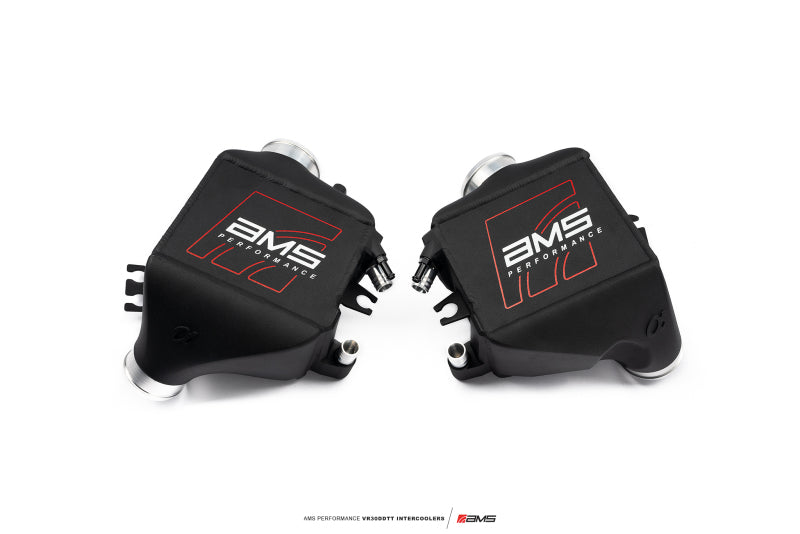

AMS counter-flow VR30 intercoolers for the Nissan Z

}

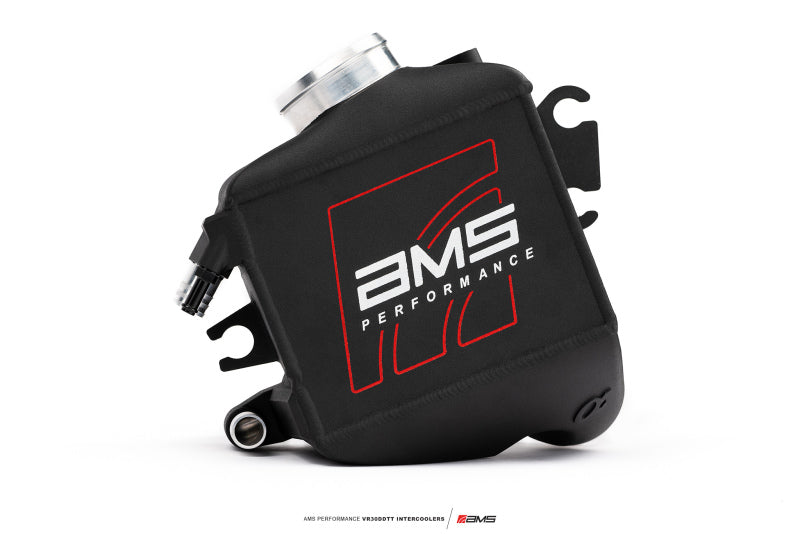

AMS counter-flow VR30 intercoolers for the Nissan Z, front view

}

AMS counter-flow VR30 intercoolers for the Nissan Z, top view

}

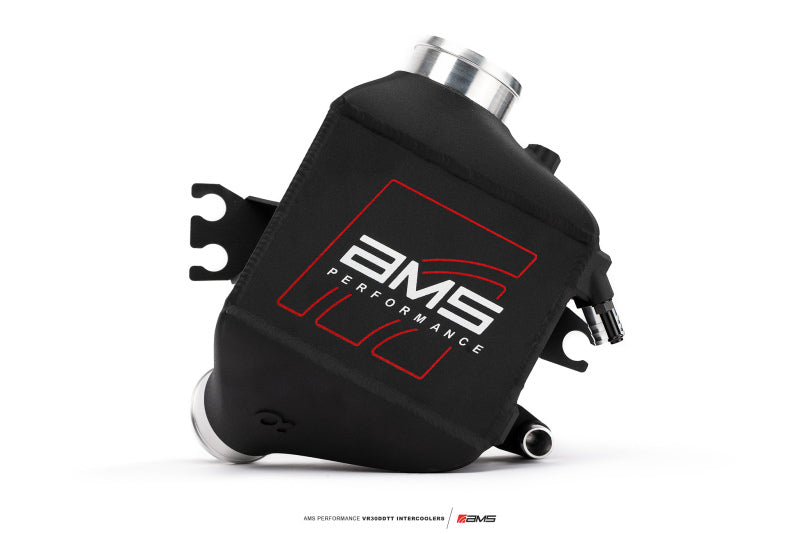

AMS counter-flow VR30 intercoolers for the Nissan Z, side view

}

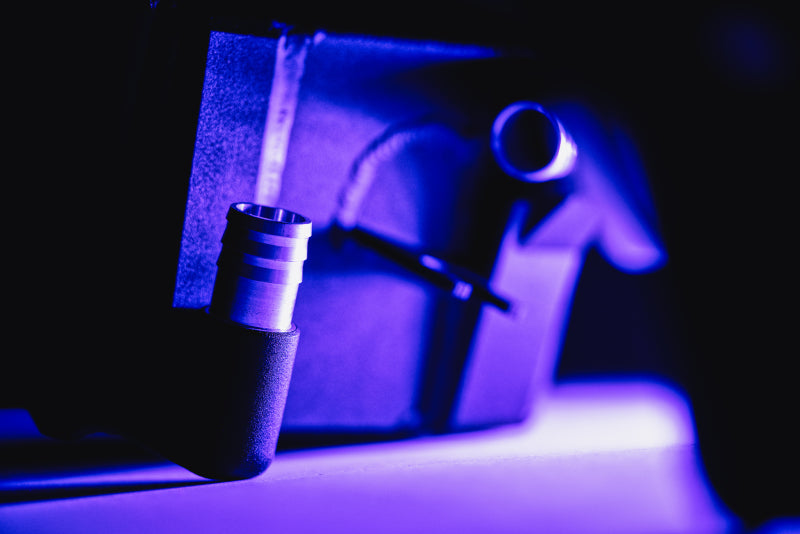

AMS counter-flow VR30 intercoolers for the Nissan Z, detail view

}

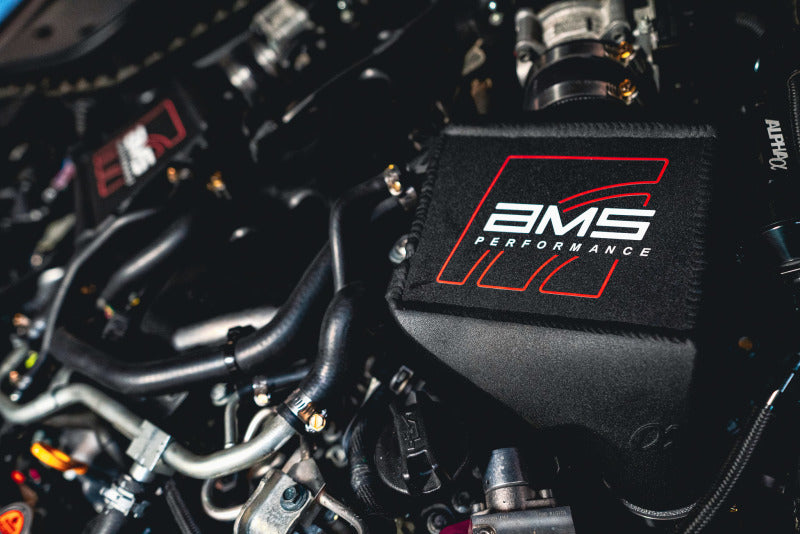

AMS counter-flow VR30 intercoolers for the Nissan Z, installed view

}

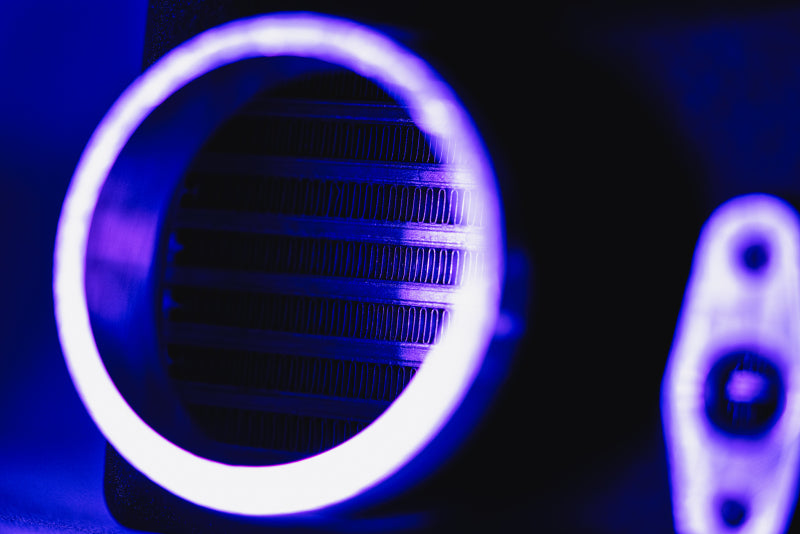

AMS counter-flow VR30 intercoolers for the Nissan Z, close-up

}

AMS counter-flow VR30 intercoolers for the Nissan Z, angled view

}

AMS counter-flow VR30 intercoolers for the Nissan Z, rear view

}

AMS counter-flow VR30 intercoolers for the Nissan Z, packaged view

}

AMS Counter-Flow VR30 Intercoolers | 2023+ Nissan Z

Ask an expert

Brand: AMS PerformanceSKU / Part #: AMS.47.09.0001-1

Regular price: $2,449.95
Regular price
Sale price: $2,449.95
Unit price: per

Apply at checkout

Subtotal: $2,449.95

Quantity:

AMS Counter-Flow VR30 Intercoolers | 2023+ Nissan Z

Subtotal: $2,449.95

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AMS Performance Nissan Z VR30 Intercoolers rethink how a VR30DDTT intercooler is built. Instead of the usual cross-flow core, AMS uses a counter-flow core that pairs the coolest water with the coolest air inside the core, which gives better thermal transfer than a conventional design can reach.

Core size is up 70.4% over the factory units, with custom AMS fin height and density. The CAD designed end tanks are CNC machined from 6061-T6 billet aluminum, and AMS ran CFD analysis on the core and tanks to tune heat dissipation. Air and water side pressure drop is negligible compared to stock, and the TMAP sensor location was optimized for more accurate temperature readings.

AMS recorded a 40°F drop in intake air temperature over OEM, and the intercoolers were used on the world's fastest VR30 powered Z at the time, a 9.53 second quarter mile at 144 mph. The 2.5" inlet and 2.75" outlet flanges remove airflow restrictions, and coolant ports and lines up to 33% larger raise coolant flow. They install in the OEM location with upgraded water lines and couplers, and they help reduce heat soak on stock or modified cars.

Features

Counter-flow core design
70.4% larger core than OEM
40°F lower intake air temperature recorded
CNC 6061-T6 billet end tanks
Up to 33% larger coolant ports and lines
2.5" inlet and 2.75" outlet flanges

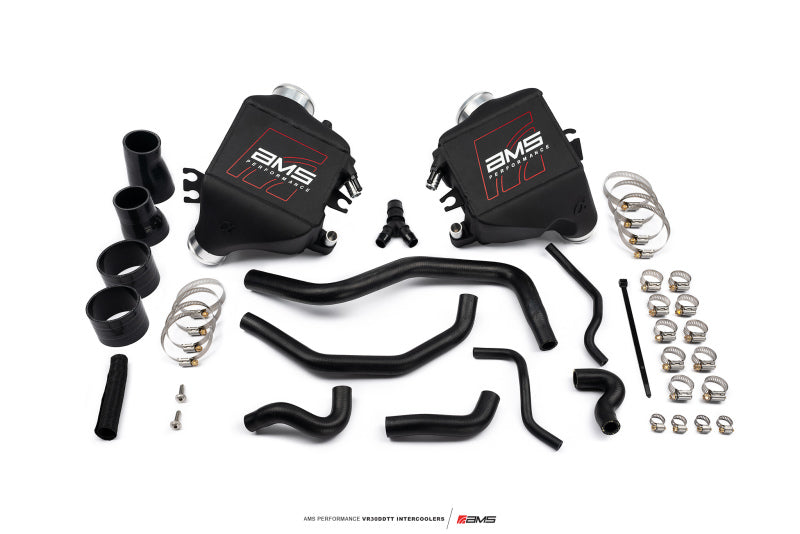

What Is Included

Pair of AMS counter-flow VR30 intercoolers with billet end tanks

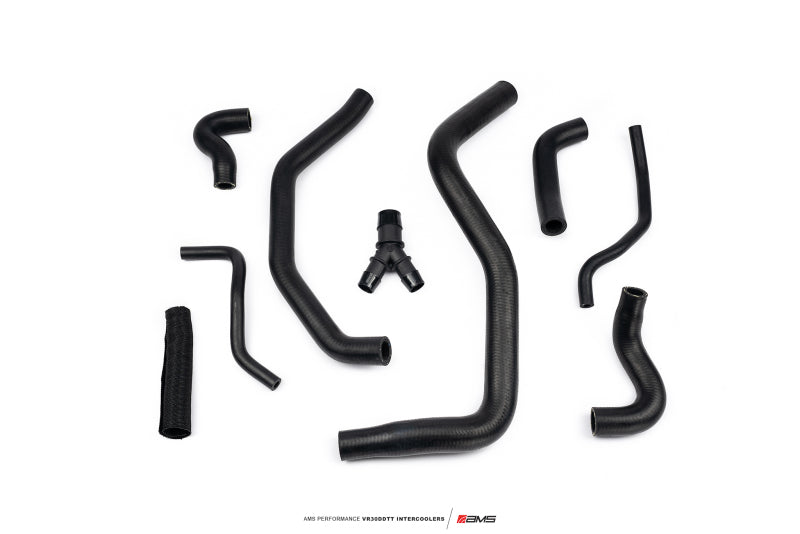

Upgraded water lines and couplers

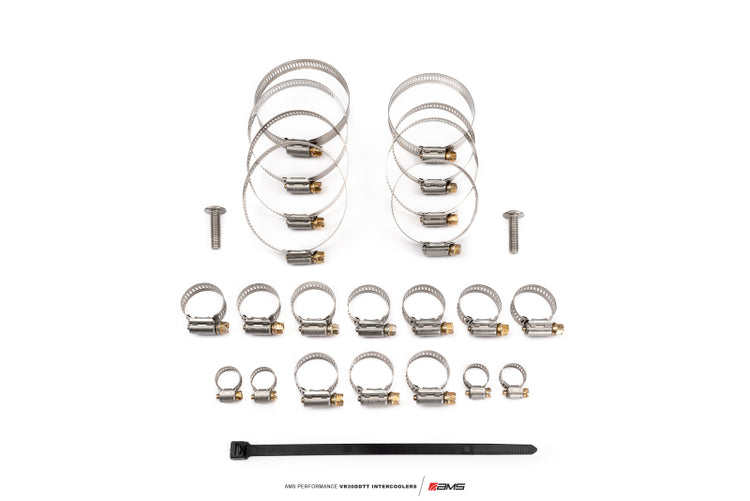

Installation hardware

Specs

Specification	Detail
Part number	AMS.47.09.0001-1
Brand	AMS Performance
Product	Nissan Z VR30 Intercoolers
Core	Counter-flow, 70.4% larger than OEM
End tanks	CNC 6061-T6 billet aluminum
Flanges	2.5" inlet, 2.75" outlet
Coolant ports	Up to 33% larger
Shipping weight	26 lb
Shipping box	26 x 16 x 10 in

FAQ

Do I need a tune?
No. They can be used on stock or modified cars to reduce heat soak.

Do they mount in the stock location?
Yes. They install in the OEM location with upgraded water lines and couplers.

What else helps cooling?
AMS also offers a heat exchanger for the VR30 to shed heat from the system.

Fitment Notes

Fits 2023-2027 Nissan Z (RZ34) models sold in the US with the 3.0L VR30DDTT. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Year	Make	Model	Chassis	Engine
2023-2027	Nissan	Z	RZ34	3.0L VR30DDTT twin-turbo V6

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.
