AMS Alpha engine oil cooler upgrade for the Nissan GT-R R35

}

AMS Alpha engine oil cooler upgrade for the Nissan GT-R R35, front view

}

AMS Alpha engine oil cooler upgrade for the Nissan GT-R R35, top view

}

AMS Alpha engine oil cooler upgrade for the Nissan GT-R R35, side view

}

AMS Alpha engine oil cooler upgrade for the Nissan GT-R R35, detail view

}

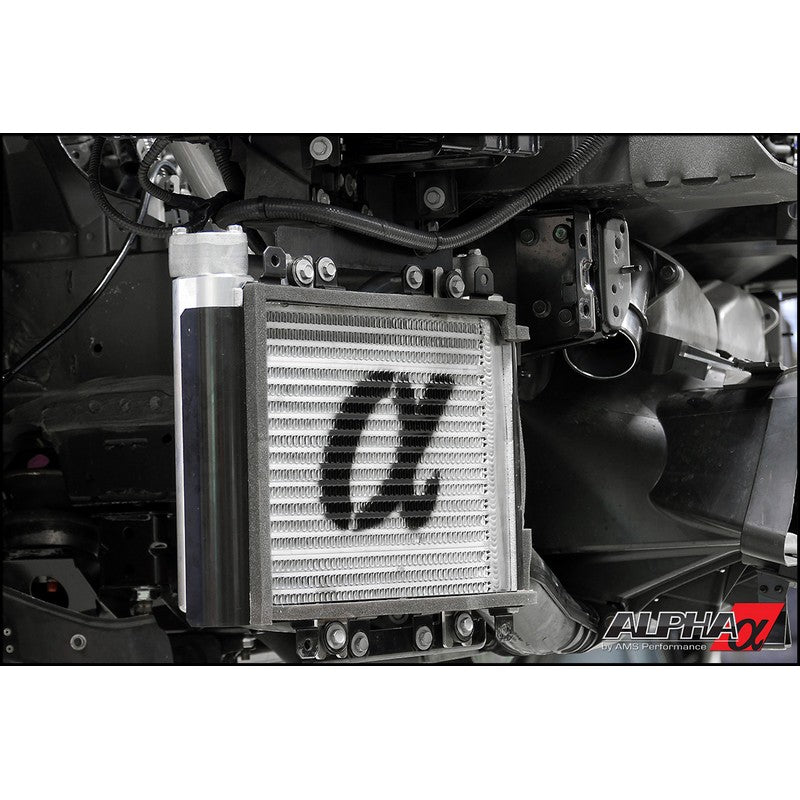

AMS Alpha engine oil cooler upgrade for the Nissan GT-R R35, installed view

}

AMS Alpha Engine Oil Cooler Upgrade | 2009-2024 Nissan GT-R R35

Ask an expert

Brand: AMS PerformanceSKU / Part #: ALP.07.02.0104-1

Regular price: $749.95
Regular price: ~~$999.95~~
Sale price: $749.95
Unit price: per

Apply at checkout

Subtotal: $749.95

Quantity:

AMS Alpha Engine Oil Cooler Upgrade | 2009-2024 Nissan GT-R R35

Subtotal: $749.95

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AMS Performance R35 GT-R Oil Cooler Upgrade (part number ALP.07.02.0104-1) replaces the factory engine oil cooler, part 21305-JF02B, which is very expensive to replace from Nissan. AMS designed a better-cooling, bolt-in alternative at a fraction of the factory price.

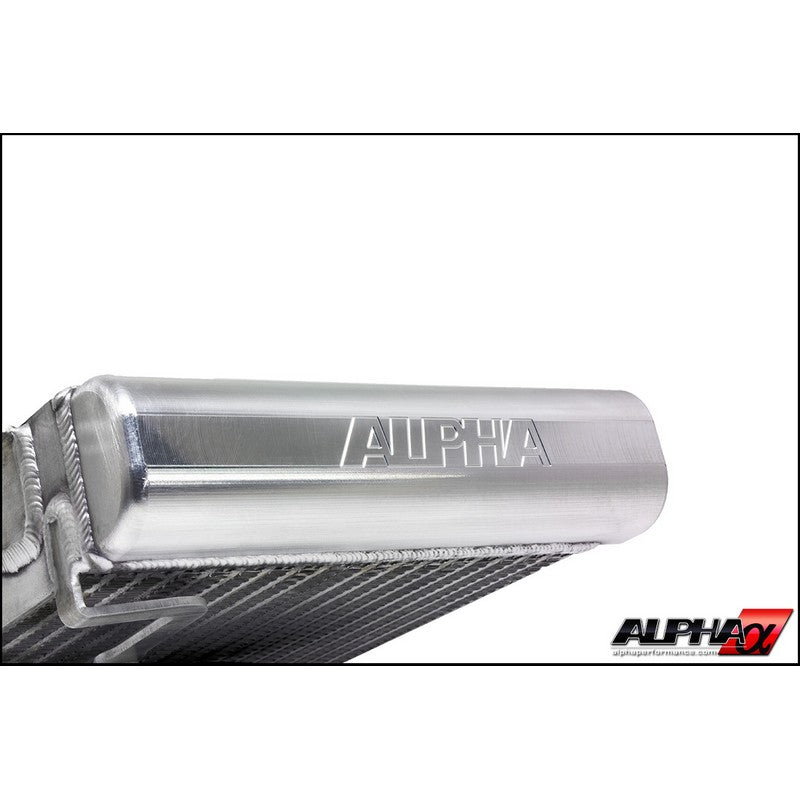

Instead of the factory tube-and-fin design, the Alpha cooler uses a bar-and-plate core with turbulators that speed oil flow and improve heat transfer. The core is thicker, 61mm vs 50mm stock, which adds both cooling and oil capacity, and billet aluminum end tanks carry a high-temperature foam seal so all the air from the ducting goes through the core.

It uses all the factory brackets, mounts, lines and shroud with no trimming, so there are no extra fittings to corrode or leak. OEM gaskets are included. AMS recommends replacing the oil cooler after any engine failure to keep debris out of the new engine.

Features

Bar-and-plate core with turbulators
61mm core vs 50mm stock
Billet aluminum end tanks
Foam seal directs all ducted air through the core
Uses OEM mounts, lines and shroud
OEM gaskets included

What Is Included

Alpha oil cooler core with billet end tanks
OEM gaskets
Everything needed for installation

Specs

Specification	Detail
Part number	ALP.07.02.0104-1
Brand	AMS Performance
Product	Alpha R35 GT-R Oil Cooler Upgrade
Core	Bar and plate with turbulators, 61mm thick
End tanks	Billet aluminum
Mounting	OEM brackets, lines and shroud
Replaces	Nissan 21305-JF02B
Shipping weight	11 lb
Shipping box	15 x 13 x 7 in

FAQ

Can I reuse my O-rings?
2012 and newer owners should not reuse the O-rings; use the AMS supplied gaskets.

Do I need new lines?
No. It uses the factory lines and mounts.

When should I replace my oil cooler?
AMS recommends it after any engine failure to prevent contaminating the new engine.

Fitment Notes

Fits all 2009-2024 Nissan GT-R R35 models sold in the US. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Year	Make	Model	Chassis	Engine
2009-2024	Nissan	GT-R	R35	3.8L VR38DETT twin-turbo V6

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.

Shipping & returns

Shipping: Orders ship via UPS, FedEx or USPS, from our facility near Los Angeles or directly from the manufacturer. Rates for many items are weight-based and shown at checkout. If you need it by a certain date, text us before you order.

Returns: Unused items in brand-new condition and original packaging can be returned within 30 days of the invoice date, with a 25% restocking fee unless otherwise specified. In some cases we can offer a lower fee with the balance as store credit. Shipping charges aren't refundable in either direction unless approved by AutoTalent.

Not returnable: special-order or custom items, and anything that has been installed, modified or altered.

Cancellations: free if the item is out of stock or we miss the ETA you agreed to. Other cancellations carry a 5% processing fee to cover card fees we can't recover. Special-order items can't be cancelled.

Damaged in transit? Report it to the carrier and to us within 48 hours, keep all packaging, and don't send anything back without our written approval.
