AMS Alpha Throttle Body Isolators | 2009-2024 Nissan GT-R R35

The AMS Performance R35 GT-R Throttle Body Isolator Kit (part number ALP.07.08.0006-5) fixes a problem AMS found in its GT-R race program: vibration from the powertrain travels through the intake manifold and can make the throttle plates close early or slam shut at high power.

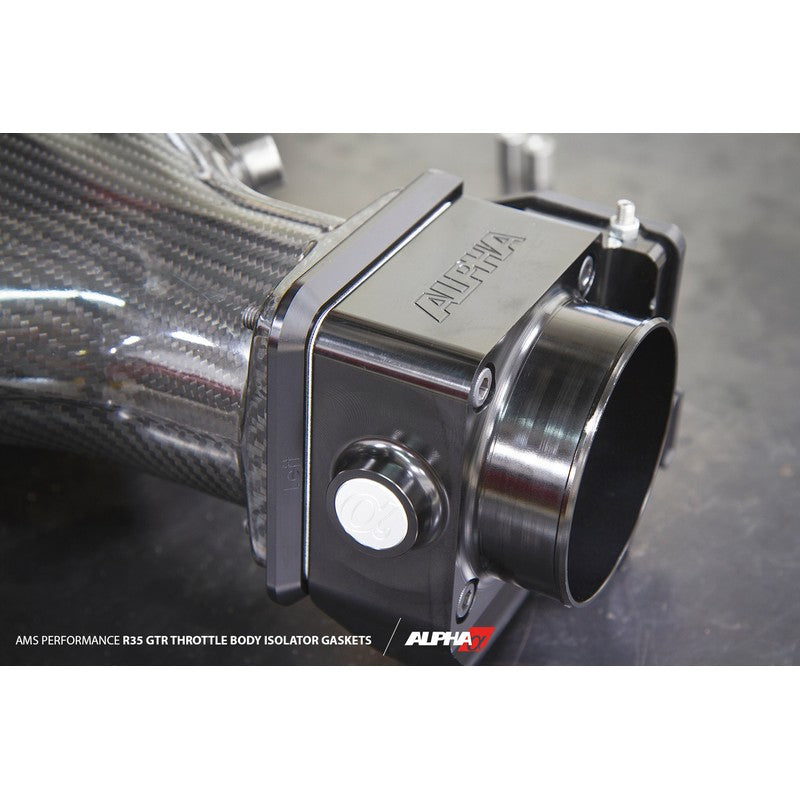

AMS developed the isolators with T1 Race Development. They sit between the throttle bodies and the manifold to insulate the throttle bodies from that vibration, which can be the difference between a clean pass and a lost race. AMS calls them a must for high-horsepower GT-Rs on aluminum intake manifolds and a natural add-on to the Alpha carbon fiber manifold.

Each isolator is machined from high-strength 6061-T6 billet aluminum and installs plug and play. They fit the Alpha big bore throttle bodies directly and work with most aftermarket R35 throttle bodies. They do not fit stock throttle bodies or AT Power throttle bodies.

Features

• Stops vibration-induced throttle plate closing
• Developed with T1 Race Development
• 6061-T6 billet aluminum
• Direct fit with Alpha big bore throttle bodies
• Bolt lengths for both Alpha throttle body versions
• Plug and play installation

What Is Included

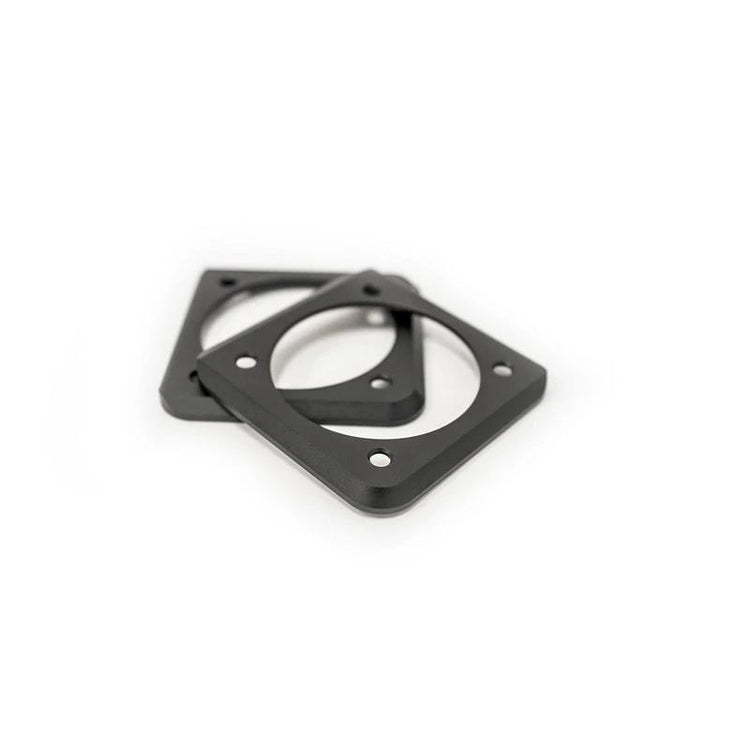

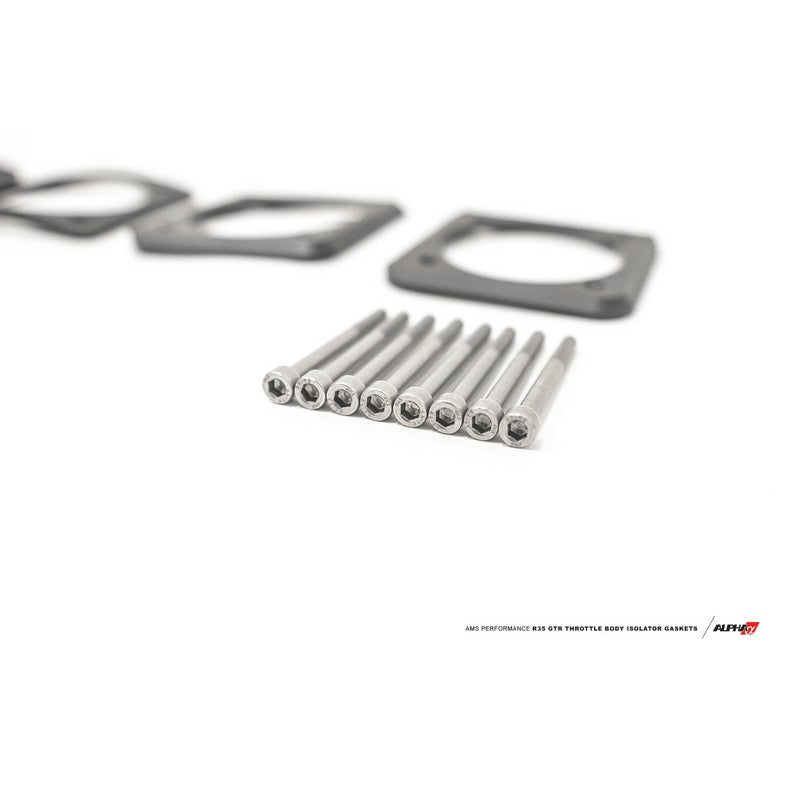

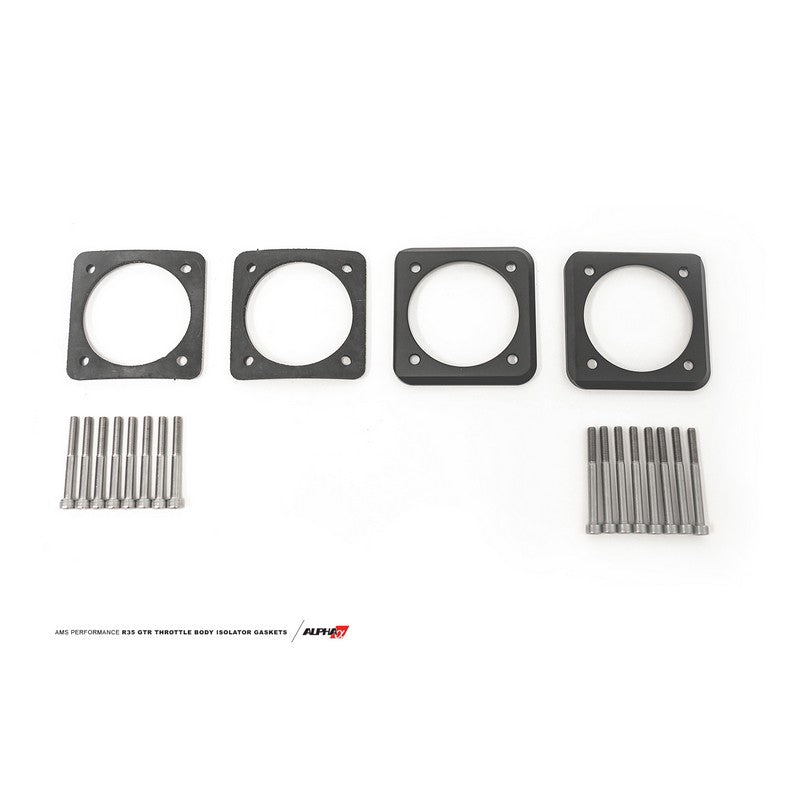

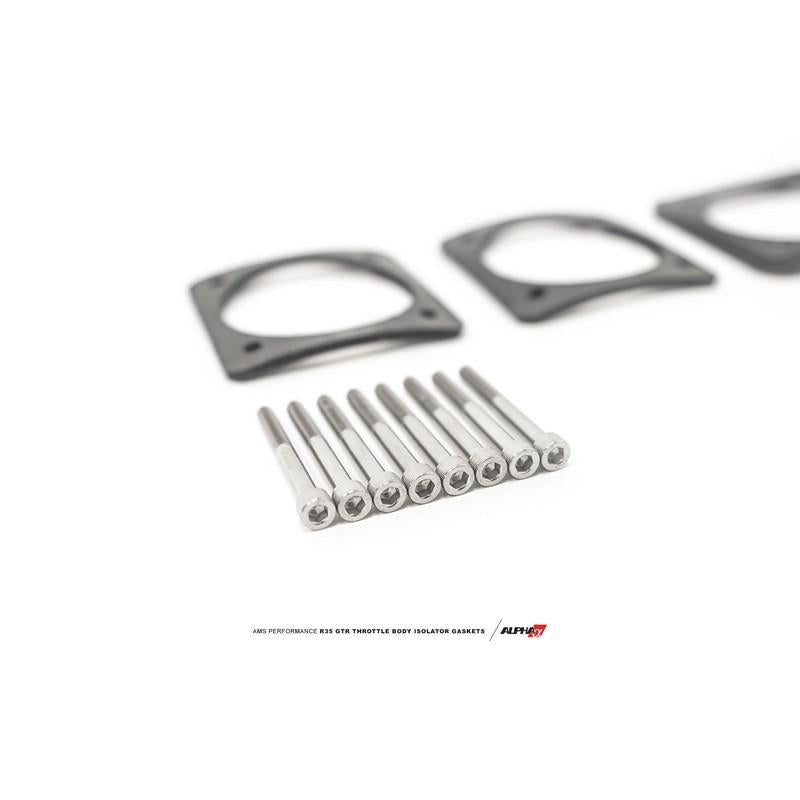

• Left and right billet aluminum isolators
• 2 isolator gaskets
• 8 55mm bolts for Version 1 Alpha throttle bodies
• 8 65mm bolts for current Alpha throttle bodies

Specs

FAQ

Will these work with stock throttle bodies?
No. AMS says they do not fit stock or AT Power throttle bodies.

Do I need them?
They are recommended for high-horsepower GT-Rs, especially with aluminum intake manifolds.

Which bolts do I use?
Use the 55mm bolts for Version 1 Alpha throttle bodies and the 65mm bolts for the current version.

Fitment Notes

Fits all 2009-2024 Nissan GT-R R35 models sold in the US with compatible aftermarket throttle bodies. See the Alpha big bore throttle bodies. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
