AMS DL800 reinforced differential cover and transmission brace for the Audi R8 and Lamborghini Huracan

}

AMS DL800 Reinforced Differential Cover and Transmission Brace | R8 / Huracan

Name: AMS DL800 Reinforced Differential Cover and Transmission Brace | R8 / Huracan
Brand: AMS Performance
SKU: ALP.37.03.0005-1
Price: 3999.95 USD
Availability: InStock

Ask an expert

Vendor: AMS Performance

SKU: ALP.37.03.0005-1

Regular price: $3,999.95
Regular price
Sale price: $3,999.95
Unit price: per

Apply at checkout

Not sure it fits? Text us your VINSee all fitment

Subtotal: $3,999.95

Quantity:

AMS DL800 Reinforced Differential Cover and Transmission Brace | R8 / Huracan

Subtotal: $3,999.95

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

High horsepower launches flex the DL800 transmission case, which can pull parts like the ring and pinion out of alignment and lead to failure. The AMS Performance R8/Huracan DL800 Reinforced Differential Cover and Transmission Brace adds three mounting points for support arms that greatly stiffen the whole three piece case.

Instead of copying the stock cover in billet, AMS used real world data to calculate the forces on the differential cover and ring and pinion, then simulated its design to find the best structural improvements. The cover and brace arms are 6061-T6 billet aluminum with a 4130 chromoly rear mounting plate and ARP 8740 chromoly bolts, which are reusable unlike the OEM torque-to-yield aluminum bolts.

The kit also includes an air valve relocation tube and a radial ball bearing with axle seals. It is a direct fit and fully reversible, but the transmission must be removed from the car to install it.

Features

Stiffens the three piece DL800 case
Keeps transmission internals aligned
6061-T6 billet and chromoly construction
Reusable ARP 8740 hardware
Simulation-validated design
Direct fit, reversible

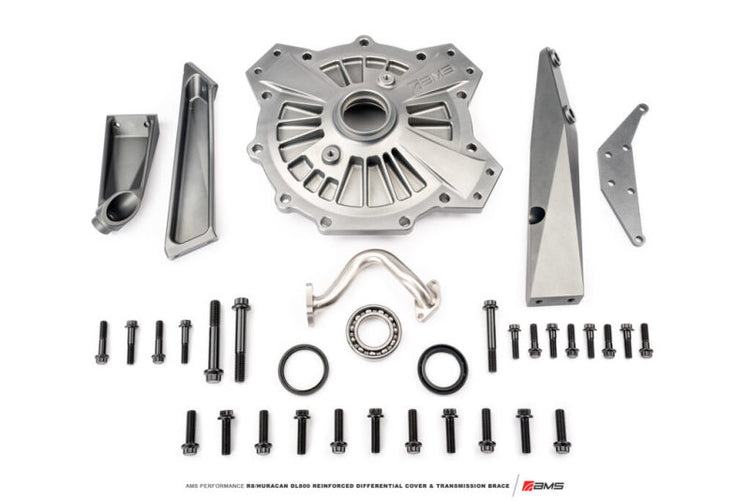

What Is Included

Billet reinforced differential cover
Billet transmission brace support arms
4130 chromoly rear mounting plate
Air valve relocation tube
Radial ball bearing and axle seals
ARP 8740 diff cover and brace bolts

Required Parts

Transmission removal for installation
Professional installation

Specs

Specification	Detail
Part number	ALP.37.03.0005-1
Brand	AMS Performance
Product	R8/Huracan DL800 Reinforced Differential Cover and Transmission Brace
Material	6061-T6 billet, 4130 and 8740 chromoly
Transmission	DL800 7-speed dual clutch
Install	Transmission removal required
Shipping weight	16 lb
Shipping box	15 x 13 x 7 in

FAQ

Can it go in with the transmission installed?
No. The transmission must be removed.

Can I reuse the bolts?
Yes. The ARP chromoly hardware is reusable.

Which R8s does it fit?
AMS lists 2014 and later R8s with S tronic, including Plus and Performance.

Fitment Notes

Fits Audi R8 V10 models with S tronic sold in the US (2014-2015 and 2017-2023), including Plus and Performance, and 2015-2024 Lamborghini Huracan models, including Performante and EVO. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Year	Make	Model	Chassis	Engine
2014-2015, 2017-2023	Audi	R8 with S tronic	42 / 4S	5.2L V10
2015-2024	Lamborghini	Huracan	LB724	5.2L V10

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.

Shipping & returns

Shipping: Orders ship via UPS, FedEx or USPS, from our facility near Los Angeles or directly from the manufacturer. Rates for many items are weight-based and shown at checkout. If you need it by a certain date, text us before you order.

Returns: Unused items in brand-new condition and original packaging can be returned within 30 days of the invoice date, with a 25% restocking fee unless otherwise specified. In some cases we can offer a lower fee with the balance as store credit. Shipping charges aren't refundable in either direction unless approved by AutoTalent.

Not returnable: special-order or custom items, and anything that has been installed, modified or altered.

Cancellations: free if the item is out of stock or we miss the ETA you agreed to. Other cancellations carry a 5% processing fee to cover card fees we can't recover. Special-order items can't be cancelled.

Damaged in transit? Report it to the carrier and to us within 48 hours, keep all packaging, and don't send anything back without our written approval.
