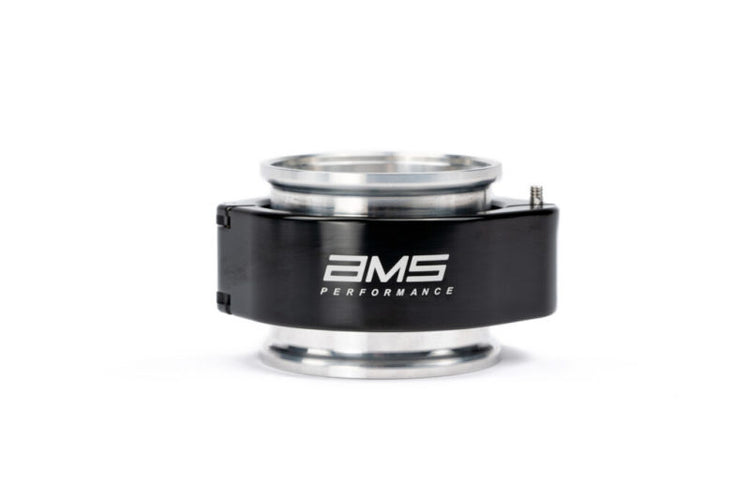

AMS QuickClamp 2.5" Complete Assembly w/ Standard Ferrules

The AMS QuickClamp System is an upgrade over silicone hose and worm gear clamp connections for high-performance induction piping. It forms a secure, articulating joint that allows the piping to move with the engine without decoupling, even under heavy boost and vibration.

Each part is CNC machined from 6061-T6 billet aluminum and was lab and FEA tested to 120 psi. A captured 304 stainless push-pin closes the clamp and releases it without tools for fast service, and there is a provision for safety wire or a cotter pin to prevent accidental release. AMS designed the system in SolidWorks and validated it on track.

This listing is the complete 2.5" assembly with standard ferrules, sold as one assembly. Standard ferrules are made for aluminum tubing such as intake and charge pipes; AMS also offers panel ferrules for sheet metal like intercooler end tanks and flat ferrules for turbo compressors.

Features

• Articulating joint prevents decoupling
• Lab and FEA tested to 120 psi
• Toolless 304 stainless push-pin
• Safety wire or cotter pin provision
• CNC 6061-T6 billet aluminum
• 2.5" size

What Is Included

• 2.5" QuickClamp
• Standard weld-on ferrules and retaining ring hardware

Required Parts

• Custom fabrication / welding

Specs

FAQ

Is this a bolt-on part?
No. It is universal and requires custom fabrication, such as welding ferrules to your piping.

What pressure is it rated for?
AMS lab and FEA tested it to 120 psi.

Can I lock it closed?
Yes. There is a provision for safety wire or a cotter pin.

Fitment Notes

Universal part for custom induction piping. Requires fabrication. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Universal part. This part is not vehicle specific. Check the dimensions above against your application.
