AMS Turbo Charge Pipe | 2015-2017 VW Golf R / GTI / Audi A3 / S3

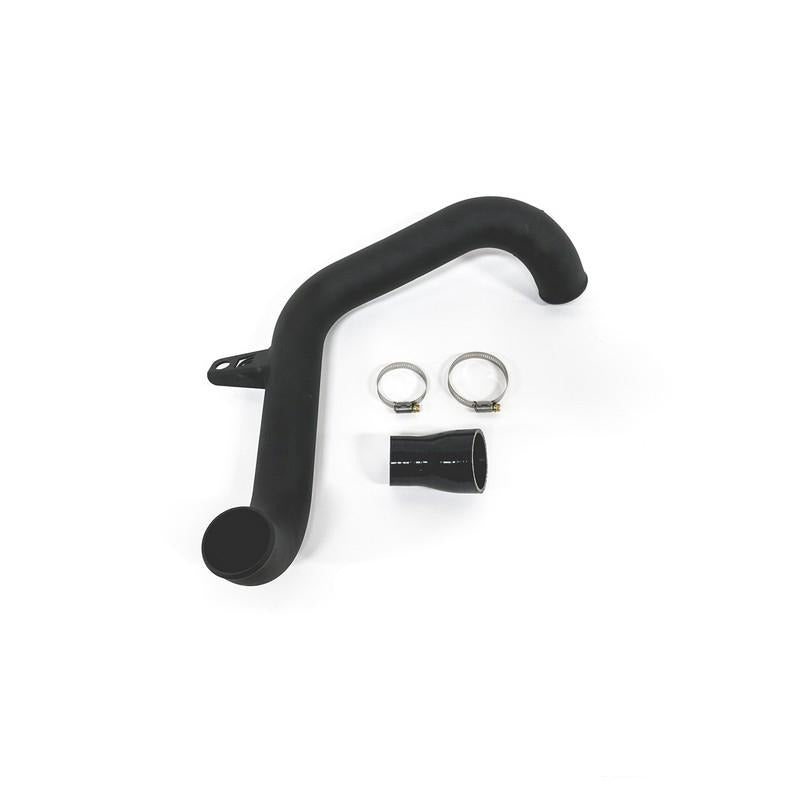

The AMS Performance Golf R Mk7 Turbo Charge Pipe (part number AMS.21.09.0003-1) replaces the factory pipe between the turbo outlet and the intercooler. The stock pipe has a 37mm inlet; the AMS pipe opens that up to 57mm, an 85% increase, and enlarges the outlet from 53mm to 57mm.

It is one piece with large-radius bends, so air leaves the turbo with less restriction and less turbulence. That helps spool and keeps boost steady as power goes up. At 1.55 lb, it is also almost half a pound lighter than the 1.95 lb factory pipe.

Installation is a complete bolt-on in the factory location with no cutting or trimming. The outlet connects to the factory silicone hose or directly to the AMS front mount intercooler, and it is ready for future AMS turbo upgrades.

Features

• Inlet grows from 37mm to 57mm (85% larger)
• Outlet grows from 53mm to 57mm
• One-piece tube with large-radius bends
• About 0.4 lb lighter than stock
• Connects to the factory hose or the AMS intercooler
• Bolt-on in the factory location

What Is Included

• AMS turbo charge pipe
• Coupler and hardware

Specs

FAQ

Will it work with the factory intercooler?
Yes. The outlet connects to the factory silicone hose or to the AMS intercooler.

Does it fit the GTI?
AMS lists the Mk7 GTI/Golf, Audi A3/S3 and TT with the EA888 as compatible platforms.

Is cutting required?
No. It is a complete bolt-on.

Fitment Notes

Fits 2015-2017 VW Golf R and EA888 Mk7 GTI, 2015-2020 Audi A3 / S3 sold in the US. AMS also lists the 2016+ Audi TT; call us to confirm. Pair it with the AMS EA888 intercooler.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
