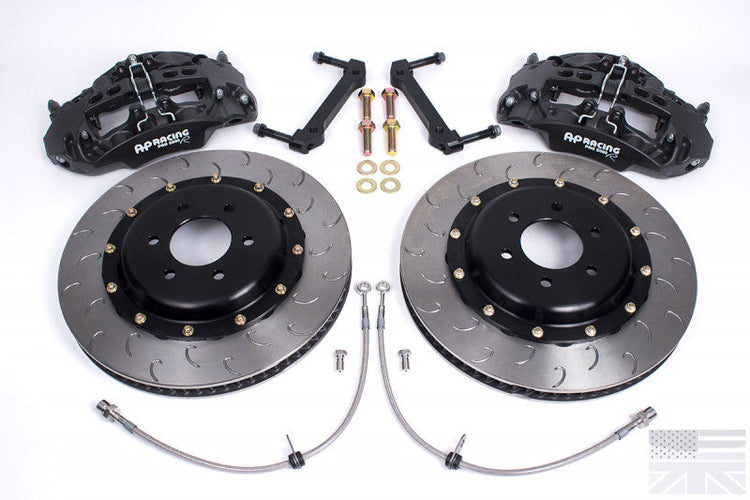

AP Racing Radi-CAL front brake kit for the C7 Corvette with black hats, 372mm discs and lines

}

Angled view of the CP9668 six-piston caliper used on the C7 Corvette front kit

}

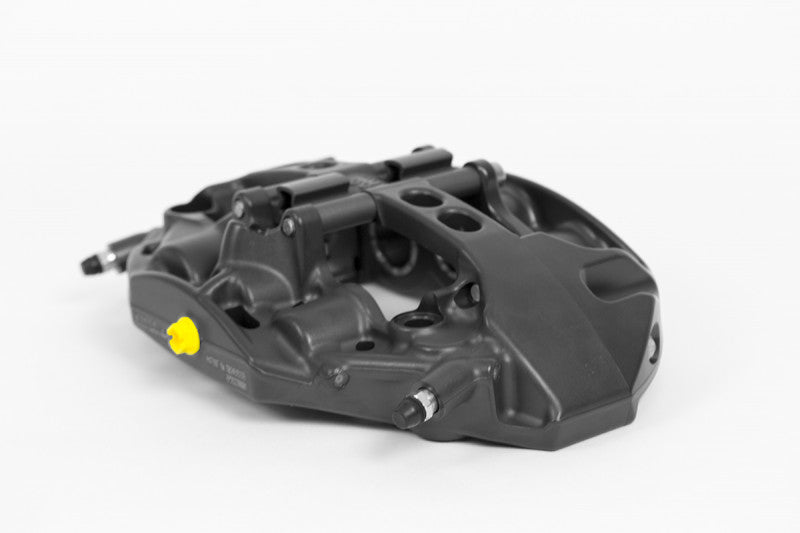

Rear angle of the C7 Radi-CAL caliper showing the yellow bleed screw cap

}

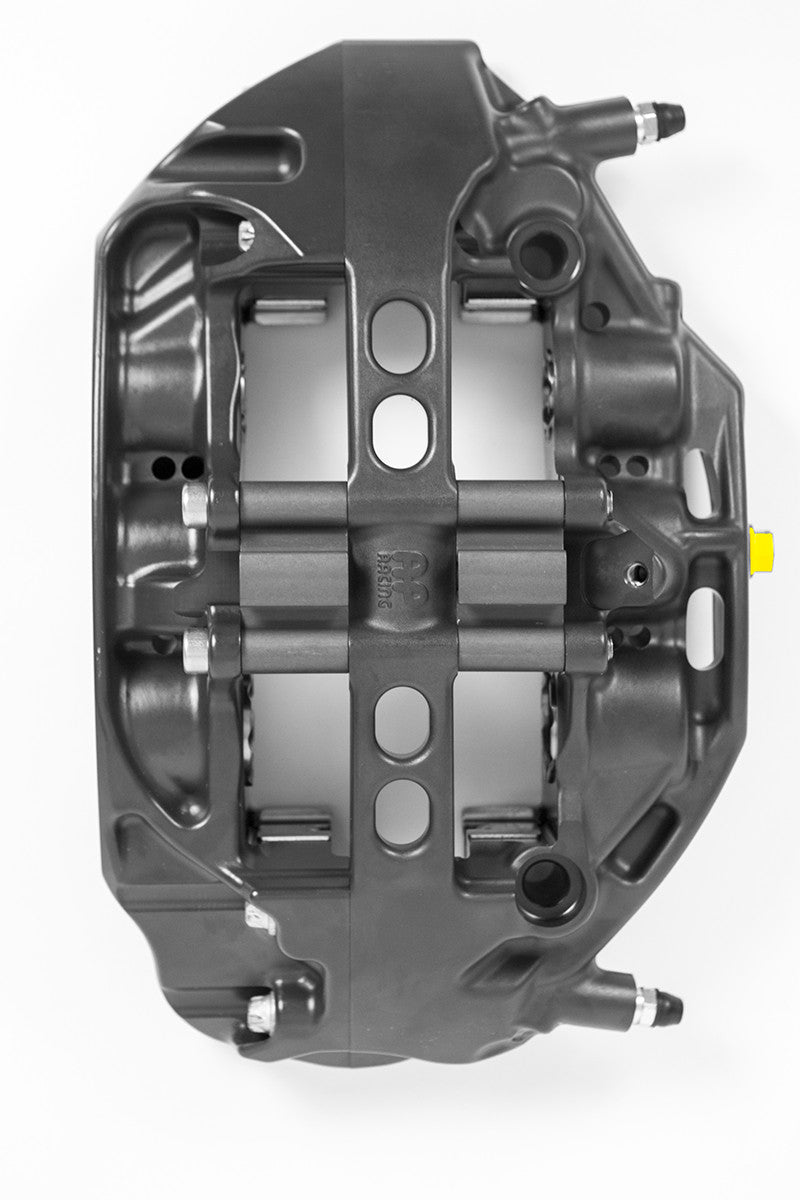

Top down view of the six-piston Radi-CAL caliper body and pad window, C7 kit

}

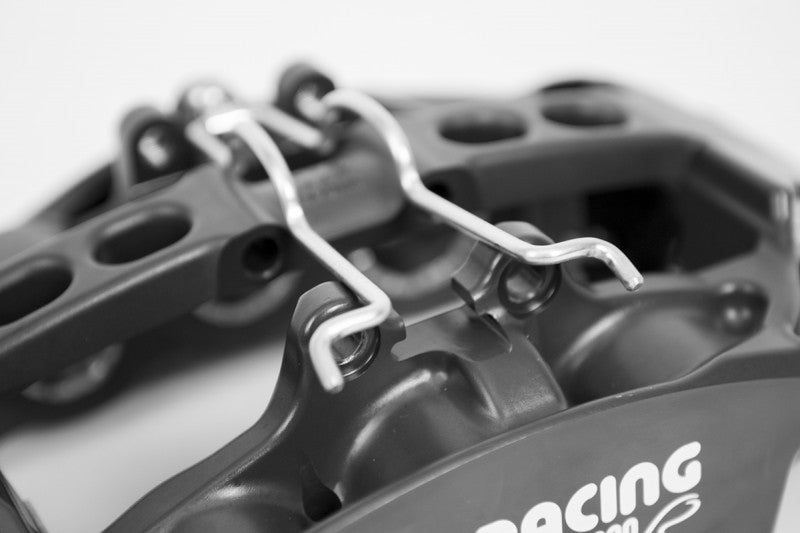

Pad retaining pin and spring clip on the AP Racing caliper for the C7 Corvette

}

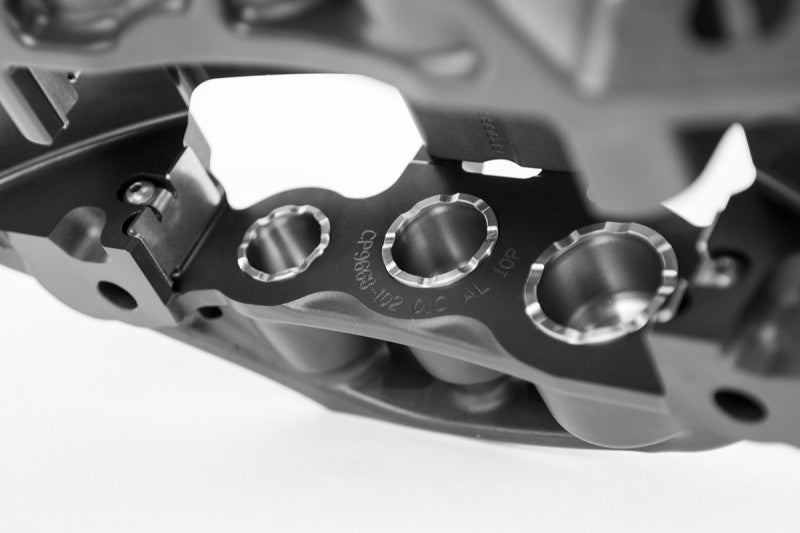

Stainless pistons inside the Radi-CAL front caliper for the C7 Corvette

}

AP Racing Radi-CAL Competition Front Brake Kit 372mm - C7 Corvette

Ask an expert

Brand: AP RacingSKU / Part #: 13.01.10035

Regular price: $5,699.00
Regular price
Sale price: $5,699.00
Unit price: per

Apply at checkout

Subtotal: $5,699.00

Quantity:

AP Racing Radi-CAL Competition Front Brake Kit 372mm - C7 Corvette

Subtotal: $5,699.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AP Racing by Essex Radi-CAL Competition Brake Kit is a front brake system for every C7 Corvette from 2014 to 2019: Stingray, Z51, Grand Sport, Z06 and ZR1. It fits AP Racing CP9668 Radi-CAL Pro5000R six-piston calipers and 372 x 34mm CP6084 discs with 84 directional vanes, giving the C7 a lighter, longer lasting front brake for track use.

Why upgrade

The C7 is fast enough to overwhelm its factory iron brakes in a long session, and the carbon ceramic option is costly to replace. This kit saves about 8 pounds of unsprung weight from the nose compared with the base and Z51 brakes and about 12 pounds compared with the standard Z06 iron brakes. Each caliper weighs 6.9 pounds against 9.8 to 10.4, and the floating disc weighs 19.1 pounds against up to 24.2. Compared with the Z07 carbon ceramics, it adds about 3 pounds per corner while bringing far cheaper consumables.

Caliper and disc construction

The CP9668 is a radial-mount Radi-CAL caliper with an asymmetric, computer-optimized body in hard anodized aluminum. Stainless pistons, anti-knockback springs and low-drag seals keep the pedal firm. The CP6084 discs ride on 6061 hard anodized aluminum hats with fully floating hardware. Pistons are sized for the OEM master cylinder and ABS.

Features

AP Racing CP9668 Radi-CAL six-piston calipers
372 x 34mm CP6084 discs with 84 directional vanes
8 to 12 lb lighter than the OEM iron front brakes
Fits every C7 trim
Pairs with the AP Racing C7 rear kit

What's Included

One pair AP Racing CP9668 Radi-CAL Pro5000R racing calipers
One pair 372x34mm AP Racing CP6084, 84 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
One pair caliper mounting brackets and hardware
One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
Detailed installation instructions

Brake pads are not included.

Specifications

Manufacturer part number	13.01.10035
Brand	AP Racing by Essex
Position	Front
Application	Track
Caliper	AP Racing CP9668-2S4L/3S4L Radi-CAL Pro5000R, six piston, radial mount
Caliper weight (no pads)	6.9 lb each (OEM base/Z51 9.8 lb, Z06 10.4 lb)
Piston sizes	27.0mm x 2, 31.8mm x 2, 38.1mm x 2 (50.1 cm2 total area)
Mounting centers / offset	180mm / 42mm
Inlet thread	M10x1.0
Disc	CP6084-102/103GA two-piece floating, 372 x 34mm, 84 directional vanes, J Hook
Disc weight	19.1 lb each (OEM base 20.0 lb, Z51 20.2 lb, Z06 iron 24.2 lb)
Pad thickness	18mm
Brake pads	Not included
Shipping weight	40 lb (18.1 kg)

Video

Fitment notes

Fits every C7 Corvette below. Clears the OEM C7 Z06 front wheels, APEX SM-10 18 x 11 +38, 19 x 10 +32 and 19 x 11 +38, and Forgeline GA1R 18 x 11 +44 without a spacer. Pad tension clips are not included with this kit.

Fitment

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
Year	Make	Model	Chassis	Engine
2014-2019	Chevrolet	Corvette Stingray	C7	6.2L V8 (LT1)
2017-2019	Chevrolet	Corvette Grand Sport	C7	6.2L V8 (LT1)
2015-2019	Chevrolet	Corvette Z06	C7	6.2L Supercharged V8 (LT4)
2019	Chevrolet	Corvette ZR1	C7	6.2L Supercharged V8 (LT5)

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.
