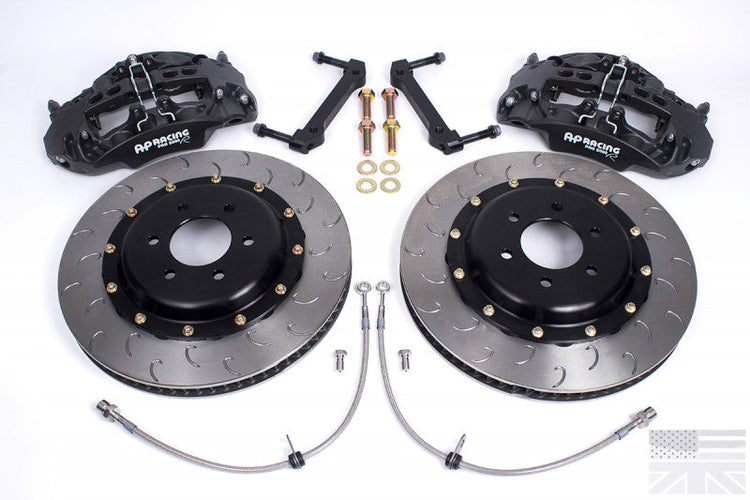

AP Racing Radi-CAL front brake kit for the fifth generation Camaro with black hats, discs and lines

}

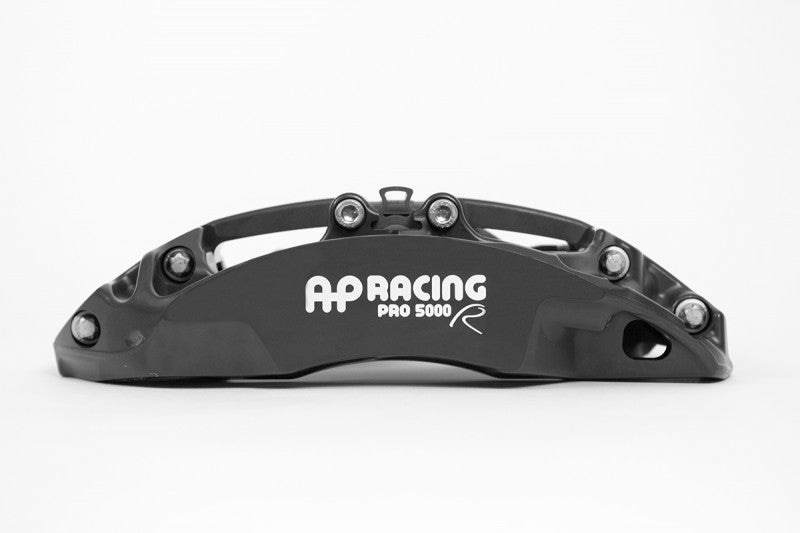

Black CP9668 caliper for the Gen 5 Camaro seen from a front angle

}

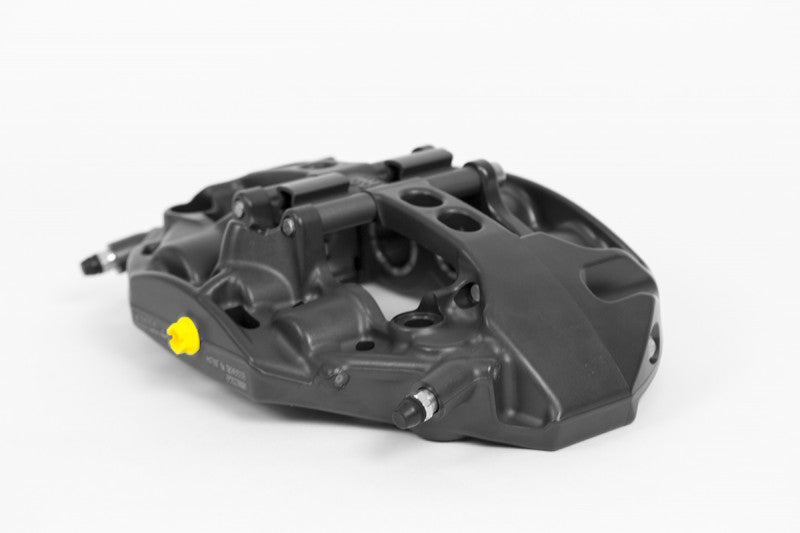

Back side of the Camaro Radi-CAL caliper with yellow bleed screw cover

}

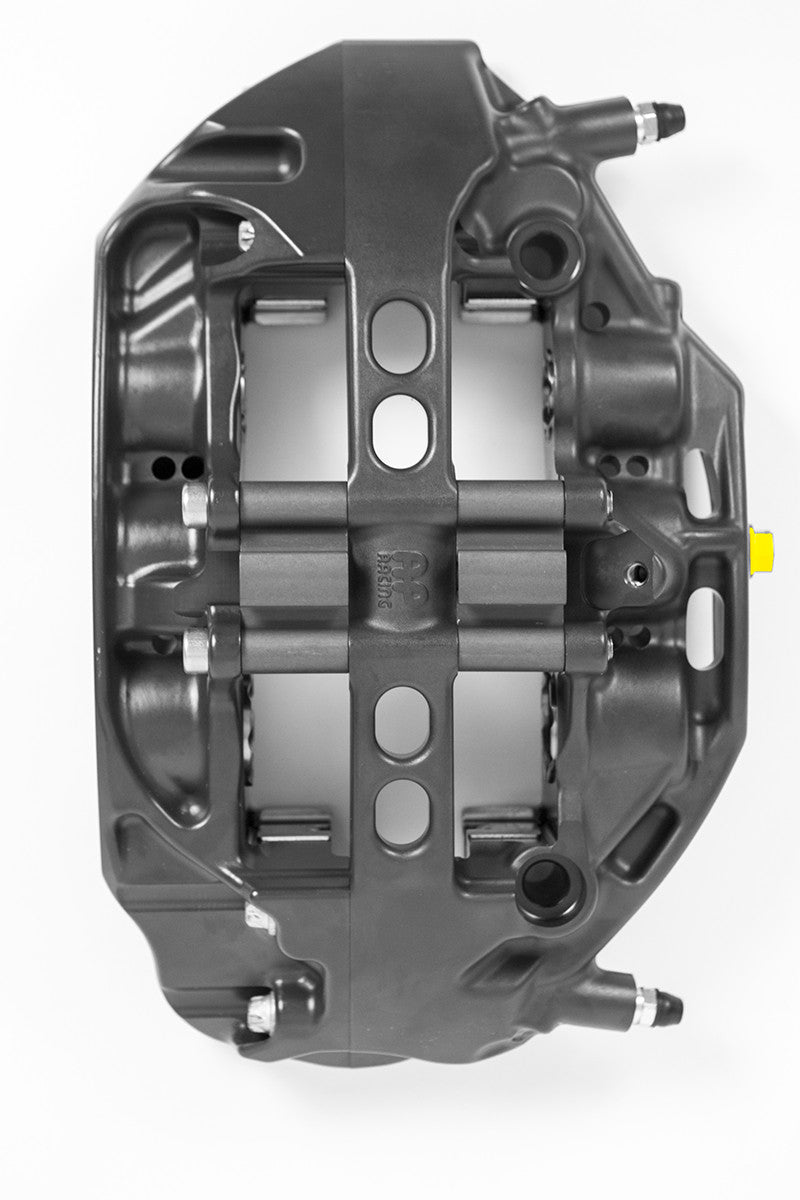

View from above of the six-piston caliper for the 2010-2015 Camaro

}

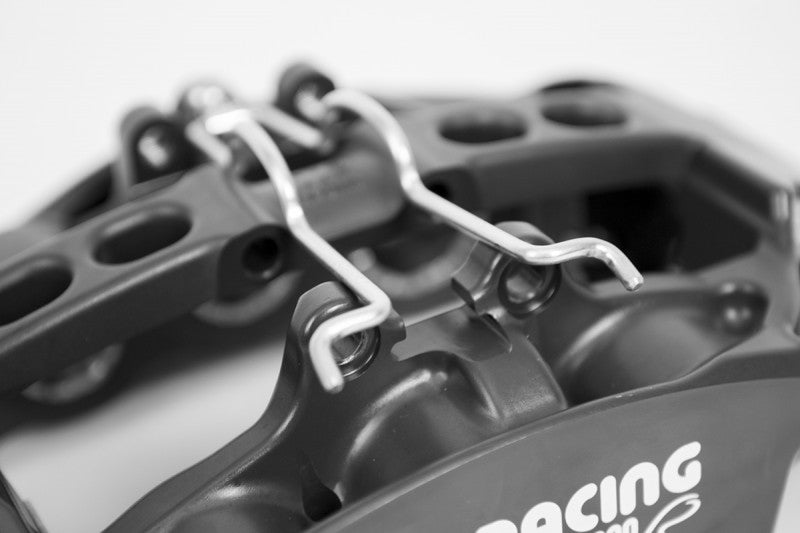

Spring clip and pad pin detail on the AP Racing caliper for the Camaro

}

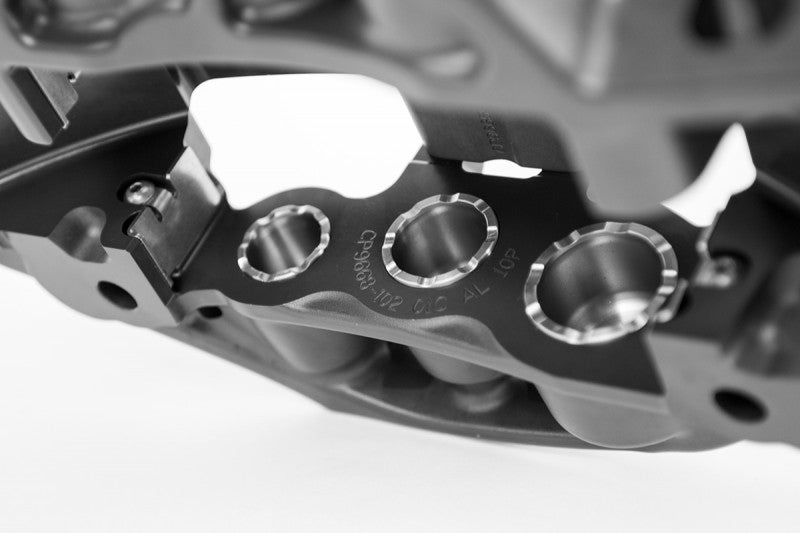

Six stainless pistons inside the AP Racing caliper for the Gen 5 Camaro

}

AP Racing Radi-CAL Competition Front Kit 372mm - Gen 5 Camaro

Ask an expert

Brand: AP RacingSKU / Part #: 13.01.10042

Regular price: $5,699.00
Regular price
Sale price: $5,699.00
Unit price: per

Apply at checkout

Subtotal: $5,699.00

Quantity:

AP Racing Radi-CAL Competition Front Kit 372mm - Gen 5 Camaro

Subtotal: $5,699.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AP Racing by Essex Radi-CAL Competition Brake Kit is a front brake system for the fifth generation Chevrolet Camaro, built from 2010 through 2015. It pairs AP Racing CP9668 Radi-CAL Pro5000R six-piston calipers with durable 372 x 34mm, 72-vane J Hook discs that fit inside many 18 inch wheels, making it a strong choice for Camaros that see regular track time.

Why upgrade

The Gen 5 Camaro is a heavy car, and its factory front brakes heat up quickly when driven hard. This kit saves approximately 8 to 11 pounds of unsprung weight from the nose, depending on which OEM caliper the car has. Against the six-piston ZL1 system, each caliper weighs 6.9 pounds versus 9, and each floating disc weighs 19.1 pounds versus 25. The 25mm pad is far thicker than the 15.8mm factory pad for longer life and better heat tolerance.

Caliper and disc construction

The CP9668 is a radial-mount Radi-CAL caliper with an asymmetric, hard anodized body. Stainless pistons, anti-knockback springs and low-drag seals keep pedal feel consistent. The CP7177 discs ride on 6061 hard anodized aluminum hats with fully floating hardware, and the pistons are sized for the OEM master cylinder and ABS so it works with the OEM rear brakes or a matching AP Racing rear kit.

Features

AP Racing CP9668 Radi-CAL six-piston calipers
372 x 34mm, 72-vane J Hook discs on floating hats
8 to 11 lb lighter than the OEM front brakes
Fits inside many 18 inch wheels
25mm pads for long service life

What's Included

One pair AP Racing CP9668 Radi-CAL Pro5000R six piston calipers
One pair 372x34mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
One pair caliper mounting brackets and hardware
One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
Detailed installation instructions

Brake pads are not included.

Specifications

Manufacturer part number	13.01.10042
Brand	AP Racing by Essex
Position	Front
Application	Track
Caliper	AP Racing CP9668-2S4L/3S4L Radi-CAL Pro5000R, six piston, radial mount
Caliper weight (no pads)	6.9 lb each (OEM six piston ZL1 9 lb)
Piston sizes	27.0mm x 2, 31.8mm x 2, 38.1mm x 2 (50.1 cm2 total area)
Mounting centers / offset	180mm / 42mm
Inlet thread	M10x1.0
Disc	CP7177-350/351GC two-piece floating, 372 x 34mm, 72 vanes, J Hook
Disc weight	19.1 lb each (OEM ZL1 370 x 34mm, 25 lb)
Pad thickness	25mm (OEM 15.8mm)
Brake pads	Not included
Shipping weight	40 lb (18.1 kg)

Video

Fitment notes

Fits the fifth generation Camaro models below. The 372mm disc fits inside many popular 18 inch wheels and OEM 19 inch wheels; check your wheel with the wheel fitment template before ordering.

Fitment

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
Year	Make	Model	Chassis	Engine
2010-2015	Chevrolet	Camaro LS / LT	5th Gen	3.6L V6
2010-2015	Chevrolet	Camaro SS	5th Gen	6.2L V8
2012-2015	Chevrolet	Camaro ZL1	5th Gen	6.2L Supercharged V8 (LSA)
2014-2015	Chevrolet	Camaro Z/28	5th Gen	7.0L V8 (LS7)

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.
