AP Racing Radi-CAL Competition Rear Kit 365mm - Nissan 370Z

The AP Racing by Essex Radi-CAL Competition Brake Kit is a rear brake upgrade for the 2009-2020 Nissan 370Z. It pairs AP Racing CP9451 Radi-CAL Pro5000R racing calipers with 365 x 30mm, 72-vane AP Racing J Hook discs on fully floating aluminum hats, built for track days and competition driving.

Why upgrade

Weighs roughly the same as the OEM Sport Package setup, despite AP discs being significantly larger (15mm larger in diameter and 10mm thicker). Each caliper weighs 4.85 lb without pads, against 5.52 lb for the factory akebono 2 piston caliper. Each two-piece disc weighs 16.8 lb, compared with 19.3 lb for the original 350mm disc. The 16.75mm pad is thicker than the 13.8mm factory pad, so it lasts longer and absorbs more heat between changes. The OEM parking brake keeps working. Every component is designed to resist the heat of extended track sessions. Pistons are sized to work seamlessly with the OEM master cylinder and ABS.

Caliper and disc construction

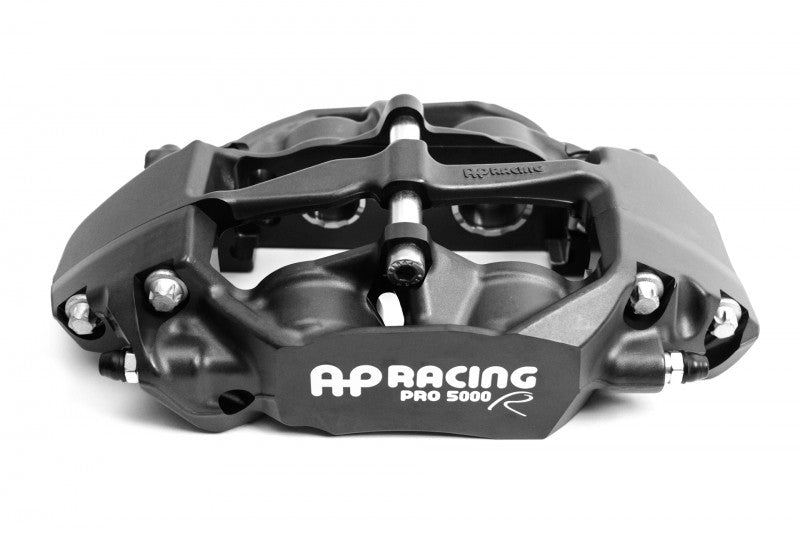

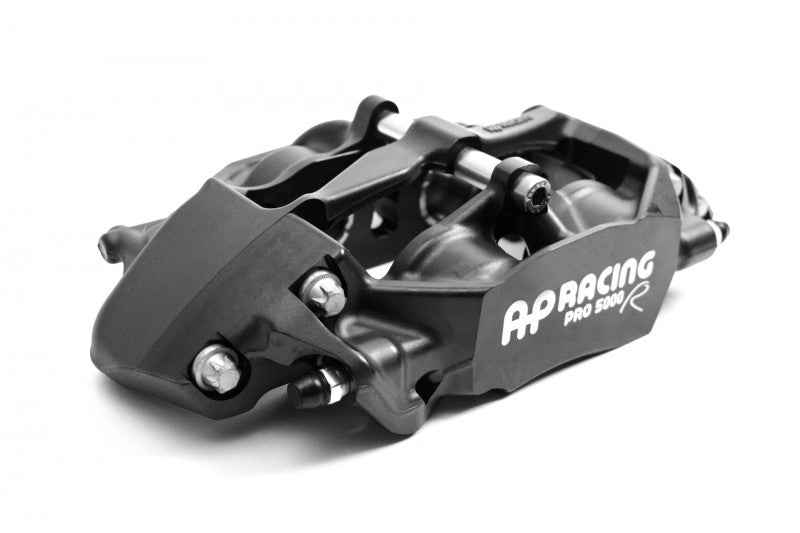

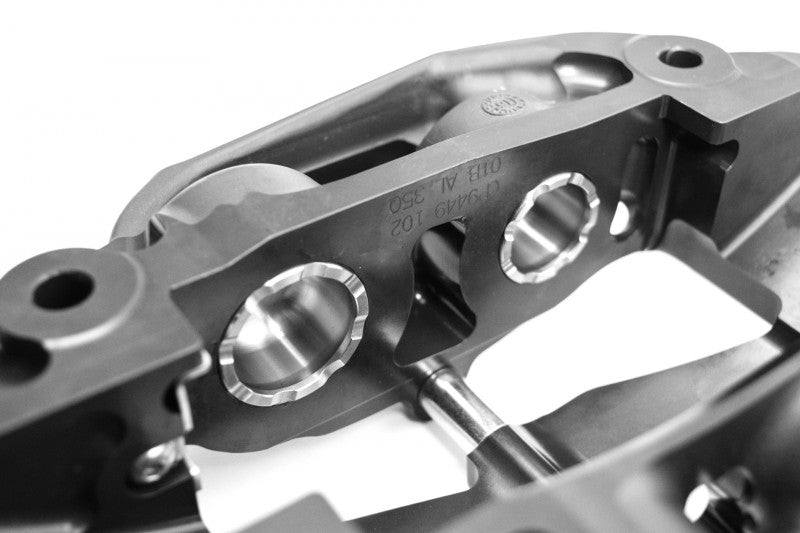

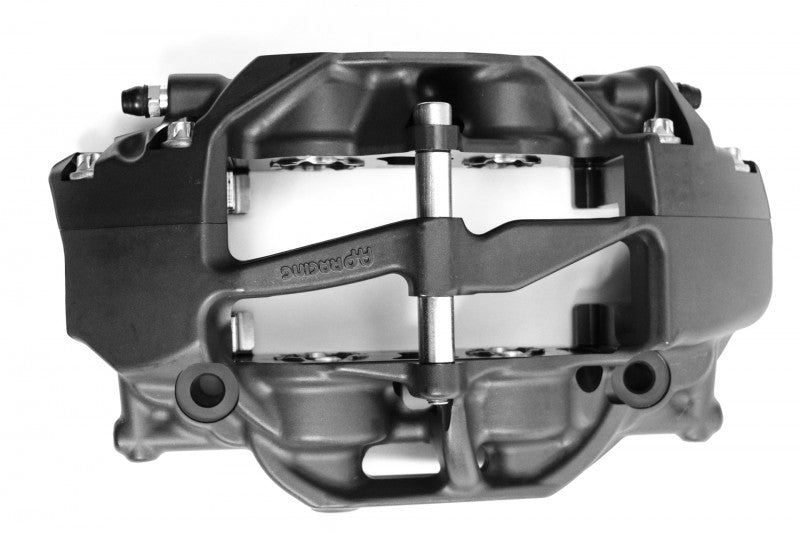

On the Nissan 370Z, the CP9451 caliper mounts radially on a dedicated bracket at 152mm centers with a 44mm offset, with an M10x1.0 inlet thread. Spiegler stainless steel brake lines with a clear sheath reduce compliance compared with the OEM rubber lines. The caliper uses a commonly available pad shape. Ventilated, domed-back stainless steel pistons keep heat out of the brake fluid for a very firm pedal. Anti-knockback springs behind the caliper pistons limit pad knockback. The anodized caliper finish resists wear and deterioration at high temperatures. Stainless steel caliper hardware gives a long service life even with frequent pad changes. There are no dust boots to burn up at track temperatures.

Features

• AP Racing CP9451 four-piston calipers
• 365 x 30mm, 72-vane J Hook discs on floating hats
• 16.75mm thick brake pads
• Pistons sized for the OEM master cylinder and ABS
• No caliper removal for pad changes

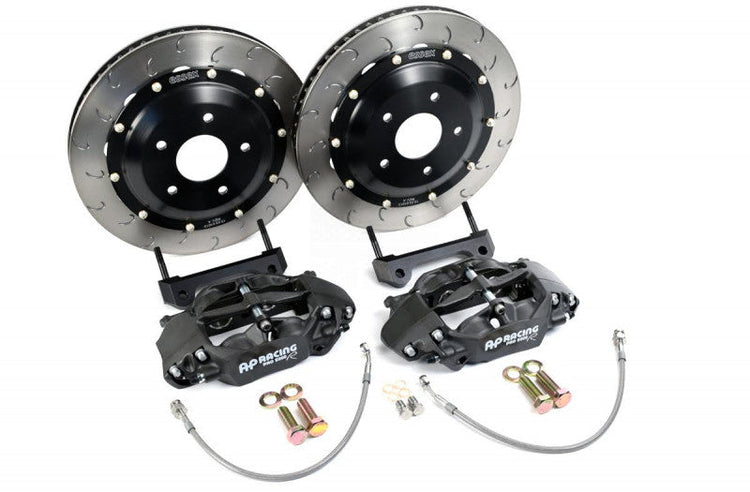

What's Included

• One pair AP Racing CP9451 Radi-CAL Pro5000R racing calipers
• One pair 365x30mm AP Racing 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• Detailed installation instructions

Brake pads are not included.

Specifications

Video

Fitment notes

This rear kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Essex has confirmed clearance with SSR Professor MS3 19x11.5 inch ET30. Call us about the Nissan Z before ordering; we have not confirmed fitment for them yet. Check your wheel with the Essex wheel fitment template before ordering.

Fitment
