AP Racing Radi-CAL ENP Competition Front Kit 394mm - Porsche 992 GT3

The AP Racing by Essex Radi-CAL Competition Brake Kit with ENP (electroless nickel plated) calipers is a front brake upgrade for the Porsche 992 GT3, GT3 RS and 911 S/T. It pairs AP Racing CP9661 Radi-CAL Pro5000R racing calipers with 394 x 34mm, 84-vane AP Racing J Hook discs on fully floating aluminum hats, built for track days and competition driving. Clears OEM 20 inch wheels without a spacer.

Why upgrade

Saves 18 unsprung lbs. versus OEM iron brakes and weighs almost the same as the OEM PCCB system. Each caliper weighs 6.2 lb without pads, against 9.3 lb for the factory fixed bridge one-piece caliper. Each two-piece disc weighs 21.5 lb, compared with 25.9 lb for the original 408mm disc. The 18mm pad is thicker than the 16.6mm factory pad, so it lasts longer and absorbs more heat between changes. Pads change without removing the caliper. The ENP (electroless nickel plated) finish is very durable and easy to clean. The caliper takes pads from all major pad manufacturers. Every component is designed to resist the heat of extended track sessions. Pistons are sized to work seamlessly with the OEM master cylinder and ABS. It works with the OEM rear brakes or a matching AP Racing rear kit.

Caliper and disc construction

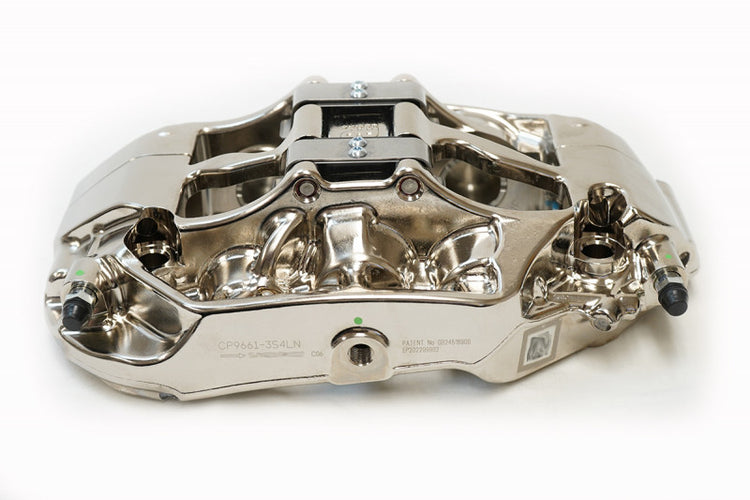

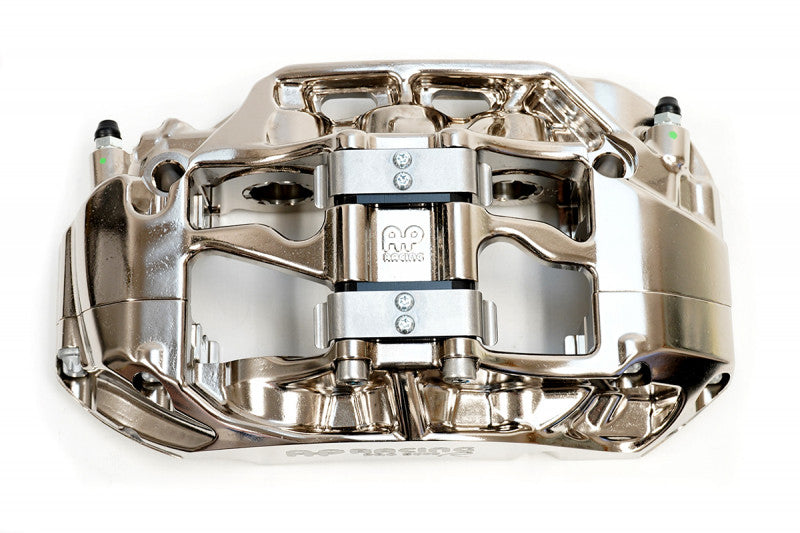

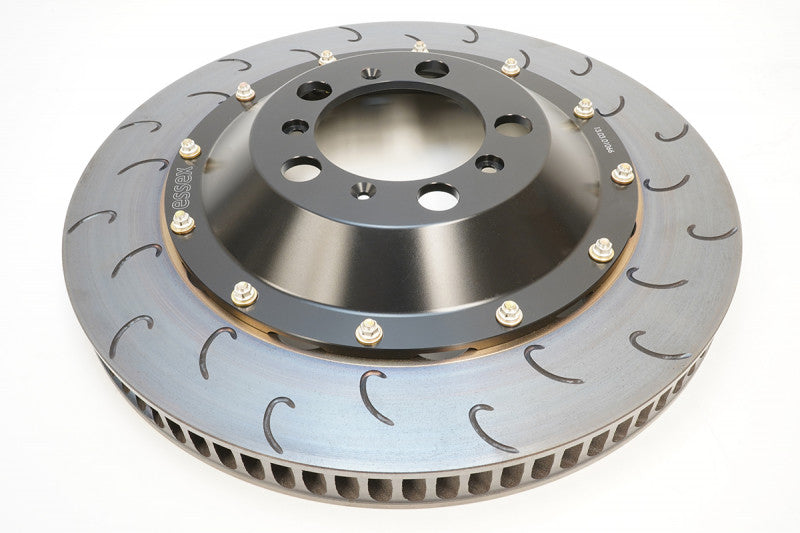

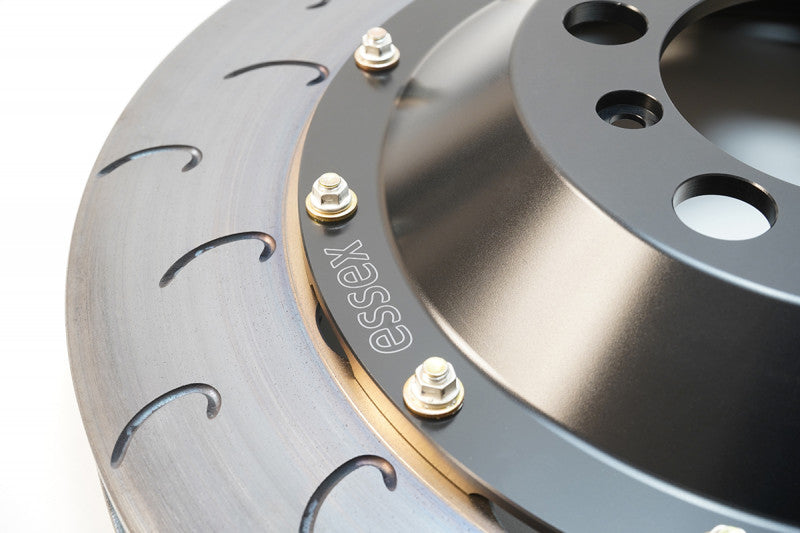

On the Porsche 992 GT3, the CP9661 caliper mounts radially on a dedicated bracket at 180mm centers with a 42mm offset, with an M10x1.0 inlet thread. Stainless steel caliper hardware gives a long service life even with frequent pad changes. There are no dust boots to burn up at track temperatures. The championship-winning 84-vane AP Racing J Hook discs are fully floating. The discs use anti-knockback, anti-rattle attachment hardware. The disc metallurgy is designed for the temperatures seen on track, for a long service life. Spiegler stainless steel brake lines with a clear sheath reduce compliance compared with the OEM rubber lines. Pads change with two bolts, with no caliper removal.

Features

• AP Racing CP9661 six-piston calipers in ENP finish
• 394 x 34mm, 84-vane J Hook discs on floating hats
• About 18 lb less unsprung weight
• 18mm thick brake pads
• Pistons sized for the OEM master cylinder and ABS

What's Included

• One pair AP Racing CP9661 Radi-CAL Pro5000R racing calipers in ENP (Electroless Nickel Plated) finish
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• Detailed installation instructions

Brake pads are not included.

Specifications

Video

Fitment notes

This front kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Essex has confirmed clearance with OEM 20 inch 992 GT3, OE 20x10 ET45 992.2 GT3 RS Wheel and APEX All 19 inch and 20 inch wheels (VS-5RS and EC-7RS). Check your wheel with the Essex wheel fitment template before ordering.

Fitment
