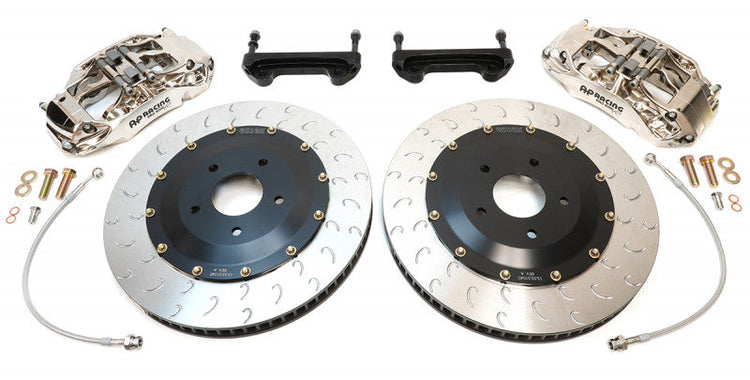

A front view of AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB with a white background

}

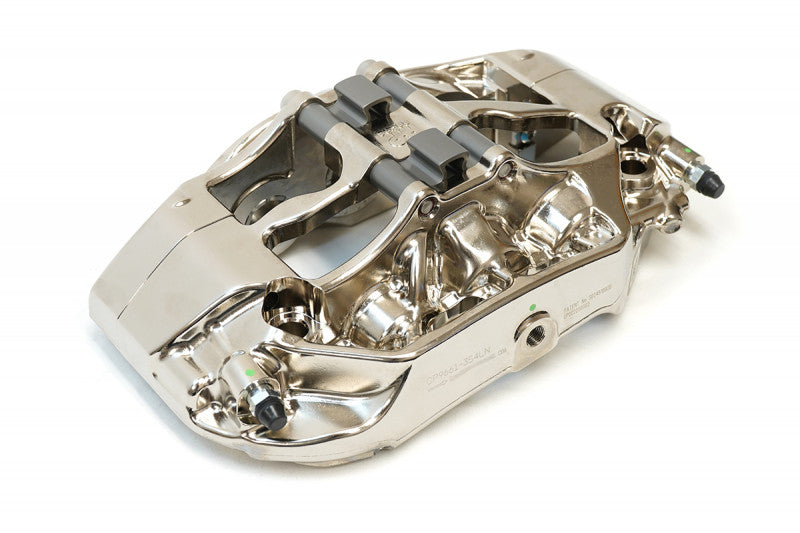

A side view of CP9660 of the AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB with a white background

}

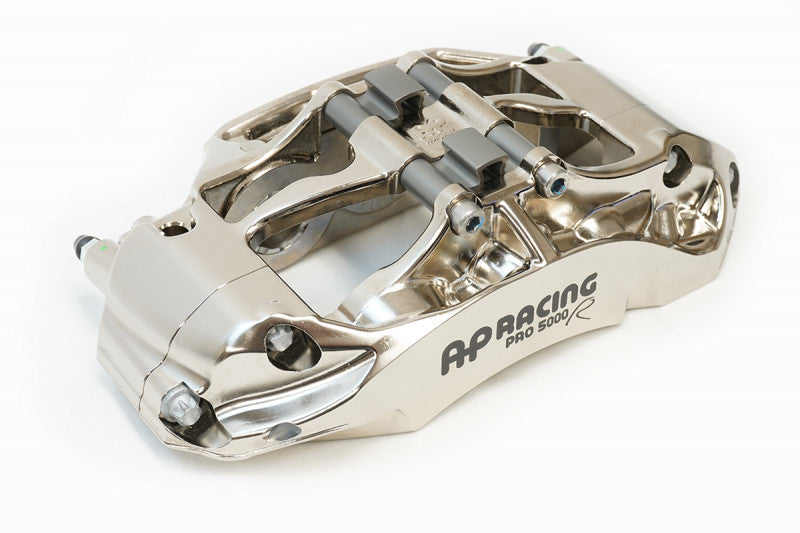

A top side view of CP9660 of the AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB with a white background

}

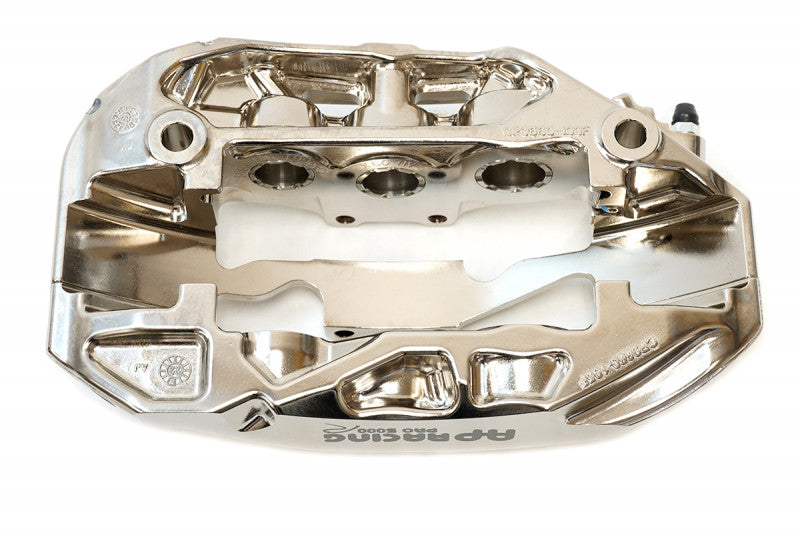

A top view of CP9660 of the AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB with a white background

}

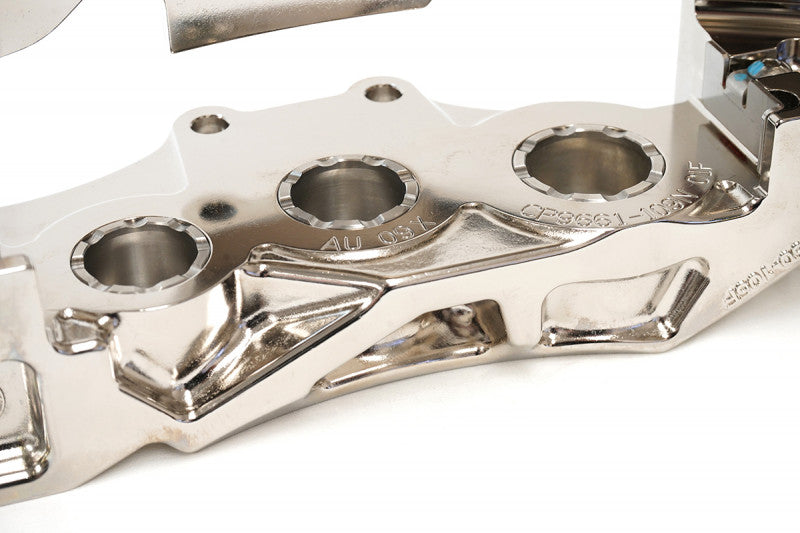

A close up view of CP9660 of the AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB with a white background

}

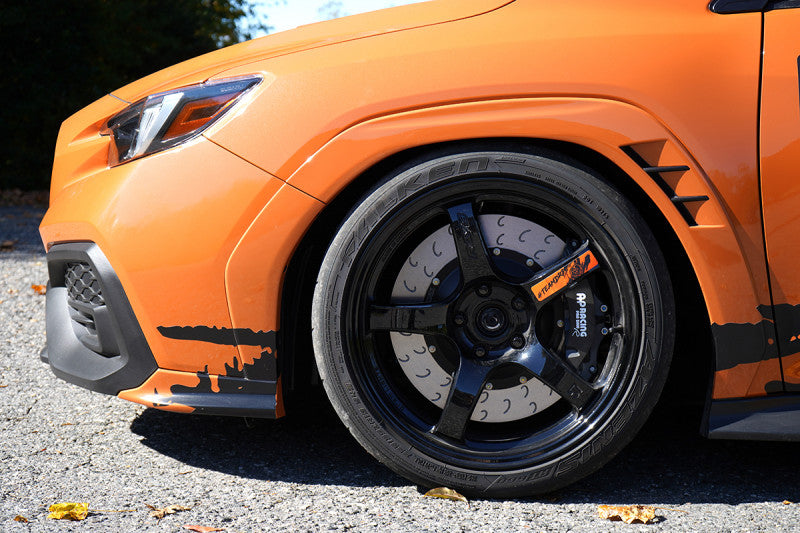

A side close up view of an orange Subaru and its wheel fitted with AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB

}

AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB

Name: AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB
Brand: AP Racing
SKU: 13.01.10171-ENP
Price: 5499.0 USD
Availability: InStock

Ask an expert

Vendor: AP Racing

SKU: 13.01.10171-ENP

Regular price: $5,499.00
Regular price
Sale price: $5,499.00
Unit price: per

Apply at checkout

Not sure it fits? Text us your VIN

Subtotal: $5,499.00

Quantity:

AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB

Subtotal: $5,499.00

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

Description:

AP Racing by Essex Radi-CAL ENP Competition Brake Kit (Front CP9660/372mm) - 2022+ Subaru WRX VB

Part #: 13.01.10171-ENP

Brand: Essex & AP Racing

Complete front ENP Finish (Electroless Nickel Plated) AP Racing by Essex Anodized Finish Radi-CAL Competition Brake Kit for the 2022 Subaru WRX (VB):

Features AP Racing CP9660 Radi-CAL calipers
Jewel-like ENP caliper finish is incredibly durable and easy to clean
372x34mm, 72 vane AP Racing discs with patented J Hook slot design
Several pounds of unsprung weight reduction from the car's nose, despite a huge size increase
Every component designed to resist the heat of extended track sessions
Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system
Designed to work with OEM rear brakes or our Essex/AP Racing rear BBK

WHAT'S IN THE BOX?

One pair AP Racing CP9660 Radi-CAL Pro5000R six piston calipers in ENP (Electroless Nickel Plated) finish
One pair 372x34mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
One pair caliper mounting brackets and hardware
One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
Detailed installation instructions
Brake pads are NOT included with our system. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits. Rather than artificially inflating the price of our system with a set of pads you probably don't want anyway, we've decided to remove the cost from our system and allow our customers to choose the pads that best suit their needs/wants.
Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with our Competition Kits, but we do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers in our system is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.

Notes:

Brake pads are NOT included with our system
Each caliper requires one Pad Tension Kit. If you need enough tension blocks for both of your calipers, you need to order two of these kits!
Does not fit OEM wheels

Fitments:

Make	Model	Years
Subaru	WRX	2022-2023
