AP Racing Radi-CAL ENP Front Kit 372mm - Camaro, ATS-V, CTS-V

The AP Racing by Essex Radi-CAL Competition Brake Kit with ENP (electroless nickel plated) calipers is a front brake upgrade for the Gen 6 Camaro SS and ZL1 plus Cadillac ATS-V and CTS-V. It pairs AP Racing CP9660 Radi-CAL Pro5000R six-piston calipers with 372 x 34mm, 72-vane AP Racing J Hook discs on fully floating aluminum hats, built for track days and competition driving. Fits behind OEM 1LE 20 inch and ATS-V Coupe 18 inch front wheels without a spacer.

Why upgrade

The kit removes about 22 lb of unsprung weight from the front of the car compared with the OEM 1LE brakes. Each caliper weighs 6.2 lb without pads, against 6.9 lb for the factory cP9668-2S7L/3S7L (six-piston) caliper. The caliper takes a 18mm thick pad for long life and heat tolerance. The ENP (electroless nickel plated) finish is very durable and easy to clean. Every component is designed to resist the heat of extended track sessions. Pistons are sized to work seamlessly with the OEM master cylinder and ABS. It works with the OEM rear brakes.

Caliper and disc construction

On the Camaro, ATS-V, CTS-V, the CP9660 caliper mounts radially on a dedicated bracket at 180mm centers with a 42mm offset, with an M10x1.0 inlet thread. There are no dust boots to burn up at track temperatures. Pads change with two bolts or a quick-change spring clip, with no caliper removal. The championship-winning 72-vane AP Racing J Hook discs are fully floating. The discs use anti-knockback, anti-rattle attachment hardware. The disc metallurgy is designed for the temperatures seen on track, for a long service life. Spiegler stainless steel brake lines with a clear sheath reduce compliance compared with the OEM rubber lines. The electroless nickel plated finish resists wear and deterioration, even at high temperatures.

Features

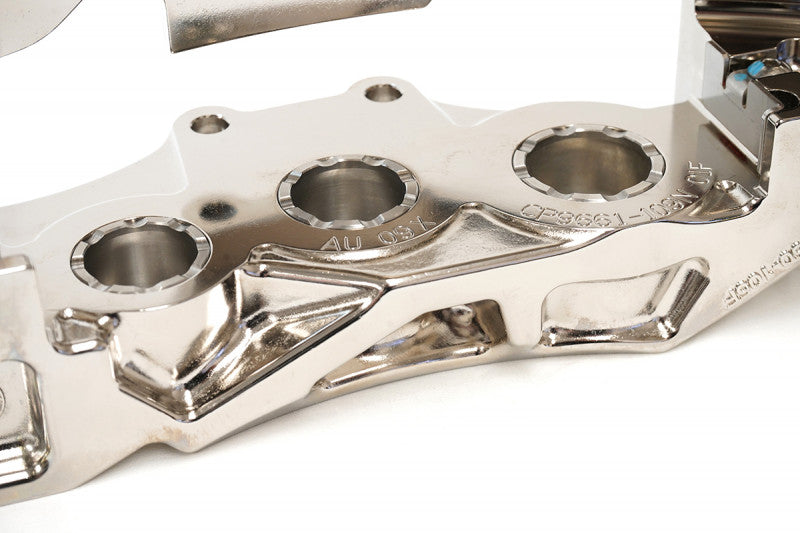

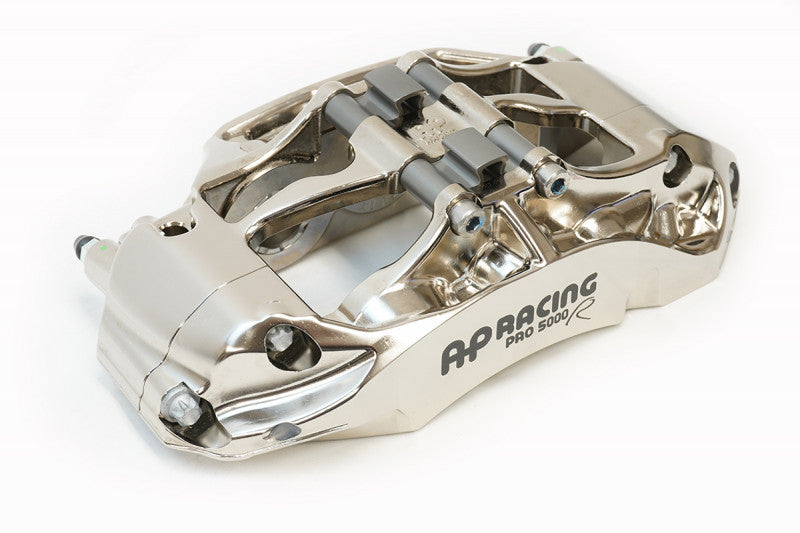

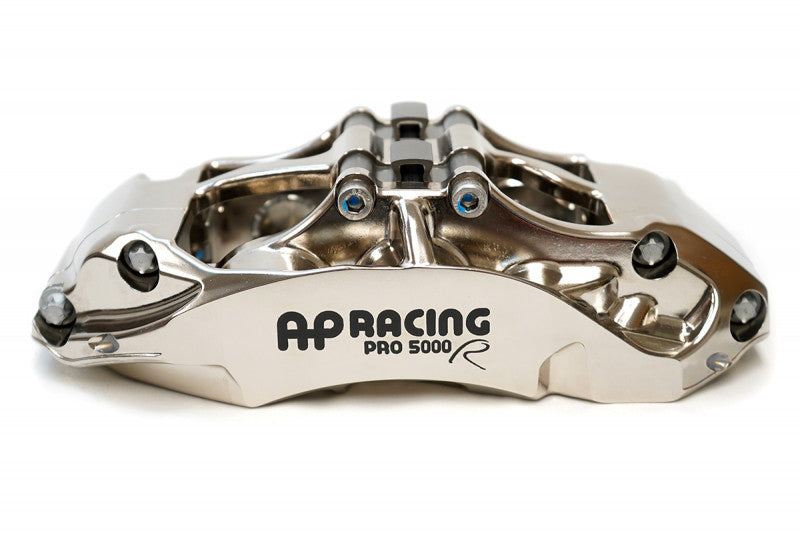

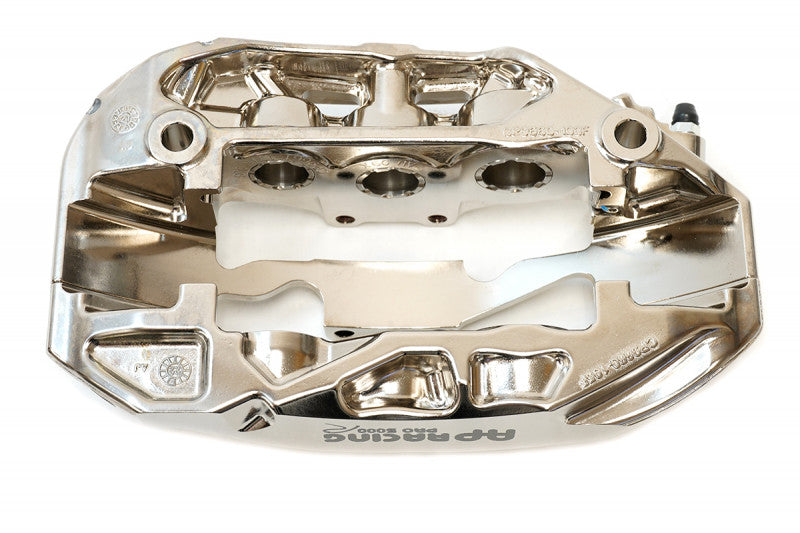

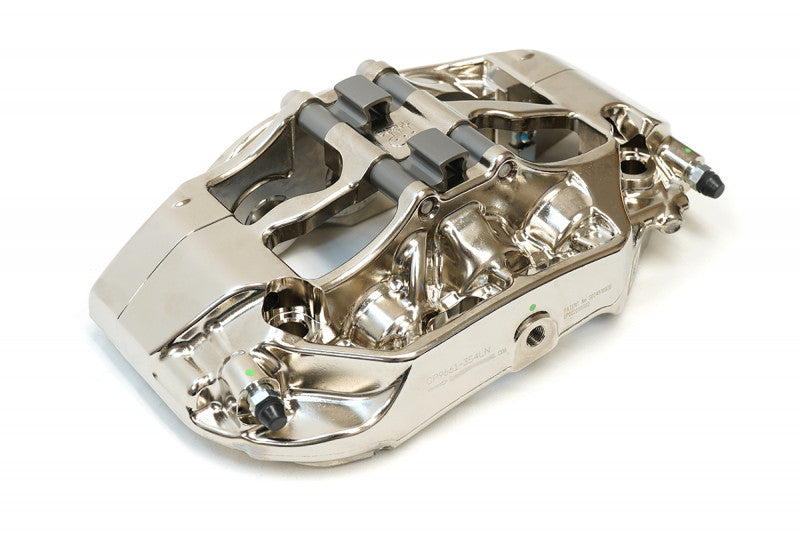

• AP Racing CP9660 six-piston calipers in ENP finish
• 372 x 34mm, 72-vane J Hook discs on floating hats
• About 22 lb less unsprung weight
• 18mm thick brake pads
• Pistons sized for the OEM master cylinder and ABS

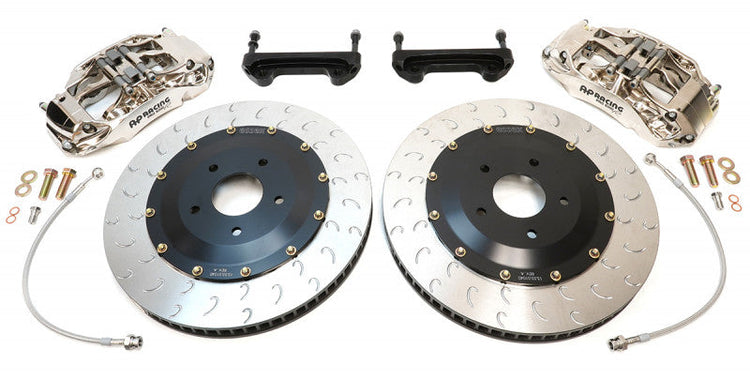

What's Included

• One pair AP Racing CP9660 Radi-CAL Pro5000R six piston calipers in ENP Finish (Electroless Nickel Plated)
• One pair 372x34mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• Detailed installation instructions

Brake pads are not included.

Specifications

Video

Fitment notes

This front kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Essex has confirmed clearance with OEM 20 inch front wheel from 1LE package, APEX ARC-8, 19x10 inch, APEX ARC-8, 19x11 inch ET11, APEX SM-10,, 18x10 inch ET19, APEX SM-10, 18x11 inch ET7, Forgeline GS1R 19x11 and Forgeline GA1R 19x11. Check your wheel with the Essex wheel fitment template before ordering.

Fitment
