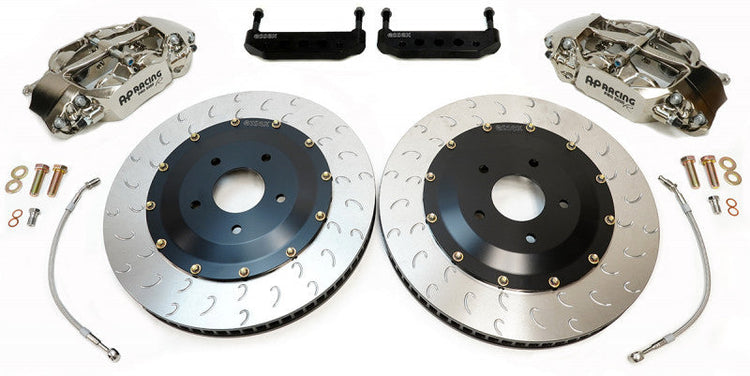

AP Racing rear brake kit for the McLaren 620R with 380mm two-piece discs and calipers

}

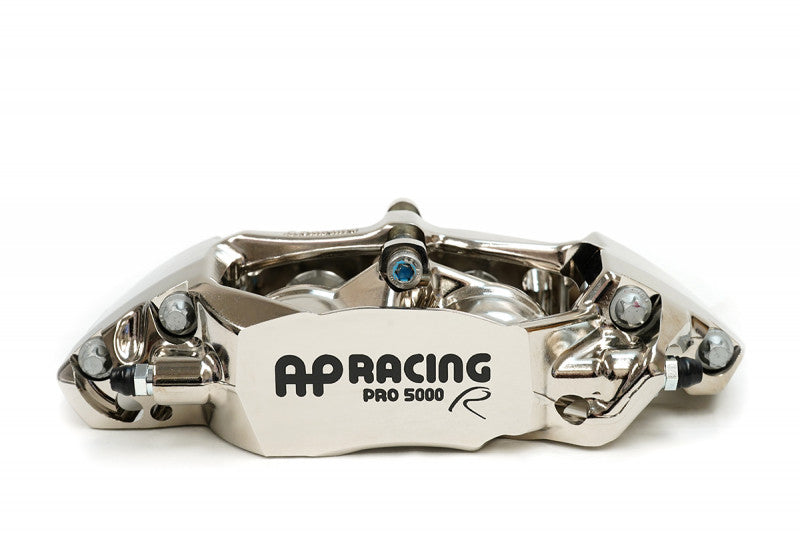

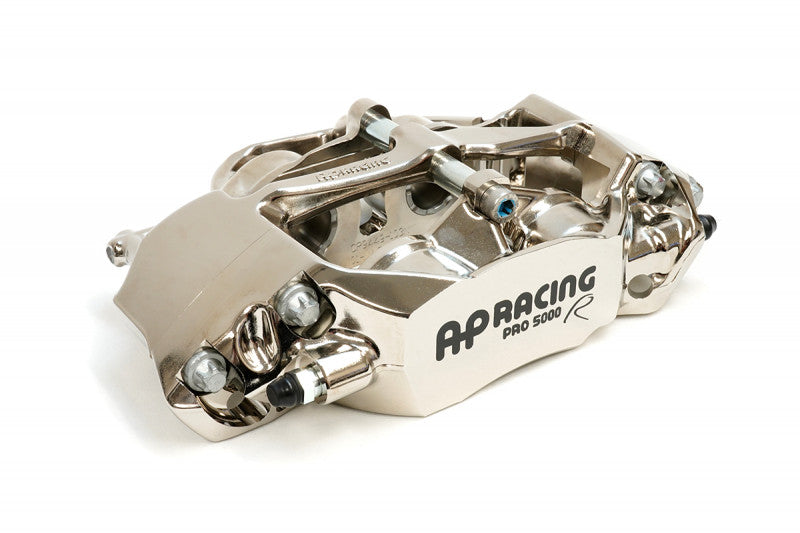

Angled view of the ENP CP9449 caliper for the McLaren 620R

}

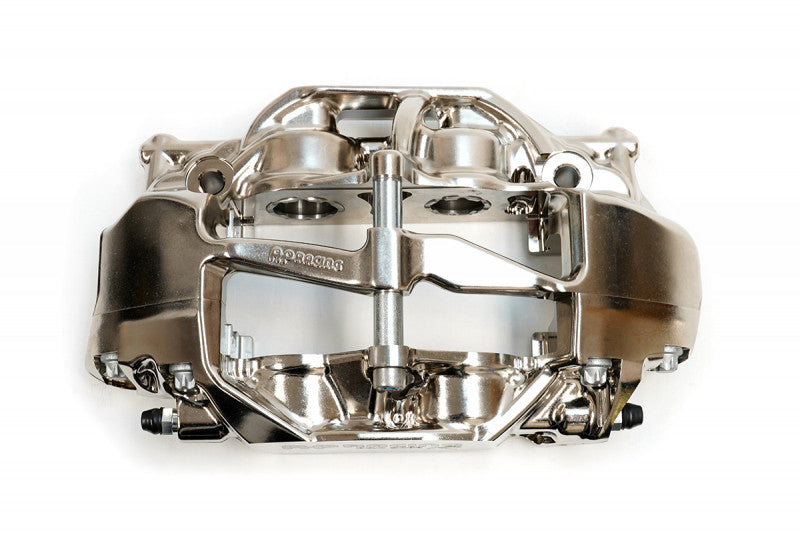

Top view of the CP9449 caliper with pad window, McLaren 620R kit

}

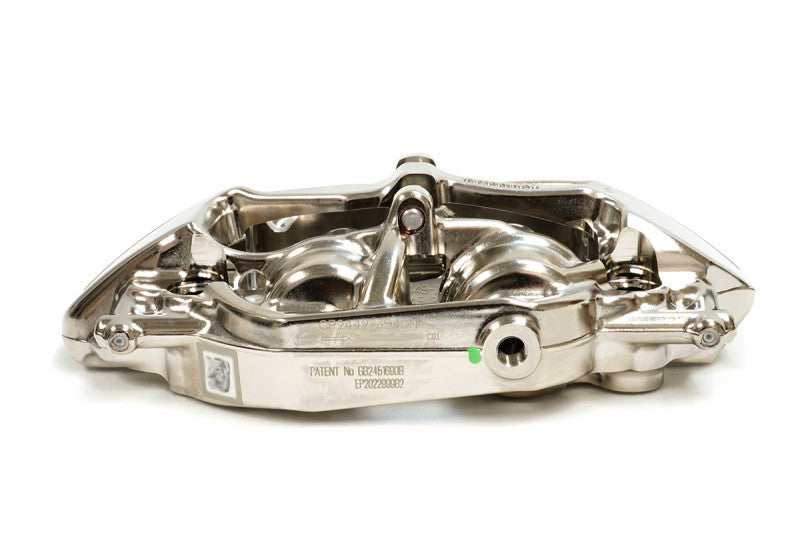

Back of the AP Racing rear caliper with bleed screw, McLaren 620R

}

Pad pin and retaining clip on the CP9449 caliper for the McLaren 620R

}

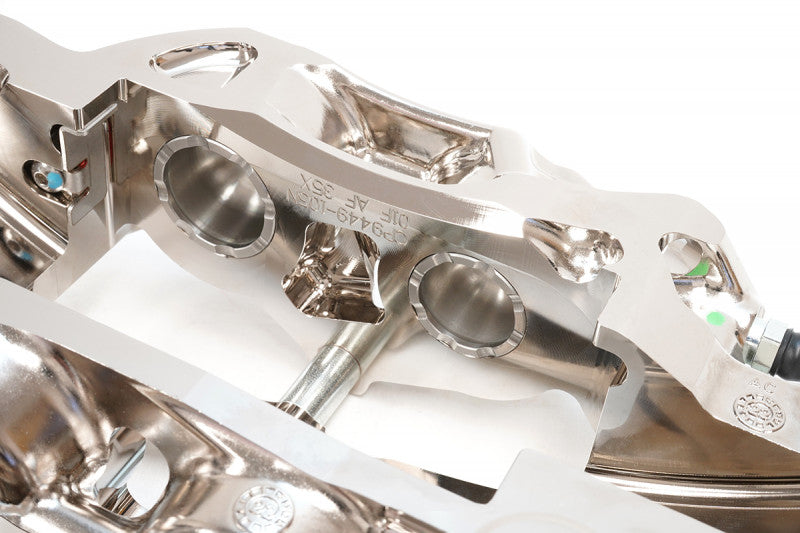

Pistons inside the CP9449 caliper from the McLaren 620R rear kit

}

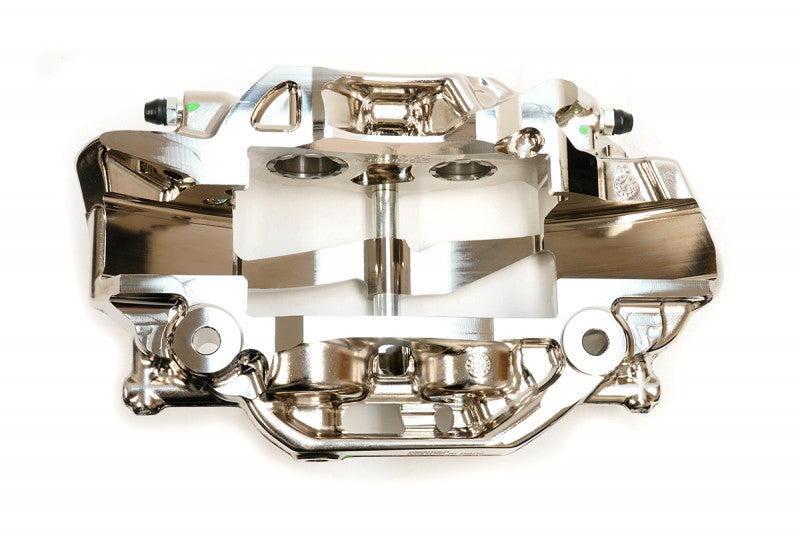

Mounting face of the AP Racing CP9449 caliper for the McLaren 620R

}

AP Racing Radi-CAL ENP Competition Rear Kit 380mm - McLaren 620R

Ask an expert

Brand: AP RacingSKU / Part #: 13.01.10179-ENP

Regular price: $6,099.00
Regular price
Sale price: $6,099.00
Unit price: per

Apply at checkout

Subtotal: $6,099.00

Quantity:

AP Racing Radi-CAL ENP Competition Rear Kit 380mm - McLaren 620R

Subtotal: $6,099.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AP Racing by Essex Radi-CAL Competition Brake Kit with ENP (electroless nickel plated) calipers is a rear brake upgrade for the 2020-2021 McLaren 620R. It pairs AP Racing CP9449 Radi-CAL Pro5000R racing calipers with 380 x 32mm, 72-vane AP Racing J Hook discs on fully floating aluminum hats, built for track days and competition driving. Fits OEM wheels without spacer.

Why upgrade

Weighs within 2 lb per side of the OEM carbon ceramic brake system. Each caliper weighs 4.85 lb without pads, against 7.23 lb for the factory caliper. The caliper takes a 16.75mm thick pad for long life and heat tolerance. The ENP (electroless nickel plated) finish is very durable and easy to clean. The OEM parking brake keeps working. Every component is designed to resist the heat of extended track sessions. Pistons are sized to work seamlessly with the OEM master cylinder and ABS.

Caliper and disc construction

On the McLaren 620R, the CP9449 caliper mounts radially on a dedicated bracket at 152mm centers with a 44mm offset, with an M10x1.0 inlet thread. The caliper uses a commonly available pad shape. Ventilated, domed-back stainless steel pistons keep heat out of the brake fluid for a very firm pedal. Anti-knockback springs behind the caliper pistons limit pad knockback. Stainless steel caliper hardware gives a long service life even with frequent pad changes. There are no dust boots to burn up at track temperatures. Pads change with one bolt, with no caliper removal. The championship-winning 72-vane AP Racing J Hook discs are fully floating.

Features

AP Racing CP9449 0-piston calipers in ENP finish
380 x 32mm, 72-vane J Hook discs on floating hats
16.75mm thick brake pads
Pistons sized for the OEM master cylinder and ABS
No caliper removal for pad changes

What's Included

One pair AP Racing CP9449 Radi-CAL Pro5000R racing calipers in ENP (Electroless Nickel Plated) finish
One pair caliper mounting brackets and hardware
Detailed installation instructions

Brake pads are not included.

Specifications

Manufacturer part number	13.01.10179-ENP
Brand	AP Racing by Essex
Position	Rear
Application	Track
Caliper	AP Racing CP9449-2/3S4L Radi-CAL Pro5000R racing, radial mount
Caliper weight (no pads)	4.85 lb each (OEM 7.23 lb)
Mounting centers / offset	152mm / 44mm
Inlet thread	M10x1.0
Disc	CP5772-1016/1017GA two-piece floating, 380 x 32mm, 72 vanes, J Hook
Disc weight	17.0 lb each (OEM 12.2 lb)
Pad thickness	16.75mm
Pad dimensions	132.4 x 50 x 16.7 mm
Brake pads	Not included
Shipping weight	40 lb (18.1 kg)

Video

Fitment notes

This rear kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Essex has confirmed clearance with OEM 620R rear. Call us about the McLaren Senna before ordering; we have not confirmed fitment for them yet. Check your wheel with the Essex wheel fitment template before ordering.

Fitment

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
Year	Make	Model	Chassis	Engine
2020-2021	McLaren	620R	P13	3.8L Twin-Turbo V8 (M838T)

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.

Shipping & returns

Shipping: Orders ship via UPS, FedEx or USPS, from our facility near Los Angeles or directly from the manufacturer. Rates for many items are weight-based and shown at checkout. If you need it by a certain date, text us before you order.

Returns: Unused items in brand-new condition and original packaging can be returned within 30 days of the invoice date, with a 25% restocking fee unless otherwise specified. In some cases we can offer a lower fee with the balance as store credit. Shipping charges aren't refundable in either direction unless approved by AutoTalent.

Not returnable: special-order or custom items, and anything that has been installed, modified or altered.

Cancellations: free if the item is out of stock or we miss the ETA you agreed to. Other cancellations carry a 5% processing fee to cover card fees we can't recover. Special-order items can't be cancelled.

Damaged in transit? Report it to the carrier and to us within 48 hours, keep all packaging, and don't send anything back without our written approval.
