AP Racing Radi-CAL ENP Rear Kit 380mm - Porsche 991 GT3, GT2 RS

The AP Racing by Essex Radi-CAL Competition Brake Kit with ENP (electroless nickel plated) calipers is a rear brake upgrade for the Porsche 991 GT3, GT3 RS, 911 R and GT2 RS. It pairs AP Racing CP9449 Radi-CAL Pro5000R racing calipers with 380 x 32mm, 72-vane AP Racing J Hook discs on fully floating aluminum hats, built for track days and competition driving. Fits OEM 20 inch wheels without spacer.

Why upgrade

The kit removes about 18 lb of unsprung weight from the rear of the car compared with the OEM brakes. Each caliper weighs 4.85 lb without pads, against 7.5 lb for the factory iron System caliper. Each two-piece disc weighs 19.1 lb, compared with 24 lb for the original 380mm disc. The caliper takes a 16.75mm thick pad for long life and heat tolerance. Pads change without removing the caliper. The OEM parking brake keeps working. The ENP (electroless nickel plated) finish is very durable and easy to clean. The caliper takes pads from all major pad manufacturers. Every component is designed to resist the heat of extended track sessions. Pistons are sized to work seamlessly with the OEM master cylinder and ABS.

Caliper and disc construction

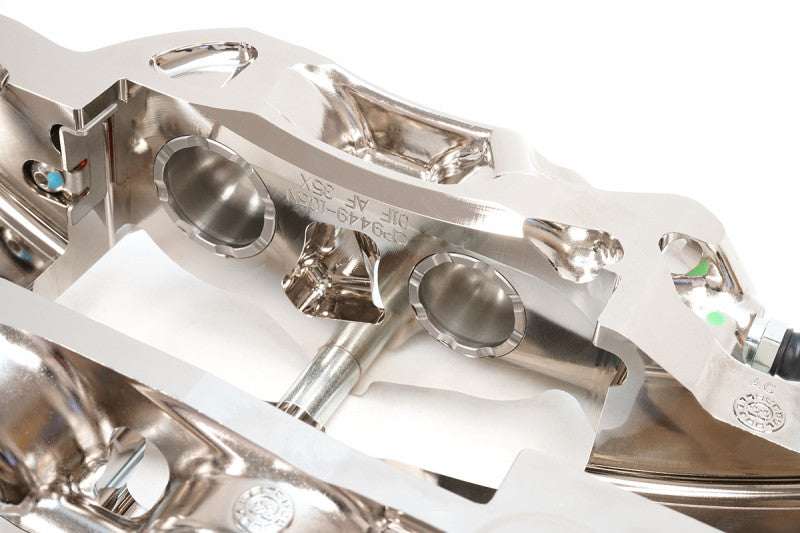

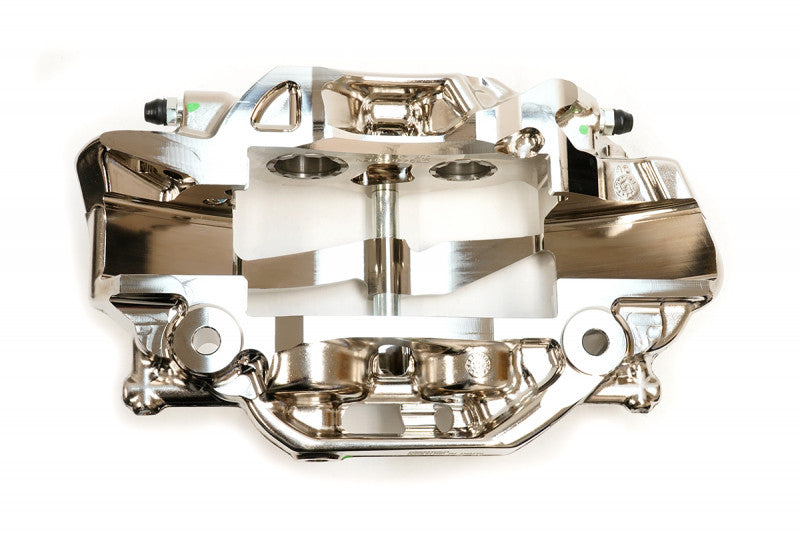

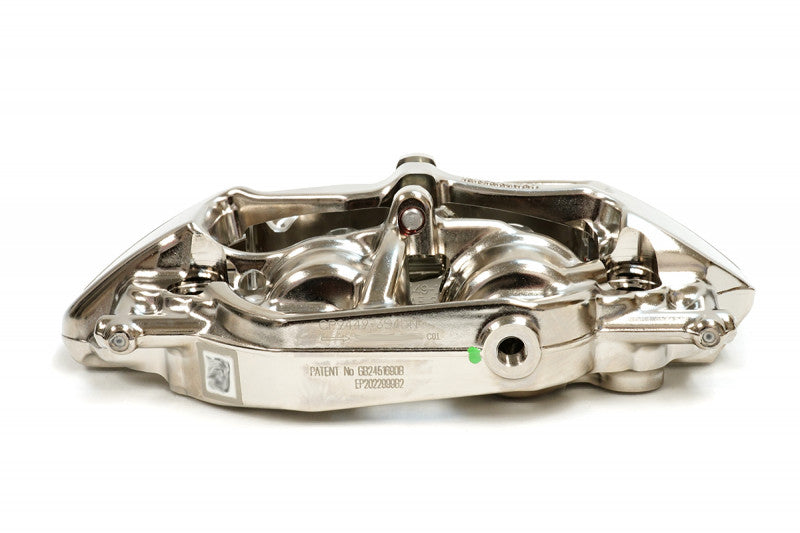

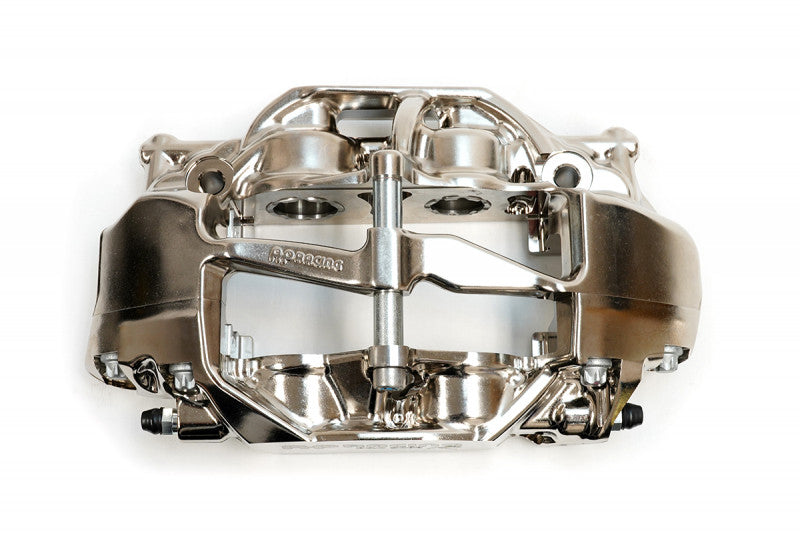

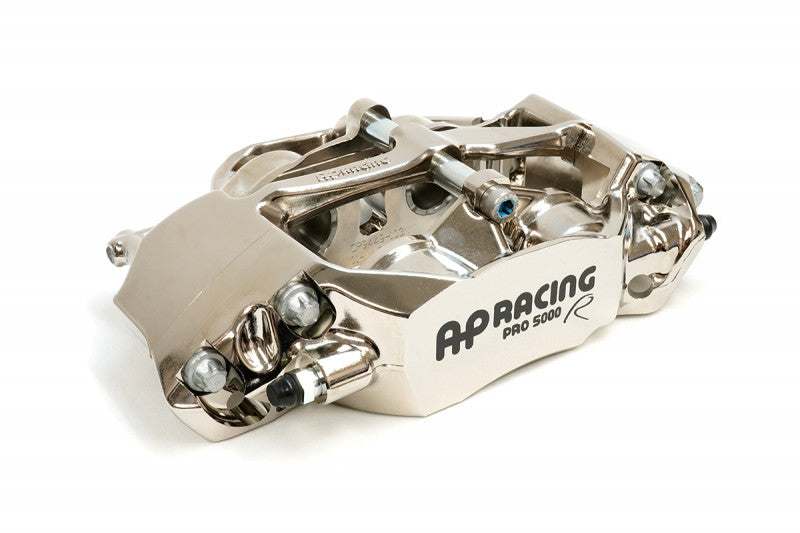

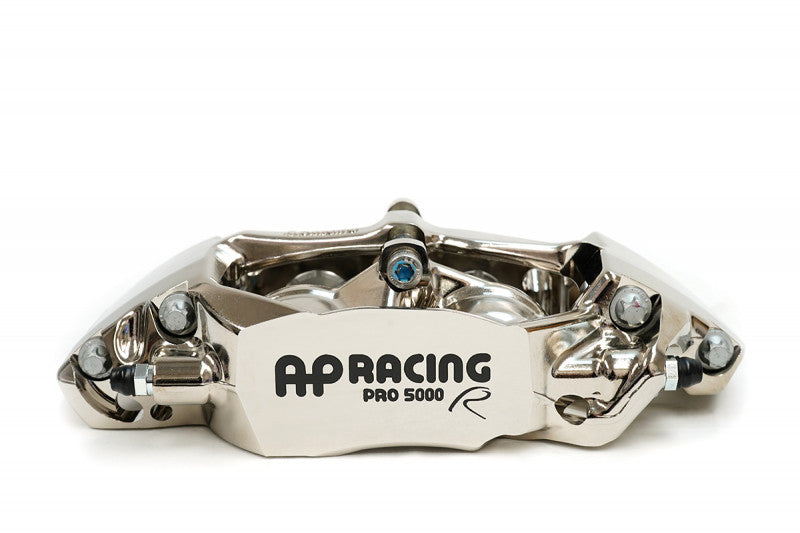

On the Porsche 991 GT3, GT2 RS, the CP9449 caliper mounts radially on a dedicated bracket at 152mm centers with a 44mm offset, with an M10x1.0 inlet thread. Stainless steel caliper hardware gives a long service life even with frequent pad changes. There are no dust boots to burn up at track temperatures. Pads change with one bolt, with no caliper removal. The championship-winning 72-vane AP Racing J Hook discs are fully floating. The discs use anti-knockback, anti-rattle attachment hardware. The disc metallurgy is designed for the temperatures seen on track, for a long service life. Spiegler stainless steel brake lines with a clear sheath reduce compliance compared with the OEM rubber lines.

Features

• AP Racing CP9449 0-piston calipers in ENP finish
• 380 x 32mm, 72-vane J Hook discs on floating hats
• About 18 lb less unsprung weight
• 16.75mm thick brake pads
• Pistons sized for the OEM master cylinder and ABS

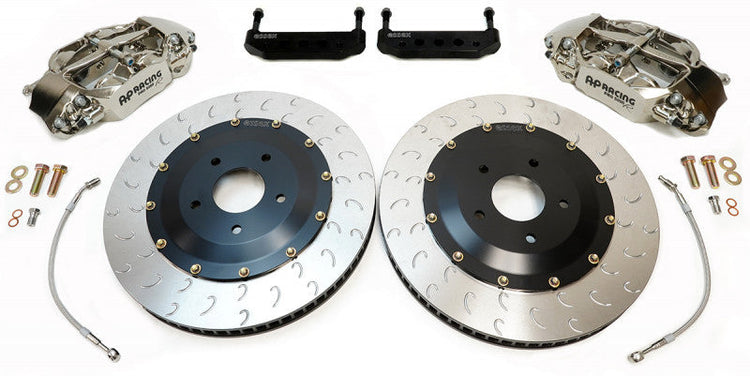

What's Included

• One pair AP Racing CP9449 Radi-CAL Pro5000R racing calipers in ENP (Electroless Nickel Plated) finish
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• Detailed installation instructions

Brake pads are not included.

Specifications

Video

Fitment notes

This rear kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Essex has confirmed clearance with Forgeline GE1R 19x12.0 inch & 20x12.0 inch, Forgeline SS1R 19x12.0 inch & 20x12.0 inch, Forgeline VX1R 19x12.0 inch & 20x12.0 inch, Forgeline GS1R 19x12.0 inch & 20x12.0 inch, Forgeline GA1R 19x12.0 inch & 20x12.0 inch and OZ Racing Superforgiata Centerlock 19x12.0 inch. Check your wheel with the Essex wheel fitment template before ordering.

Fitment
