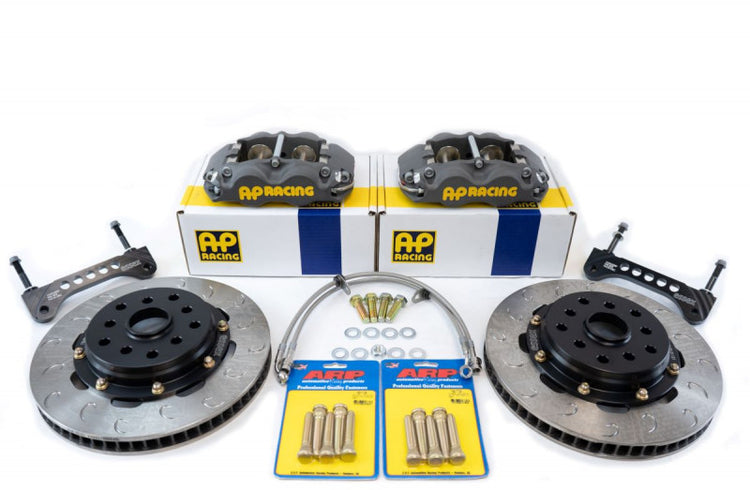

AP Racing front brake kit for the Subaru WRX, STI with 299mm two-piece discs and calipers

}

299mm AP Racing J Hook disc on floating aluminum hat for the Subaru WRX, STI

}

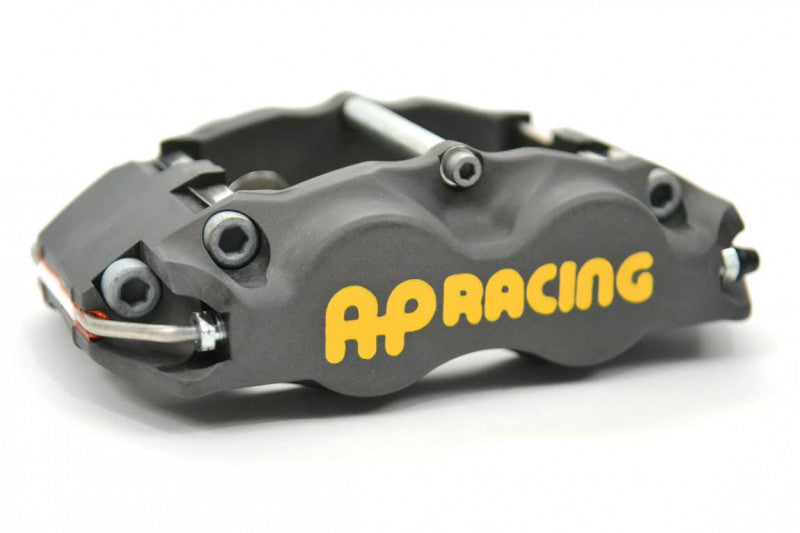

Angled view of the CP8350 caliper for the Subaru WRX, STI

}

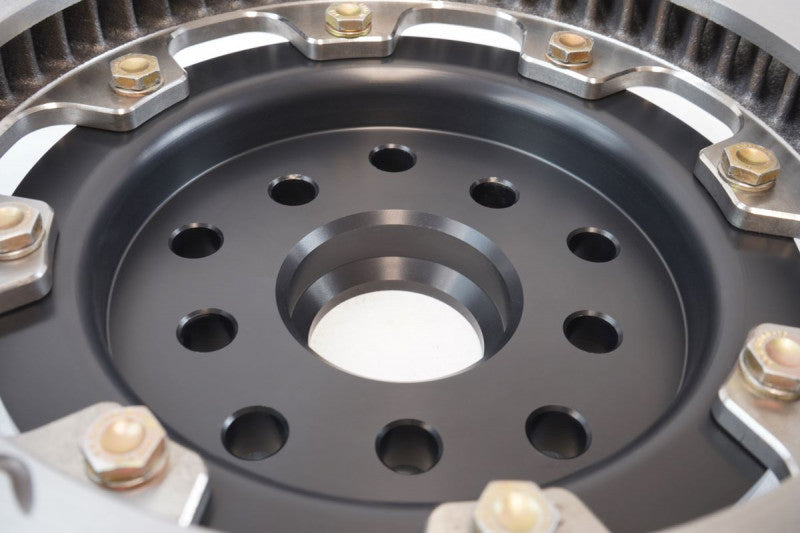

Hat side of the 299mm two-piece AP Racing disc, Subaru WRX, STI front kit

}

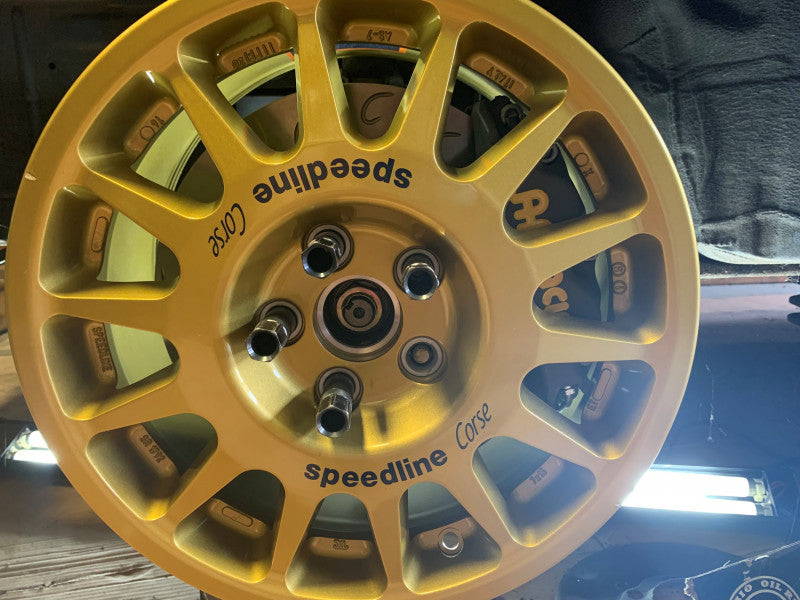

AP Racing front caliper seen through the wheel on the Subaru WRX, STI

}

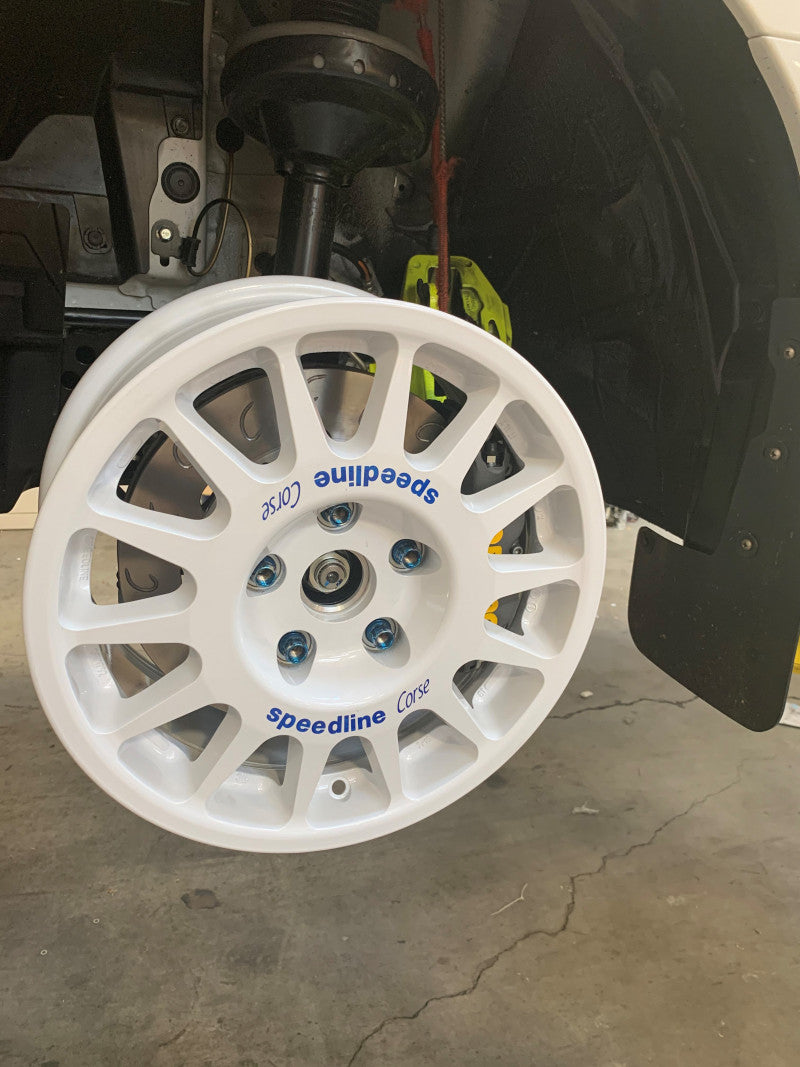

Wheel clearance view of the AP Racing front kit on the Subaru WRX, STI

}

AP Racing front brake kit detail for the Subaru WRX, STI

}

AP Racing Rally Front Kit 299mm - Subaru WRX, STI

Ask an expert

Brand: AP RacingSKU / Part #: 13.01.10139

Regular price: $2,949.00
Regular price
Sale price: $2,949.00
Unit price: per

Apply at checkout

Subtotal: $2,949.00

Quantity:

AP Racing Rally Front Kit 299mm - Subaru WRX, STI

Subtotal: $2,949.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AP Racing by Essex Rally Competition Brake Kit is a front brake upgrade for the 2002-2021 Subaru Impreza WRX, WRX STI and WRX. It pairs AP Racing CP8350 racing calipers with 299 x 32mm, 60-vane AP Racing J Hook discs on fully floating aluminum hats, built for track days and competition driving. Designed to fit behind 15 inch wheels used in many stage rally applications.

Why upgrade

Eliminates several pounds of unsprung weight compared to the OEM brakes. The caliper takes a 20mm thick pad for long life and heat tolerance. It works with the OEM rear brakes.

Caliper and disc construction

On the Subaru WRX, STI, the CP8350 caliper mounts radially on a dedicated bracket at 152mm centers with a 44mm offset, with an M10x1.0 inlet thread. The anodized caliper finish resists wear and deterioration at high temperatures. Stainless steel caliper hardware gives a long service life even with frequent pad changes. There are no dust boots to burn up at track temperatures. Pads change with one bolt, with no caliper removal. The championship-winning 60-vane AP Racing J Hook discs are fully floating. The disc metallurgy is designed for the temperatures seen on track, for a long service life. Spiegler stainless steel brake lines with a clear sheath reduce compliance compared with the OEM rubber lines.

Features

AP Racing CP8350 four-piston calipers
299 x 32mm, 60-vane J Hook discs on floating hats
20mm thick brake pads
Pistons sized for the OEM master cylinder and ABS
No caliper removal for pad changes

What's Included

One pair AP Racing CP8350 racing calipers (now with black AP Racing logos)
One pair 299 x 32mm AP Racing 60 vane J Hook iron discs with hard-anodized 6061 aluminum hats Special disc hats include an integral 10mm spacer to provide additional wheel clearance
Special disc hats include an integral 10mm spacer to provide additional wheel clearance

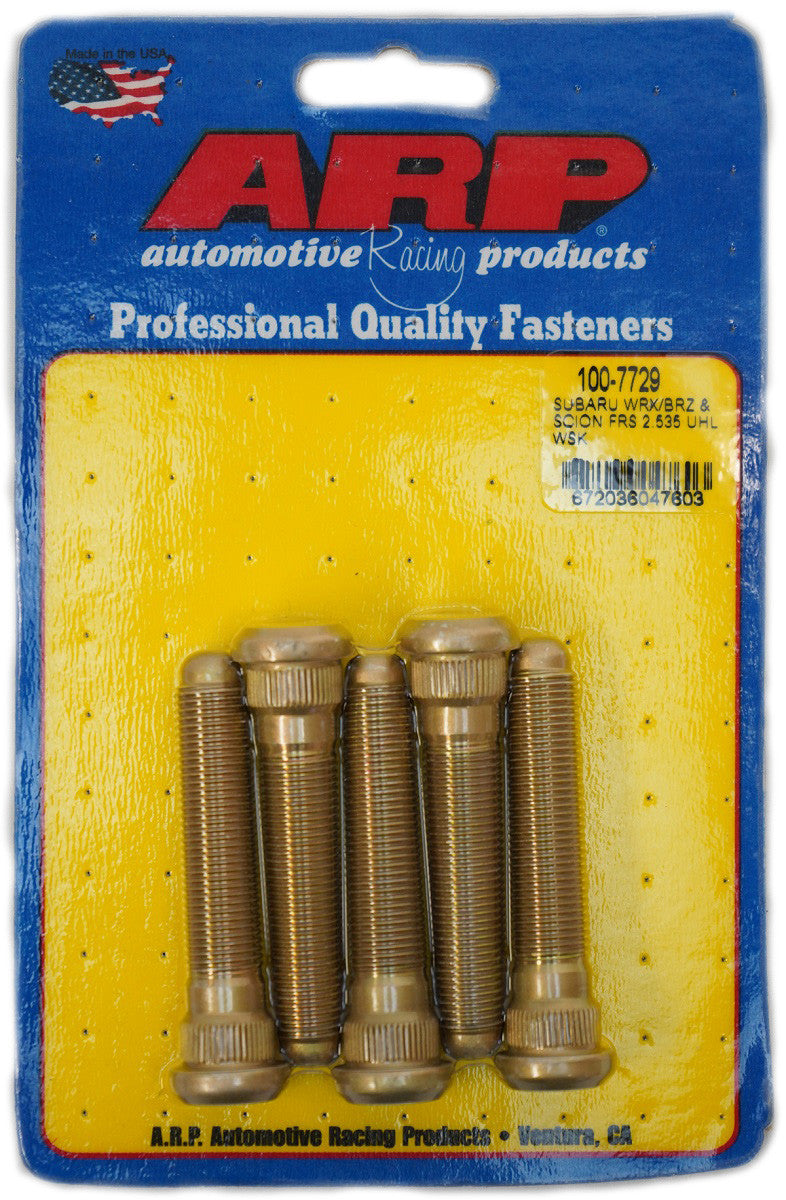

Extended ARP wheel studs to ensure proper lug nut engagement with the additional width
One pair caliper mounting brackets and hardware
One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
Detailed installation instructions

Brake pads are not included.

Specifications

Manufacturer part number	13.01.10139
Brand	AP Racing by Essex
Position	Front
Application	Track
Caliper	AP Racing CP8350-2S4L/3S4L racing, radial mount
Caliper weight (no pads)	4.8 lb each
Piston sizes	38.1mm x 2, 41.3mm x 2 (49.56 cm2 total area)
Mounting centers / offset	152mm / 44mm
Inlet thread	M10x1.0
Disc	CP3860-128/129GA two-piece fixed, 299 x 32mm, 60 vanes, J Hook
Disc weight	13.8 lb (includes disc hat w/ integrated spacer and hardware) each
Pad thickness	20mm
Pad dimensions	133.2mm x 60.0mm x 20.0mm
Brake pads	Not included
Shipping weight	40 lb (18.1 kg)

Video

Fitment notes

This front kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Call us about the Subaru Impreza before ordering; we have not confirmed fitment for them yet. Check your wheel with the Essex wheel fitment template before ordering.

Fitment

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
Year	Make	Model	Chassis	Engine
2002-2007	Subaru	Impreza WRX	GD / GG	2.0L / 2.5L Turbo H4
2004-2007	Subaru	Impreza WRX STI	GD	2.5L Turbo H4 (EJ257)
2008-2014	Subaru	Impreza WRX	GE / GH / GR / GV	2.5L Turbo H4 (EJ255)
2008-2014	Subaru	Impreza WRX STI	GR / GV	2.5L Turbo H4 (EJ257)
2015-2021	Subaru	WRX STI	VA	2.5L Turbo H4 (EJ257)
2015-2021	Subaru	WRX	VA	2.0L Turbo H4 (FA20DIT)

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.

Shipping & returns

Shipping: Orders ship via UPS, FedEx or USPS, from our facility near Los Angeles or directly from the manufacturer. Rates for many items are weight-based and shown at checkout. If you need it by a certain date, text us before you order.

Returns: Unused items in brand-new condition and original packaging can be returned within 30 days of the invoice date, with a 25% restocking fee unless otherwise specified. In some cases we can offer a lower fee with the balance as store credit. Shipping charges aren't refundable in either direction unless approved by AutoTalent.

Not returnable: special-order or custom items, and anything that has been installed, modified or altered.

Cancellations: free if the item is out of stock or we miss the ETA you agreed to. Other cancellations carry a 5% processing fee to cover card fees we can't recover. Special-order items can't be cancelled.

Damaged in transit? Report it to the carrier and to us within 48 hours, keep all packaging, and don't send anything back without our written approval.

Reviews & questions
