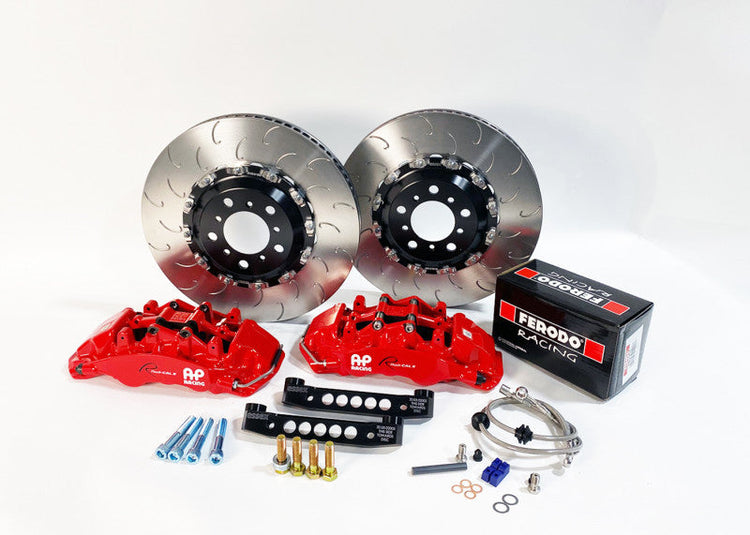

AP Racing front brake kit for the C5 Corvette with 380mm two-piece discs and calipers

}

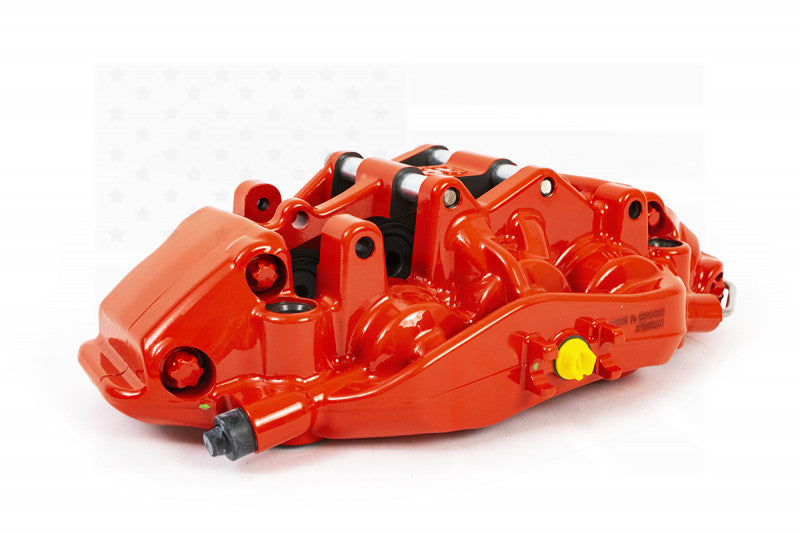

Angled view of the CP9562 caliper for the C5 Corvette

}

Top view of the CP9562 caliper with pad window, C5 Corvette kit

}

Back of the AP Racing front caliper with bleed screw, C5 Corvette

}

Pad pin and retaining clip on the CP9562 caliper for the C5 Corvette

}

Pistons inside the CP9562 caliper from the C5 Corvette front kit

}

Mounting face of the AP Racing CP9562 caliper for the C5 Corvette

}

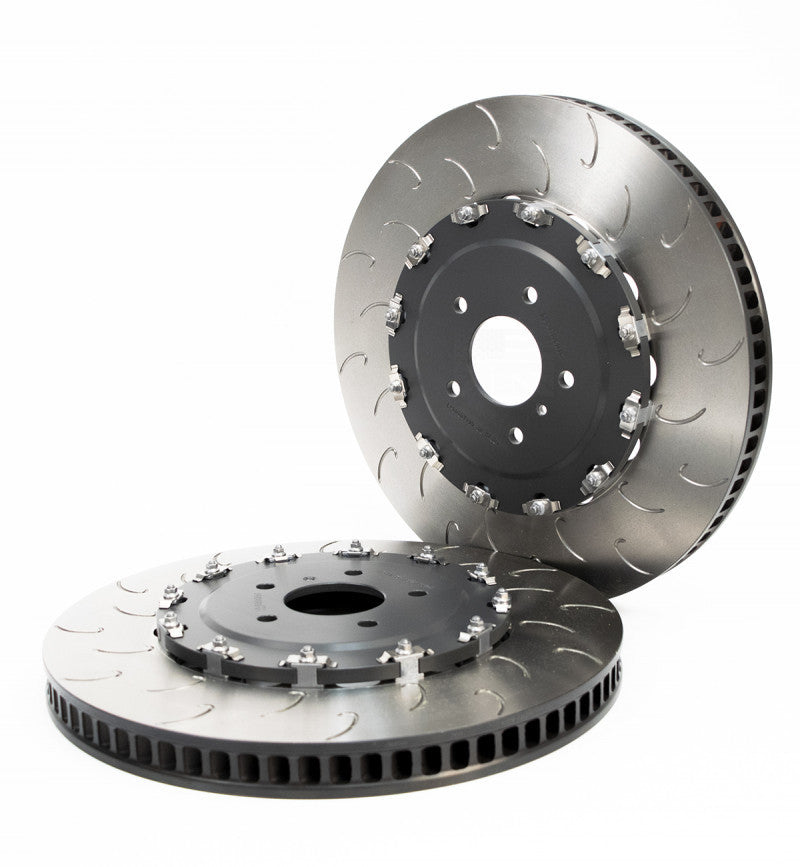

380mm AP Racing J Hook disc on floating aluminum hat for the C5 Corvette

}

AP Racing Road Front Brake Kit 380mm - C5 Corvette

Ask an expert

Brand: AP RacingSKU / Part #: 20.01.10003

Regular price: $4,999.00
Regular price
Sale price: $4,999.00
Unit price: per

Apply at checkout

Subtotal: $4,999.00

Quantity:

AP Racing Road Front Brake Kit 380mm - C5 Corvette

Subtotal: $4,999.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AP Racing by Essex Road Brake Kit is a front brake upgrade for every 1997-2004 C5 Corvette, including Z06. It pairs AP Racing CP9562 World Radi-CAL II six-piston calipers with 380 x 36mm, 72-vane AP Racing J Hook discs on fully floating aluminum hats, built for fast road driving and track days.

Why upgrade

Each caliper weighs 9.8 lb without pads, against 10.1 lb for the factory caliper. The 16.8mm pad is thicker than the 14.7mm factory pad, so it lasts longer and absorbs more heat between changes. Painted calipers with dust boots add durability in wet and dirty conditions. Low noise, vibration and harshness give an OE-like feel in daily driving. Large volume brake pads add heat absorption and longevity. Pistons are sized to maintain brake bias and work with the OEM master cylinder and ABS. It works with the OEM rear brakes or a matching AP Racing rear kit.

Caliper and disc construction

On the C5 Corvette, the CP9562 caliper mounts radially on a dedicated bracket at 195mm centers with a 49.5mm offset, with an M10x1.0 inlet thread. The 380 x 36mm discs use 72-vane AP Racing J Hook rings on 6061 hard anodized aluminum hats with fully floating hardware. It is a six-piston AP Racing caliper.

Features

AP Racing CP9562 six-piston calipers
380 x 36mm, 72-vane J Hook discs on floating hats
16.8mm thick brake pads
Pistons sized for the OEM master cylinder and ABS
Two-piece discs on 6061 aluminum hats

What's Included

One pair AP Racing CP9562 World Radi-CAL II six piston calipers
One pair 380x36mm AP Racing CP7177, 72 vane, J Hook discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
One pair caliper mounting brackets and hardware
One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
One set of Ferodo DS2500 Brake Pads
Detailed installation instructions

Specifications

Manufacturer part number	20.01.10003
Brand	AP Racing by Essex
Position	Front
Application	Road & Track
Caliper	AP Racing CP9562-2S0/3S0 World Radi-CAL II six-piston, radial mount
Caliper weight (no pads)	9.8 lb each (OEM 10.1 lb)
Piston sizes	27.0mm x 2, 31.8mm x 2, 38.1mm x 2 (50.1 cm2 total area)
Mounting centers / offset	195mm / 49.5mm
Inlet thread	M10x1.0
Disc	CP7177-448/449GA two-piece floating, 380 x 36mm, 72 vanes, J Hook
Disc weight	26.9 lb each (OEM 21.8 lb)
Pad thickness	16.8mm (OEM 14.7mm)
Pad dimensions	175.6mm x 100.8mm x 16.8mm, D68.5
Brake pads	Included (Ferodo DS2500 Brake Pads)
Shipping weight	40 lb (18.1 kg)

Video

Fitment notes

This front kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Check your wheel with the Essex wheel fitment template before ordering.

Fitment

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
Year	Make	Model	Chassis	Engine
1997-2004	Chevrolet	Corvette	C5	5.7L V8 (LS1)
2001-2004	Chevrolet	Corvette Z06	C5	5.7L V8 (LS6)

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.
