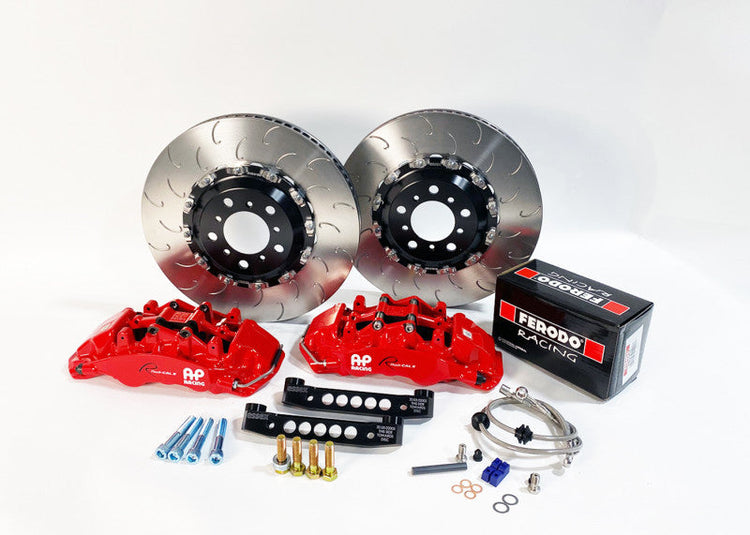

AP Racing front brake kit for the Toyota GR Supra with 380mm two-piece discs and calipers

}

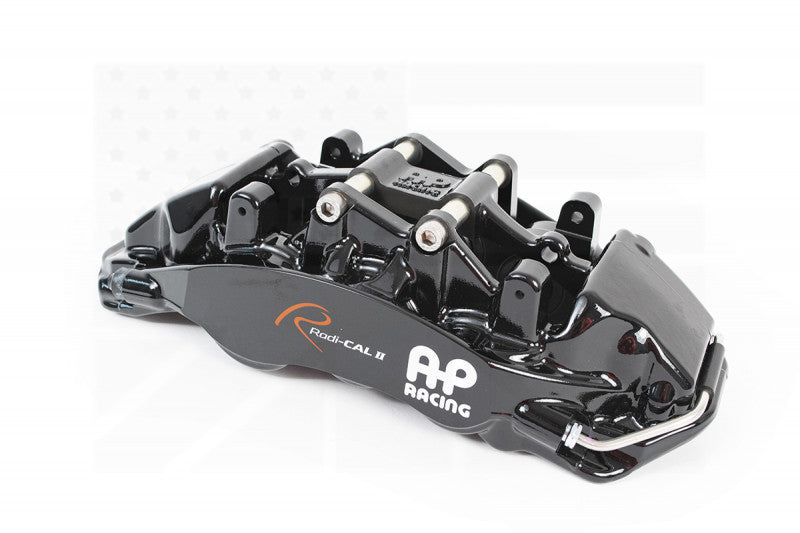

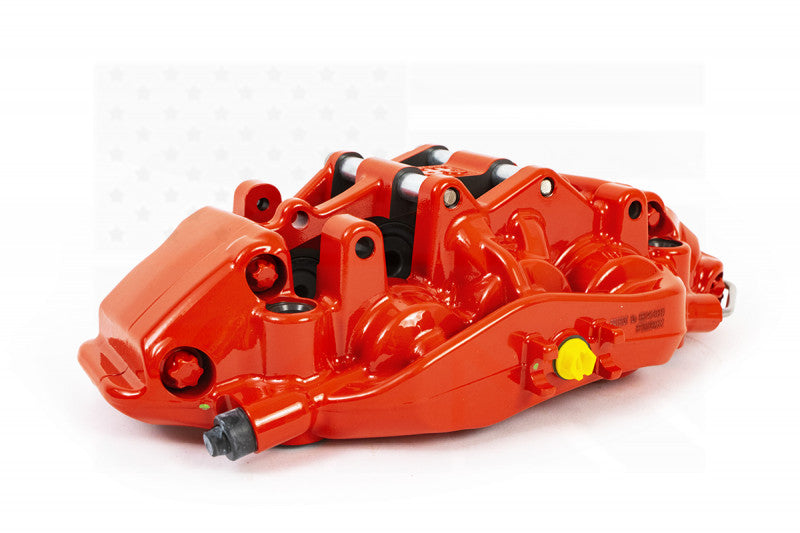

Angled view of the CP9562 caliper for the Toyota GR Supra

}

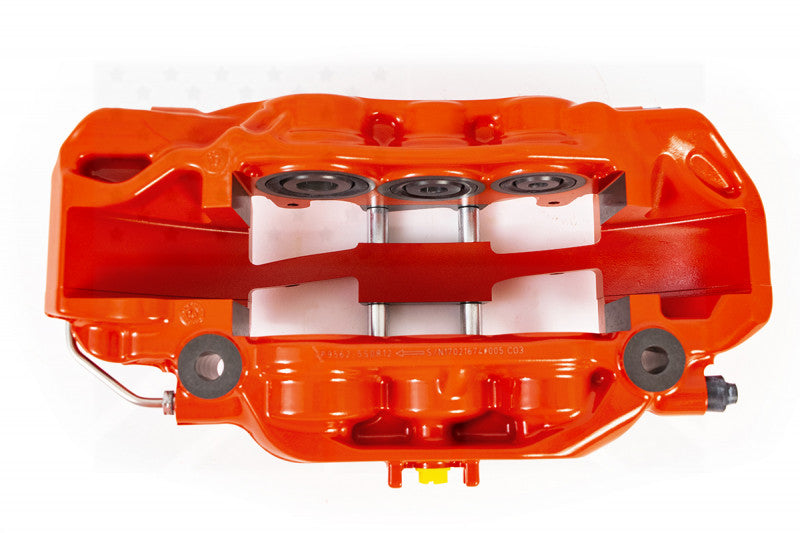

Top view of the CP9562 caliper with pad window, Toyota GR Supra kit

}

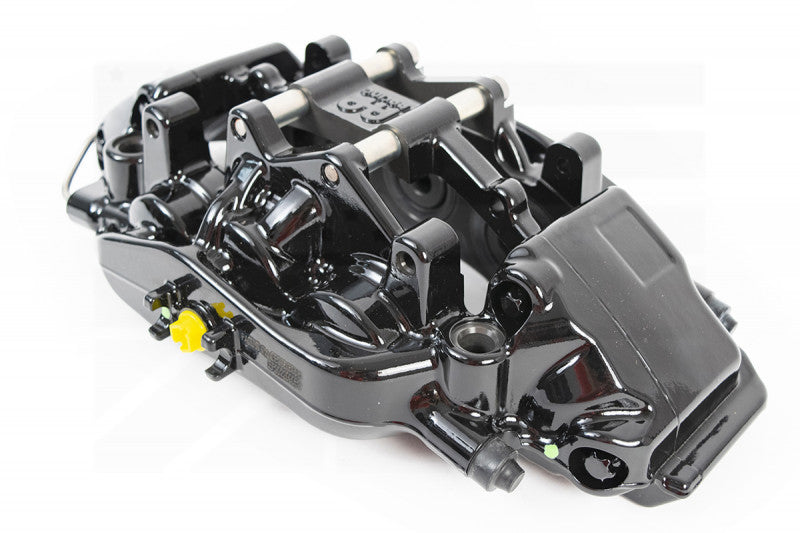

Back of the AP Racing front caliper with bleed screw, Toyota GR Supra

}

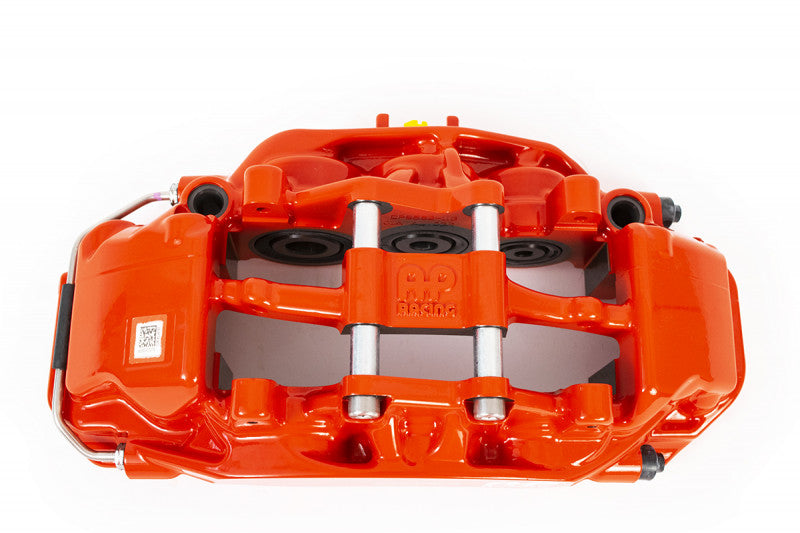

Pad pin and retaining clip on the CP9562 caliper for the Toyota GR Supra

}

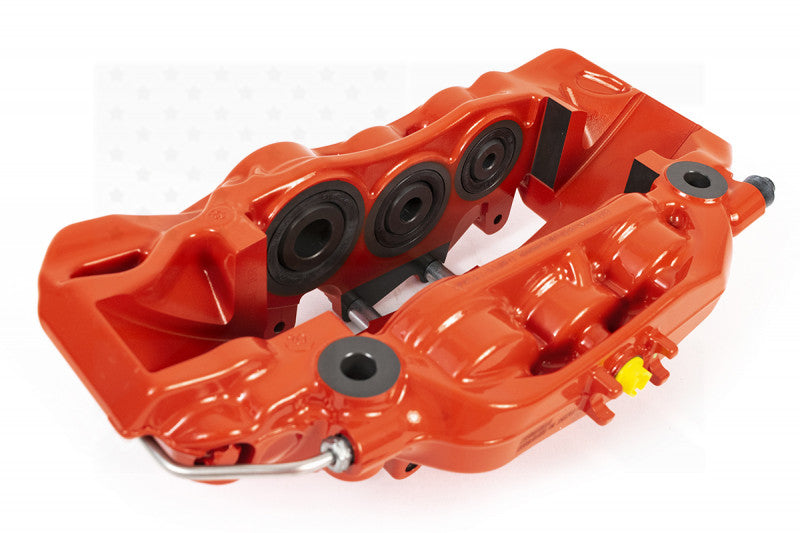

Pistons inside the CP9562 caliper from the Toyota GR Supra front kit

}

Mounting face of the AP Racing CP9562 caliper for the Toyota GR Supra

}

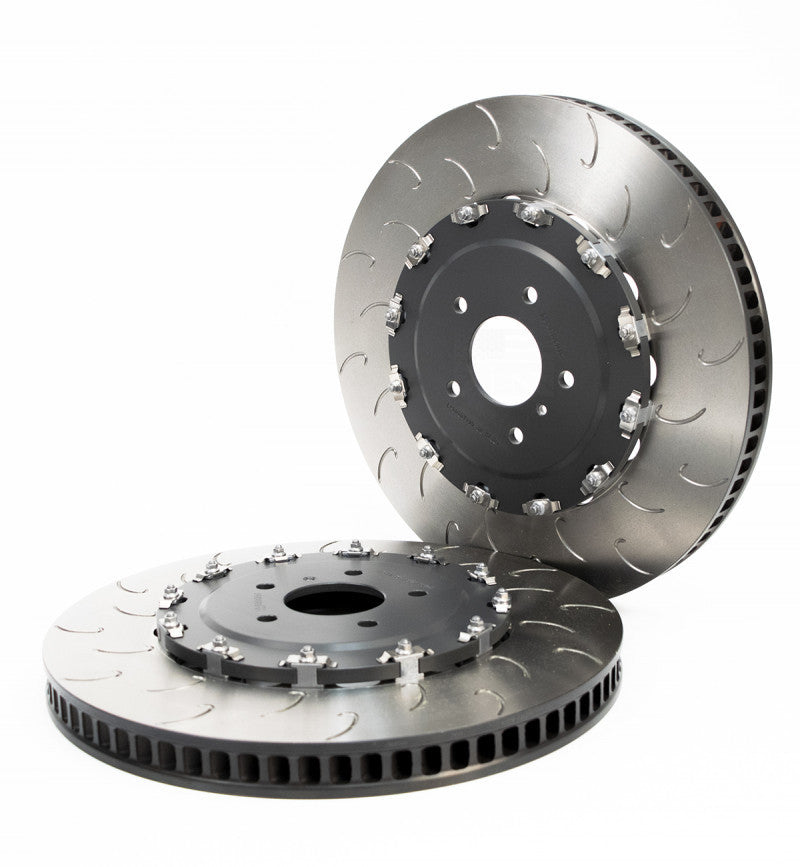

380mm AP Racing J Hook disc on floating aluminum hat for the Toyota GR Supra

}

AP Racing Road Front Brake Kit 380mm - Toyota GR Supra

Ask an expert

Brand: AP RacingSKU / Part #: 20.01.10002

Regular price: $4,999.00
Regular price
Sale price: $4,999.00
Unit price: per

Apply at checkout

Subtotal: $4,999.00

Quantity:

AP Racing Road Front Brake Kit 380mm - Toyota GR Supra

Subtotal: $4,999.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AP Racing by Essex Road Brake Kit is a front brake upgrade for the 2020-2025 Toyota GR Supra 3.0. It pairs AP Racing CP9562 World Radi-CAL II six-piston calipers with 380 x 36mm, 84-vane AP Racing J Hook discs on fully floating aluminum hats, built for fast road driving and track days.

Why upgrade

No unsprung weight gain over the OEM GR Supra brakes, despite being considerably larger. Each two-piece disc weighs 26.9 lb, compared with 28.8 lb for the original 348mm disc. The caliper takes a 16.8mm thick pad for long life and heat tolerance. Painted calipers with dust boots add durability in wet and dirty conditions. Low noise, vibration and harshness give an OE-like feel in daily driving. Large volume brake pads add heat absorption and longevity. Pistons are sized to maintain brake bias and work with the OEM master cylinder and ABS. It works with the OEM rear brakes or a matching AP Racing rear kit.

Caliper and disc construction

On the Toyota GR Supra, the CP9562 caliper mounts radially on a dedicated bracket at 195mm centers with a 49.5mm offset, with an M10x1.0 inlet thread. It is a six-piston AP Racing caliper. The 380 x 36mm discs use 84-vane AP Racing J Hook rings on 6061 hard anodized aluminum hats with fully floating hardware.

Features

AP Racing CP9562 six-piston calipers
380 x 36mm, 84-vane J Hook discs on floating hats
16.8mm thick brake pads
Pistons sized for the OEM master cylinder and ABS
Two-piece discs on 6061 aluminum hats

What's Included

One pair AP Racing CP9562 World Radi-CAL II six piston calipers
One pair 380x36mm AP Racing CP7177, 72 vane, J Hook discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
One pair caliper mounting brackets and hardware
One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
One set of Ferodo DS2500 Brake Pads
Detailed installation instructions

Specifications

Manufacturer part number	20.01.10002
Brand	AP Racing by Essex
Position	Front
Application	Road & Track
Caliper	AP Racing CP9562 Radi-CAL six-piston World Radi-CAL II six-piston, radial mount
Caliper weight (no pads)	9.8 lb each (OEM 9.2 lb)
Piston sizes	27.0mm x 2, 31.8mm x 2, 38.1mm x 2 (50.1 cm2 total area)
Mounting centers / offset	195mm / 49.5mm
Inlet thread	M10x1.0
Disc	CP7177-448/449GA two-piece floating, 380 x 36mm, 84 vanes, J Hook
Disc weight	26.9 lb each (OEM 28.8 lb)
Pad thickness	16.8mm
Pad dimensions	175.6mm x 100.8mm x 16.8mm, D68.5
Brake pads	Included (Ferodo DS2500 Brake Pads)
Shipping weight	40 lb (18.1 kg)

Video

Fitment notes

This front kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Essex has confirmed clearance with OEM front 19 inch Toyota Supra. Not for the four-cylinder GR Supra 2.0. Check your wheel with the Essex wheel fitment template before ordering.

Fitment

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
Year	Make	Model	Chassis	Engine
2020-2025	Toyota	GR Supra	A90	3.0L Turbo I6 (B58)

Fitment

Year	Make	Model

Not sure? Text us your VIN and we’ll confirm.
