AP Racing Road Rear Brake Kit 380mm - C6 Corvette

The AP Racing by Essex Road Brake Kit is a rear brake upgrade for every 2005-2013 C6 Corvette. It pairs AP Racing CP9541 World Radi-CAL II four-piston calipers with 380 x 28mm, 48-vane AP Racing J Hook discs on fully floating aluminum hats, built for fast road driving and track days.

Why upgrade

The caliper takes a 16.9mm thick pad for long life and heat tolerance. Painted calipers with dust boots add durability in wet and dirty conditions. Low noise, vibration and harshness give an OE-like feel in daily driving. Pistons are sized to maintain brake bias and work with the OEM master cylinder and ABS.

Caliper and disc construction

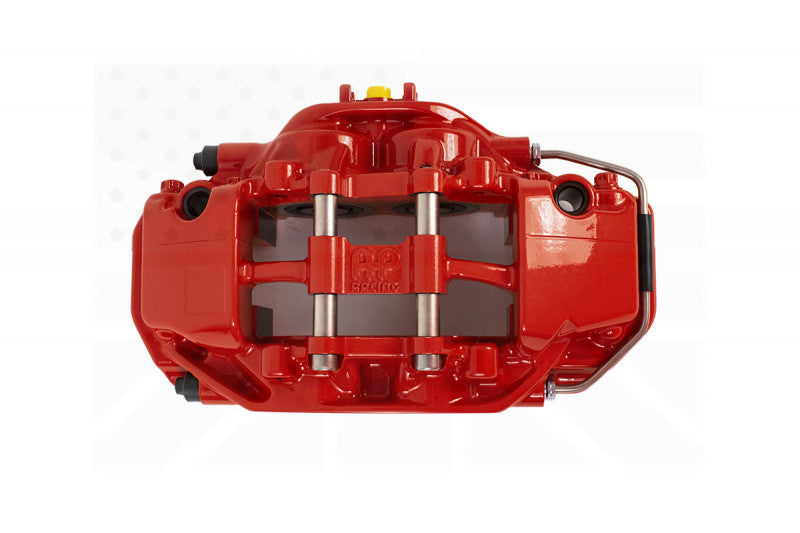

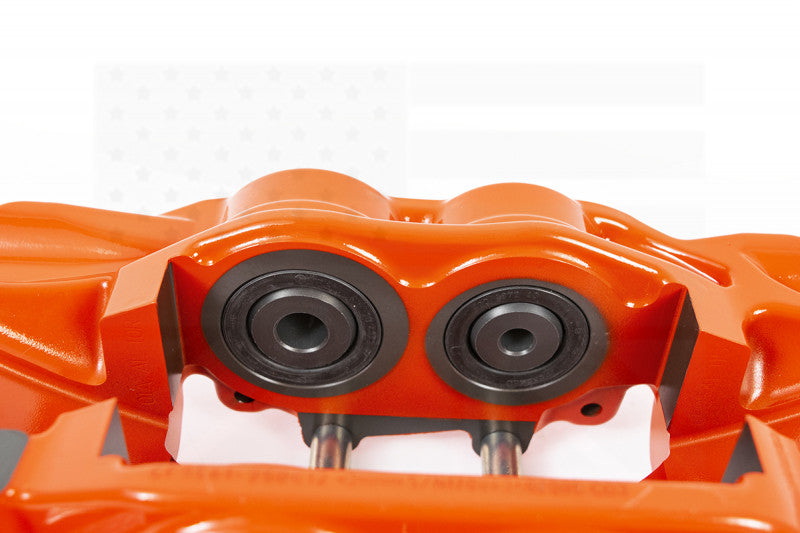

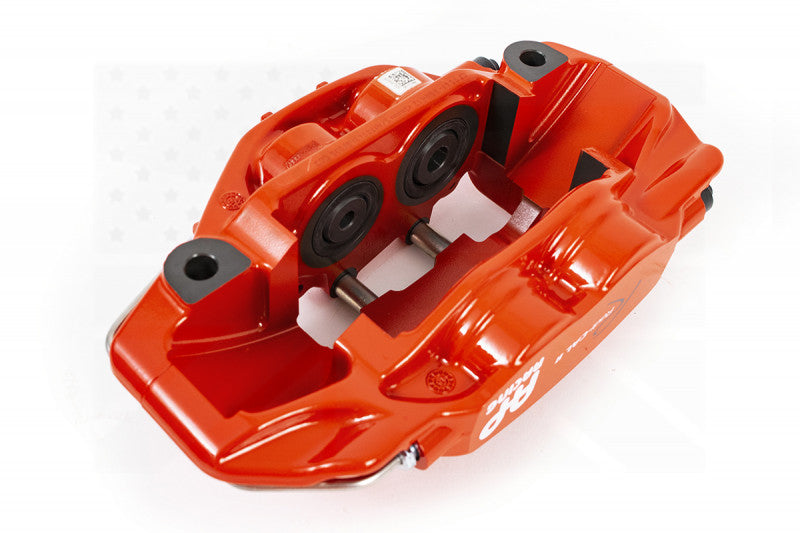

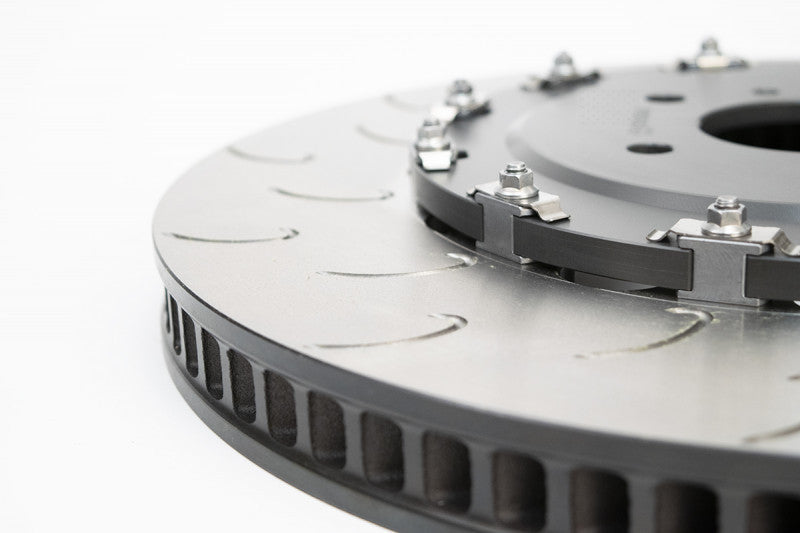

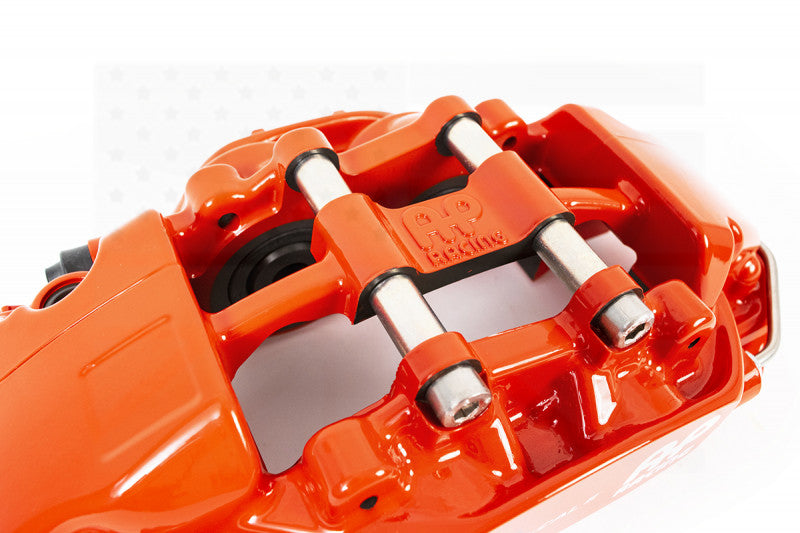

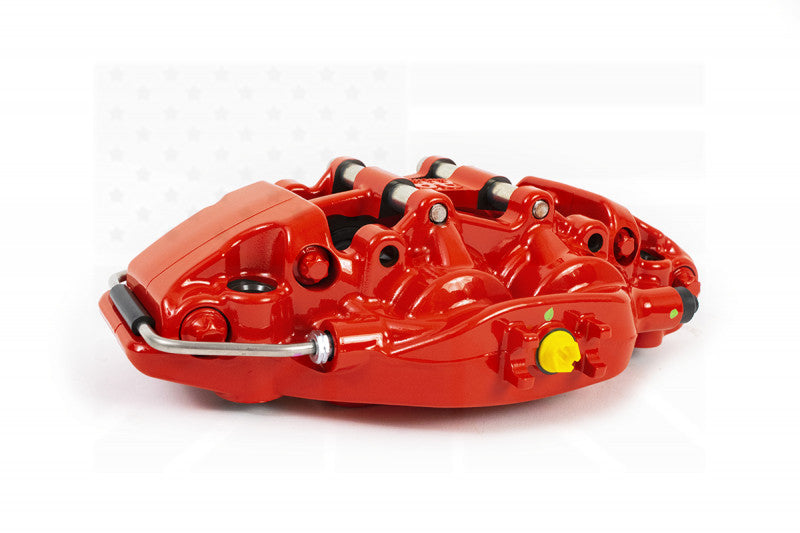

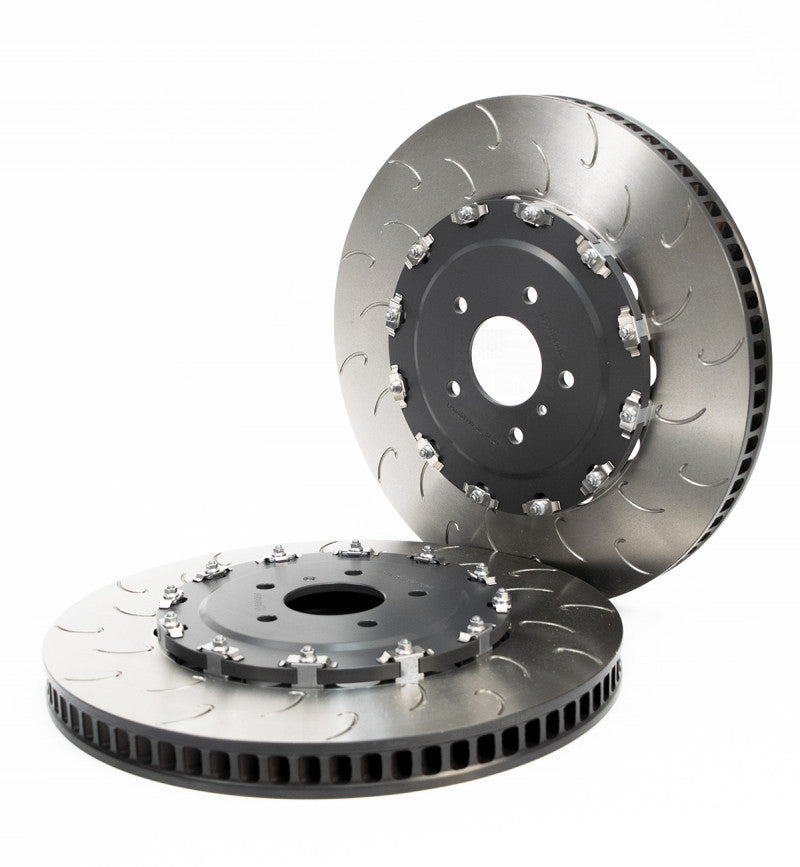

On the C6 Corvette, the CP9541 caliper mounts radially on a dedicated bracket at 195mm centers with a 36mm offset, with an M10x1.0 inlet thread. It is a four-piston AP Racing caliper. The 380 x 28mm discs use 48-vane AP Racing J Hook rings on 6061 hard anodized aluminum hats with fully floating hardware.

Features

• AP Racing CP9541 four-piston calipers
• 380 x 28mm, 48-vane J Hook discs on floating hats
• 16.9mm thick brake pads
• Pistons sized for the OEM master cylinder and ABS
• Two-piece discs on 6061 aluminum hats

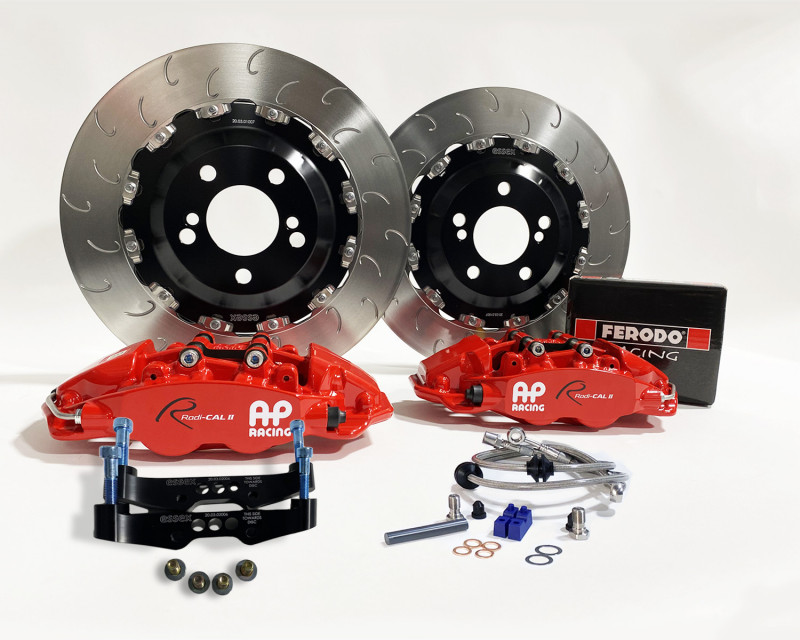

What's Included

• One pair AP Racing CP9541 World Radi-CAL II four piston calipers
• One pair 380x28mm AP Racing CP5914, 72 vane, J Hook discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• One set of Ferodo DS2500 Brake Pads
• Detailed installation instructions
• Considerable Mass Reduction - Removing all extraneous caliper mass lowers the caliper weight, despite the huge stiffness increases.
• Optimized Airflow - Air moves around and through the caliper more efficiently, providing superior heat evacuation and cooling.
• Efficient Packaging - The asymmetric caliper profile allows the caliper to fit into tighter spaces.

Specifications

Video

Fitment notes

This rear kit fits the vehicles in the table below, which we confirmed against two sources using US model years. Check your wheel with the Essex wheel fitment template before ordering.

Fitment
