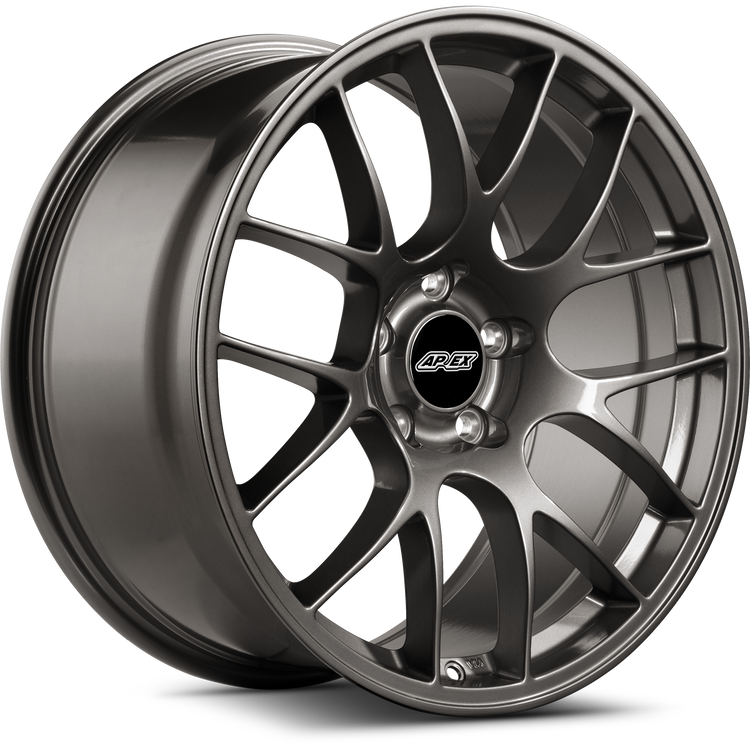

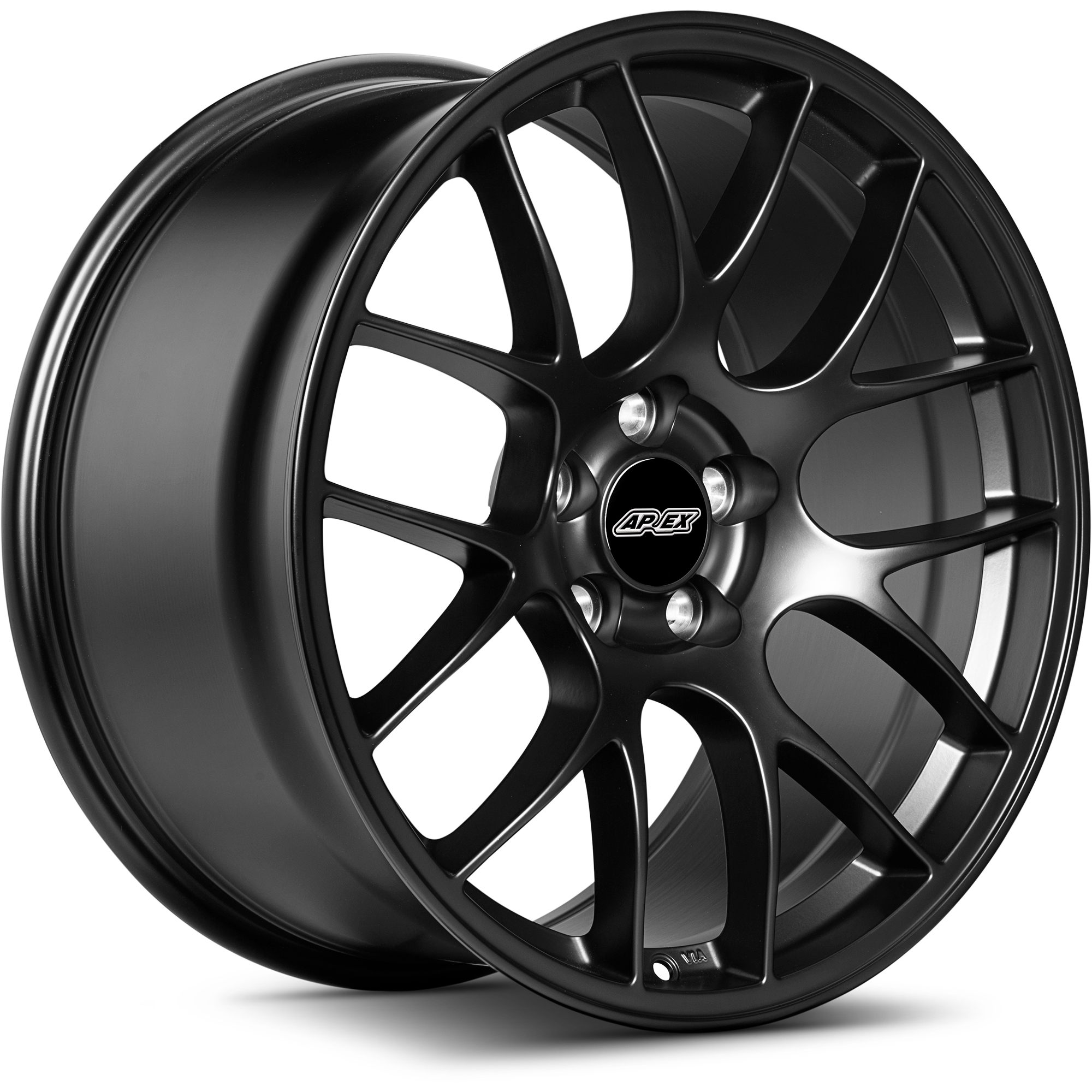

APEX Wheels EC-7 Flow Formed Wheel | 19x9 ET34 | 5x114.3

Ask an expert

Brand: APEX WheelsSKU / Part #: EC7199ET34-51143-705-AN

Regular price: $459.00
Regular price
Sale price: $459.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $459.00

Quantity:

APEX Wheels EC-7 Flow Formed Wheel | 19x9 ET34 | 5x114.3

Subtotal: $459.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels EC-7 from the Classic Line represents a precision-engineered flow formed wheel designed for Ford applications requiring 5x114.3 bolt pattern compatibility. This 19x9 ET34 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The EC-7 achieves a weight of 23.8 lbs in the 19x9 configuration, providing unsprung weight reduction compared to factory wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in the 9-inch width category, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance across the 19-inch diameter platform.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The EC-7 features Profile 2 face design, providing the geometry suited for the 9-inch width configuration. The 60-degree conical hardware seat ensures proper lug nut engagement and secure mounting for Ford applications. The 70.5mm center bore provides direct compatibility with Ford hubs, eliminating the need for hub-centric rings while maintaining proper wheel centering.

Compatibility: Ford applications with 5x114.3 bolt pattern
Material: Flow Formed aluminum construction
Weight: 23.8 lbs per wheel
Center Bore: 70.5mm
Hardware Seat: 60 Degree Conical
Face Profile: Profile 2
SKU: EC7199ET34-51143-705-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
19"	9.0"	ET34	5x114.3mm	70.5mm	Flow Formed	Profile 2	60 Degree Conical	23.8 lbs
