APEX Wheels EC-7RS Forged Wheel | 19x9.5 ET49 | Porsche Center Lock

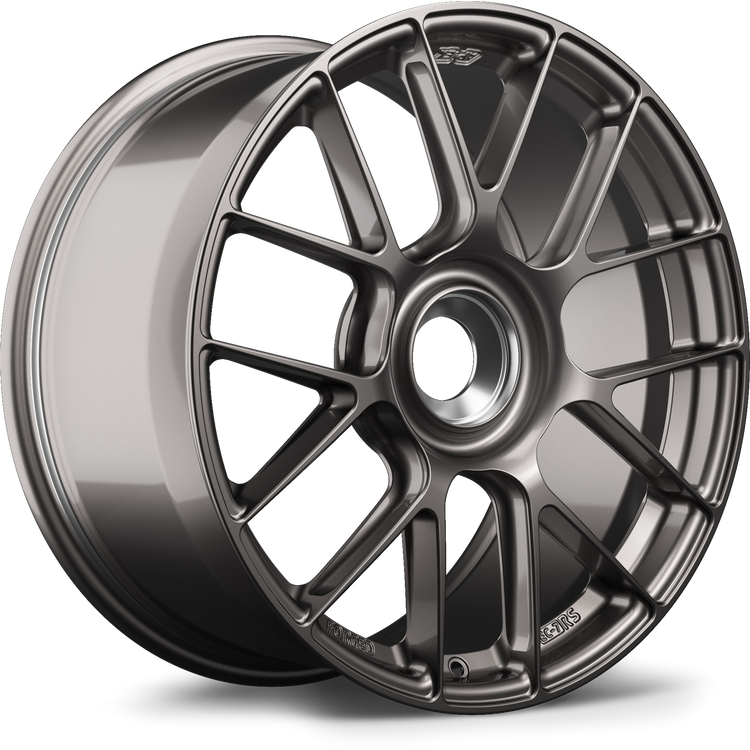

The APEX EC-7RS is a forged wheel from APEX's Sprint Line, engineered specifically for Porsche applications utilizing the center lock bolt pattern. This 19x9.5 ET49 wheel addresses the performance demands of Porsche enthusiasts who require both strength and reduced unsprung weight for improved handling dynamics. The forged construction approach delivers superior material density and structural integrity compared to cast alternatives.

The EC-7RS achieves a weight of approximately 20.0 lbs in the 19x9.5 configuration, representing a significant reduction in rotational mass that directly impacts acceleration, braking performance, and suspension response. This weight optimization is accomplished through the forged manufacturing process, which allows for precise material placement and thinner spoke sections without compromising structural strength required for high-performance Porsche applications.

Forged construction utilizes a single piece of aluminum that is heated and formed under extreme pressure, creating a wheel with enhanced grain structure and material properties. This manufacturing method produces wheels that are both lighter and stronger than cast equivalents, making them suitable for high-performance driving applications where wheel failure is not acceptable. The forged process eliminates the porosity and inconsistencies found in cast wheels, resulting in a denser, more reliable structure capable of withstanding the demands of track use and spirited driving.

The EC-7RS features Profile 1 face design, which provides the specific offset and spoke geometry optimized for Porsche center lock fitments. The 101mm center bore is precision-machined to match Porsche hub specifications, ensuring proper centering and load distribution. The Sprint Line designation indicates this wheel is engineered for performance-focused applications where weight reduction and structural integrity are paramount considerations for track and street use.

• Compatibility: Porsche Center Lock applications
• Material: Forged aluminum construction
• Performance: ~ 20.0 lbs weight
• Face Profile: Profile 1
• Center Bore: 101mm
• Hardware Seat: PSCL (Porsche Center Lock)

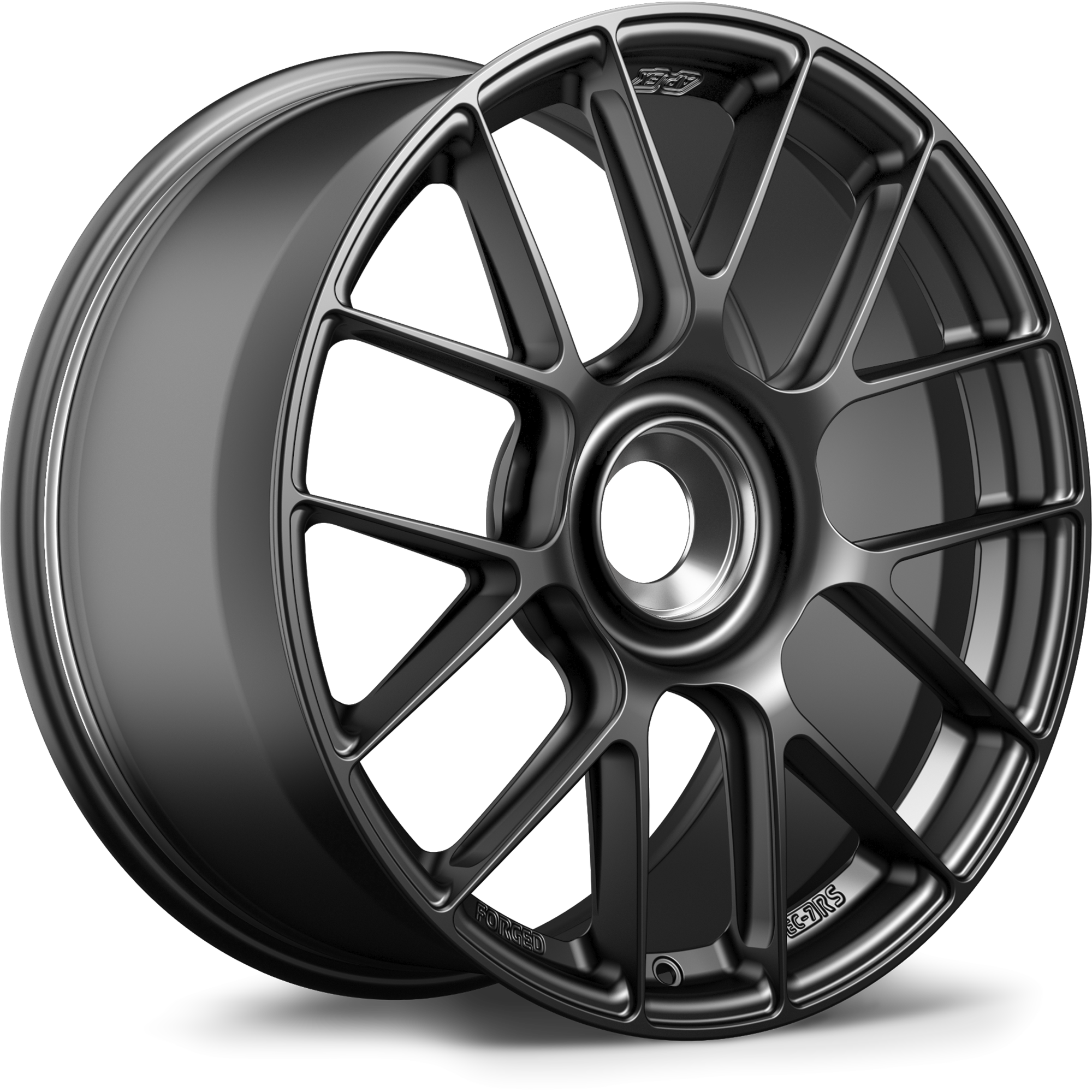

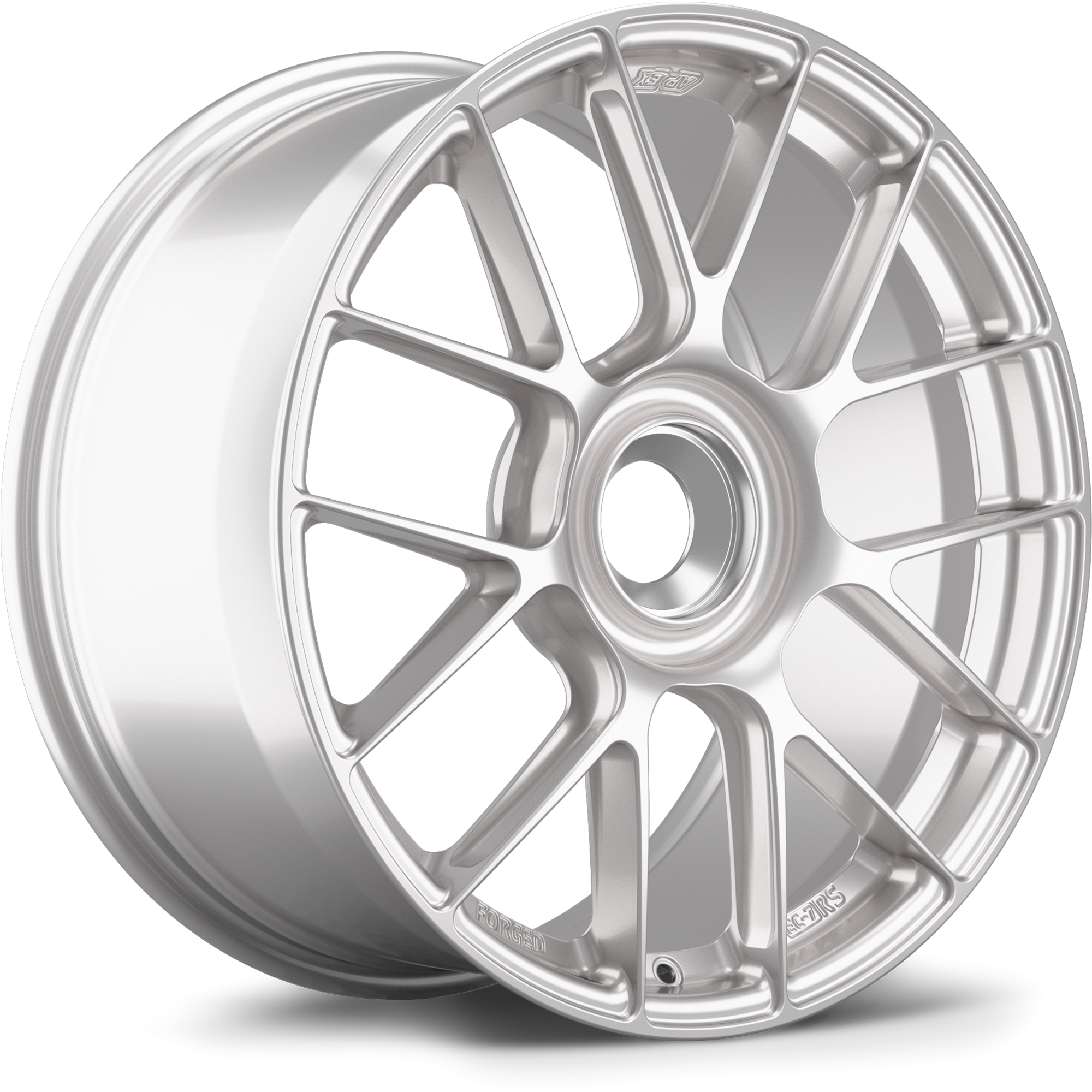

• Available Finishes: Anthracite, Motorsport Gold, Satin Black, Race Silver
• SKU: EC7RS1995ET49-CL-PS-AN

Wheel Specifications:
