APEX Wheels SM-10 Flow Formed Wheel | 17x9 ET42 | 5x112

Ask an expert

Brand: APEX WheelsSKU / Part #: SM10179ET42-5112-571-AN

Regular price: $384.00
Regular price
Sale price: $384.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $384.00

Quantity:

APEX Wheels SM-10 Flow Formed Wheel | 17x9 ET42 | 5x112

Subtotal: $384.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for VW/Audi applications requiring 5x112 bolt pattern compatibility. This 17x9 ET42 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The SM-10 achieves a weight of 20.0 lbs in the 17x9 configuration, providing unsprung weight reduction compared to factory VW/Audi wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance across the compact 17-inch diameter platform.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features Profile 1 face design, providing the geometry suited for the 9-inch width configuration. The 57.1mm center bore specification provides precise hub-centric mounting for VW/Audi small bore applications. The ET42 offset positions the wheel mounting surface to optimize suspension geometry and maintain proper brake clearance, working specifically with the 9-inch width to deliver appropriate wheel placement within the wheel well.

Compatibility: VW/Audi (Small Bore) applications
Bolt Pattern: 5x112
Center Bore: 57.1mm
Weight: 20.0 lbs
Construction: Flow Formed
Face Profile: Profile 1
Hardware Seat: R13 Ball Seat

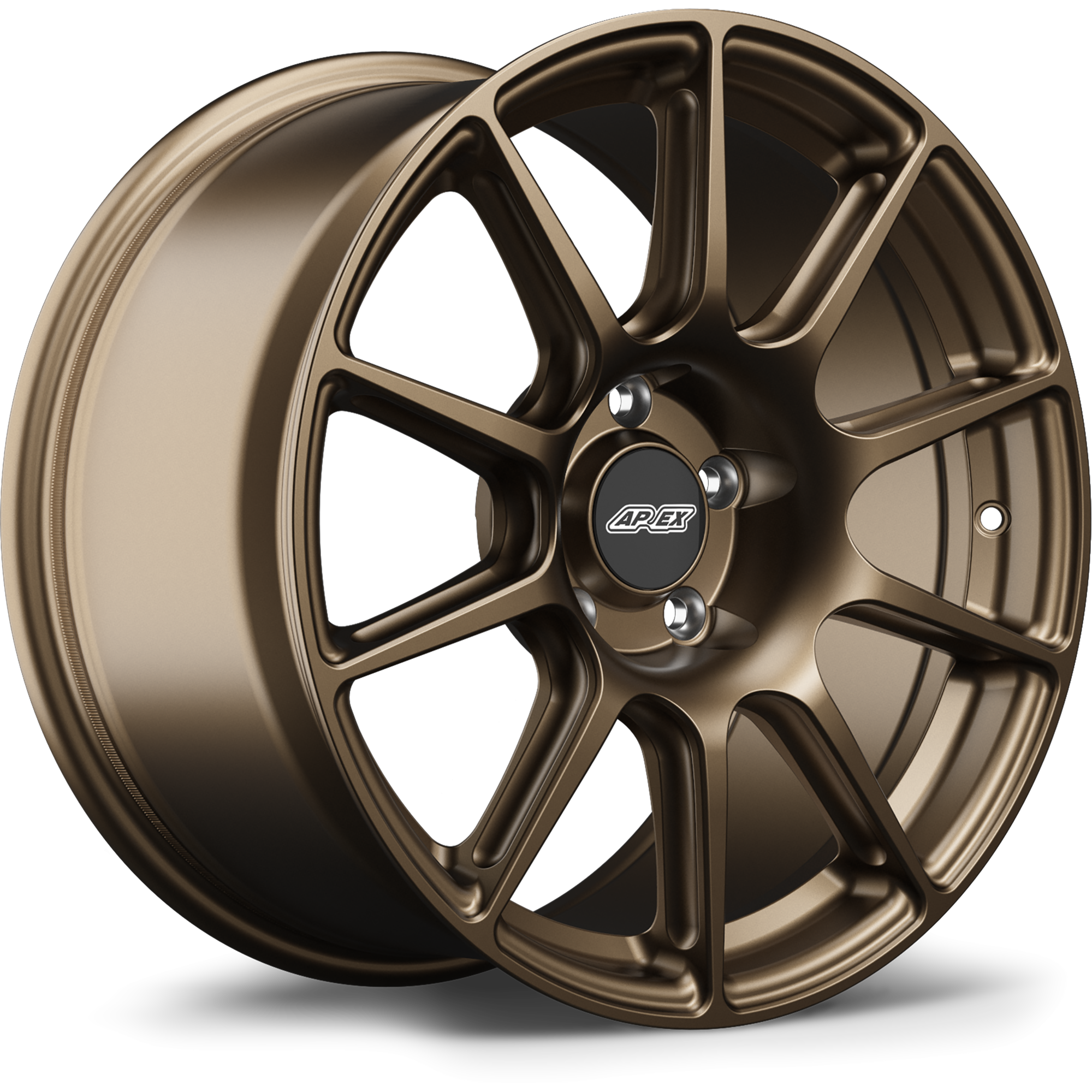

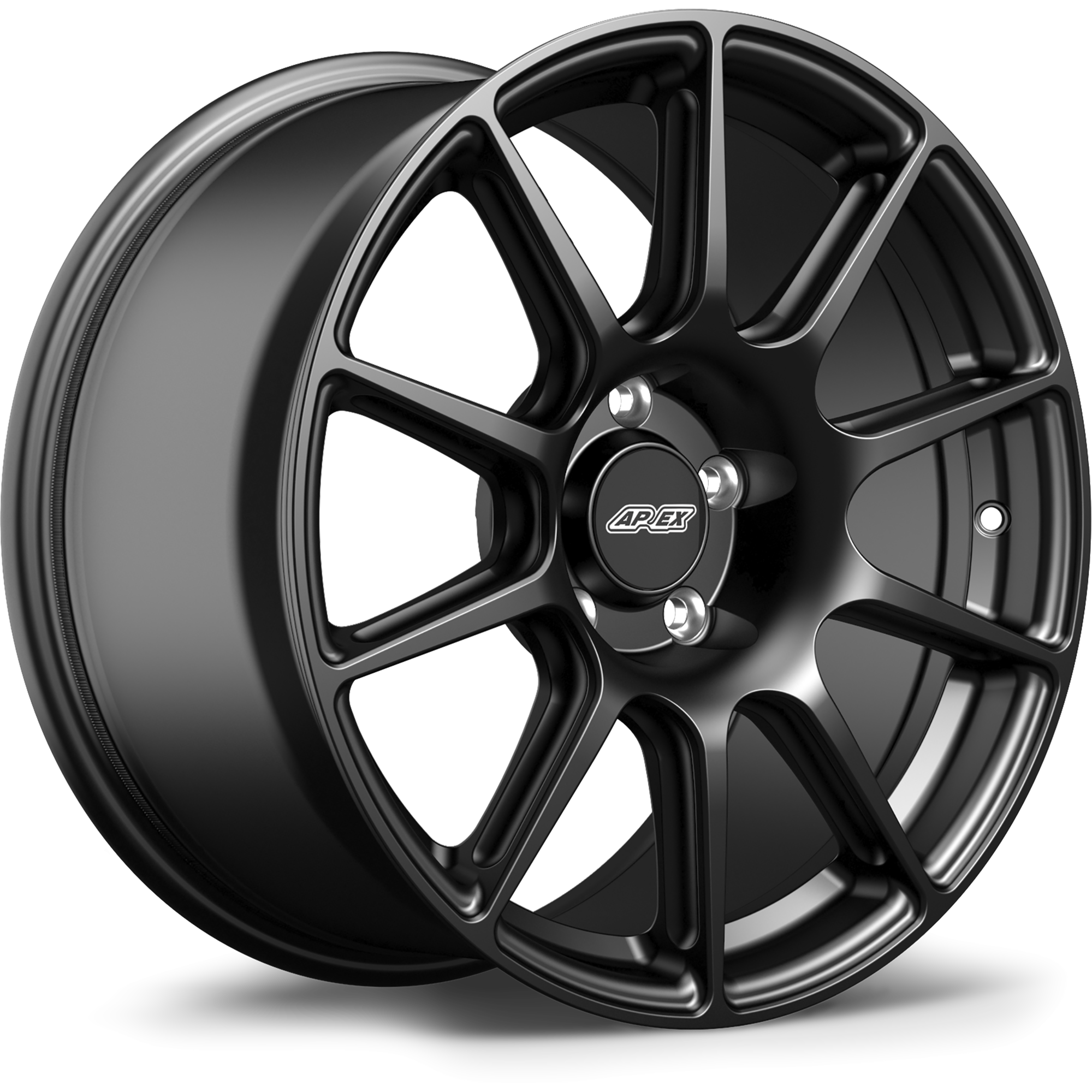

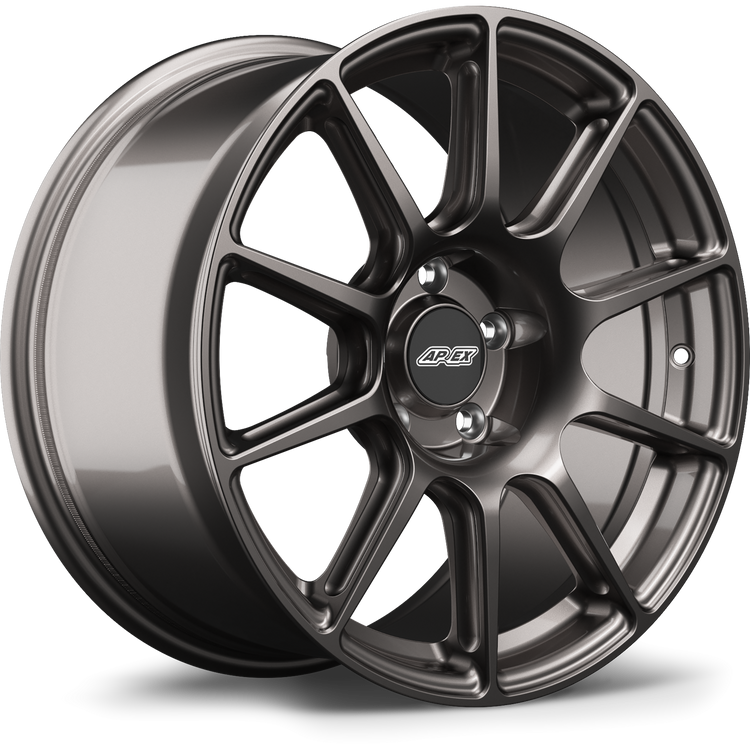

Available Finishes: Anthracite, Race Silver, Satin Bronze, Satin Black
SKU: SM10179ET42-5112-571-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
17"	9.0"	ET42	5x112mm	57.1mm	Flow Formed	Profile 1	R13 Ball Seat	20.0 lbs
