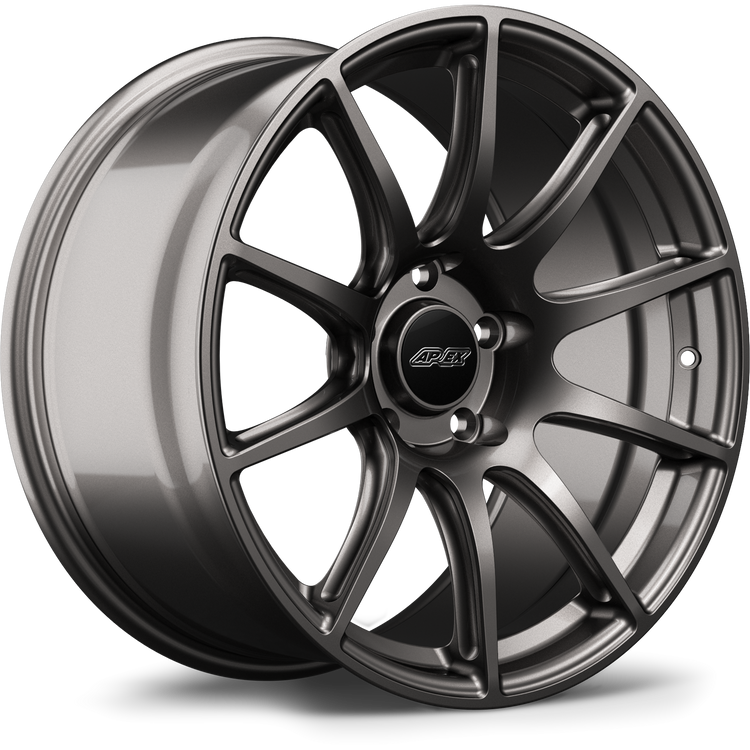

APEX Wheels SM-10 Flow Formed Wheel | 18x10 ET40 | 5x114.3

Ask an expert

Brand: APEX WheelsSKU / Part #: SM101810ET40-51143-705-AN

Regular price: $464.00
Regular price
Sale price: $464.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $464.00

Quantity:

APEX Wheels SM-10 Flow Formed Wheel | 18x10 ET40 | 5x114.3

Subtotal: $464.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for Ford applications requiring 5x114.3 bolt pattern compatibility. This 18x10 ET40 wheel addresses the demands of wide performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The SM-10 achieves a weight of 21.8 lbs in the 18x10 configuration, providing unsprung weight reduction compared to factory Ford wheels while accommodating the aggressive 10-inch width. This weight control becomes critical at larger widths, where traditional cast construction would result in significantly heavier wheels that compromise handling dynamics and acceleration response.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features Profile 2 face design, providing the geometry suited for the 10-inch width configuration. The 70.5mm center bore specification ensures precise hub-centric mounting for Ford applications. The ET40 offset positions the wheel mounting surface to optimize suspension geometry and maintain proper brake clearance. The wheel incorporates 60-degree conical hardware seat design for secure mounting with performance wheel hardware.

APEX offers the SM-10 in both Anthracite and Satin Black finish options to complement performance Ford builds.

Compatibility: Ford vehicles with 5x114.3 bolt pattern
Material: Flow Formed aluminum construction
Weight: 21.8 lbs
Center Bore: 70.5mm
Hardware Seat: 60 Degree Conical
SKU: SM101810ET40-51143-705-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
18"	10.0"	ET40	5x114.3mm	70.5mm	Flow Formed	Profile 2	60 Degree Conical	21.8 lbs
