APEX Wheels SM-10 Flow Formed Wheel | 18x8.5 ET50 | 5x130

Ask an expert

Brand: APEX WheelsSKU / Part #: SM101885ET50-5130-716-AN

Regular price: $444.00
Regular price
Sale price: $444.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $444.00

Quantity:

APEX Wheels SM-10 Flow Formed Wheel | 18x8.5 ET50 | 5x130

Subtotal: $444.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for Porsche applications requiring 5x130 bolt pattern compatibility. This 18x8.5 ET50 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features the 71.6mm center bore specification, providing precise hub-centric mounting for Porsche applications. The ET50 offset positions the wheel mounting surface to optimize suspension geometry and maintain proper brake clearance for the 5x130 bolt pattern platform. This offset configuration works specifically with the 8.5-inch width to deliver appropriate wheel placement within the wheel well while accommodating performance brake upgrades commonly found on Porsche platforms.

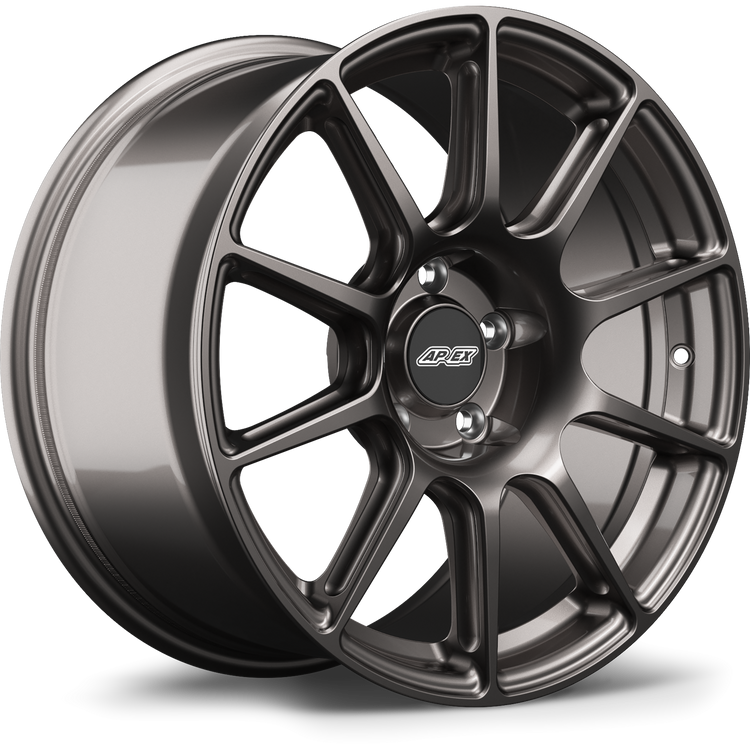

The SM-10 features Profile 1 face design, providing the geometry suited for the 8.5-inch width configuration. APEX offers the SM-10 with R14 Ball Seat hardware specifications for proper lug nut compatibility. The wheel is available in multiple finish options including Anthracite, Race Silver, and Satin Black to accommodate different aesthetic preferences while maintaining the same performance characteristics across all finish variants.

Compatibility: Porsche (5x130 bolt pattern)
Construction: Flow Formed
Material: Aluminum
Face Profile: Profile 1
Hardware Seat: R14 Ball Seat
Available Finishes: Anthracite, Race Silver, Satin Black
SKU: SM101885ET50-5130-716-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
18"	8.5"	ET50	5x130mm	71.6mm	Flow Formed	Profile 1	R14 Ball Seat	None
