Overview

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for Porsche applications requiring 5x130 bolt pattern compatibility. This 19x10.5 ET44 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The SM-10 achieves a weight of 23.0 lbs in the 19x10.5 configuration, providing unsprung weight reduction compared to factory Porsche wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features Profile 2 face design, providing the geometry suited for the 10.5-inch width configuration. The wheel incorporates a 71.6mm center bore specification for precise hub-centric mounting on Porsche applications. The R14 ball seat hardware configuration ensures proper lug nut engagement and secure wheel mounting. APEX offers the SM-10 in multiple finish options including Anthracite, Race Silver, and Satin Black to accommodate different aesthetic preferences.

Compatibility: Porsche applications with 5x130 bolt pattern
Material: Flow formed aluminum construction
Weight: 23.0 lbs
Face Profile: Profile 2
Center Bore: 71.6mm
Hardware Seat: R14 Ball Seat

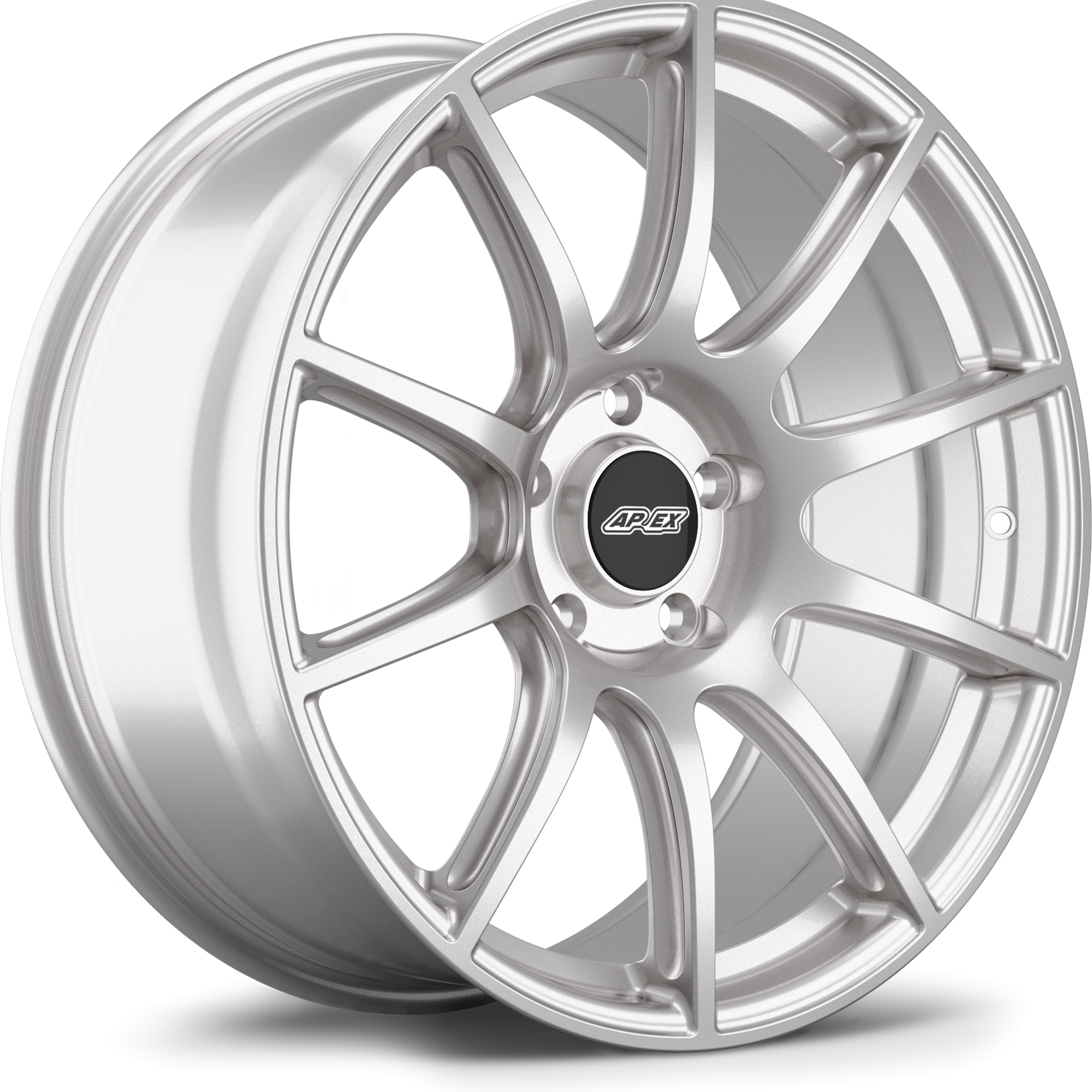

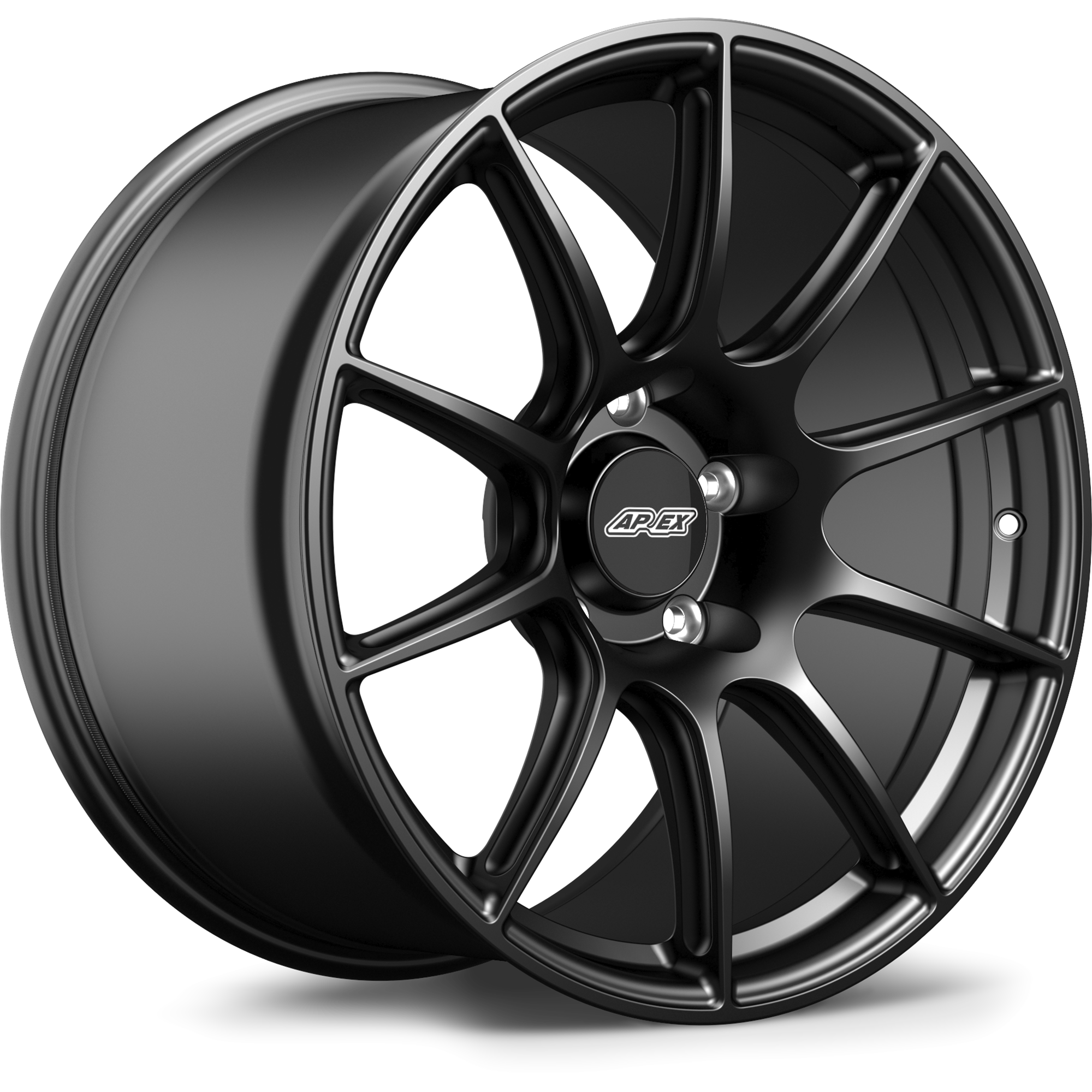

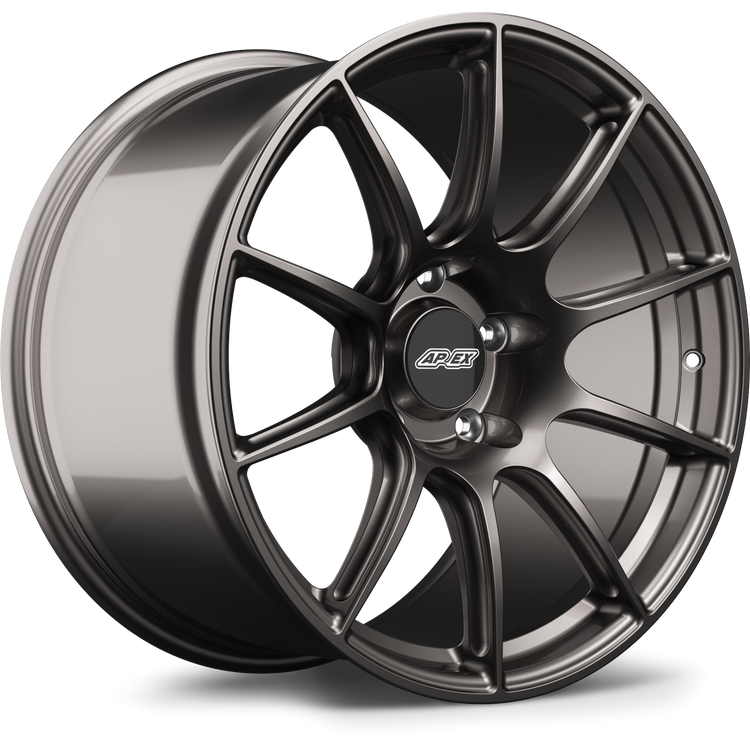

Available Finishes: Anthracite, Race Silver, Satin Black
SKU: SM1019105ET44-5130-716-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
19"	10.5"	ET44	5x130mm	71.6mm	Flow Formed	Profile 2	R14 Ball Seat	23.0 lbs
