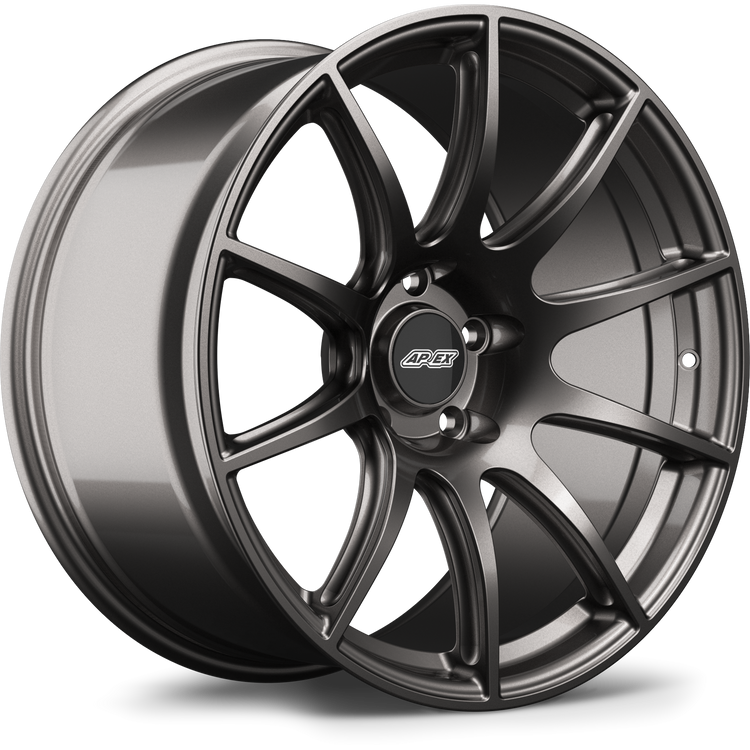

APEX Wheels SM-10 Flow Formed Wheel | 19x10 ET20 | 5x120

Ask an expert

Regular price: $514.00
Regular price
Sale price: $514.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $514.00

Quantity:

APEX Wheels SM-10 Flow Formed Wheel | 19x10 ET20 | 5x120

Subtotal: $514.00

Not sure it fits? Text us your VIN

Vendor: APEX Wheels

SKU: SM101910ET20-5120-671-AN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for BMW and other applications requiring 5x120 bolt pattern compatibility. This 19x10 ET20 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The SM-10 achieves a weight of 24.0 lbs in the 19x10 configuration, providing unsprung weight reduction compared to factory wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance at the 10-inch width specification.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features Profile 3 face design, providing the concave geometry suited for the 10-inch width configuration. The 60-degree conical hardware seat accommodates standard BMW lug bolts and aftermarket hardware options. The 67.1mm center bore specification provides precise hub-centric mounting for BMW applications, while the ET20 offset positions the wheel mounting surface to optimize suspension geometry and maintain proper brake clearance within the wheel well.

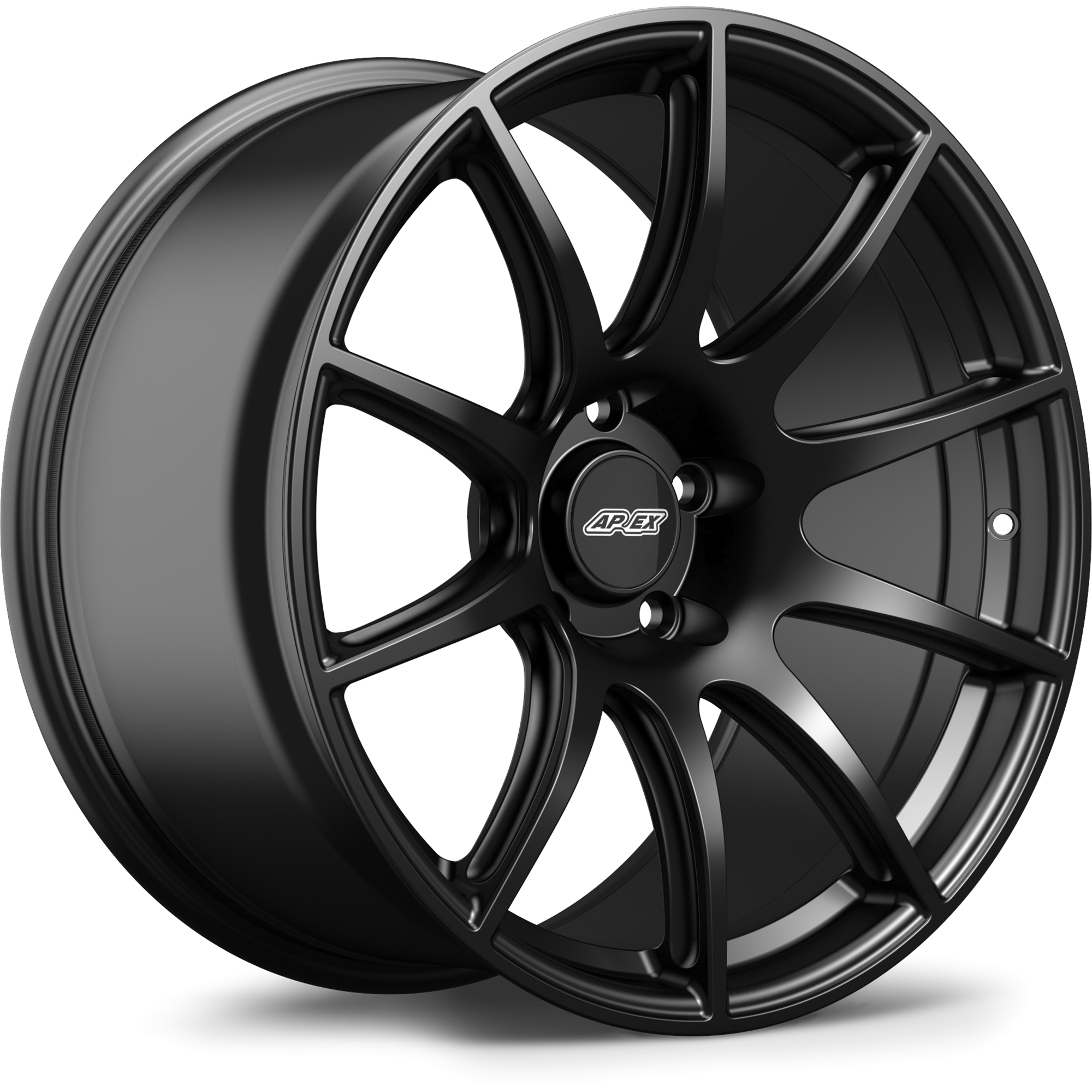

APEX offers the SM-10 in Anthracite and Satin Black finish options to complement different vehicle aesthetics and performance builds.

Compatibility: BMW and other vehicles with 5x120 bolt pattern
Material: Flow Formed aluminum construction
Weight: 24.0 lbs
Face Profile: Profile 3
Hardware Seat: 60 Degree Conical
Center Bore: 67.1mm
SKU: SM101910ET20-5120-671-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
19"	10.0"	ET20	5x120mm	67.1mm	Flow Formed	Profile 3	60 Degree Conical	24.0 lbs
