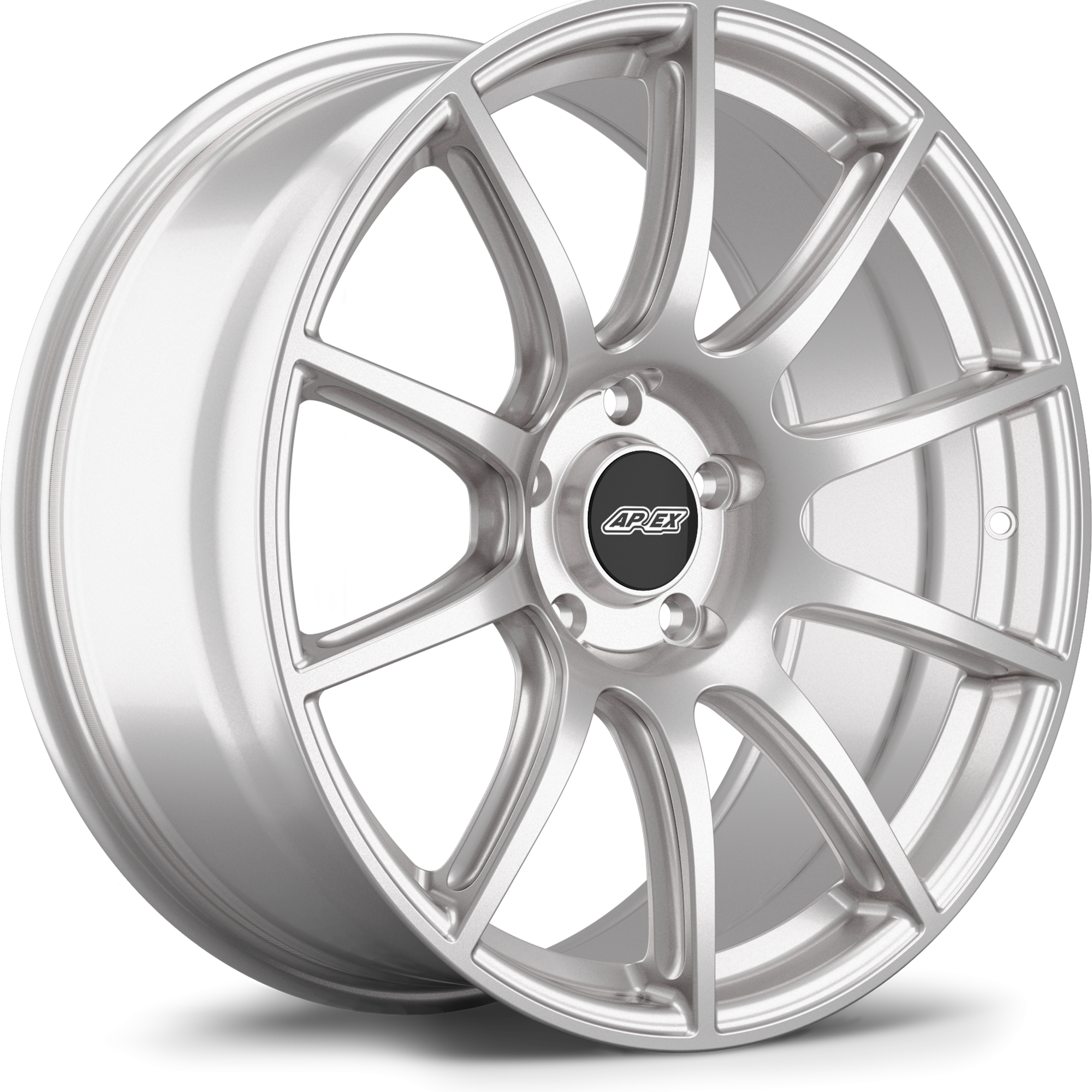

APEX Wheels SM-10 Flow Formed Wheel | 19x11 ET60 | 5x130

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for Porsche applications requiring 5x130 bolt pattern compatibility. This 19x11 ET60 wheel addresses the demands of wide performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The SM-10 achieves a weight of 23.5 lbs in the 19x11 configuration, providing unsprung weight reduction compared to factory Porsche wheels despite the aggressive 11-inch width. This weight control becomes critical at larger widths, where traditional cast construction would result in significantly heavier wheels that compromise handling dynamics and acceleration response.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features Profile 2 face design, providing the geometry suited for the 11-inch width configuration. The 71.6mm center bore specification ensures precise hub-centric mounting for Porsche applications, while the R14 Ball Seat hardware configuration accommodates the proper lug hardware for secure mounting. The ET60 offset positions the wheel mounting surface to optimize suspension geometry and maintain proper brake clearance for wide Porsche fitments.

This wheel is engineered for Porsche enthusiasts seeking performance-focused wheel solutions with proven construction methodology.

• Compatibility: Porsche 5x130 applications
• Material: Flow Formed aluminum construction
• Weight: 23.5 lbs
• Face Profile: Profile 2
• Hardware Seat: R14 Ball Seat

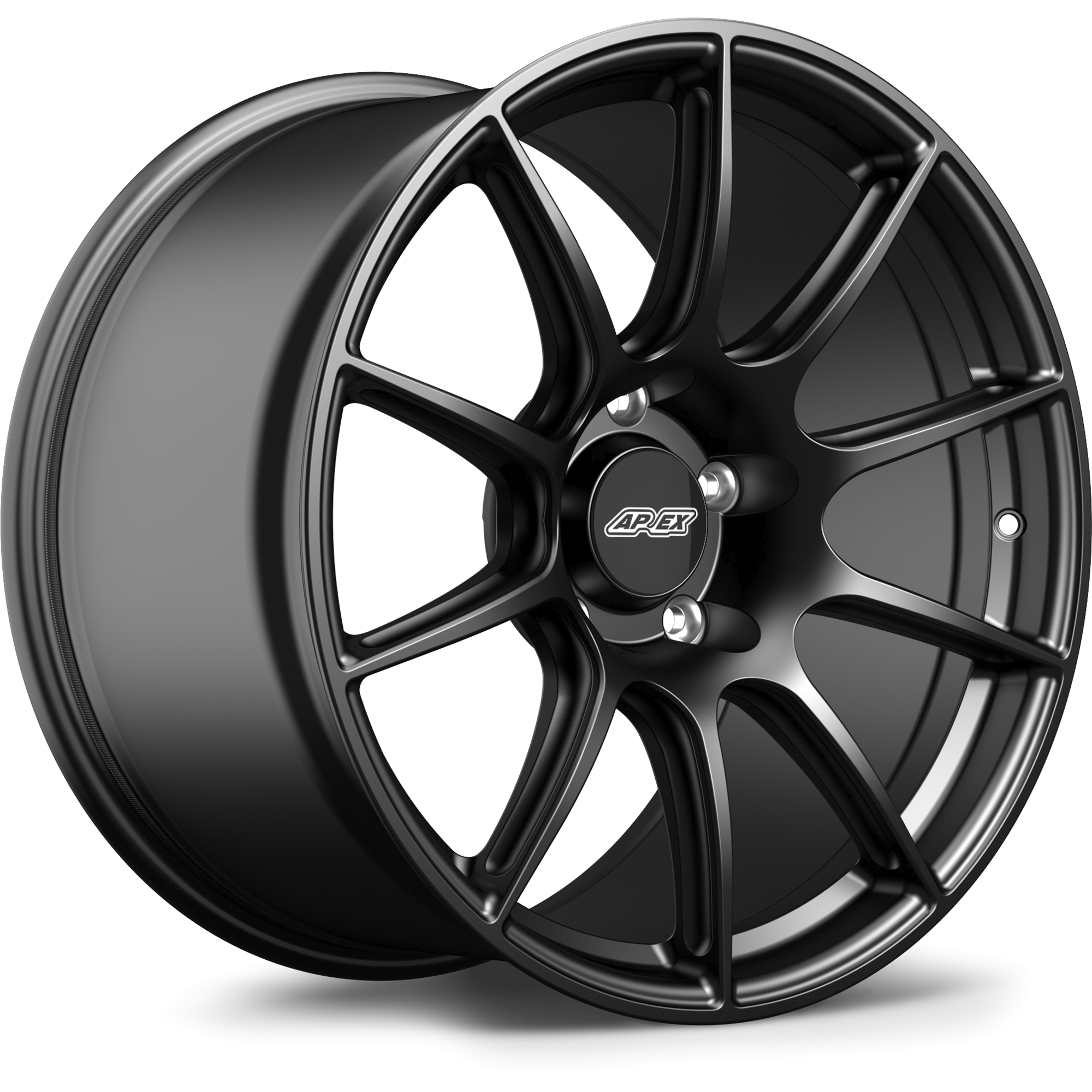

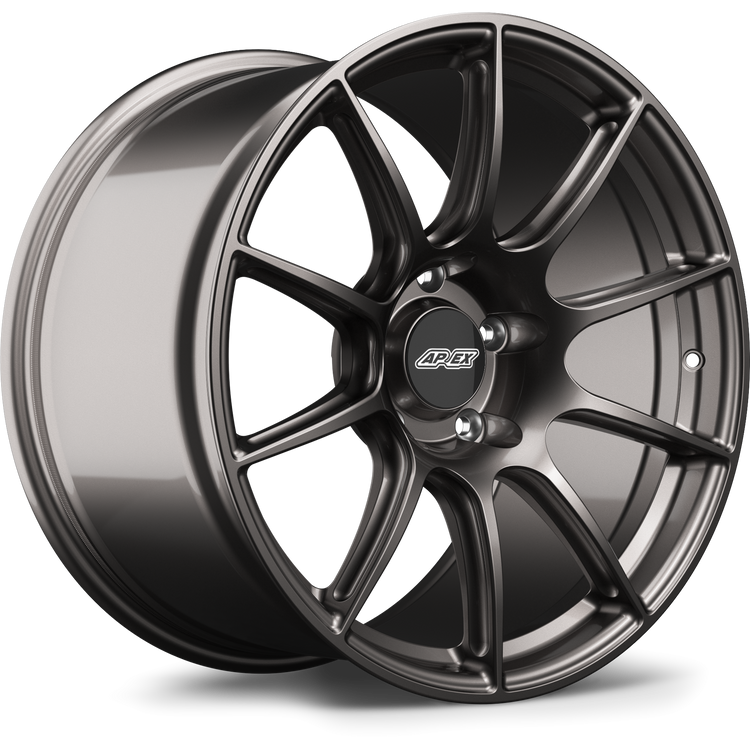

• Available Finishes: Anthracite, Race Silver, Satin Black
• SKU: SM101911ET60-5130-716-AN

Wheel Specifications:
