APEX Wheels SM-10 Flow Formed Wheel | 19x9.5 ET25 | 5x112

Ask an expert

Regular price: $504.00
Regular price
Sale price: $504.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $504.00

Quantity:

APEX Wheels SM-10 Flow Formed Wheel | 19x9.5 ET25 | 5x112

Subtotal: $504.00

Not sure it fits? Text us your VIN

Vendor: APEX Wheels

SKU: SM101995ET25-5112-666-AN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels SM-10 from the Evolution Line represents a precision-engineered flow formed wheel designed for applications requiring 5x112 bolt pattern compatibility. This 19x9.5 ET25 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The SM-10 achieves a weight of 21.0 lbs in the 19x9.5 configuration, providing unsprung weight reduction compared to factory wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The SM-10 features Profile 3 face design, providing the deep concave geometry suited for the 9.5-inch width configuration. The 66.6mm center bore specification provides precise hub-centric mounting for compatible applications. The ET25 offset positions the wheel mounting surface to optimize suspension geometry and maintain proper brake clearance. The 60-degree conical hardware seat accommodates standard lug nuts for secure wheel mounting.

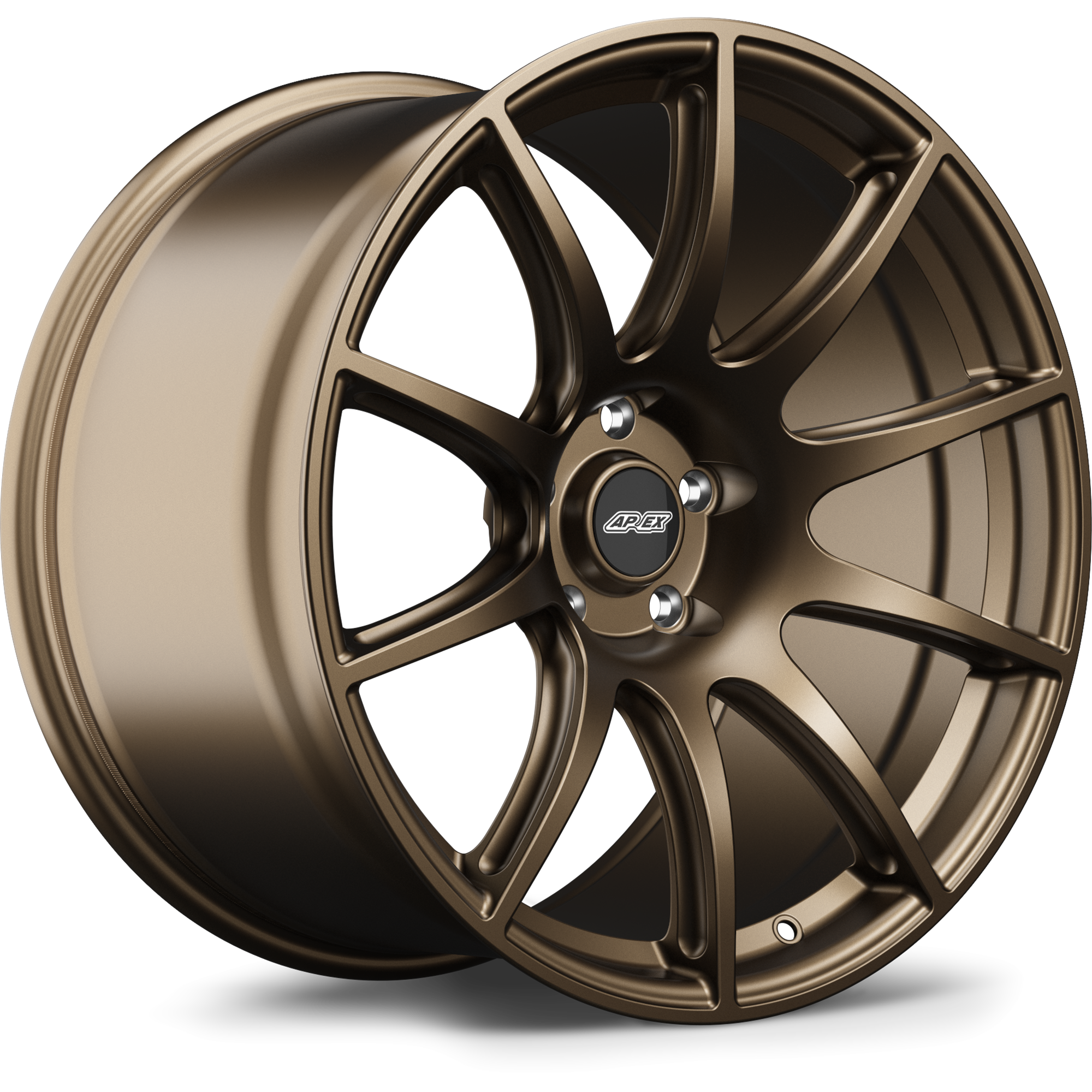

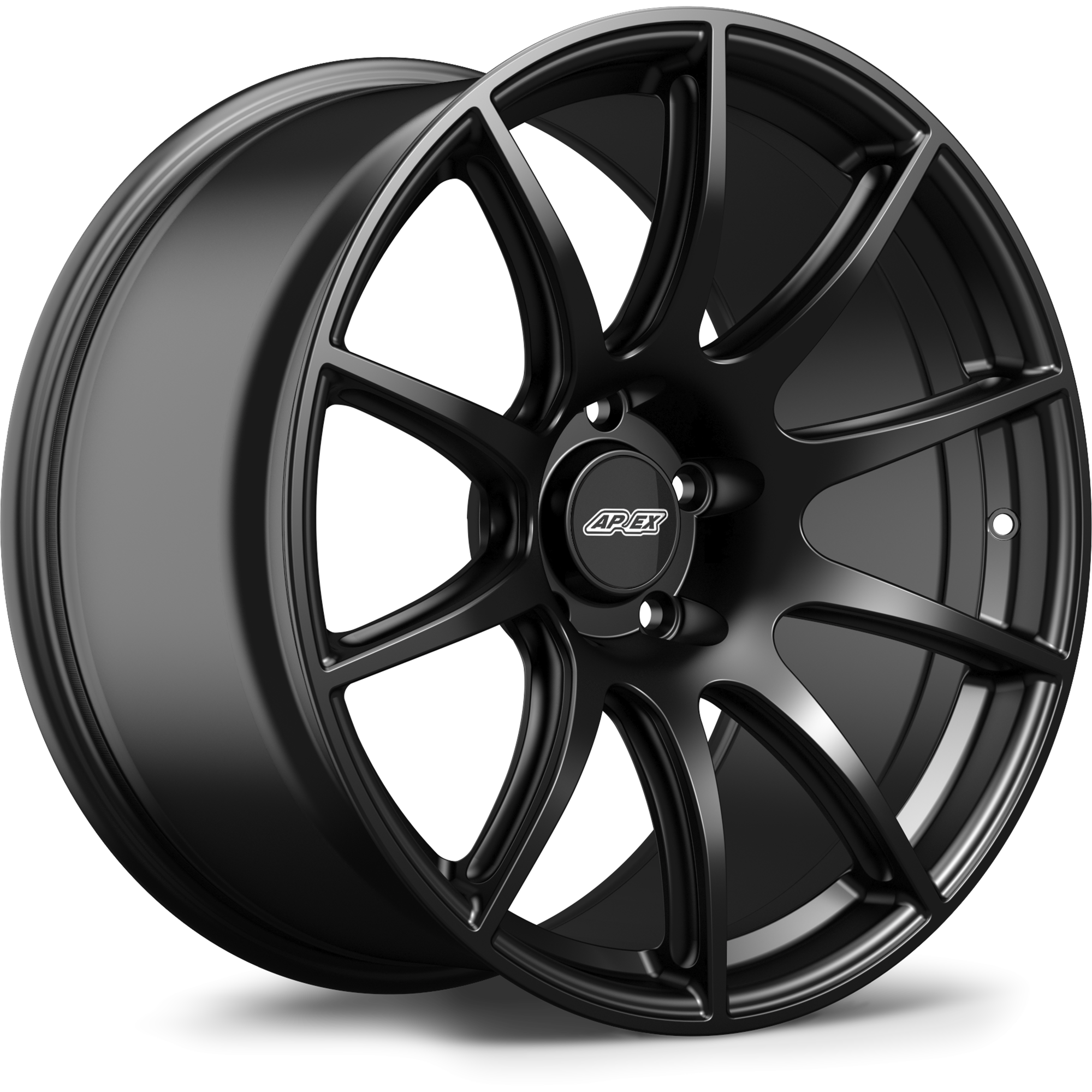

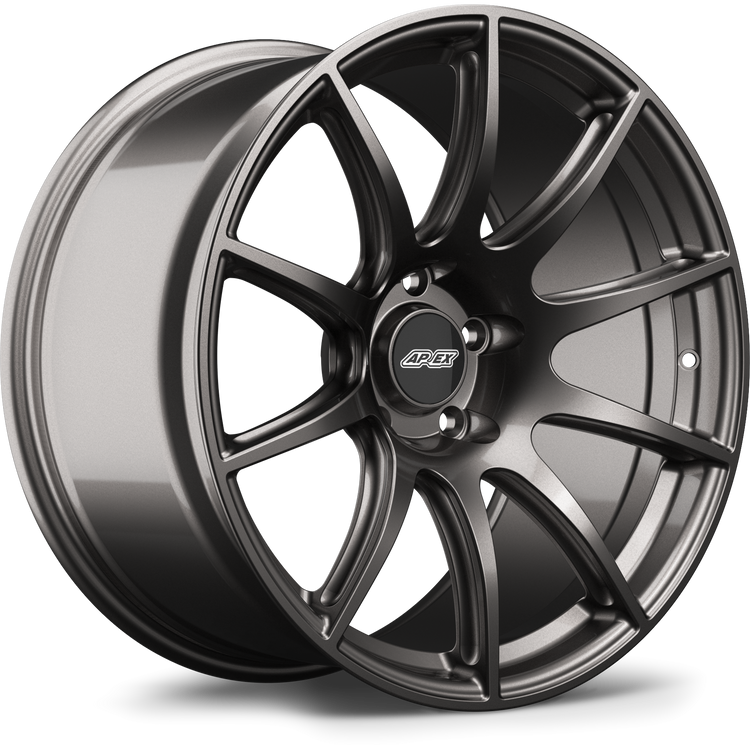

APEX offers the SM-10 in multiple finish options including Anthracite, Satin Bronze, and Satin Black to accommodate different aesthetic preferences while maintaining the same performance characteristics.

Compatibility: 5x112 bolt pattern, 66.6mm center bore
Material: Flow formed aluminum construction
Weight: 21.0 lbs
Face Profile: Profile 3
Hardware Seat: 60 Degree Conical
Available Finishes: Anthracite, Satin Bronze, Satin Black
Primary Application: Toyota Supra
SKU: SM101995ET25-5112-666-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
19"	9.5"	ET25	5x112mm	66.6mm	Flow Formed	Profile 3	60 Degree Conical	21.0 lbs
