The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for JDM applications requiring 5x114.3 bolt pattern compatibility. This 17x8 ET30 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 1 face design, providing the geometry suited for the 8-inch width configuration. The 73.1mm center bore specification provides precise hub centering for the intended JDM applications. The wheel incorporates 60 degree conical hardware seat design, ensuring proper lug nut engagement and load distribution across the mounting surface.

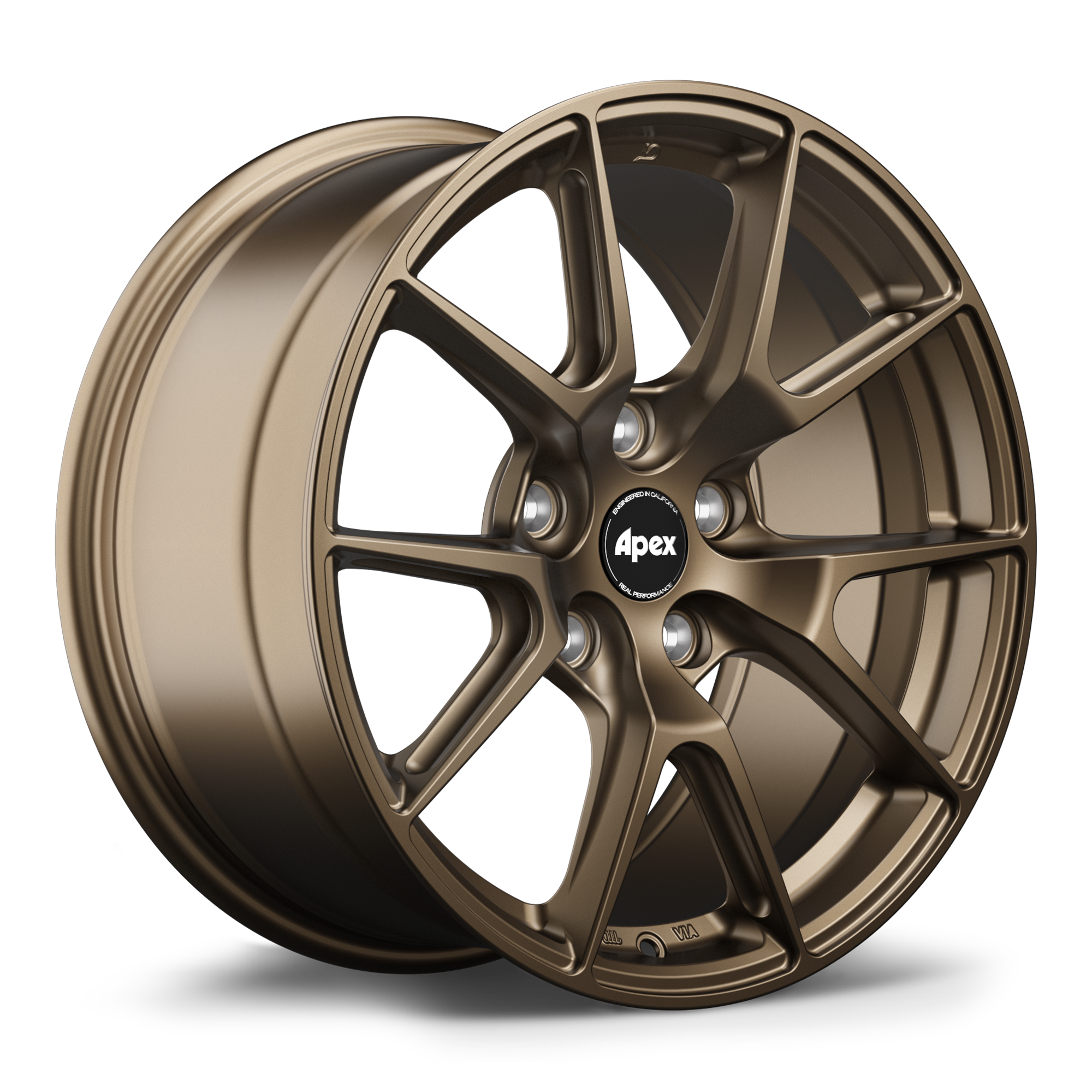

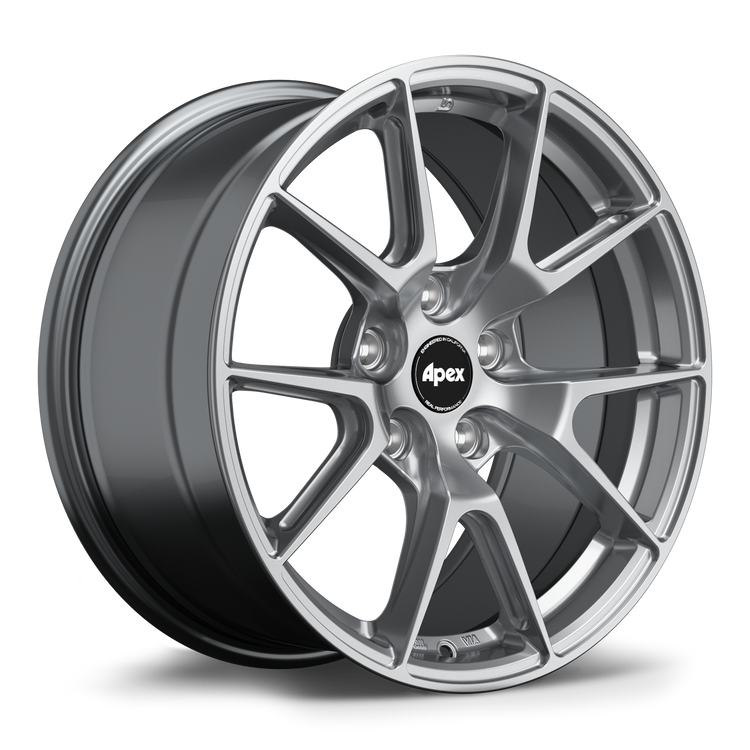

Available finishes include Hyper Black, Race Silver, and Satin Bronze, allowing customization options for different aesthetic preferences while maintaining the structural performance characteristics of the flow formed construction.

Compatibility: JDM applications with 5x114.3 bolt pattern
Construction: Flow Formed
Diameter: 17 inches
Width: 8 inches
Offset: ET30
Center Bore: 73.1mm
Face Profile: Profile 1
Hardware Seat: 60 Degree Conical
Available Finishes: Hyper Black, Race Silver, Satin Bronze
SKU: VS5178ET30-51143-731-NHBK

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
17"	8.0"	ET30	5x114.3mm	73.1mm	Flow Formed	Profile 1	60 Degree Conical	None
