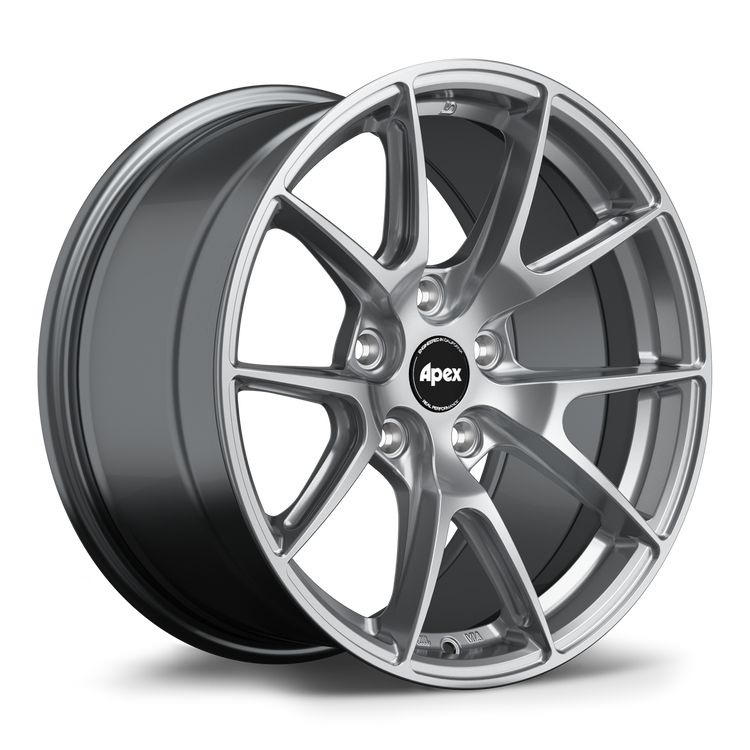

APEX Wheels VS-5 Flow Formed Wheel | 17x9.5 ET40 | 5x100

Ask an expert

Brand: APEX WheelsSKU / Part #: VS51795ET40-5100-561-NHBK

Regular price: $429.00
Regular price
Sale price: $429.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $429.00

Quantity:

APEX Wheels VS-5 Flow Formed Wheel | 17x9.5 ET40 | 5x100

Subtotal: $429.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for applications requiring 5x100 bolt pattern compatibility. This 17x9.5 ET40 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 2 face design, providing the geometry suited for the 9.5-inch width configuration. The 56.1mm center bore specification provides proper hub-centric fitment for applications including the primary 86/BRZ platform. The wheel incorporates 60-degree conical hardware seat geometry for proper lug nut interface and secure mounting.

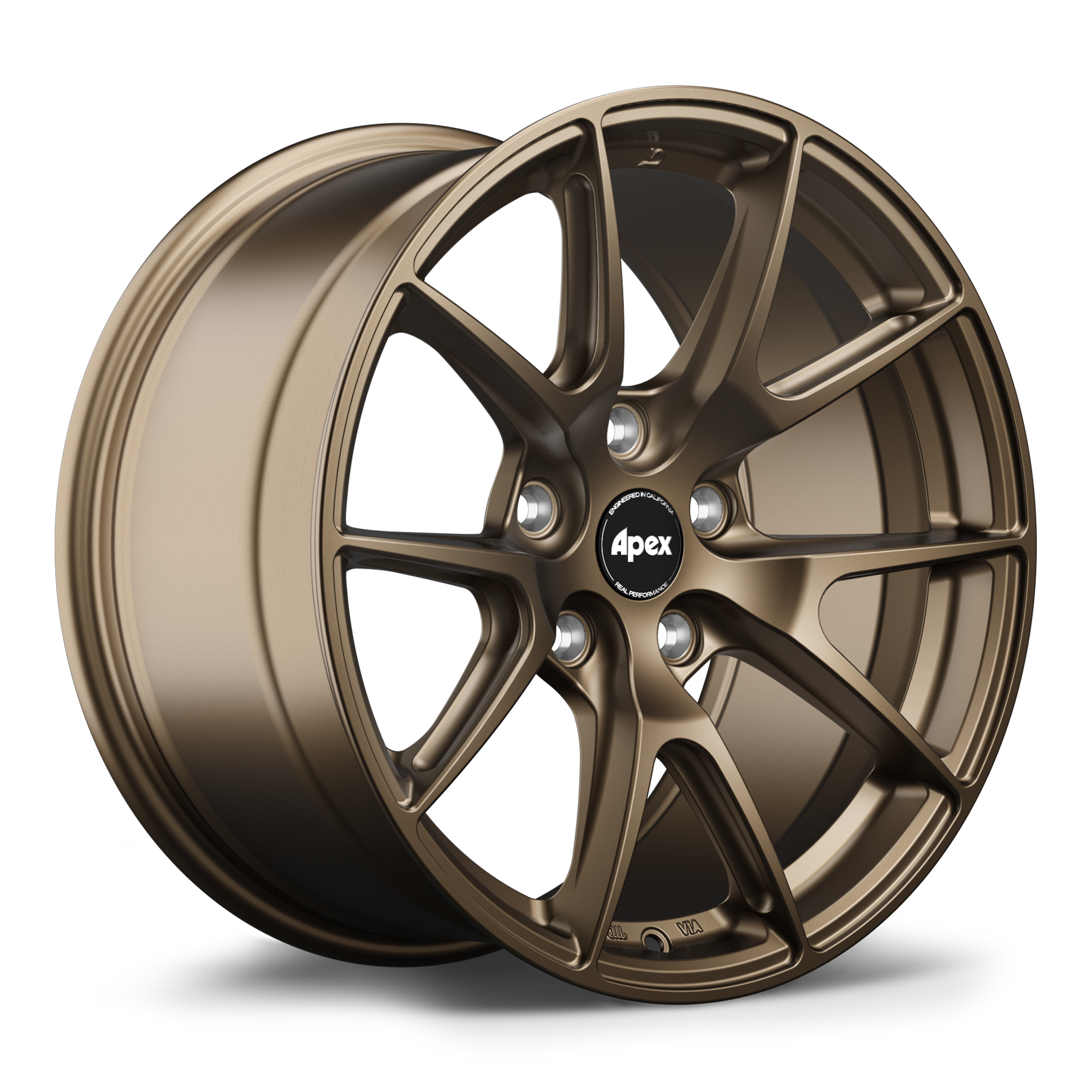

APEX offers the VS-5 in multiple finish options including Hyper Black, Race Silver, and Satin Bronze, allowing selection based on aesthetic preference and vehicle color coordination. The Evolution Line designation places this wheel within APEX's performance-focused lineup designed for track and street applications.

Compatibility: 5x100 bolt pattern vehicles
Material: Flow Formed aluminum construction
Face Profile: Profile 2
Hardware Seat: 60 Degree Conical
Center Bore: 56.1mm
Primary Application: 86/BRZ
Available Finishes: Hyper Black, Race Silver, Satin Bronze
SKU: VS51795ET40-5100-561-NHBK

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
17"	9.5"	ET40	5x100mm	56.1mm	Flow Formed	Profile 2	60 Degree Conical	None
