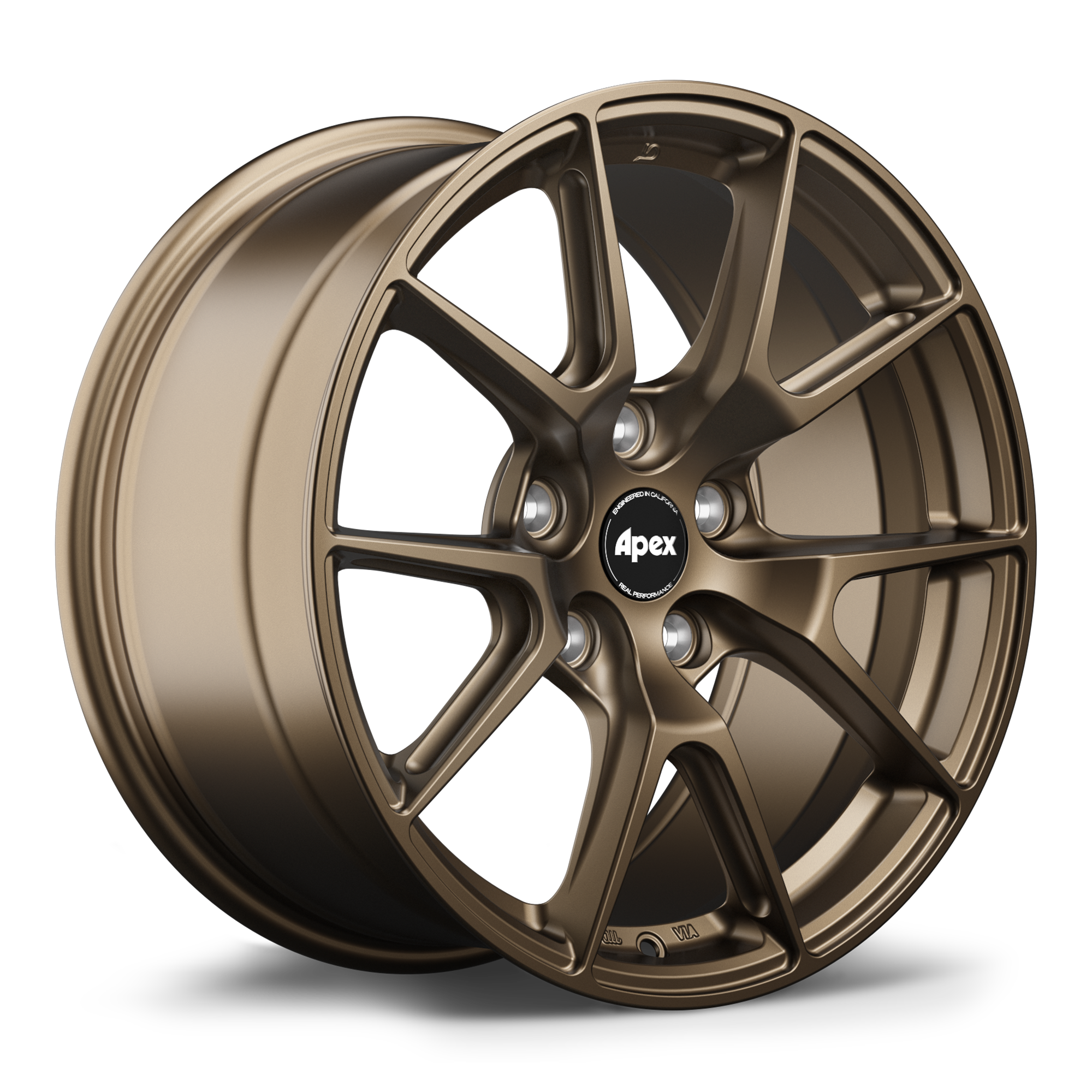

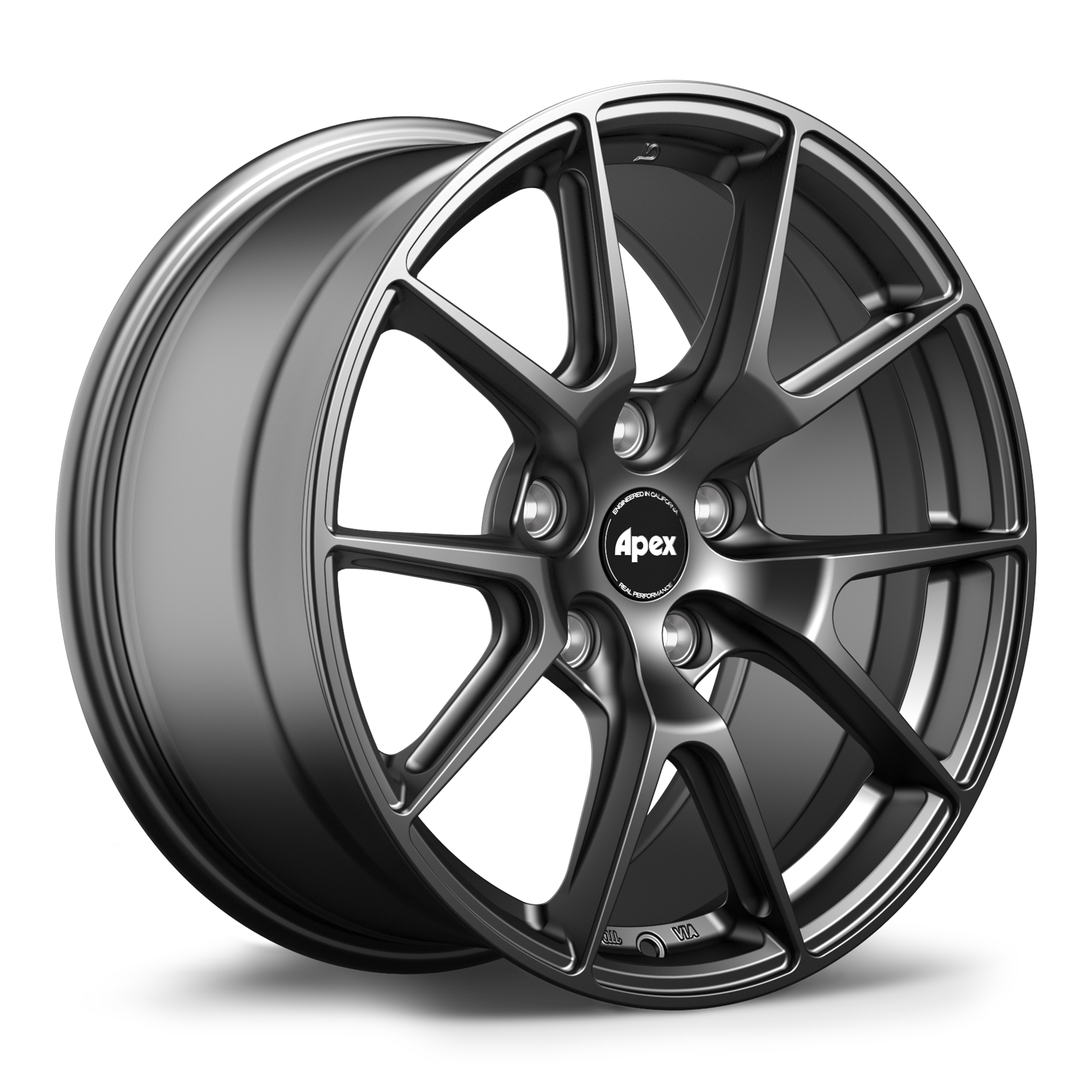

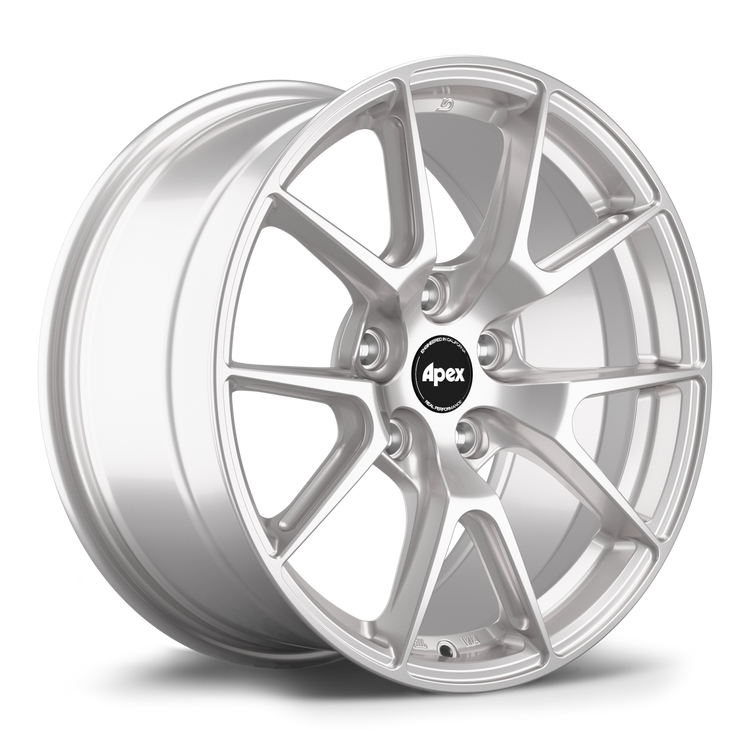

APEX Wheels VS-5 Flow Formed Wheel | 17x9.5 ET51 | 5x114.3

Ask an expert

Regular price: $419.00
Regular price
Sale price: $419.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $419.00

Quantity:

APEX Wheels VS-5 Flow Formed Wheel | 17x9.5 ET51 | 5x114.3

Subtotal: $419.00

Not sure it fits? Text us your VIN

Vendor: APEX Wheels

SKU: VS51795ET51-51143-701-RS

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for Honda applications requiring 5x114.3 bolt pattern compatibility. This 17x9.5 ET51 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The VS-5 achieves a weight of 19.6 lbs in the 17x9.5 configuration, providing unsprung weight reduction compared to factory Honda wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance across the 17-inch diameter platform.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 1 face design, providing the geometry suited for the 9.5-inch width configuration. The 70.1mm center bore specification provides precise hub-centric fitment for Honda applications, eliminating wheel vibration while ensuring proper load distribution. The 60 degree conical hardware seat accommodates standard lug nuts for secure wheel mounting across Honda platforms requiring 5x114.3 bolt pattern compatibility.

Compatibility: Honda vehicles with 5x114.3 bolt pattern
Material: Flow Formed aluminum construction
Performance: 19.6 lbs weight
Included: Wheel only, hardware sold separately
SKU: VS51795ET51-51143-701-RS

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
17"	9.5"	ET51	5x114.3mm	70.1mm	Flow Formed	Profile 1	60 Degree Conical	19.6 lbs
