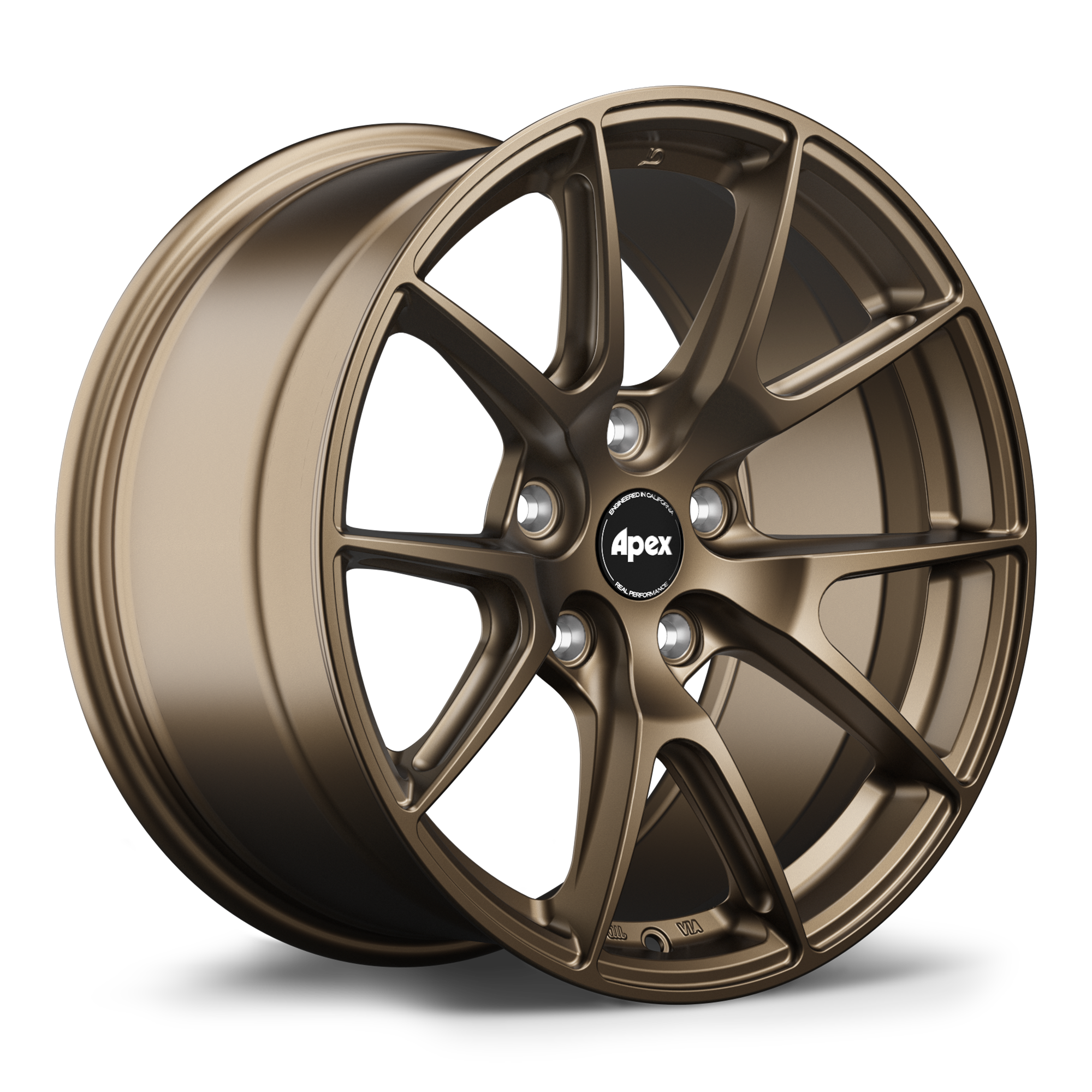

APEX Wheels VS-5 Flow Formed Wheel | 17x9 ET35 | 5x100

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for applications requiring 5x100 bolt pattern compatibility. This 17x9 ET35 wheel addresses the demands of compact performance vehicles through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use on platforms like the 86/BRZ.

The VS-5 achieves a weight of 18.3 lbs in the 17x9 configuration, providing significant unsprung weight reduction compared to factory wheels while maintaining structural integrity for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance. The 18.3-pound specification positions this wheel competitively within the flow formed category for 17-inch applications.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost effectiveness.

The VS-5 features Profile 2 face design, providing the geometry suited for the 9-inch width configuration while maintaining structural integrity. The 56.1mm center bore specification ensures proper hub-centric fitment for targeted applications, while the ET35 offset provides appropriate suspension clearance and track width for performance use. The 60-degree conical hardware seat accommodates standard lug nuts for secure wheel mounting.

• Compatibility: 5x100 bolt pattern vehicles
• Material: Flow formed aluminum construction
• Weight: 18.3 lbs per wheel
• Face Profile: Profile 2
• Center Bore: 56.1mm
• Hardware Seat: 60 Degree Conical
• Primary Application: 86/BRZ platforms

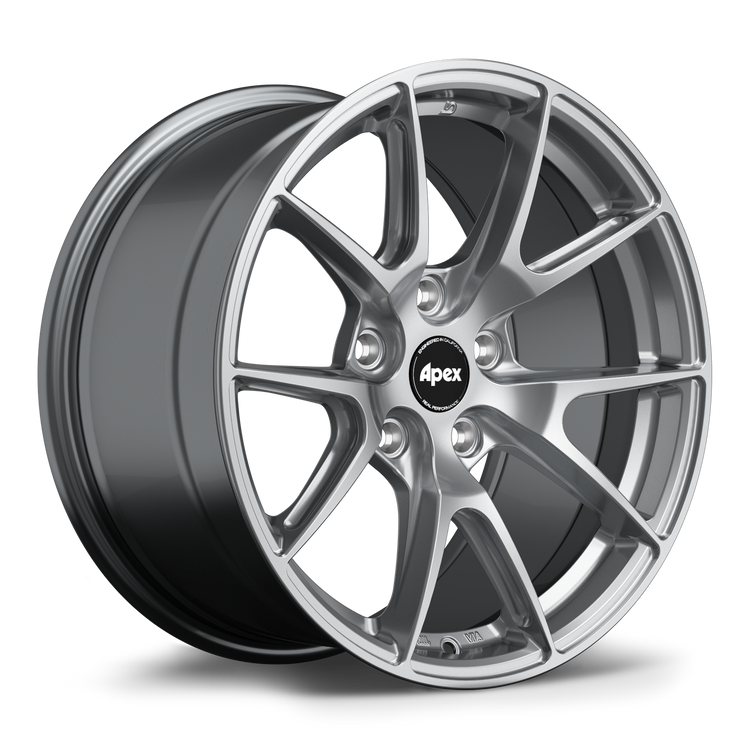

• Available Finishes: Hyper Black, Race Silver, Satin Bronze
• SKU: VS5179ET35-5100-561-NHBK

Wheel Specifications:
