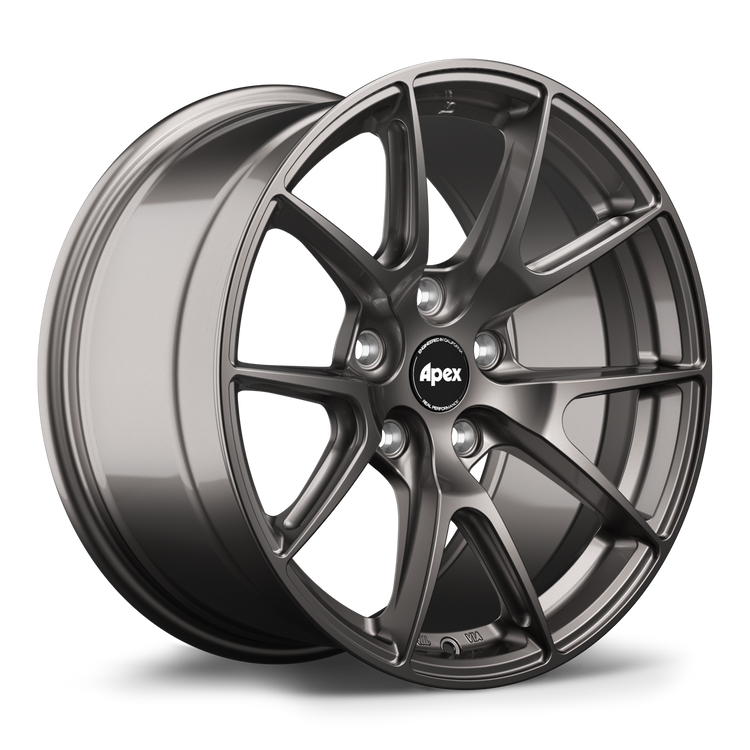

Single gunmetal gray alloy wheel with ten-spoke design isolated on white background showing barrel and face detail - APEX Wheels wheel for 17x9 ET35 5x114.3 - Anthracite

}

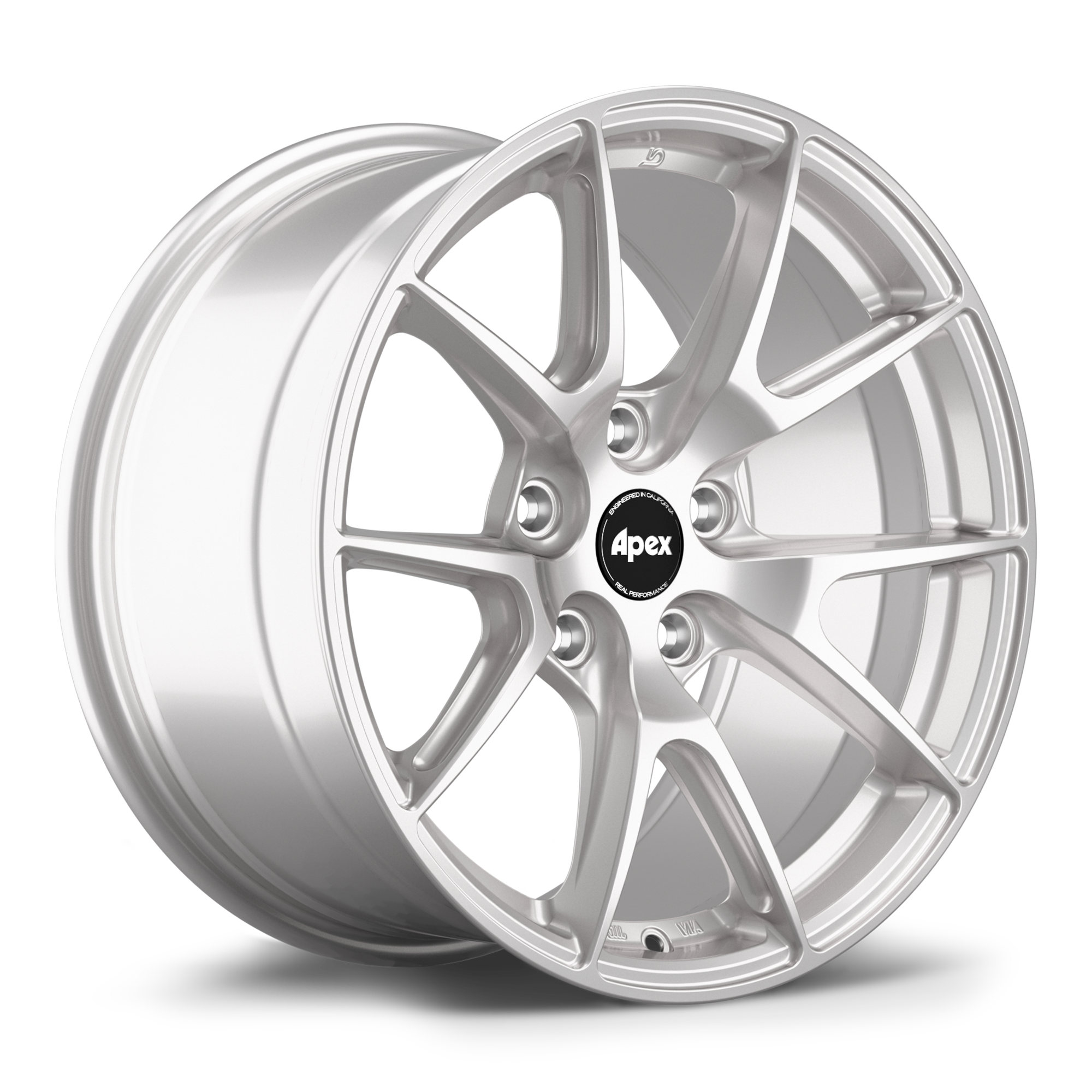

Silver alloy wheel with ten-spoke design and black center cap with white text, displayed at three-quarter angle - APEX Wheels wheel for 17x9 ET35 5x114.3 - Hyper Black

}

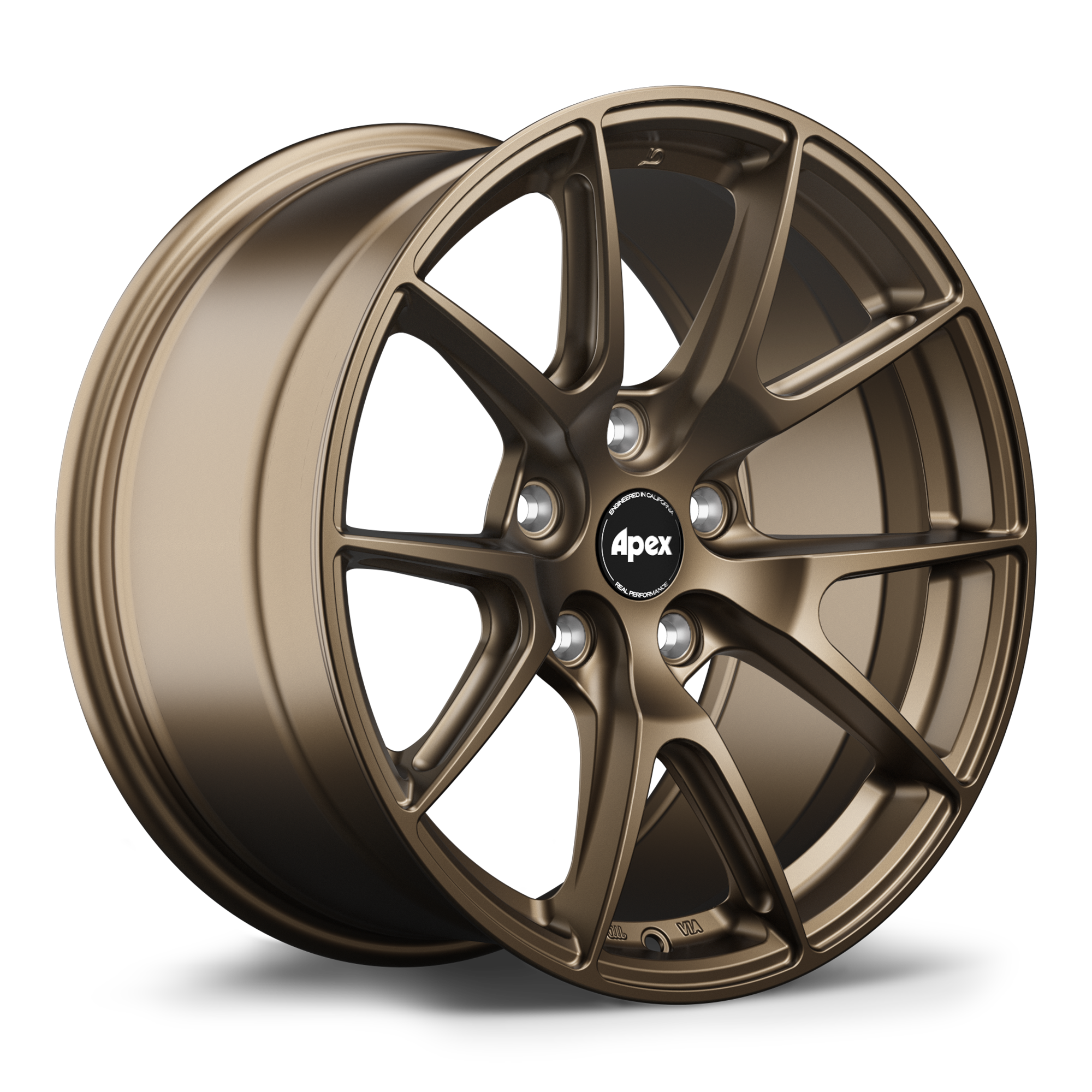

Bronze finished aluminum wheel with ten-spoke design and black center cap, shown at three-quarter angle on white background - APEX Wheels wheel for 17x9 ET35 5x114.3 - Satin Bronze

}

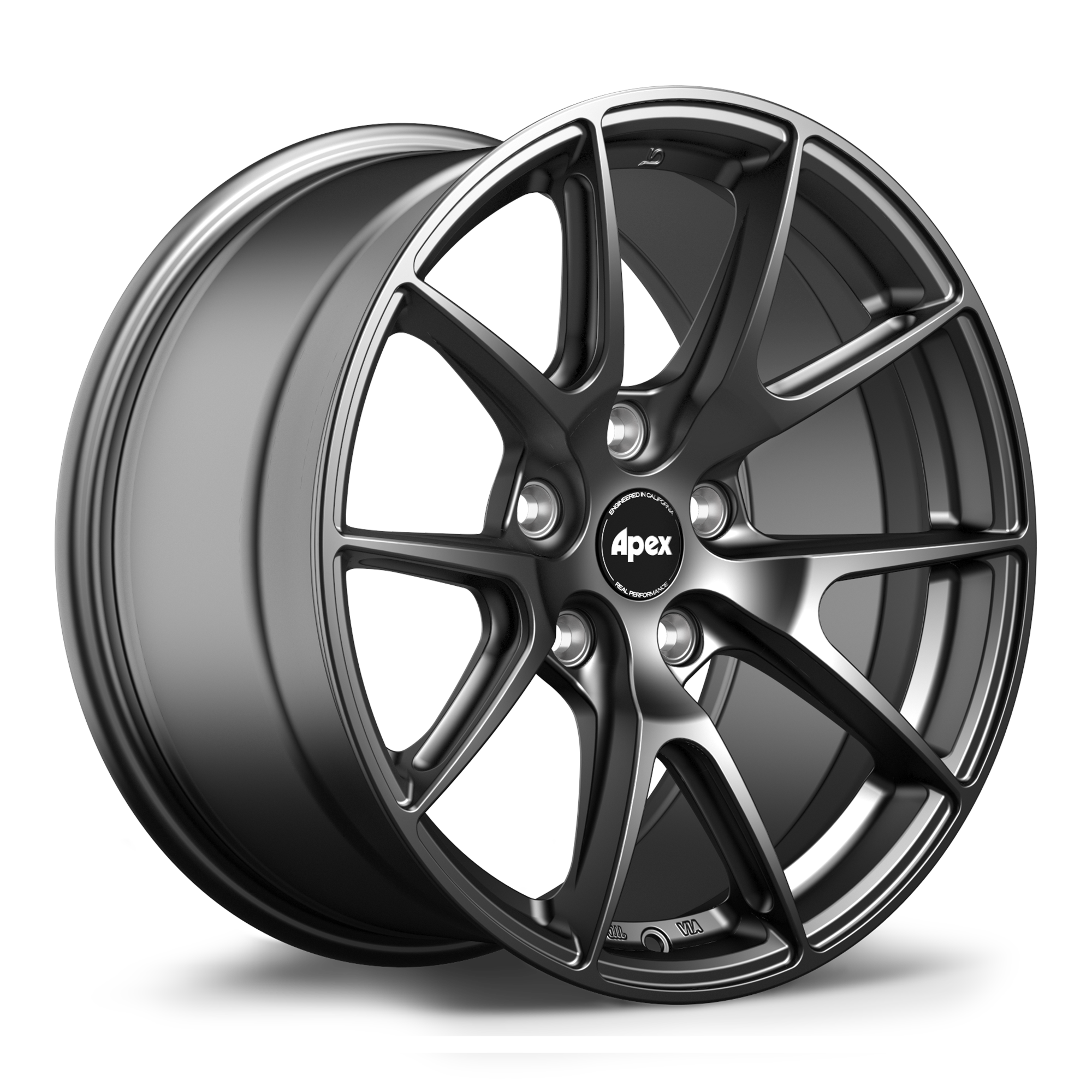

Dark gunmetal alloy wheel with curved Y-spoke design and center cap, five lug bolt pattern - APEX Wheels wheel for 17x9 ET35 5x114.3 - Satin Black

}

APEX Wheels VS-5 Flow Formed Wheel | 17x9 ET35 | 5x114.3

Ask an expert

Brand: APEX WheelsSKU / Part #: VS5179ET35-51143-731-AN

Regular price: $409.00
Regular price
Sale price: $409.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $409.00

Quantity:

APEX Wheels VS-5 Flow Formed Wheel | 17x9 ET35 | 5x114.3

Subtotal: $409.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for JDM applications requiring 5x114.3 bolt pattern compatibility. This 17x9 ET35 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The VS-5 achieves a weight of 19.3 lbs in the 17x9 configuration, providing unsprung weight reduction compared to factory wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 2 face design, providing the geometry suited for the 9-inch width configuration. The 73.1mm center bore specification provides precise hub centering for the target JDM applications. The 60 degree conical hardware seat ensures proper lug nut engagement and wheel mounting security.

This wheel serves JDM enthusiasts seeking flow formed construction benefits with proven 5x114.3 fitment compatibility.

Compatibility: JDM applications with 5x114.3 bolt pattern
Material: Flow Formed aluminum construction
Weight: 19.3 lbs
Face Profile: Profile 2
Hardware Seat: 60 Degree Conical
Center Bore: 73.1mm
Available Finishes: Anthracite, Hyper Black, Race Silver, Satin Bronze, Satin Black
SKU: VS5179ET35-51143-731-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
17"	9.0"	ET35	5x114.3mm	73.1mm	Flow Formed	Profile 2	60 Degree Conical	19.3 lbs
