Overview

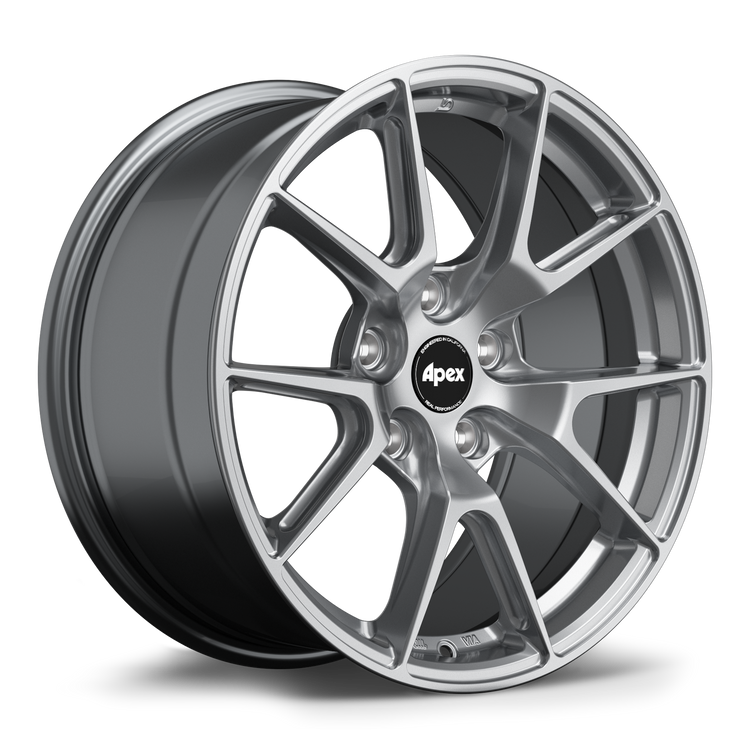

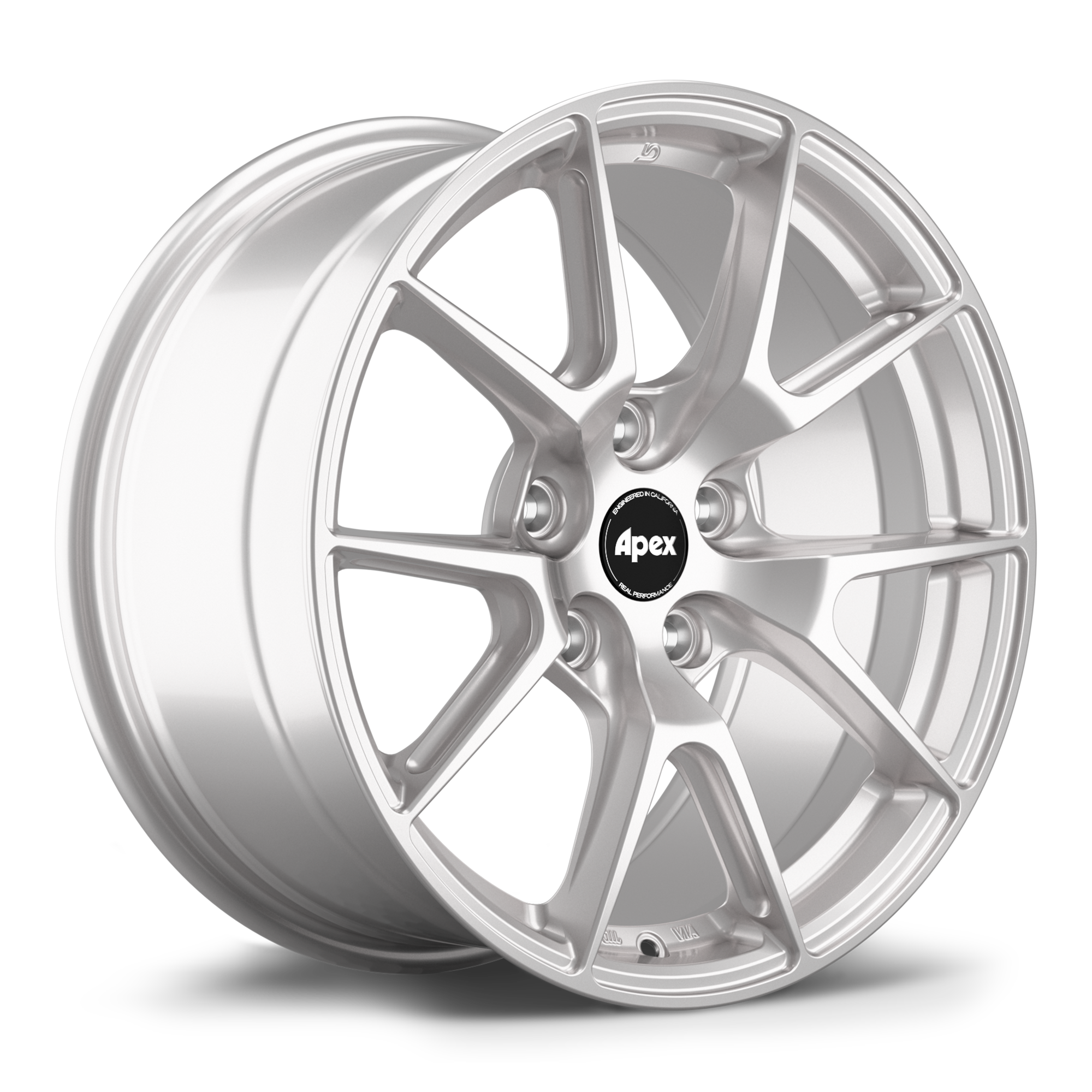

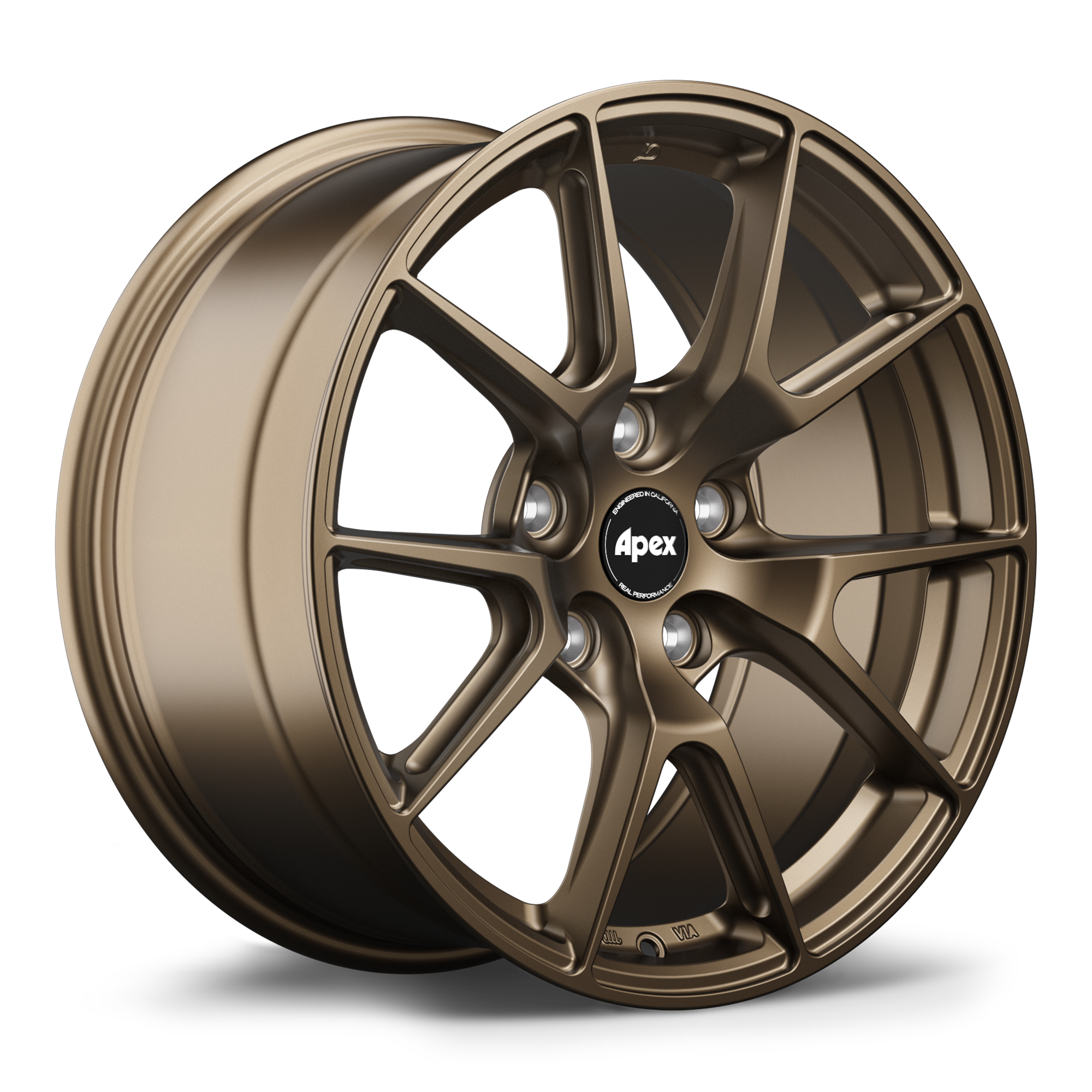

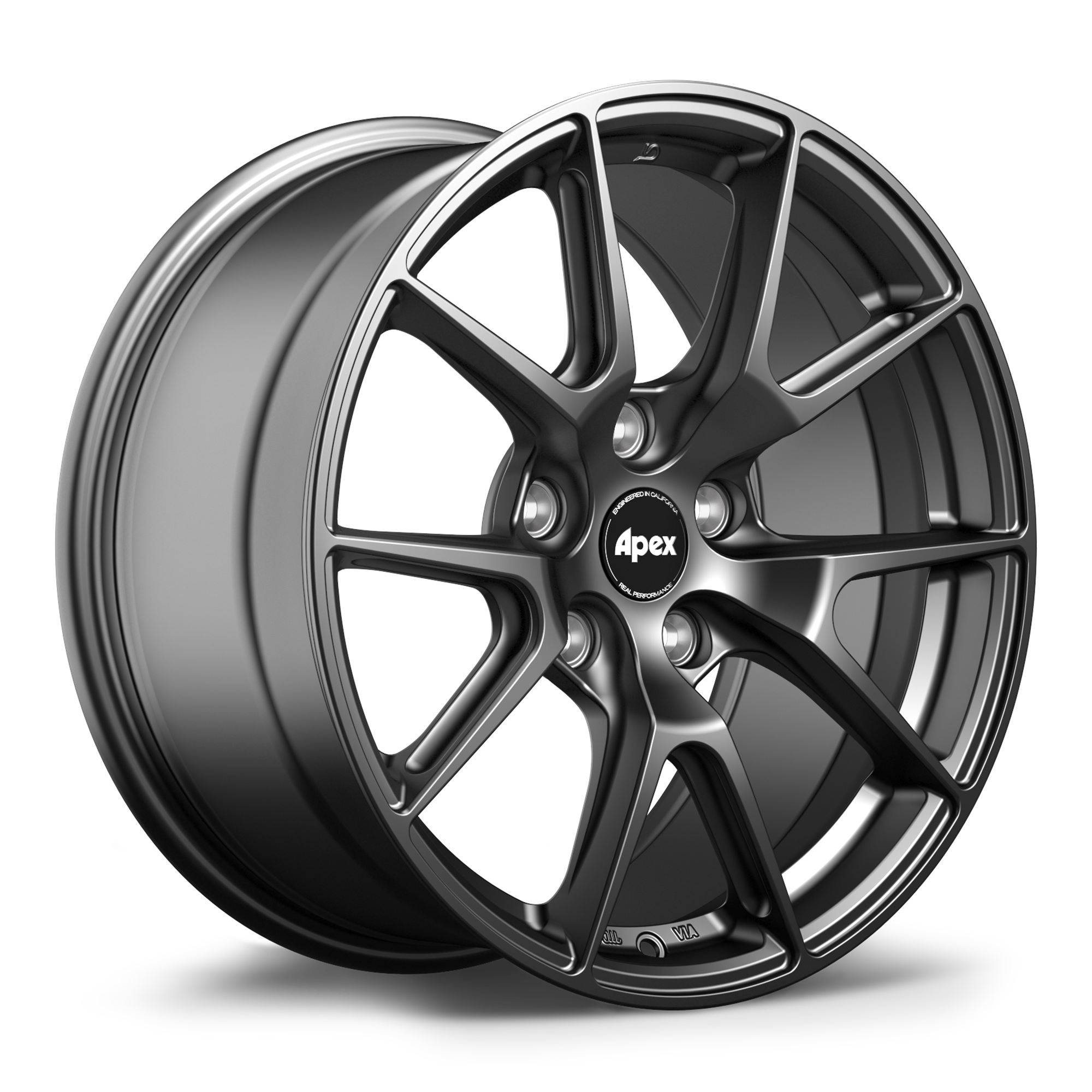

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for VW/Audi applications requiring 5x112 bolt pattern compatibility. This 17x9 ET42 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The VS-5 achieves a weight of 19.4 lbs in the 17x9 configuration, providing unsprung weight reduction compared to factory wheels while maintaining the structural integrity required for performance driving. This weight control becomes critical in performance applications, where reduced unsprung mass directly improves handling dynamics, acceleration response, and braking performance.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 1 face design, providing the geometry suited for the 9-inch width configuration. The 57.1mm center bore specification precisely matches VW/Audi requirements for proper hub-centric fitment. The R13 ball seat hardware configuration ensures compatibility with standard aftermarket lug bolts and provides secure wheel mounting for performance applications.

Compatibility: VW/Audi (Small Bore) applications
Material: Flow Formed aluminum construction
Weight: 19.4 lbs
Hardware Seat: R13 Ball Seat
Face Profile: Profile 1
SKU: VS5179ET42-5112-571-NHBK

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
17"	9.0"	ET42	5x112mm	57.1mm	Flow Formed	Profile 1	R13 Ball Seat	19.4 lbs
