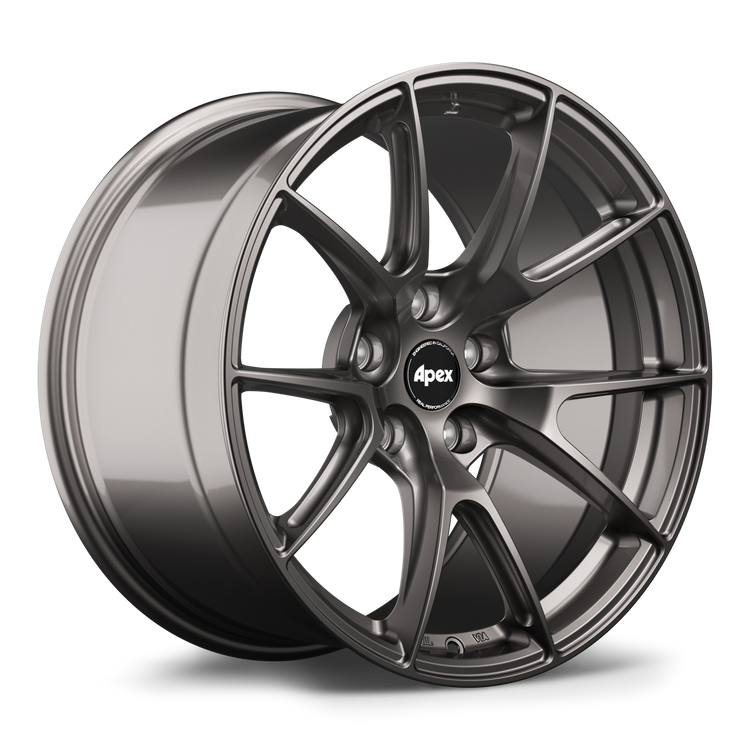

Gunmetal gray alloy wheel with ten-spoke design and black center cap on white background - APEX Wheels wheel for 18x9.5 ET22 5x114.3 - Anthracite

}

Two silver alloy wheels with ten-spoke design and machined finish on white background - APEX Wheels wheel for 18x9.5 ET22 5x114.3 - Hyper Black

}

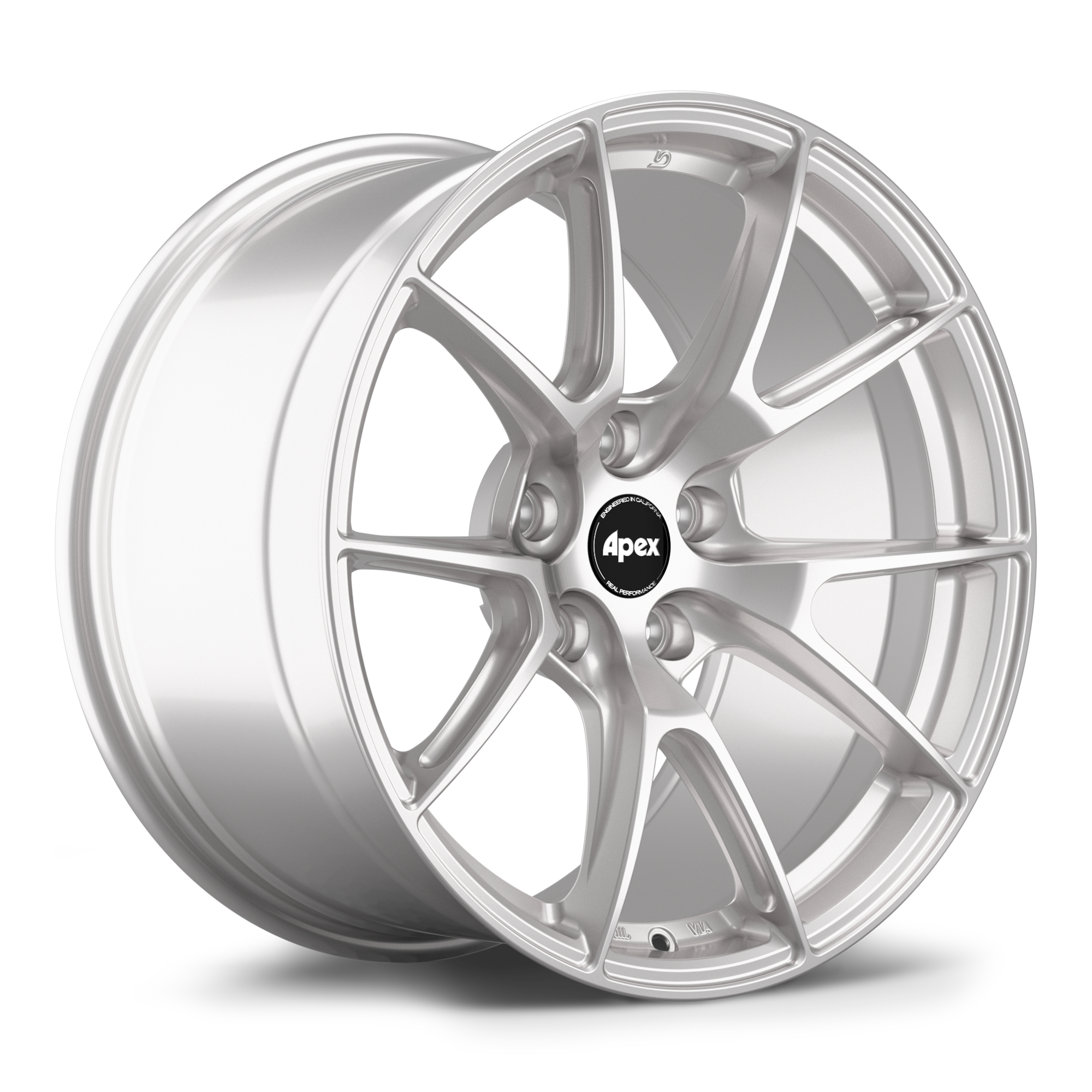

Silver alloy wheel with ten-spoke design and machined finish, showing front and side view on white background - APEX Wheels wheel for 18x9.5 ET22 5x114.3 - Race Silver

}

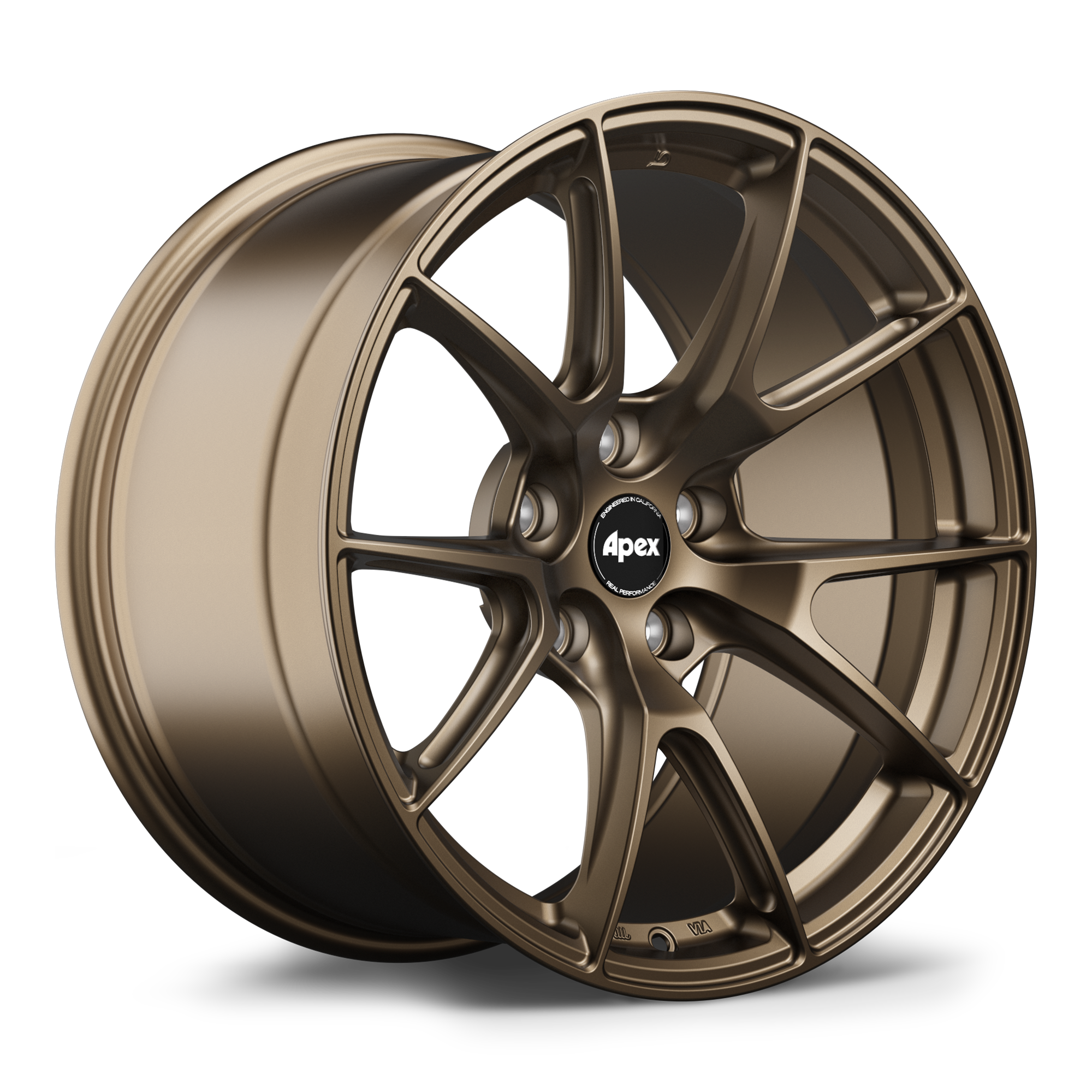

Bronze-finished alloy wheel with ten-spoke design and center cap on clean white background - APEX Wheels wheel for 18x9.5 ET22 5x114.3 - Satin Bronze

}

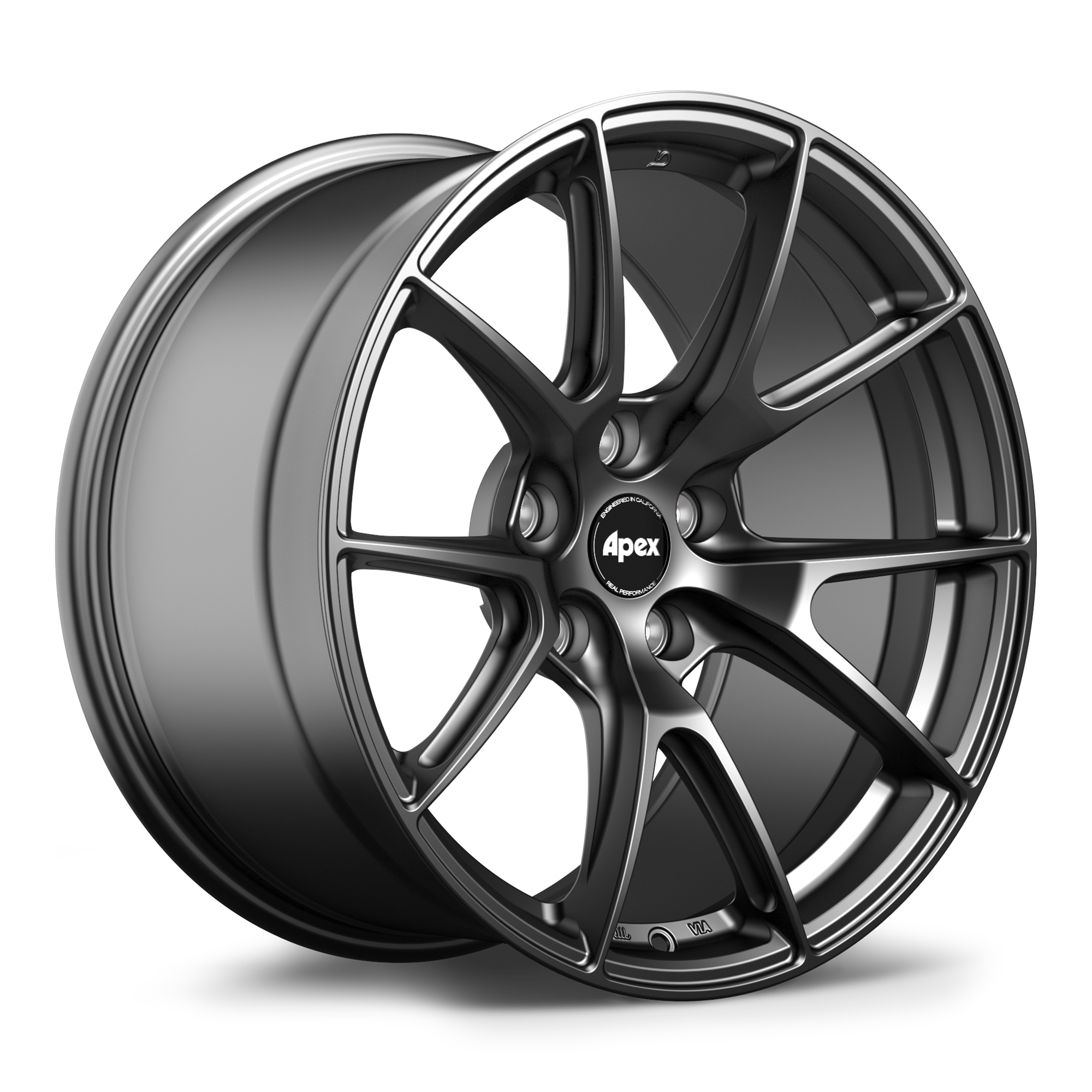

Dark gunmetal alloy wheel with multi-spoke design isolated on white background - APEX Wheels wheel for 18x9.5 ET22 5x114.3 - Satin Black

}

APEX Wheels VS-5 Flow Formed Wheel | 18x9.5 ET22 | 5x114.3

Ask an expert

Brand: APEX WheelsSKU / Part #: VS51895ET22-51143-731-AN

Regular price: $469.00
Regular price
Sale price: $469.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $469.00

Quantity:

APEX Wheels VS-5 Flow Formed Wheel | 18x9.5 ET22 | 5x114.3

Subtotal: $469.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for applications requiring 5x114.3 bolt pattern compatibility. This 18x9.5 ET22 wheel addresses the demands of JDM performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 3 face design, providing the deep concave geometry suited for the 9.5-inch width configuration. The 73.1mm center bore specification provides precise hub-centric fitment for compatible applications, ensuring proper wheel-to-hub alignment that eliminates vibration and maintains optimal load distribution. The 60 degree conical hardware seat delivers secure lug engagement with proper torque distribution across the mounting surface.

The Evolution Line VS-5 is engineered specifically for JDM vehicle platforms, with the 18x9.5 ET22 sizing optimized for performance applications that benefit from the aggressive offset and substantial width. The wheel is available in five finish options including Anthracite, Hyper Black, Race Silver, Satin Bronze, and Satin Black, allowing customization to match specific vehicle aesthetics while maintaining the performance characteristics of the flow formed construction.

Compatibility: JDM applications with 5x114.3 bolt pattern
Material: Flow formed aluminum construction
SKU: VS51895ET22-51143-731-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
18"	9.5"	ET22	5x114.3mm	73.1mm	Flow Formed	Profile 3	60 Degree Conical	None
