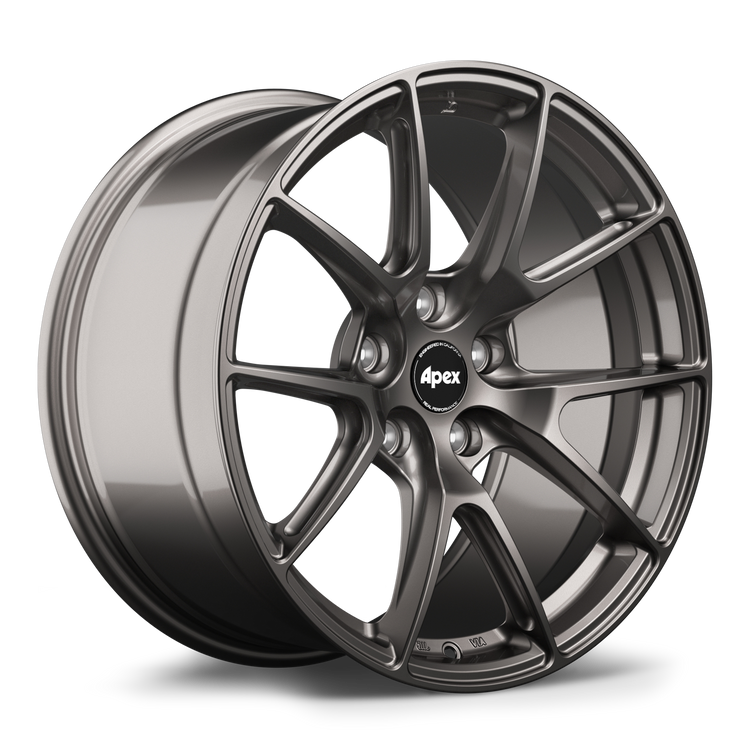

Dark gunmetal alloy wheel with multi-spoke design showing five bolt holes and center cap on white background - APEX Wheels wheel for 18x9.5 ET40 5x114.3 - Anthracite

}

Silver alloy wheel with curved spoke design and black center cap on white background - APEX Wheels wheel for 18x9.5 ET40 5x114.3 - Hyper Black

}

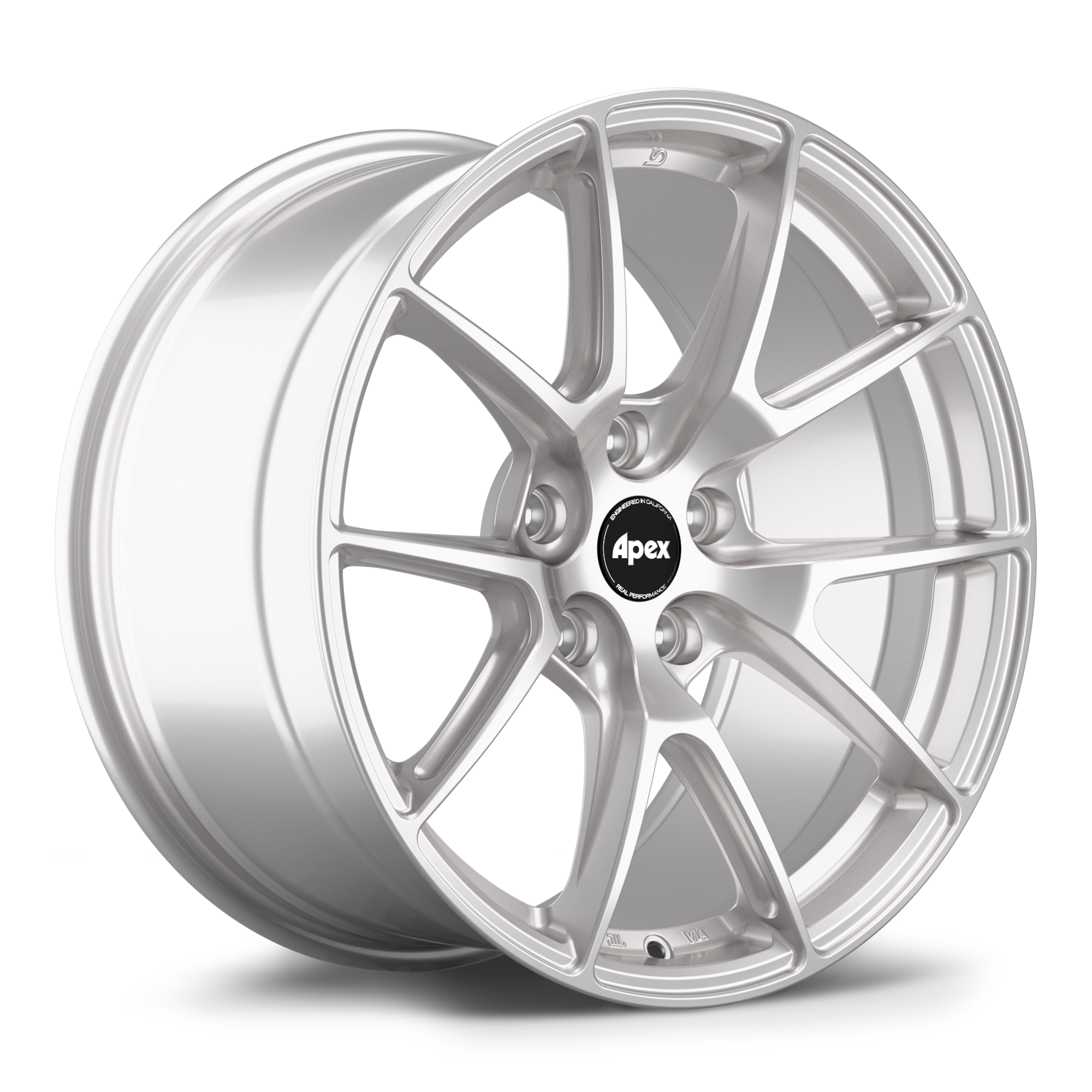

Silver alloy wheel with ten-spoke design and black center cap on white background - APEX Wheels wheel for 18x9.5 ET40 5x114.3 - Race Silver

}

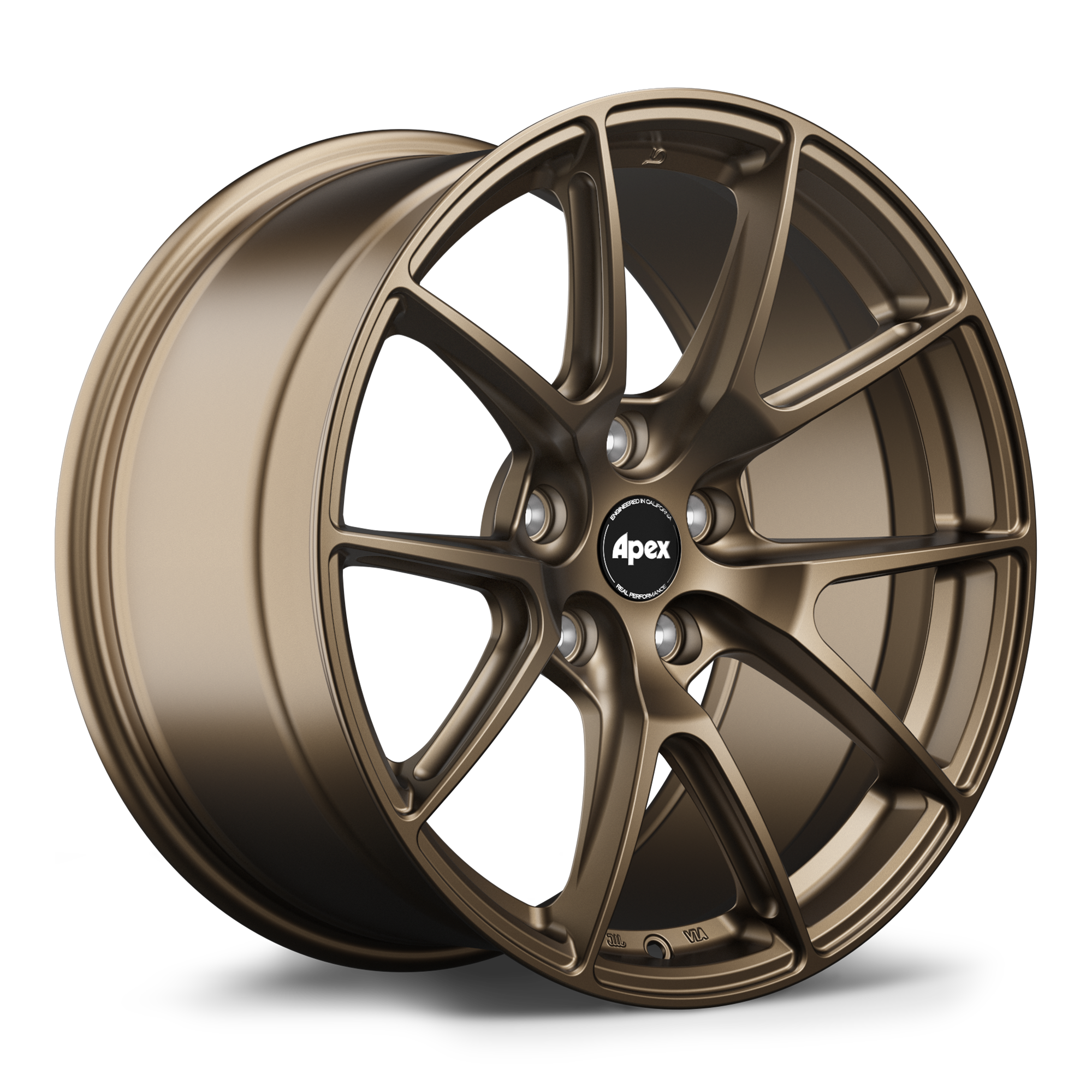

Bronze finished alloy wheel with five-spoke design and black center cap on white background - APEX Wheels wheel for 18x9.5 ET40 5x114.3 - Satin Bronze

}

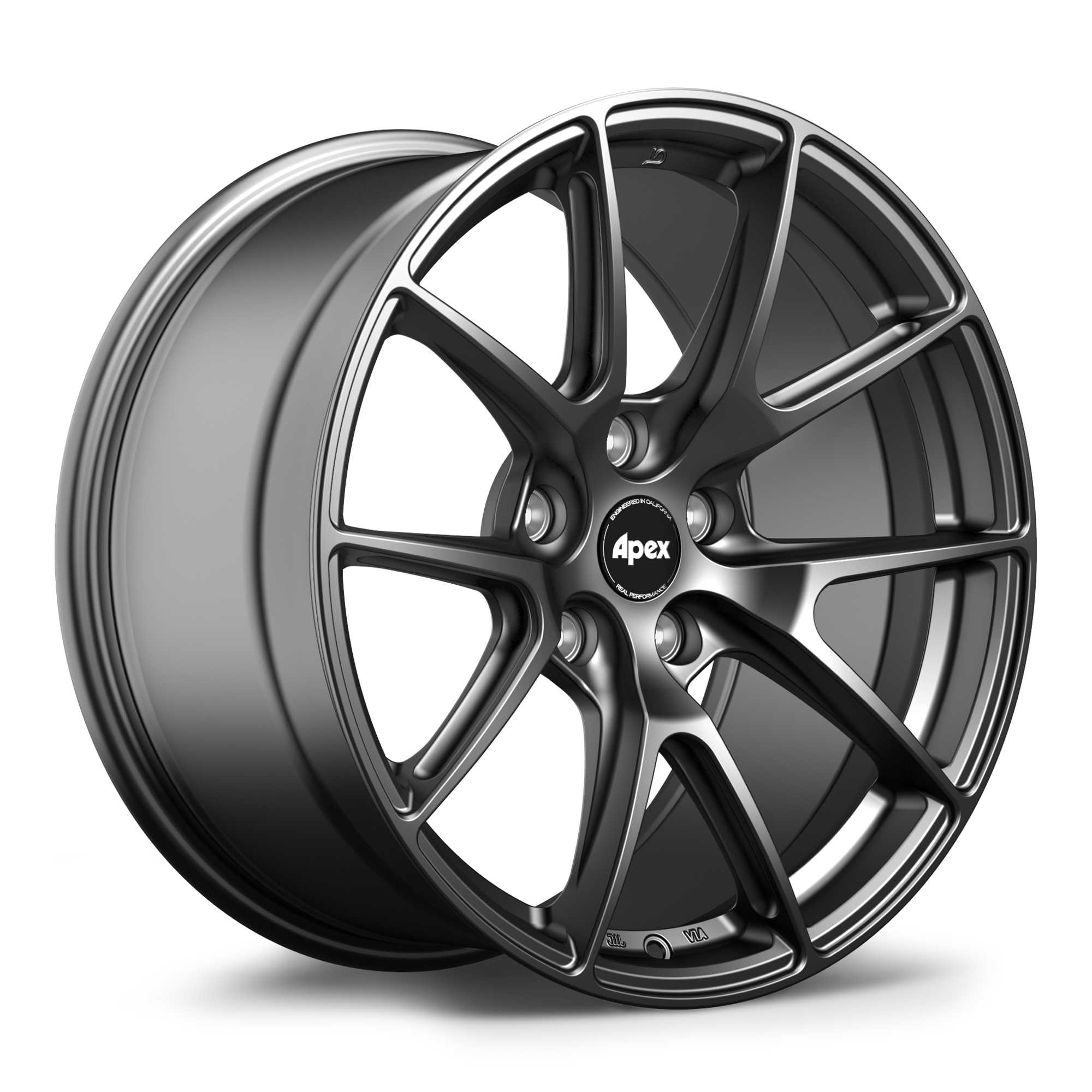

Gunmetal grey alloy wheel with ten-spoke design, center cap, and five-lug bolt pattern on white background - APEX Wheels wheel for 18x9.5 ET40 5x114.3 - Satin Black

}

APEX Wheels VS-5 Flow Formed Wheel | 18x9.5 ET40 | 5x114.3

Ask an expert

Brand: APEX WheelsSKU / Part #: VS51895ET40-51143-731-AN

Regular price: $469.00
Regular price
Sale price: $469.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $469.00

Quantity:

APEX Wheels VS-5 Flow Formed Wheel | 18x9.5 ET40 | 5x114.3

Subtotal: $469.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for JDM applications requiring 5x114.3 bolt pattern compatibility. This 18x9.5 ET40 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 2 face design, providing the geometry suited for the 9.5-inch width configuration. The 73.1mm center bore specification provides precise fitment for JDM applications while maintaining proper hub-centric mounting. The wheel incorporates 60 degree conical hardware seat configuration, ensuring proper lug nut engagement and load distribution across the mounting surface.

Five finish options are available for the VS-5 including Anthracite, Hyper Black, Race Silver, Satin Bronze, and Satin Black, allowing customization to match specific aesthetic preferences while maintaining the same structural performance characteristics across all finish variants.

Compatibility: JDM applications with 5x114.3 bolt pattern
Construction: Flow Formed
Sizing: 18x9.5 ET40
Center Bore: 73.1mm
Face Profile: Profile 2
Hardware Seat: 60 Degree Conical
Available Finishes: Anthracite, Hyper Black, Race Silver, Satin Bronze, Satin Black
SKU: VS51895ET40-51143-731-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
18"	9.5"	ET40	5x114.3mm	73.1mm	Flow Formed	Profile 2	60 Degree Conical	None
