Overview

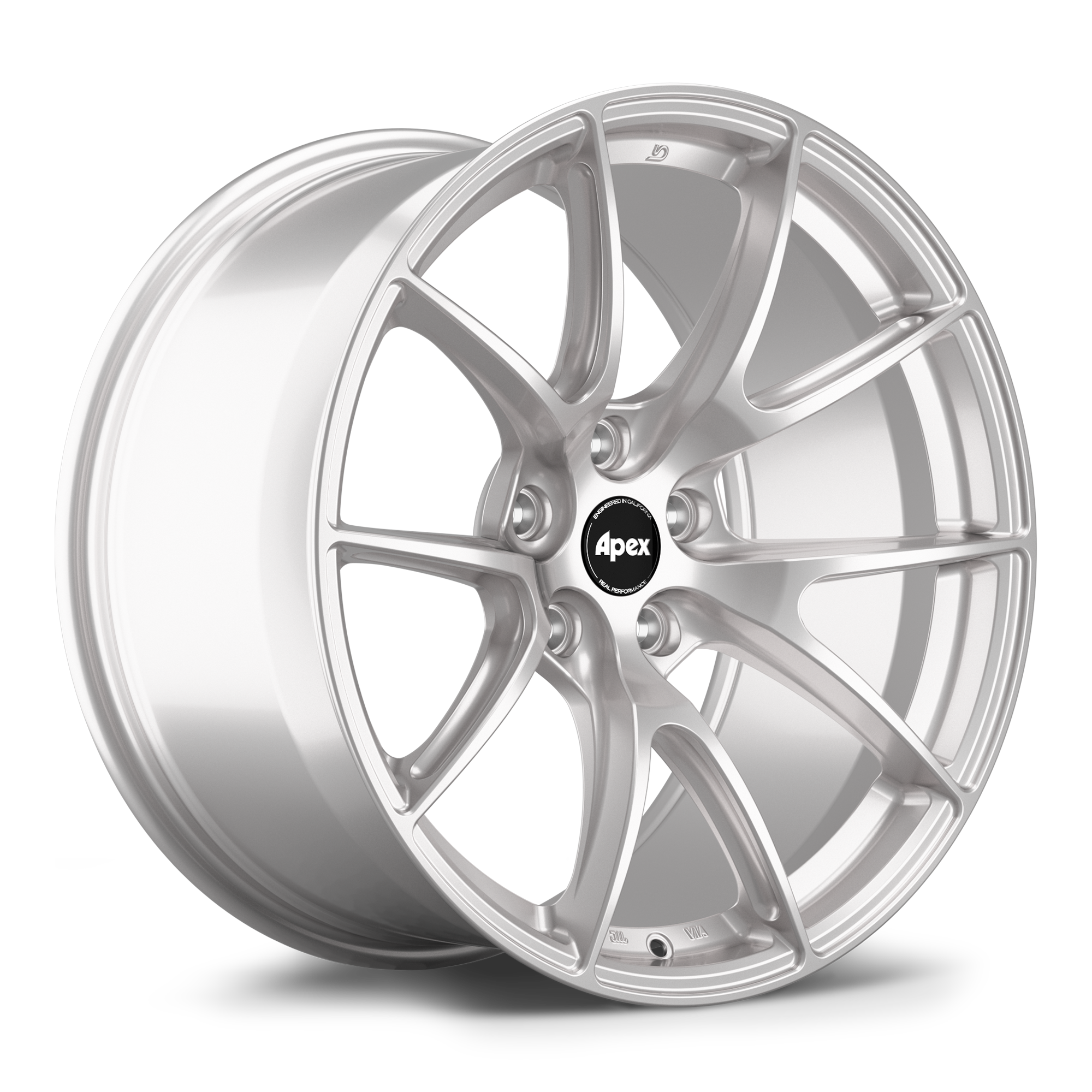

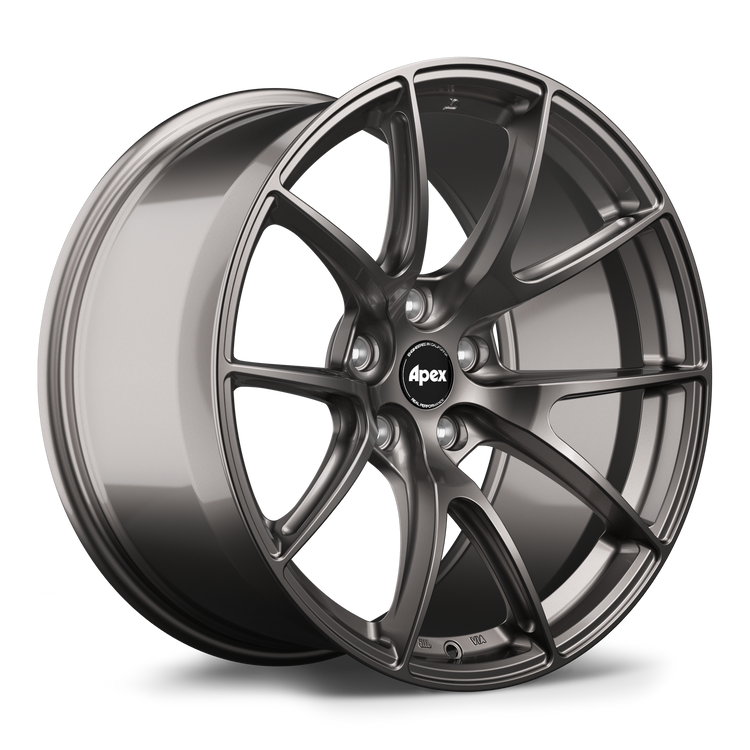

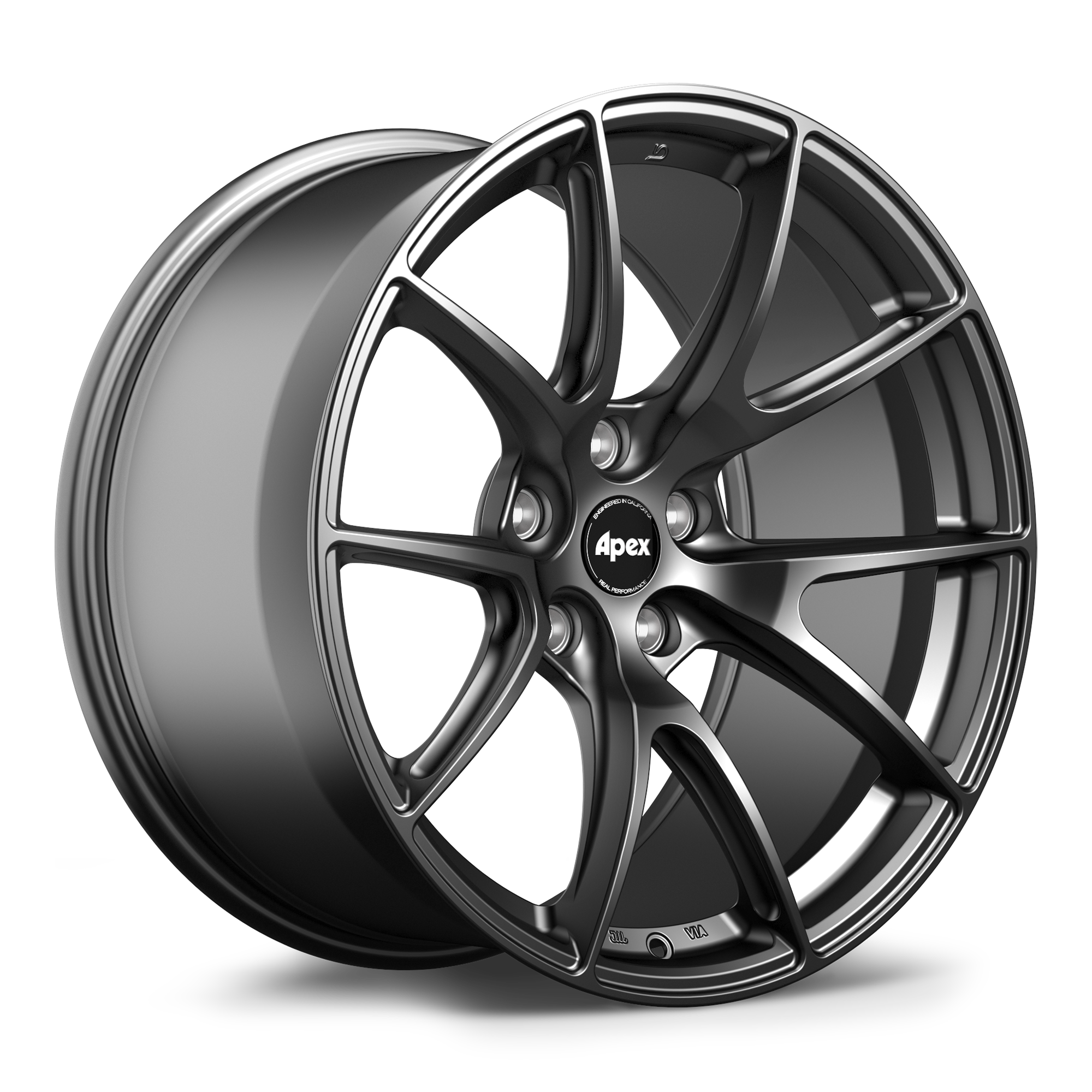

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for Chevrolet applications requiring 5x120.65 bolt pattern compatibility. This 19x12.5 ET55 wheel addresses the demands of ultra-wide performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 3 face design, providing the deep concave geometry suited for the aggressive 12.5-inch width configuration. The 70.3mm center bore specification provides precise hub-centric mounting for Chevrolet applications, eliminating vibration while ensuring proper load distribution. The ET55 offset delivers the positioning required for wide performance applications, placing the wheel face appropriately relative to the vehicle's suspension geometry and fender clearance requirements.

The wheel incorporates 60-degree conical hardware seat design, engineered to work with matching conical lug nuts for secure mounting and proper load transfer. The Evolution Line VS-5 offers multiple finish options including Anthracite, Race Silver, and Satin Black, allowing customization to match different vehicle aesthetics while maintaining the same performance characteristics across all finish variants.

Compatibility: Chevrolet applications with 5x120.65 bolt pattern
Material: Flow formed aluminum construction
Hardware Seat: 60 Degree Conical
Face Profile: Profile 3
Center Bore: 70.3mm
Available Finishes: Anthracite, Race Silver, Satin Black
SKU: VS519125ET55-512065-703-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
19"	12.5"	ET55	5x120.65mm	70.3mm	Flow Formed	Profile 3	60 Degree Conical	None
