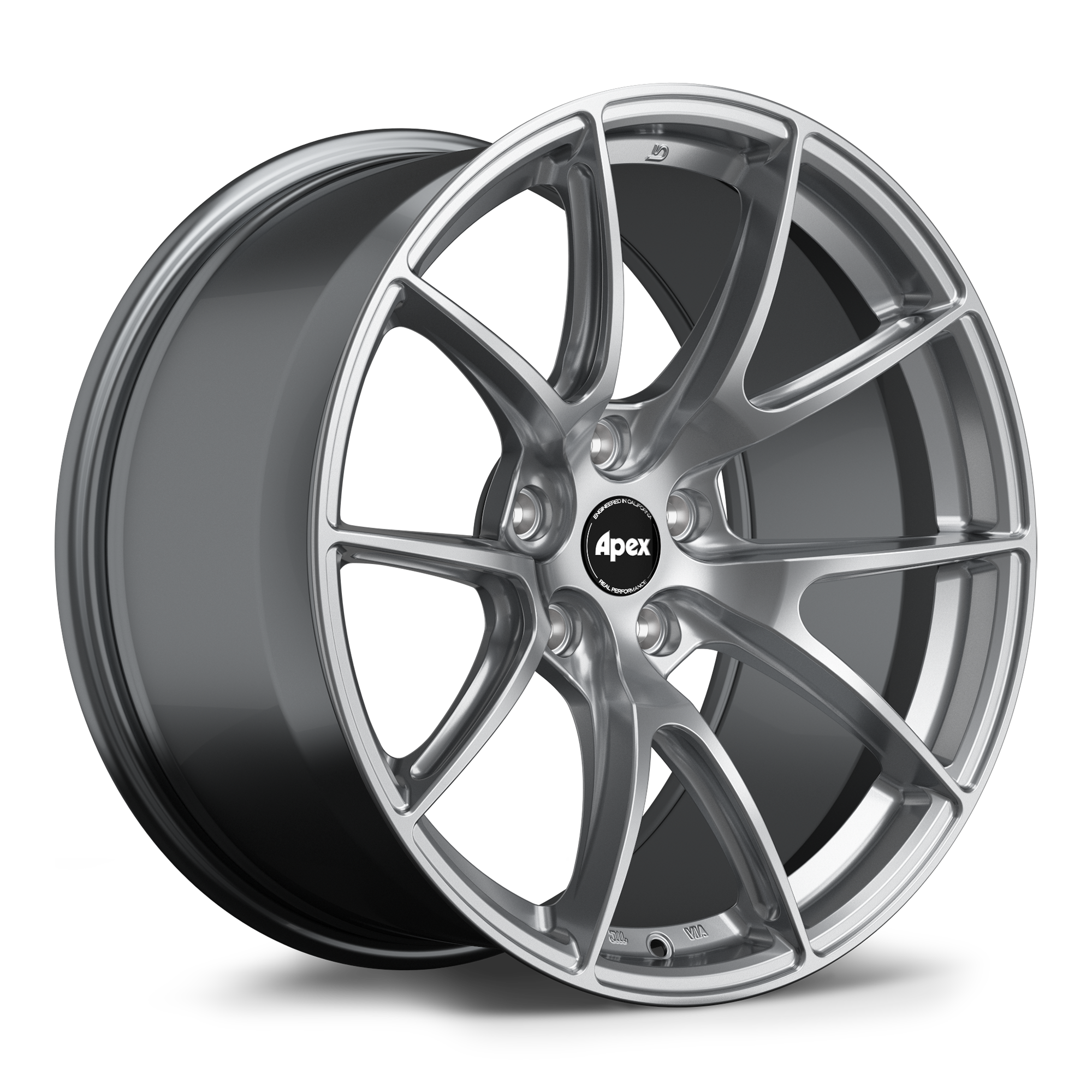

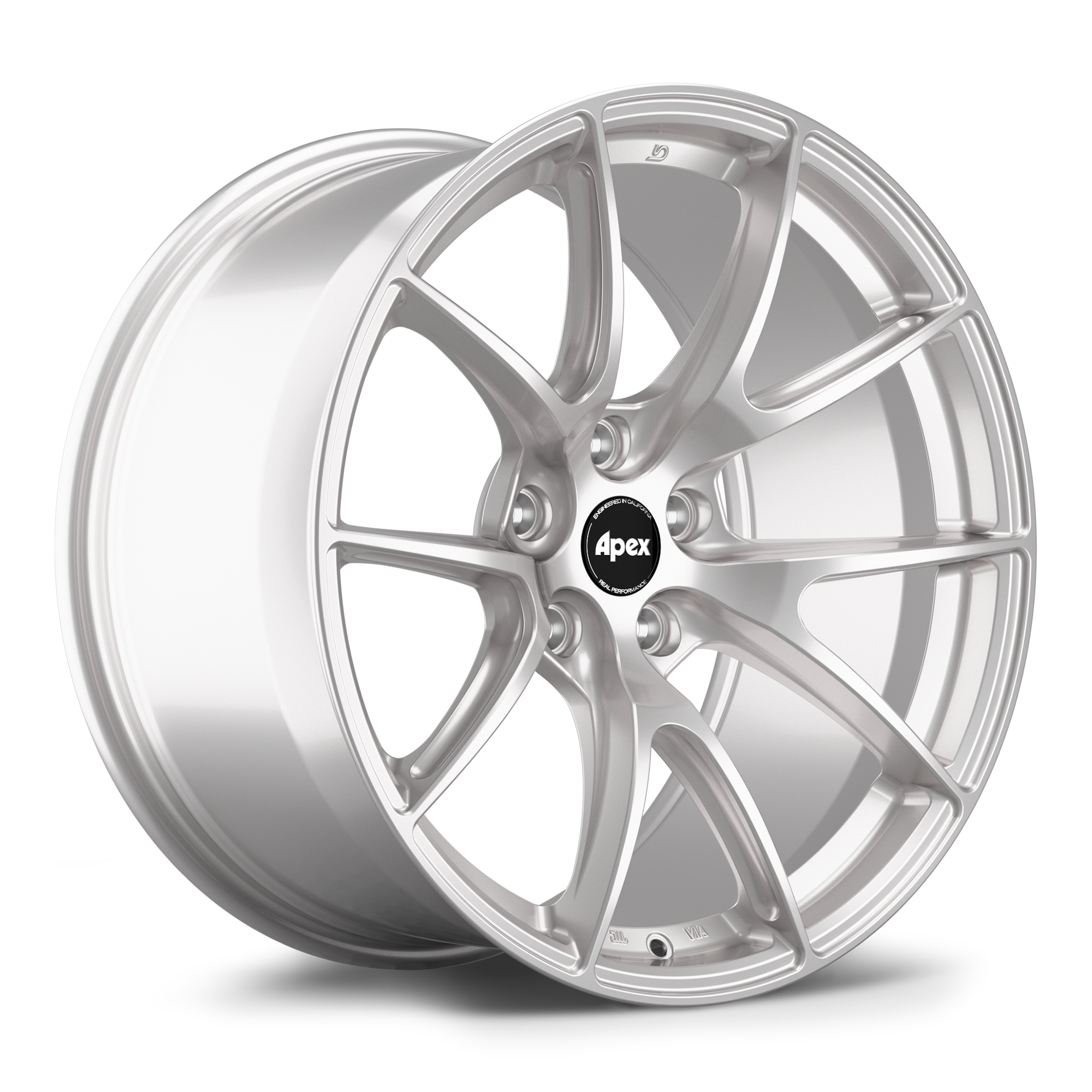

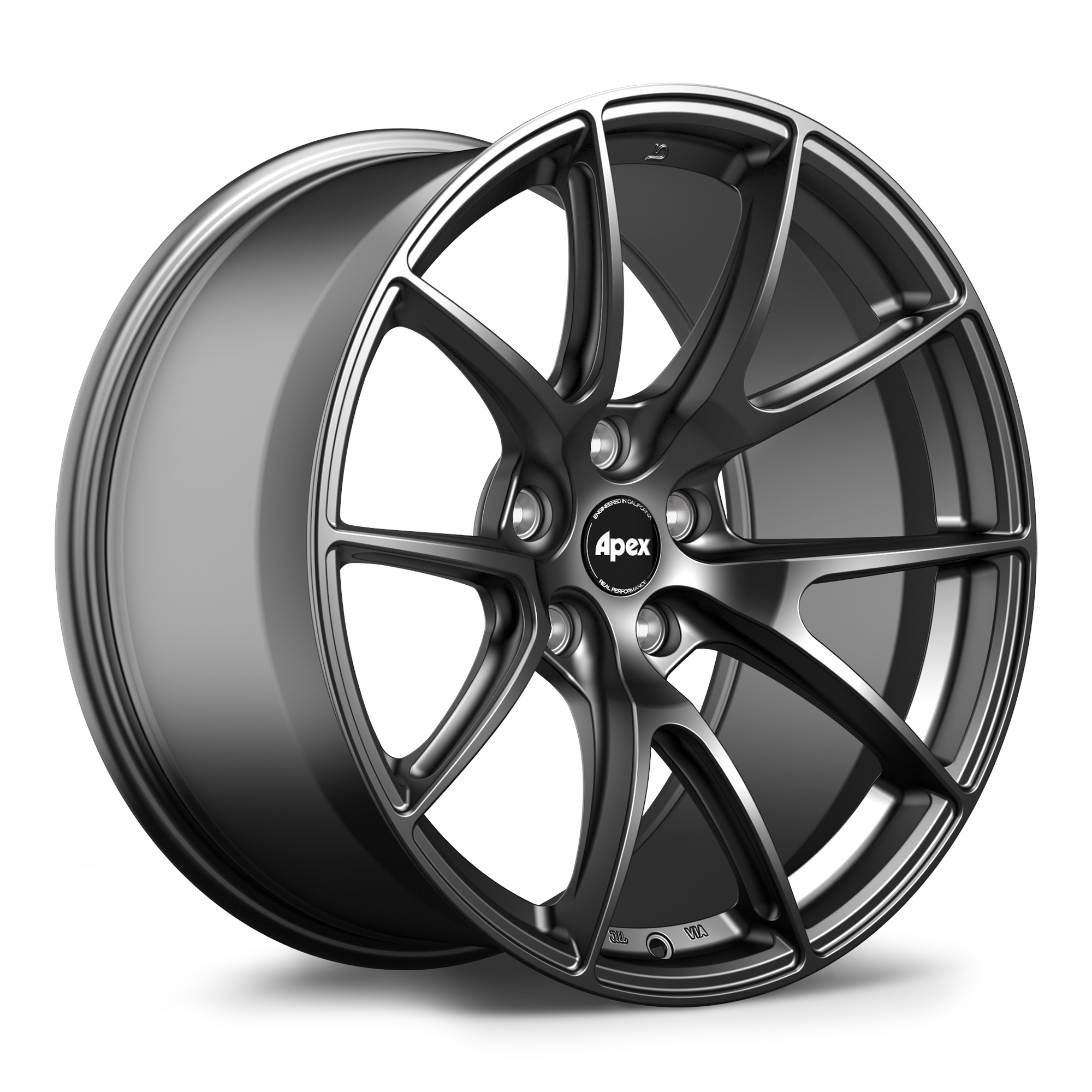

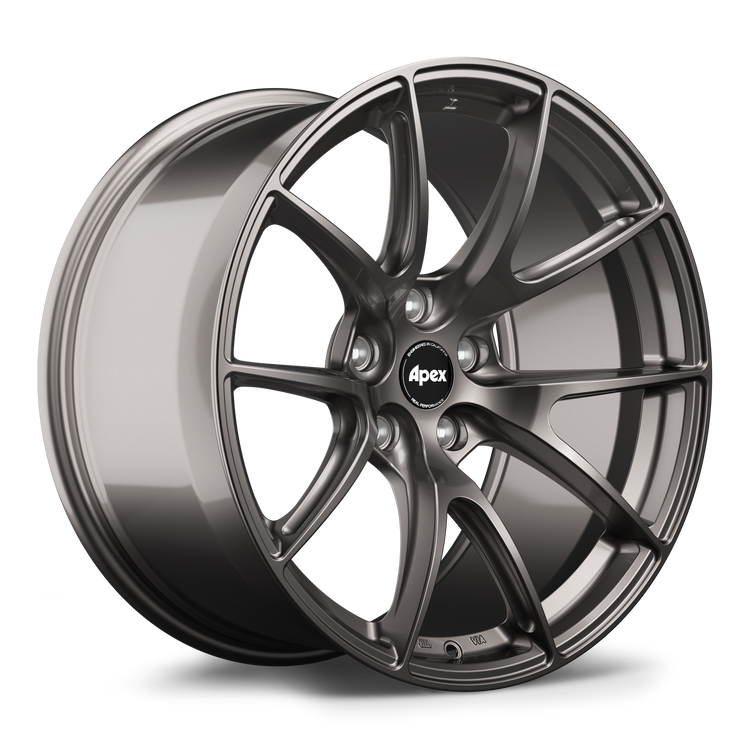

APEX Wheels VS-5 Flow Formed Wheel | 19x9.5 ET22 | 5x120

Ask an expert

Brand: APEX WheelsSKU / Part #: VS51995ET22-5120-7256-AN

Regular price: $519.00
Regular price
Sale price: $519.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $519.00

Quantity:

APEX Wheels VS-5 Flow Formed Wheel | 19x9.5 ET22 | 5x120

Subtotal: $519.00

Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The APEX Wheels VS-5 from the Evolution Line represents a precision-engineered flow formed wheel designed for BMW applications requiring 5x120 bolt pattern compatibility. This 19x9.5 ET22 wheel addresses the demands of performance applications through APEX's flow formed construction process, which combines casting efficiency with enhanced strength characteristics to deliver optimal performance for track and street use.

The wheel utilizes flow formed construction, a manufacturing process that begins with a cast wheel blank before applying specialized forming techniques. During flow forming, the wheel barrel is spun at high speed while rollers apply controlled pressure, stretching and compressing the aluminum to create a denser grain structure. This process increases the material strength while reducing weight compared to traditional cast wheels, positioning flow formed construction between cast and forged methods in terms of both performance and cost.

The VS-5 features Profile 3 face design, providing the deep concave geometry suited for the 9.5-inch width configuration. The 72.56mm center bore specification provides precise fitment for BMW applications, eliminating the need for hub-centric rings while ensuring proper wheel centering during installation. The wheel incorporates 60 degree conical hardware seat design, requiring conical seat lug bolts for proper mounting and load distribution.

The Evolution Line VS-5 offers multiple finish options including Anthracite, Hyper Black, Race Silver, and Satin Black, allowing customization to match different vehicle aesthetics while maintaining the same underlying construction and performance characteristics across all finish variants.

Compatibility: BMW (5x120 bolt pattern)
Construction: Flow Formed
Size: 19x9.5 ET22
Bolt Pattern: 5x120
Center Bore: 72.56mm
Face Profile: Profile 3
Hardware Seat: 60 Degree Conical
Available Finishes: Anthracite, Hyper Black, Race Silver, Satin Black
SKU: VS51995ET22-5120-7256-AN

Wheel Specifications:

DIAMETER	WIDTH	OFFSET	BOLT PATTERN	CENTER BORE	CONSTRUCTION	FACE PROFILE	HARDWARE SEAT	WEIGHT
19"	9.5"	ET22	5x120mm	72.56mm	Flow Formed	Profile 3	60 Degree Conical	None
