The APR High Pressure Fuel Pump (HPFP) increases maximum volume of fuel the HPFP can deliver by...
Vendor: APR
SKU: APRMS100016
Product Type: Fuel Pumps
Regular price
$1,499.95
Regular price
$1,687.95
Sale price
$1,499.95
Check your purchasing power Apply at checkout

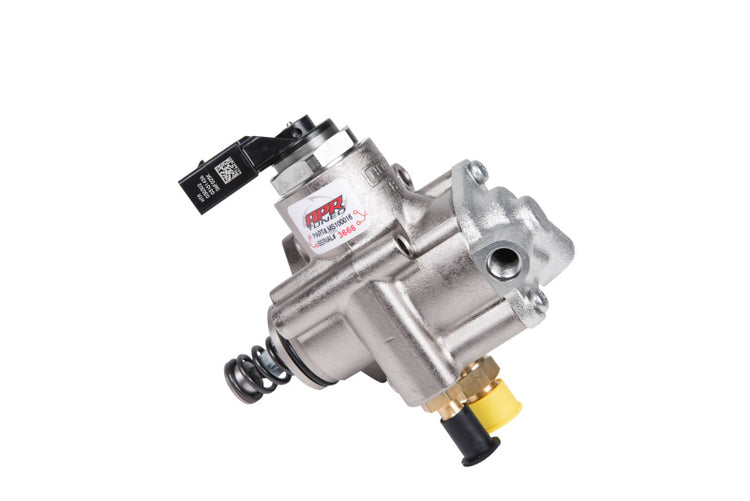

APR 09-15 Audi TTS Quattro High Pressure Fuel Pump - No Rebuild
Found a better price elsewhere? Request Price Match
10 customers are viewing this product
30 day returns
Learn More.
Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

The APR High Pressure Fuel Pump (HPFP) increases maximum volume of fuel the HPFP can deliver by 41% over stock! In doing so, the direct injection fueling system is capable of satisfying fueling requirements set forth by high horsepower setups. This is accomplished by increasing the displacement of the pump using high quality components to exacting tolerances.How the direct injection system works:A low pressure fuel pump (LPFP) in the fuel tank delivers fuel to the high pressure fuel pump (HPFP) at roughly 4 to 6 bar. Fuel pressure is then bumped up to a maximum of 110-130 bar, depending on factory parts, with the HPFP. Finally, high pressure fuel is delivered to the injectors, which spray directly into the cylinders.The problem:The volume of fuel the HPFP pump can displace is directly tied to the displacement of the pump (Internal bore size, and cam shaft dictated stroke), and engine speed. The pump is driven off of a three lobe cam shaft, and as such, the pump cycles at 1.5 times the engine speed. Even the factory K03 and K04 turbochargers are capable of taxing this system, especially in the mid to lower RPM range where fuel volume is lower.The APR solution:We dramatically increase the volume of fuel the HPFP can displace at every RPM by increasing the displacement of the HPFP. This is accomplished by increasing the bore diameter of the pump's internal pressurizing cylinder. It's important to understand, despite the name, a HPFP upgrade is not necessary designed to increase the engine's fuel rail pressure. The primary goal is to increase the volume of fuel available, which will keep fuel pressure steady even in the most demanding of situations!High quality components and extreme tolerances:The HPFP internals must be machined to extreme tolerances and installed in a clean environment or the pump can easily fail. Dimensional tolerances on the APR HPFP are as tight as .00004" and geometric tolerances are as tight as .00005".

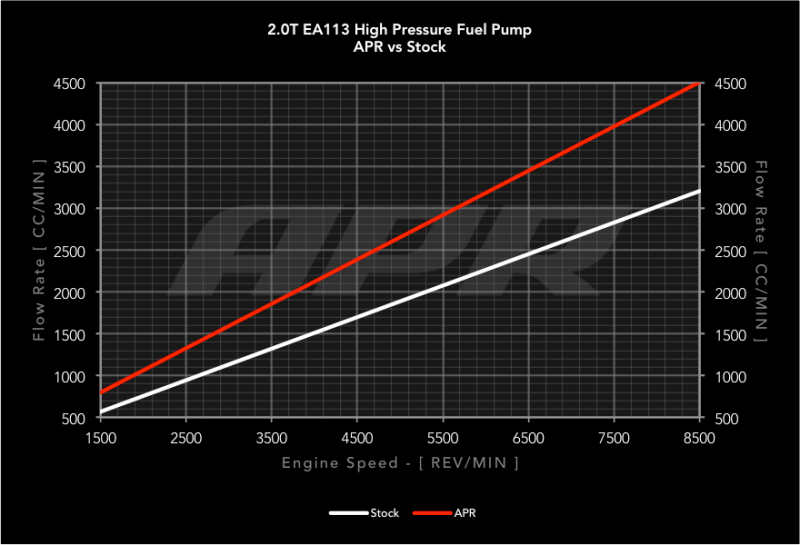

  • Dramatically increases the volume of fuel displaced by the HPFP by 41%
  • Maintains higher pressures under demanding situations

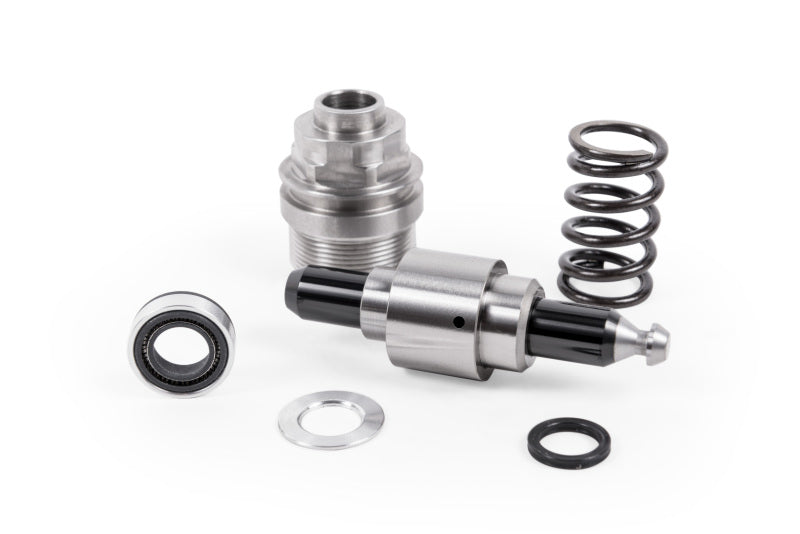

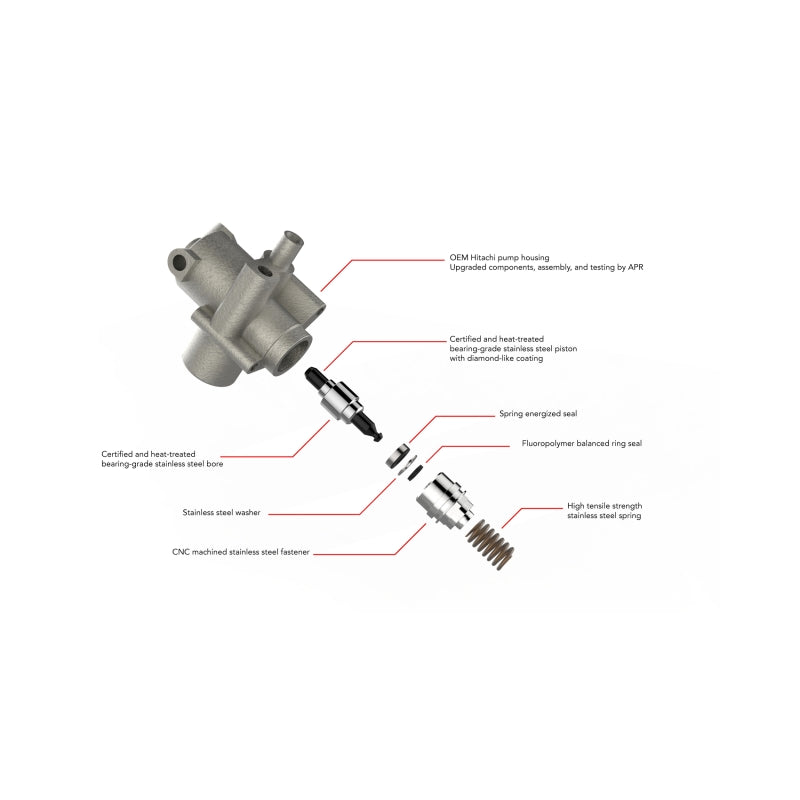

  • Heat-treated bearing-grade stainless steel material

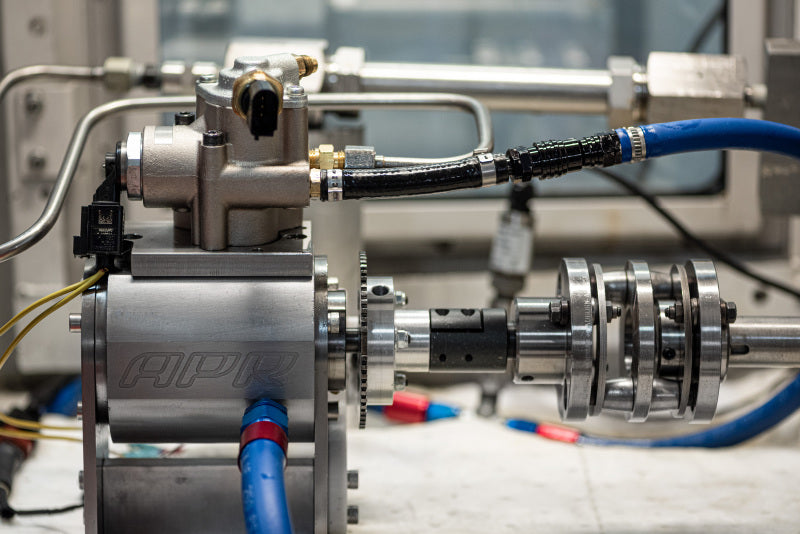

  • Fully machine tested and broken in before shipping
  • Upgraded and weight matched spring
  • .00004" dimensional tolerances
  • .00005" geometrical tolerances
  • New factory pump included
  • Fully rebuilt in house
  • Spring seals replaced
  • Supports big power
  • DLC coated piston

This Part Fits:

Year Make Model Submodel
2006-2008 Audi A3 Base
2005-2008 Audi A4 Base
2007-2008 Audi A4 Cabriolet
2005-2008 Audi A4 Quattro Avant
2005-2008 Audi A4 Quattro Base
2007-2008 Audi A4 Quattro Cabriolet
2008-2009 Audi TT Base
2009-2015 Audi TTS Quattro Base
2007 Volkswagen Eos 2.0T
2007 Volkswagen Eos Base
2012-2015 Volkswagen Eos Executive
2015 Volkswagen Eos Final Edition
2008-2016 Volkswagen Eos Komfort
2008-2013 Volkswagen Eos Lux
2013-2014 Volkswagen Eos Sport
2008 Volkswagen Eos Turbo
2012-2013 Volkswagen Golf R Base
2006-2009 Volkswagen GTI Base
2007 Volkswagen GTI Fahrenheit
2006-2007 Volkswagen Jetta 2.0T
2006-2009 Volkswagen Jetta GLI
2009 Volkswagen Jetta SEL
2009-2010 Volkswagen Jetta TDI
2010 Volkswagen Jetta TDI Cup Edition
2008-2010 Volkswagen Jetta Wolfsburg Edition
2006-2007 Volkswagen Passat 2.0T
2008-2010 Volkswagen Passat Komfort
2008 Volkswagen Passat Lux
2008 Volkswagen Passat Turbo
2006-2007 Volkswagen Passat Value Edition
2007 Volkswagen Passat Wolfsburg Edition
