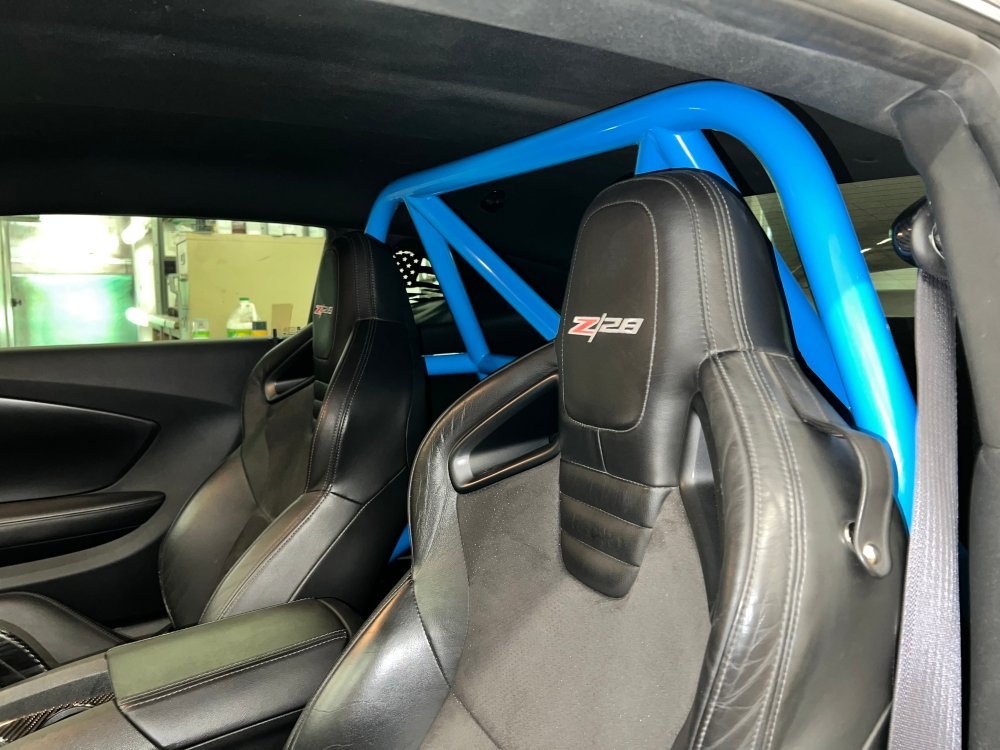

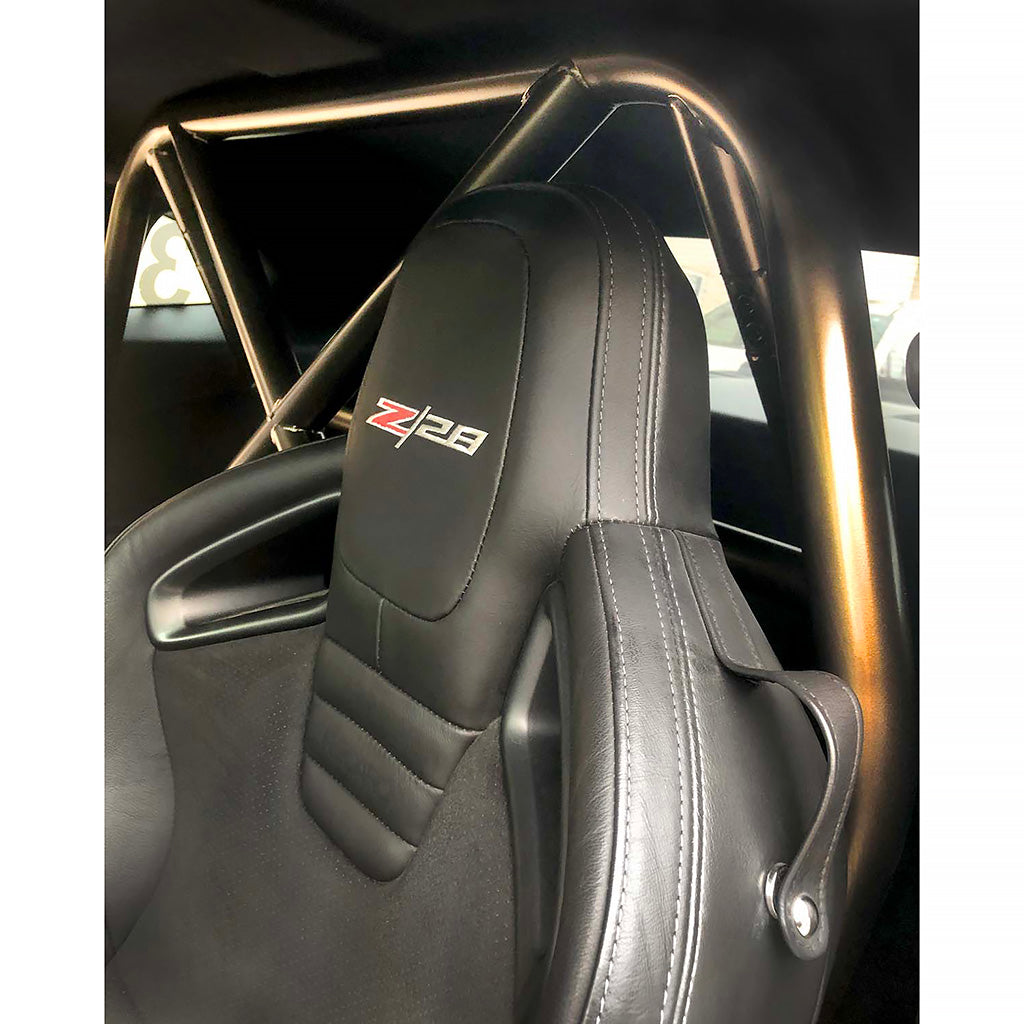

CMS Performance Bolt-In Roll Bar For Chevy Camaro (Gen 5)

This Roll Bar Fits the Following Cars:

• Chevy Camaro Coupe (2010-2015), All
• Does not fit the Camaro Convertible

The Strongest Roll Bar Available For The Gen 5 Camaro

The CMS Performance Gen 5 Camaro Roll Bar is the strongest, safest, and most beautifully constructed roll bar on the market. In designing the Camaro roll bar, safety, strength, and structural integrity were our primary goals. Fully TIG welded from Docol R8 Advanced High-Strength Steel allows us to design a roll bar that is stronger and lighter! Our innovative design maximizes the room for the factory Recaro seats, meaning taller drivers can send their seat all the way back and still maintain a comfortable recline.

Precision CNC machined solid steel interlocking roll bar clamps on the kicker mounting plates help make installation a snap. Free custom powder-coating gives you a premium, finished look without breaking the budget. Add the optional custom-cut Rear Seat Delete Kit and you've got a fully trimmed-out roll bar installation that performs as great as it looks. Our Camaro roll bar forms the perfect foundation for taking your safety up a huge notch.

Roll Bar Safety and Strength Are The Priority

Safety is the main reason to install a roll bar in the first place. As racers ourselves, we sweat the details. That's why we use 1.75" x .095" Docol R8. Docol is 15% stronger than 4130 CrMo, and much less brittle. Docol R8 also dissipates impact energy more effectively. It's the same tubing used in full-competition road racing roll cages because, first and foremost, it's a roll bar not a trim piece.

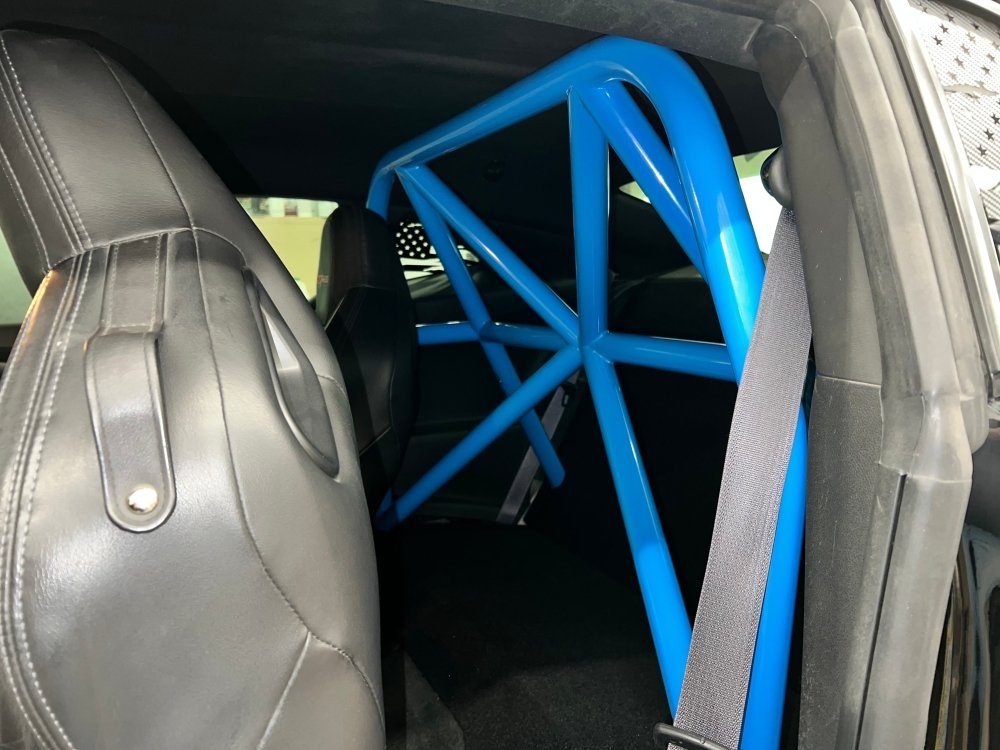

Our beefy main hoop straddles the rear seat cross member, a much stronger location than the rear footwell, eliminating the need for underbody backing plates. Taking a cue from NHRA cage design, the diagonal supports feature a concave design to allow full front-seat travel while distributing roll-over energy between the main hoop and kickers. The harness cross-bar is precisely located to put your shoulder straps at both the proper angle (0° to -20°) and distance to the driver. Finally our rear kickers bolt to a reinforced corner of the rear seat floor, again requiring no backing plates beneath the floor pan.

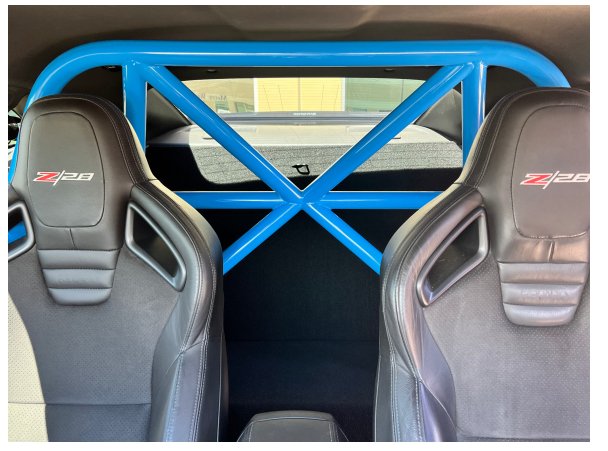

Objects in Your Rear View Mirror Are Clearly Visible

A clear rear view is an important component of safety both on and off the race track. Our use of stronger materials and innovative design lets us keep your rear view unobstructed by additional bracing. This also helps weight down. Every detail of the CMS Gen 5 Camaro roll bar is engineered with safety as our primary goal.

American-Made Roll Bar For An American Icon

Click Here for Installation Instructions

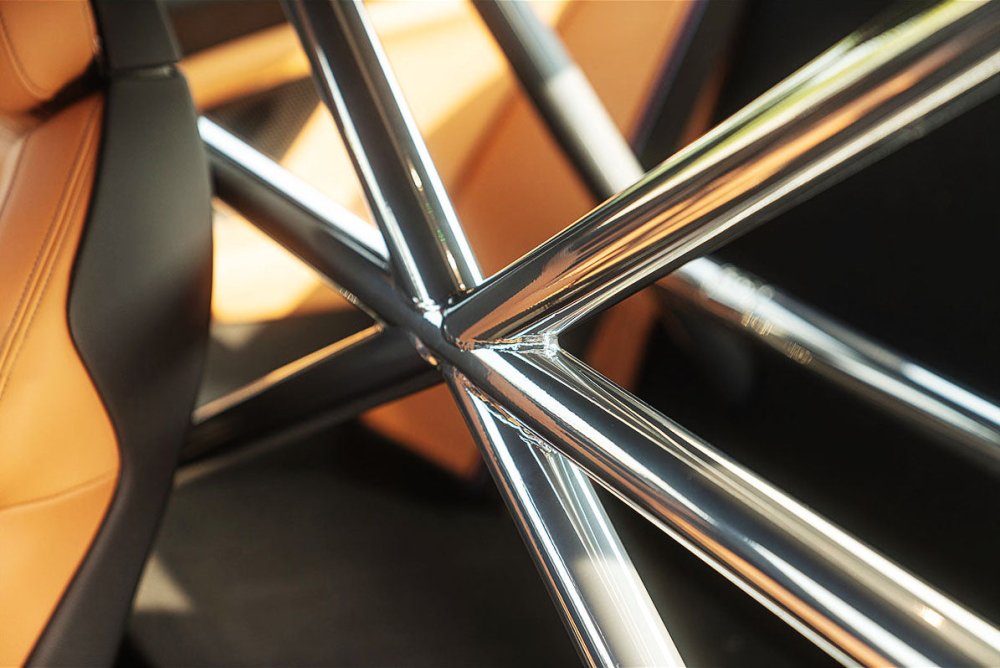

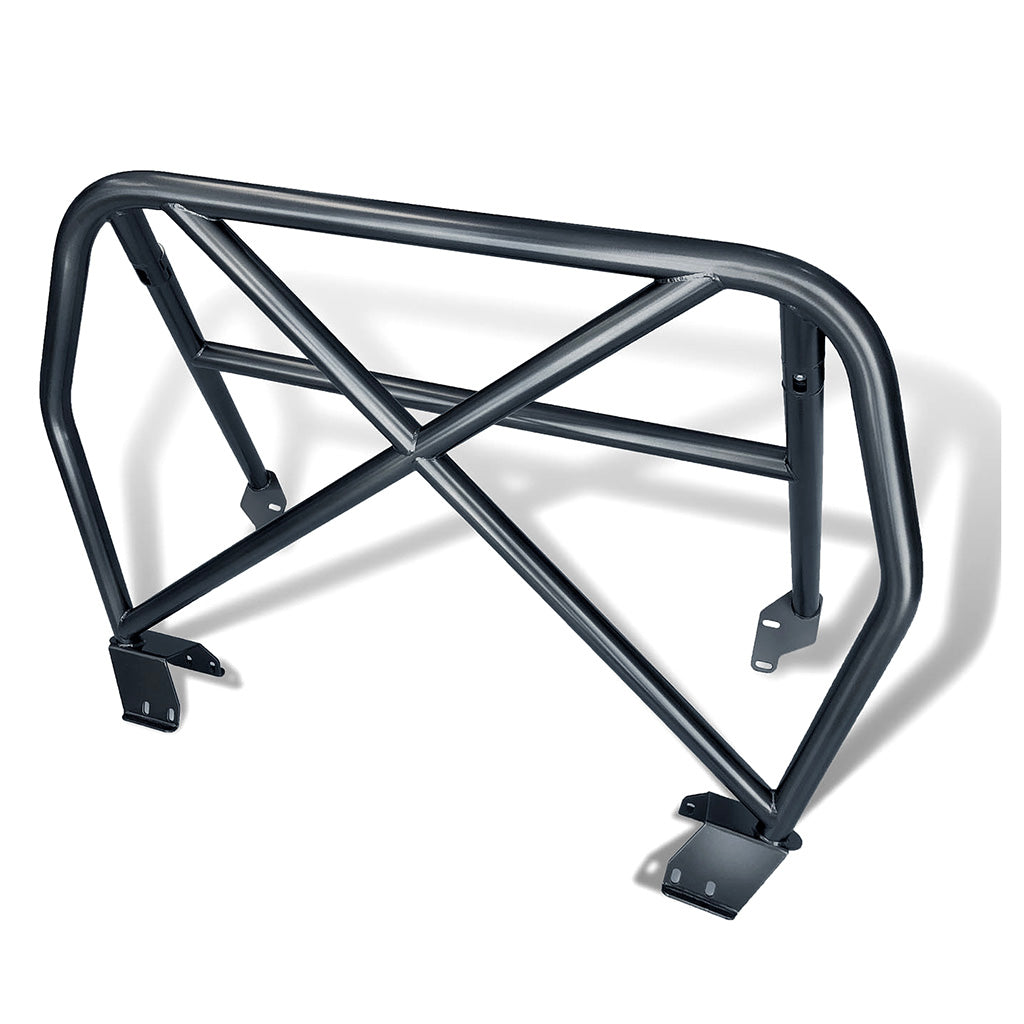

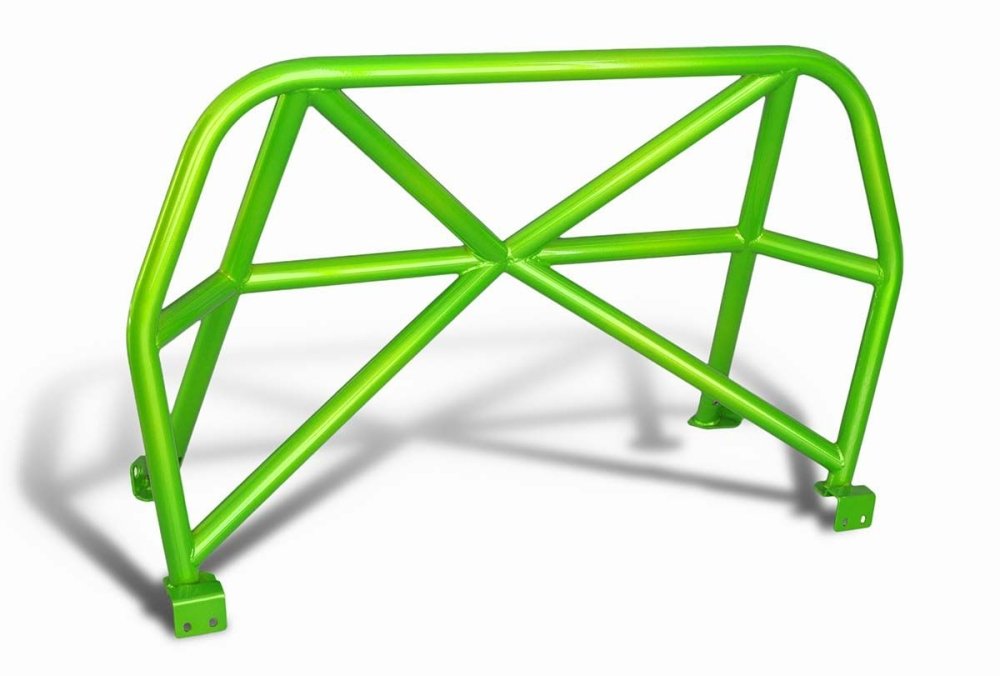

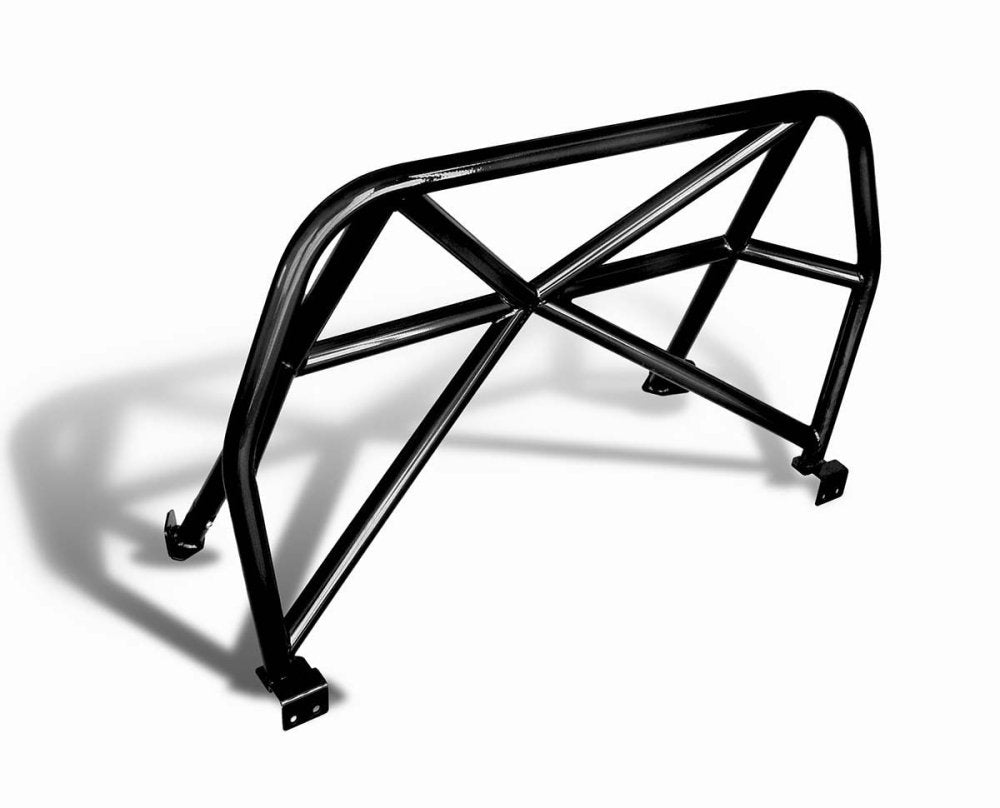

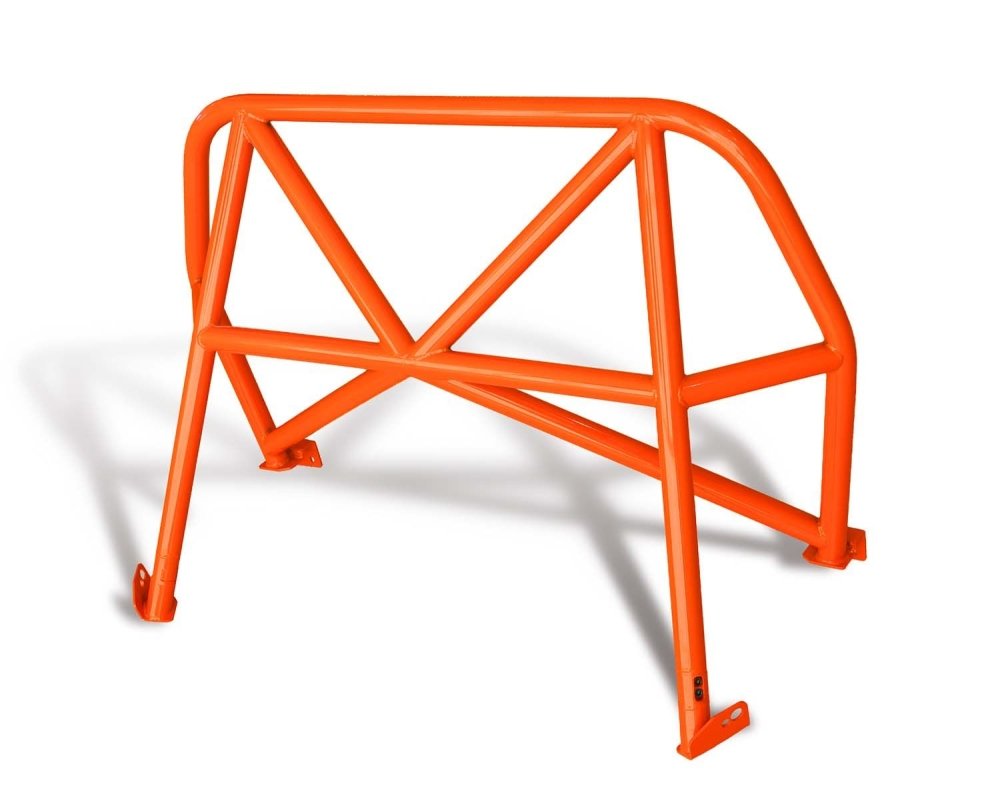

Okay, another reason we install roll bars is that they look cool. We're gear heads, we get that. Each CMS Performance Gen 5 Camaro roll bar is handcrafted right here in America by master fabricators for a perfect fit, beautifully 360^o TIG welded for high strength, and fully powder-coated in our facility for a brilliant, durable finish. There's no extra charge for custom colors. CMS operates a complete powder-coating facility to offer you color-matched Camaro factory colors¹, giving your Camaro a personalized look that will last.

None of your interior trim panels need to be eliminated or cut. Your rear seat back can be re-installed, or you can opt for our custom Shrader rear seat delete, the perfect place to put a track bag, helmet and HANS, driver cooling system, etc. (you can hide stuff under there, too). If you ever want to put your car back to stock, it will go back together as though the roll bar was never there.

Complete, detailed instructions make installation pretty simple (figure about two hours if you're reasonably handy), and all Grade 8 hardware needed is shipped with your CMS Performance roll bar. Add Racing Harnesses and a Head-And-Neck Restraint and and you're ready to hit the track safe and secure.

CMS Performance Gen 5 Camaro Roll Bar Details

• Manufacturer: CMS Performance
• Manufacturer part no.: CPRB-CamaroG5
• Material: 1.75″ x .095" Docol R8 Advanced High-Strength Steel tubing
• Construction: fully 360^o TIG welded

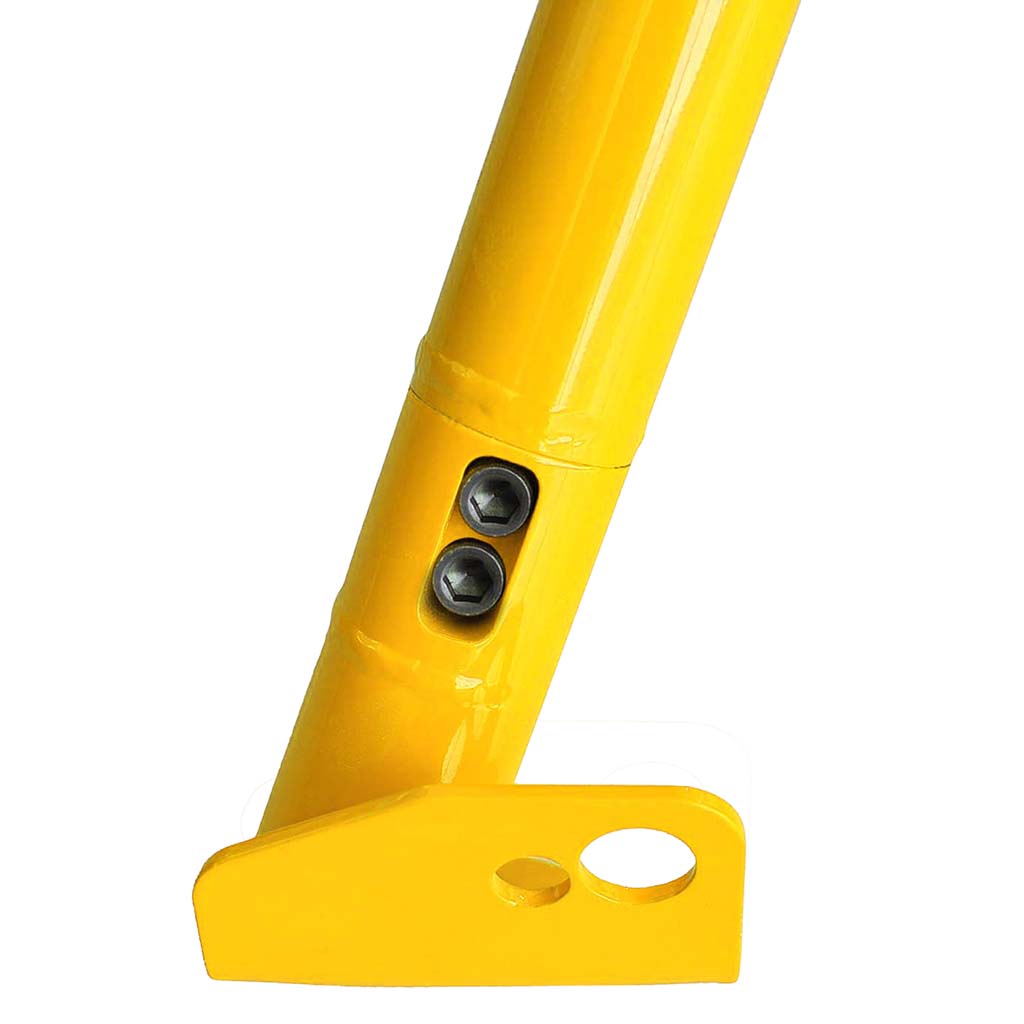

• Design: one-piece main hoop/kicker with detachable kicker feet
• Weight: 51 lbs. (23.2 kg)
• Rear seat delete: custom-made Shrader rear seat delete (optional)

Gen 5 Camaro Roll Bar Features

• Precision CNC-cut mounting plates
• Designed, built, and powder-coated in the USA
• American-made CNC machined solid steel interlocking clamps
• Allows full seat travel with any seat
• Straightforward installation and perfect fitment
• Comes with all necessary Grade 8 American-made hardware

¹ Note: powder coat colors are professionally matched to be as close as possible to factory paint codes. However, color-matching powder is not the same as mixing liquid paint. In a few cases, slight color variance is normal and is not perceptible with the roll bar installed inside the car.

This product is intended for off-road race track use only.
