Dinan

D310-0110

Dinan Big Turbo for the BMW F87 M2

Product Description
In order to attain maximum advertised power gains these big turbos will need to be paired with DINANTRONICS Stage 4, as well as Dinan’s intercooler to fully regulate the boost increase and deliver a polished product although the exhaust and intake are also recommended.

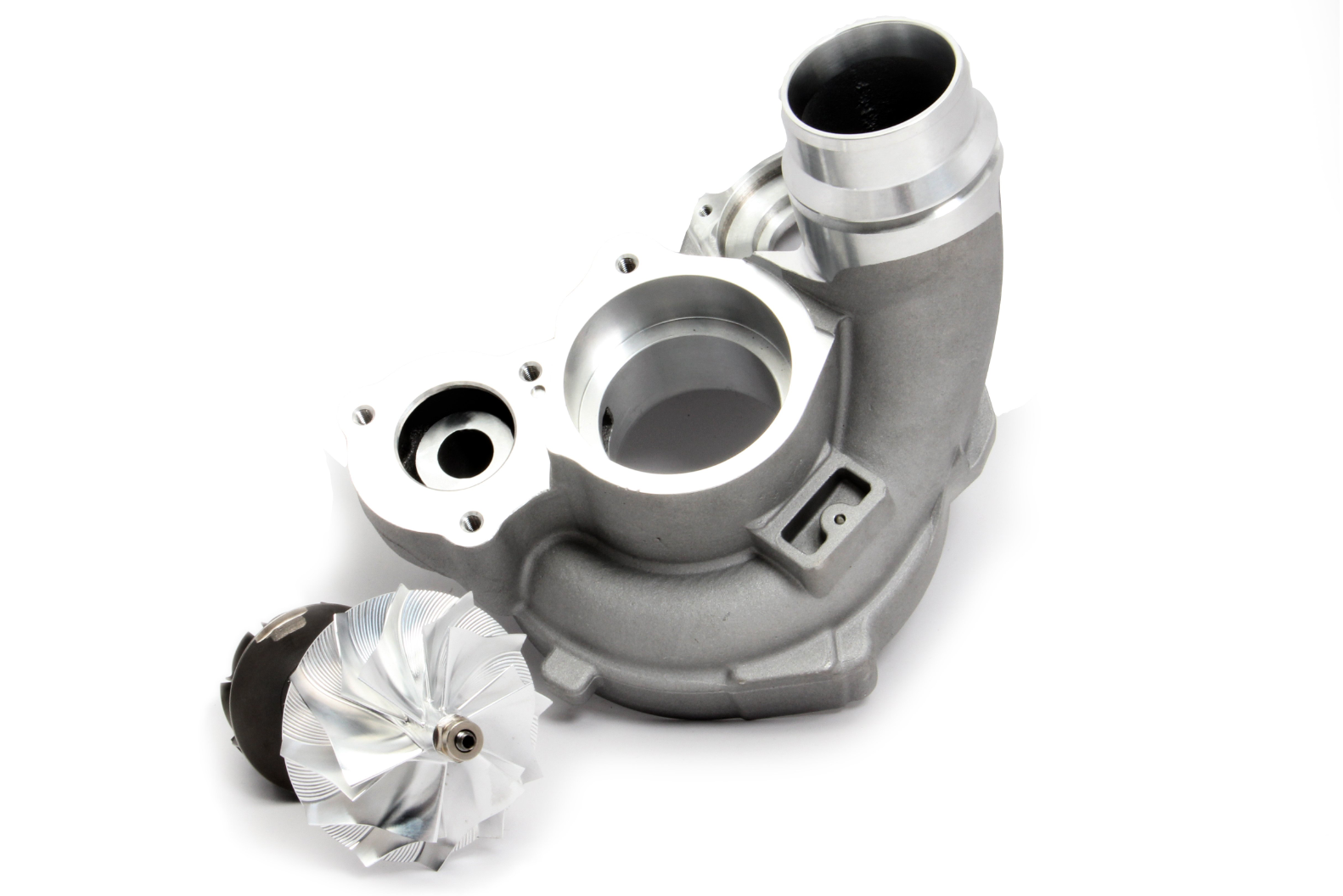

For the racing enthusiast or those just looking for the best, this is the ultimate upgrade to fully maximize the power output of your F87 M2. The compressor wheel inside the turbocharger is increased in size allowing ~30% greater flow thus enabling additional boost pressures at higher engine speeds while retaining efficiency. These are rebuilt factory turbos that are machined to Dinan specifications along with an upgraded thrust system to ensure reliable and prolonged life.

Benefits of the Dinan Big Turbo for the EWG N55 Engine:

+ Factory turbo that is machined to Dinan specifications with an upgraded thrust system.
+ Dinan Installation instructions detail a procedure which is quicker than BMW's turbo replacement procedure saving the end-user money and time at the shop.
+ Includes o-rings and gaskets needed for complete installation.

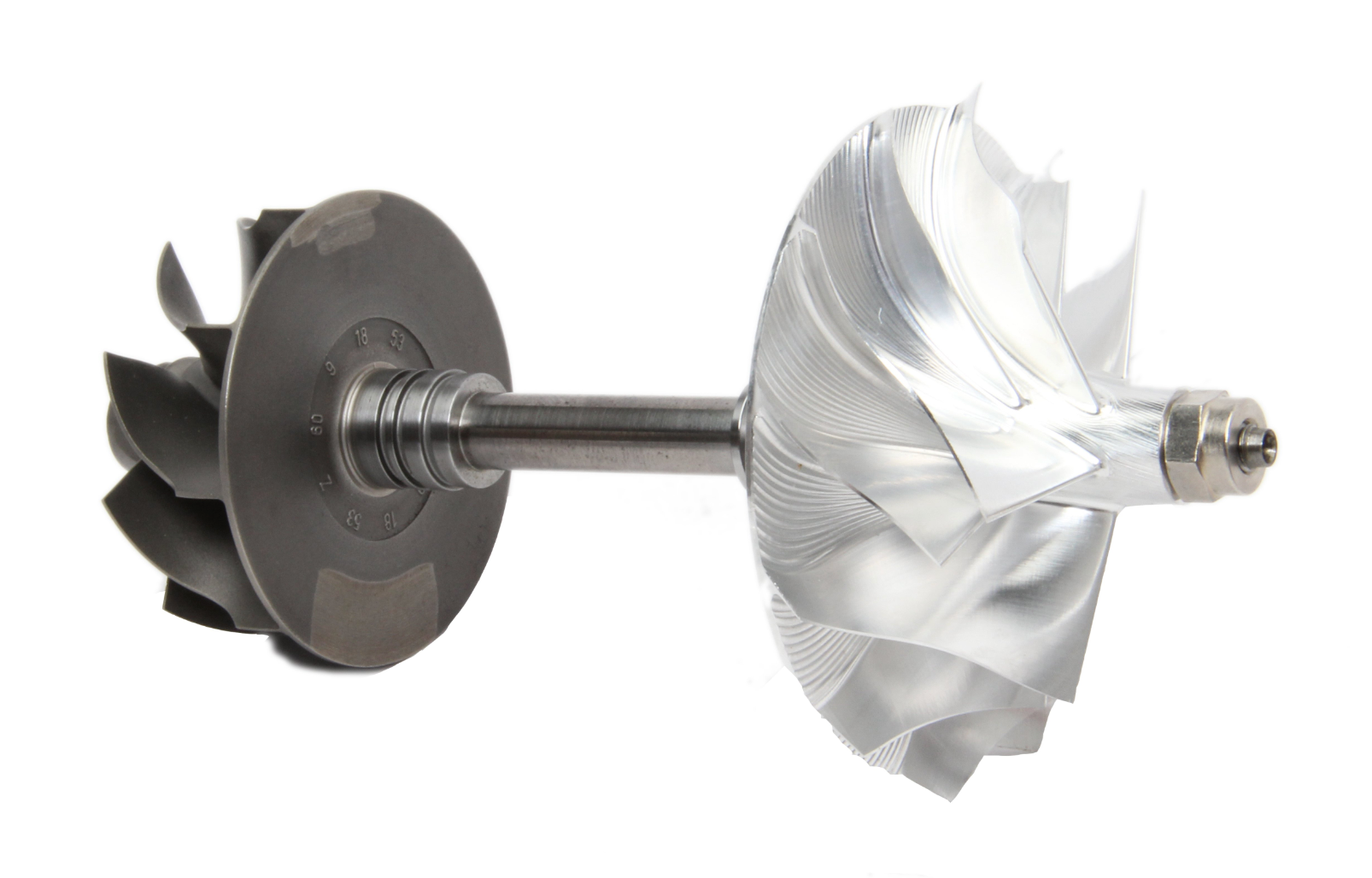

+ Larger billet compressor/impeller wheel that allows ~30% greater flow over stock which then enables additional boost to be realized while retaining efficiency.
+ Peak power: 446 HP @ 6500 RPM and 458 ft-lbs @ 4500 RPM with max gains of 101 HP @ 6500 RPM and 86 ft-lbs @ 4500 RPM when coupled with other Dinan Performance upgrades.
+ Factory matching new car warranty (4yr/50k) when run in Dinan specification.
+ 50 State Emissions legal; CARB EO # D-176-49.

Core Program: Turbochargers are a part of the CORE program we utilize at Dinan so you will be charged an additional fee on top of MSRP initially. This fee will then be refunded to you once your old turbochargers have been received at Dinan and passed a quality check. This ensures we have a continuous stream of product for rebuilding purposes and the lowest possible price to the consumer. Any cores sent back that are damaged and/or unusable will not be given credit for. Please ensure adequate packaging and packing is being used to protect returning cores.



PRICE:$1,499.00
CORE PRICE:$1,500.00

DOWNLOAD INSTALLATION INSTRUCTION HERE

Due to incredible demand and limited availability of cores the EWG N55 turbo has a waiting list associated with it. Any new orders will be a minimum of 8-12 weeks away from fulfillment.

MODELS SUPPORTED:
  • 2016-2018 M2 F87 Coupe
Product Specifications
Labor Hours/Installation Hours 5.00
Emission Status 50 State Emissions Legal. California Air Resources Board Executive Order Number D-176-49.
Included Notes Turbocharger assembly only, and does not include the exhaust manifold. Includes o-rings and gaskets needed for complete installation.
Required Items Installation procedure requires factory-level tools such as BMW ISTA (or equivalent) to adjust wastegate for proper operation.
