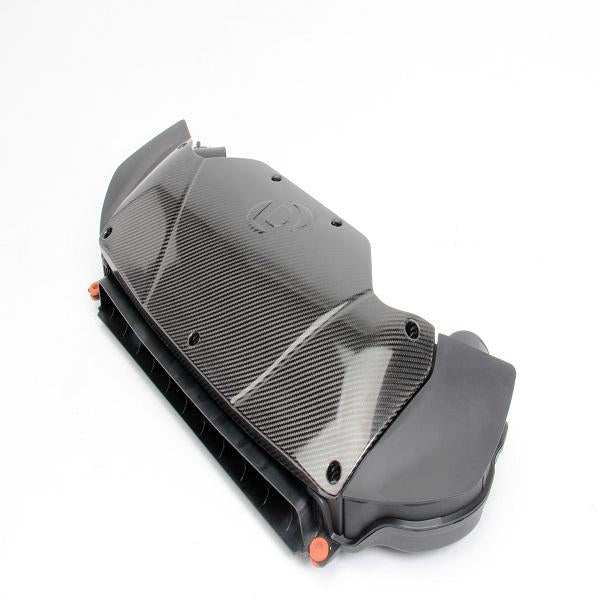

Dinan D760-0047 carbon fiber intake lid for the X5 M / X6 M, shown on a lower air box }
Top view of the Dinan D760-0047 carbon fiber air box lid with embossed logo }
Side angle of the Dinan carbon lid fitted to an F85 X5 M / F86 X6 M air box }
Two Dinan D760-0047 high-flow filters seated in the X5 M / X6 M air box, lid removed }
Brand: DinanSKU / Part #: D760-0047
Regular price
$1,171.95
Regular price
Sale price
$1,171.95
Check your purchasing power Apply at checkout
Subtotal: $1,171.95
Dinan Carbon Fiber Cold Air Intake for BMW F85 X5 M / F86 X6 M (2015-2019)
Subtotal: $1,171.95
Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

Learn more about our Price match policy
Overview

The Dinan D760-0047 changes both the look and the breathing of the F85 X5 M and F86 X6 M. Open the hood and the plain factory air box lid is replaced by a sculpted carbon fiber lid with an embossed Dinan logo. The real gain sits underneath it. BMW's stock filters total only about 89 square inches and draw air from just their front and rear faces. Dinan's custom filters take in air from all the way around and add up to 292.4 square inches, a 228 percent increase in filter area.

To fit filters that large, Dinan made the lid as tall as hood clearance allows, which grows the air box volume by about 15 percent. The bigger box lets the filters draw more air at any moment and gives the twin-turbo S63 V8 a slightly louder, sportier intake note. Paired with Dinan engine tuning, the system is rated at plus 23 horsepower at 5500 rpm and plus 25 lb-ft at 4000 rpm, with sharper throttle response. Dinan reports consistent gains over Stage 1 when combined with its Stage 2 DINANTRONICS tuner.

The kit is the carbon fiber lid, two custom filters, and a foam seal strip. The factory lower air box is reused; the lower box in some photos is for illustration only. The Dinan filters will not fit under the stock lid. Installation is bolt-on with the factory screws and takes about half an hour. Dinan installation instructions (PDF).

This intake has no CARB Executive Order and is not legal for sale or use in California (Dinan emission code 7). Dinan states it is legal for street use in states that follow the EPA tampering policy. It fits the U.S. F85 X5 M from 2015-2018 and the F86 X6 M from 2015-2019. It does not fit the 2020-up F95 X5 M or F96 X6 M, or non-M X5 and X6 models. It earns 3 Dinan points and ships at 30.2 x 20.5 x 7.7 inches and 8.7 pounds.

Features

  • +23 hp at 5500 rpm, +25 lb-ft at 4000 rpm with tuning
  • 228% more filter area than stock
  • Carbon fiber lid adds about 15% air box volume
  • Sportier intake sound
  • Bolt-on, about 30 minutes

What's Included

  • Dinan Carbon Fiber Cold Air Intake (D760-0047)

Specifications

Part Number D760-0047
Brand Dinan
Product type Cold air intake (carbon lid and filters)
Chassis F85 X5 M / F86 X6 M (S63)
Power gain +23 hp @ 5500 rpm, +25 lb-ft @ 4000 rpm (with tuning)
Filter area 292.4 sq in total (146.2 sq in each)
Construction Carbon fiber air box lid
Emissions Not CARB legal (emission code 7)
Labor time 0.5 hours
Dinan point value 3
Shipping dimensions 30.2 x 20.5 x 7.7 in
Shipping weight 8.7 lb
UPC 813725023496
Warranty Remainder of vehicle factory limited warranty (up to 4yr/50k mi) or 2yr/unlimited miles, whichever is greater

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Fitment Notes

  • Reuses the factory lower air box.
  • Not legal for sale or use in California.
  • Not for 2020-up F95 X5 M / F96 X6 M.
Year Make Model Chassis Engine
2015-2018 BMW X5 M F85 S63 4.4L V8 twin-turbo
2015-2019 BMW X6 M F86 S63 4.4L V8 twin-turbo
