Dinan D760-0048 closed carbon fiber air box and intake tube for BMW B46 / B48 230i, 330i, 430i }
Side view of the sealed Dinan D760-0048 carbon air box with its curved carbon intake tube }

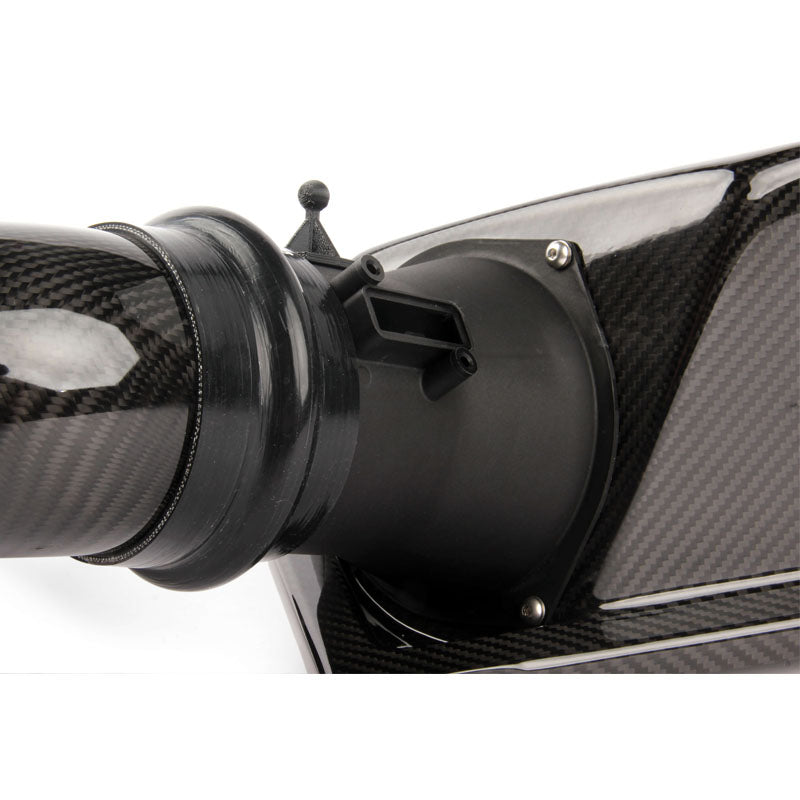

Close-up of the enlarged air mass meter housing joining the D760-0048 carbon tube and air box }

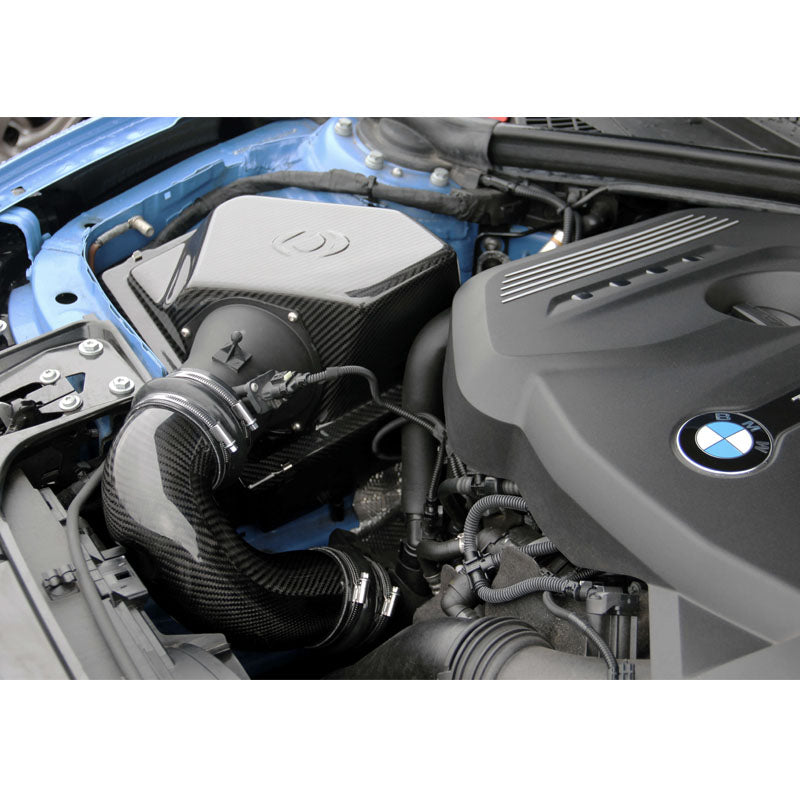

Dinan D760-0048 carbon intake installed in the engine bay of a blue four-cylinder BMW }
Brand: DinanSKU / Part #: D760-0048
Regular price
$571.95
Regular price
Sale price
$571.95
Check your purchasing power Apply at checkout
Subtotal: $571.95
Dinan Closed Carbon Fiber Cold Air Intake for BMW F2x / F3x 230i / 330i / 430i (2017-2021)
Subtotal: $571.95
Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

Learn more about our Price match policy
Overview

The Dinan D760-0048 is the closed, fully sealed carbon fiber cold air intake for the four-cylinder B46 / B48 turbo engine in the F-chassis 230i, 330i, and 430i. It follows the approach of Dinan's B58 six-cylinder intake: a bigger air box and filter to raise flow, sharpen throttle response, and ease the load on the turbocharger. The carbon fiber air box is about 30 percent larger than stock and seals completely, so the engine breathes cool outside air from the factory inlet instead of hot engine bay air.

Dinan's engineers also reworked the intake pipe. The factory tube contains baffles and a small Helmholtz chamber to quiet the intake, and both create turbulence that costs power. Dinan's carbon fiber tube removes them for a smoother path and a more natural intake sound. The filter grows from 76.3 to 102.1 square inches, a 34 percent increase, and a free-flowing injection-molded air mass meter housing is more than 20 percent larger than stock. On a completely stock car, Dinan measured plus 6 horsepower and plus 6 lb-ft at 5000 rpm (plus 5 wheel horsepower and 5 lb-ft at the wheels).

Because the system is sealed, the added sound is modest. Owners who want more turbo and intake noise can choose the semi-open version, Dinan D760-0048-A. Installation uses the factory mounting points and takes about an hour. Dinan installation instructions (PDF).

Dinan lists CARB Executive Order D-176-56 only for 2019-2021 F2x / F3x 230i, 330i, and 430i applications; 2017-2018 cars are not covered, so check your model year before ordering in California (Dinan emission code 7). The table lists each U.S. body by year. It does not fit N20-powered 228i, 328i, or 428i models, six-cylinder 340i / 440i / M240i cars, or the 2019-up G-chassis models. It earns 3 Dinan points and ships at 22.9 x 17.9 x 9.7 inches and 6.6 pounds.

Features

  • +6 hp and +6 lb-ft at 5000 rpm on a stock car
  • Sealed carbon fiber air box, 30% larger than stock
  • 34% more filter area
  • Air mass meter housing over 20% larger
  • Smooth carbon tube without factory baffles

What's Included

  • Dinan Carbon Fiber Cold Air Intake, closed (D760-0048)

Specifications

Part Number D760-0048
Brand Dinan
Product type Cold air intake, closed / sealed
Engine B46 / B48 2.0L I4 turbo
Power gain +6 hp, +6 lb-ft @ 5000 rpm (stock car)
Filter area 102.1 sq in (stock 76.3 sq in)
Construction Carbon fiber air box and intake tube
Emissions CARB EO D-176-56 for 2019-2021 only (emission code 7)
Labor time 1 hour
Dinan point value 3
Shipping dimensions 22.9 x 17.9 x 9.7 in
Shipping weight 6.6 lb
UPC 813725025131
Warranty Remainder of vehicle factory limited warranty (up to 4yr/50k mi) or 2yr/unlimited miles, whichever is greater

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Fitment Notes

  • Four-cylinder B46 / B48 F-chassis models only.
  • California: CARB EO covers 2019-2021 cars only.
  • Semi-open version sold separately (D760-0048-A).
Year Make Model Chassis Engine
2017-2021 BMW 230i / 230i xDrive Coupe / Convertible F22 / F23 B46 / B48 2.0L I4 turbo
2017-2018 BMW 330i / 330i xDrive Sedan F30 B46 / B48 2.0L I4 turbo
2017-2019 BMW 330i xDrive Sports Wagon F31 B46 / B48 2.0L I4 turbo
2017-2019 BMW 330i xDrive Gran Turismo F34 B46 / B48 2.0L I4 turbo
2017-2020 BMW 430i / 430i xDrive Coupe / Convertible F32 / F33 B46 / B48 2.0L I4 turbo
2017-2020 BMW 430i / 430i xDrive Gran Coupe F36 B46 / B48 2.0L I4 turbo
