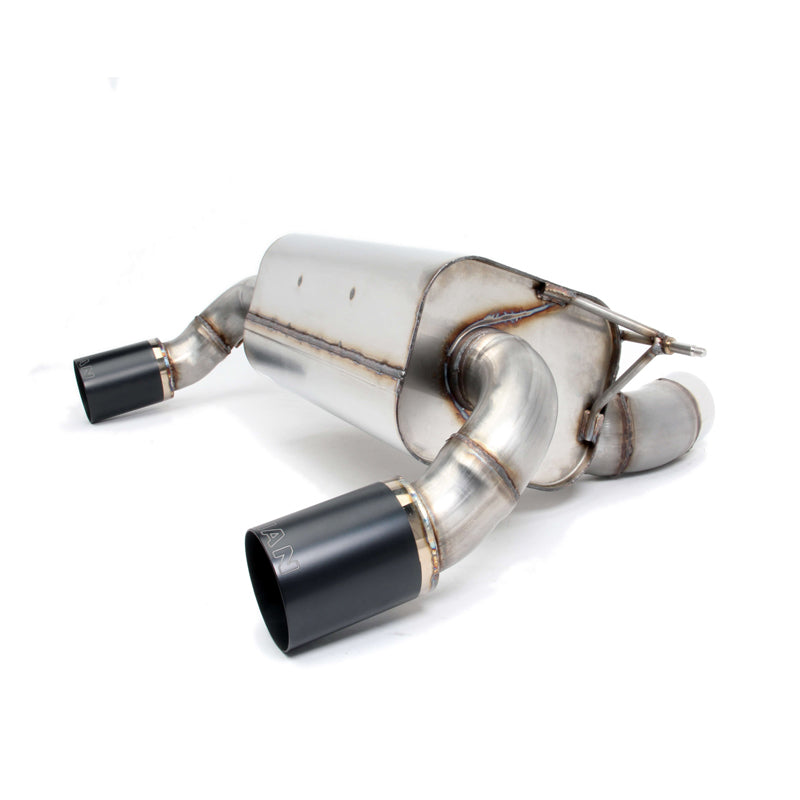

Dinan D660-0077-BLK axle-back exhaust for the 440i F33/F36, angled view with both black tips }

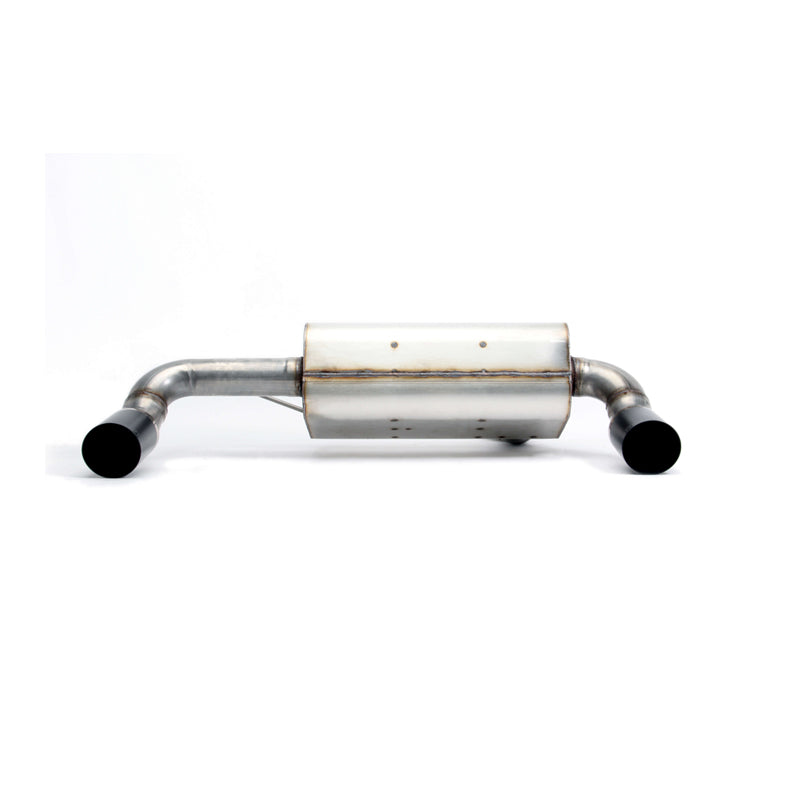

Rear view of the Dinan 440i F33/F36 axle-back: stainless muffler with one black tip per side }
Front side of the Dinan D660-0077-BLK muffler and tailpipes, 304 stainless steel }
Close-up of an 89 mm ceramic-black tip on the Dinan 440i Gran Coupe and Convertible axle-back }

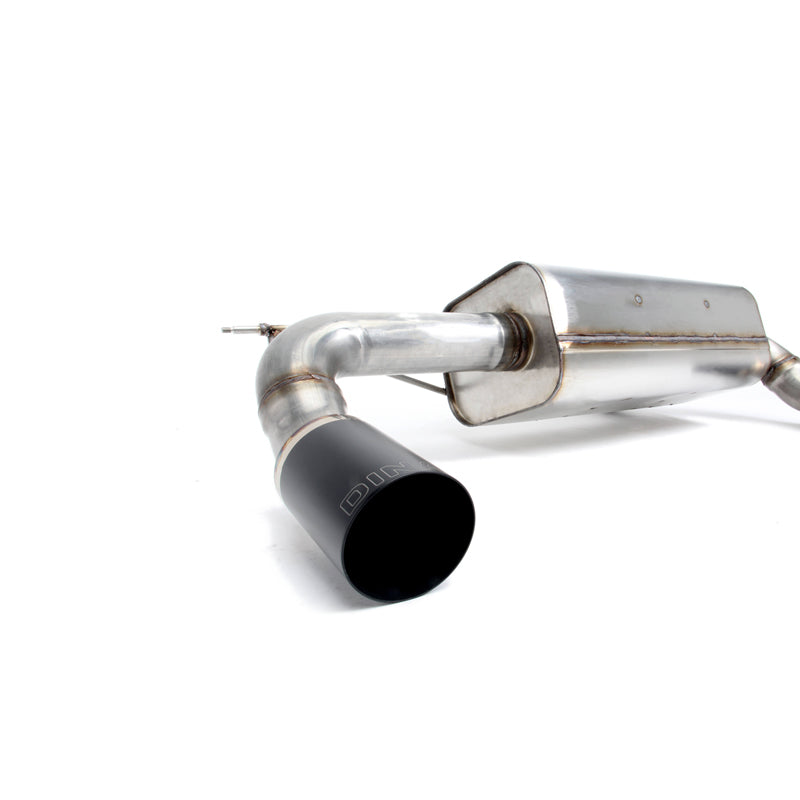

Dinan F33/F36 440i axle-back exhaust from the outlet end, black tips and hanger brackets visible }

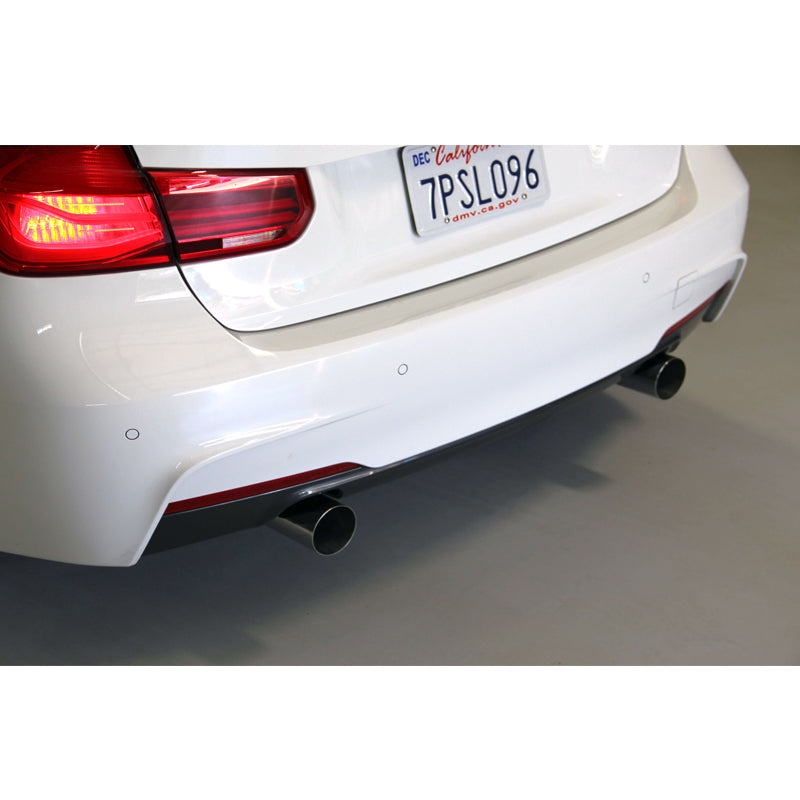

Black Dinan exhaust tips installed under the rear bumper of a white BMW }
Brand: DinanSKU / Part #: D660-0077-BLK
Regular price
$1,649.95
Regular price
Sale price
$1,649.95
Check your purchasing power Apply at checkout
Subtotal: $1,649.95
Dinan Free Flow Axle-Back Exhaust with Black Tips for BMW 440i F33/F36 (2017-2020)
Subtotal: $1,649.95
Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

Learn more about our Price match policy
Overview

Dinan's Free Flow Axle-Back Exhaust D660-0077-BLK is the ceramic-black-tip version of the rear section Dinan built for the B58-powered 440i convertible and Gran Coupe. It takes the place of the factory rear muffler with a 16-gauge 304 stainless steel muffler and tailpipes, and it hangs from the stock brackets and hangers. One 89 mm (3.5-inch) laser-engraved tip exits on each side of the bumper, finished in a dark ceramic coating that suits black trim and shadow-line cars.

Dinan measured plus 6 horsepower and plus 5 lb-ft of torque at 6,600 rpm with this system. Inside the muffler a Helmholtz chamber targets the low-rpm resonance that makes many aftermarket systems tiring on the highway, so cruising stays calm. Open the throttle and the note turns noticeably louder and sportier. The factory computer-controlled exhaust valve is removed, so the sound no longer changes with drive modes; it simply follows engine speed and load.

Dinan calls out the F33 and F36 bodies for this part. That means the 440i Convertible and 440i Gran Coupe, in both rear-drive and xDrive form, for the 2017 to 2020 model years. The F32 two-door coupe is not part of this listing, and neither are the earlier 435i cars. A polished-tip version is sold separately as D660-0077; the tubing is the same, but the two finishes are separate part numbers and separate pages here.

Plan on about 1.2 hours of shop time. The kit is rated emission code 5, and Dinan backs it with its limited warranty: the remainder of the vehicle's factory limited warranty (up to 4 years / 50,000 miles) or 2 years with unlimited miles, whichever is greater. It ships in one carton of about 40 x 32 x 12 inches, weighing roughly 45 pounds packed. Dinan installation instructions (PDF).

Features

  • Axle-back exhaust for the F33 440i Convertible and F36 440i Gran Coupe, RWD and xDrive
  • Plus 6 hp and plus 5 lb-ft at 6,600 rpm (Dinan figures)
  • Twin 89 mm (3.5-inch) ceramic-black, laser-engraved tips, one per side
  • Helmholtz chamber to cut low-rpm drone
  • 16-gauge 304 stainless steel; mounts to the factory brackets and hangers
  • Factory exhaust valve eliminated

What's Included

  • Dinan Free Flow Axle-Back Exhaust, ceramic black tips (D660-0077-BLK)

Specifications

Part Number D660-0077-BLK
Brand Dinan
Product type Axle-back exhaust
Chassis F33 convertible, F36 Gran Coupe
Tip finish Ceramic black, laser engraved
Tip size Twin 89 mm (3.5 in), one per side
Power gain +6 hp, +5 lb-ft at 6600 rpm
Construction 16-gauge 304 stainless steel
Drone control Helmholtz chamber
Factory valve Eliminated
Shipping dimensions 40 x 32 x 12 in
Shipping weight 45 lb
Labor time 1.2 hours
Emission code 5
Dinan point value 3
UPC 813725024707
Warranty Remainder of vehicle factory limited warranty (up to 4yr/50k mi) or 2yr/unlimited miles, whichever is greater

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Fitment Notes

  • Dinan specifies the F33 convertible and F36 Gran Coupe 440i for 2017-2020.
  • Not listed for the F32 440i coupe or for 435i cars.
  • Polished tips are a separate part: D660-0077.
Year Make Model Chassis Engine
2017-2020 BMW 440i Convertible F33 B58 3.0L
2017-2020 BMW 440i xDrive Convertible F33 B58 3.0L
2017-2020 BMW 440i Gran Coupe F36 B58 3.0L
2017-2020 BMW 440i xDrive Gran Coupe F36 B58 3.0L
